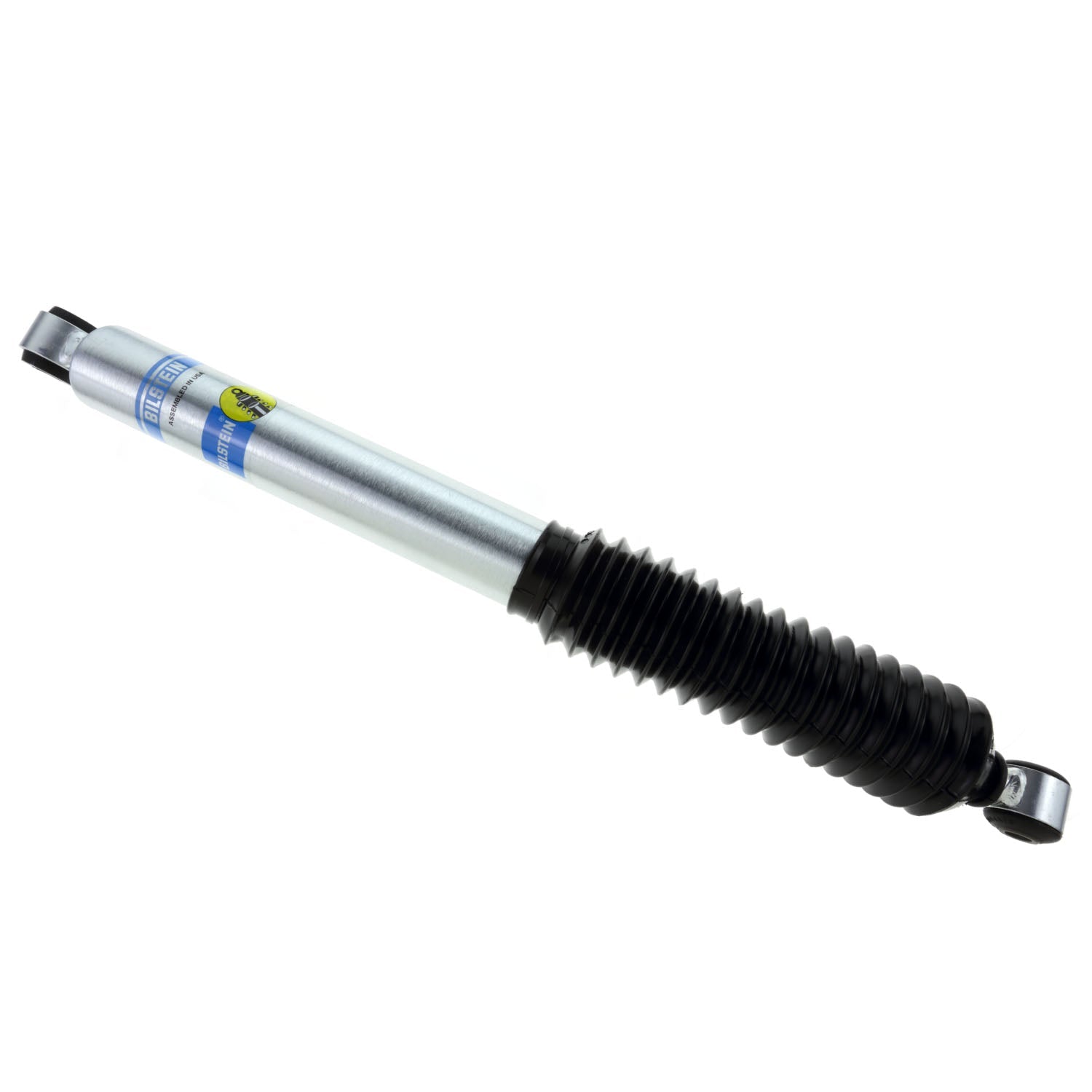

Bilstein 33-187297 B8 5100 Series Shock Absorber (Front, 1999-2004 73./6.0L Powerstroke 4WD)
Want this installed at our shop?
Fill out the form below and we'll reach out to schedule your installation.
Diesel Dollars is Southern Diesel Supply's Loyalty Program. Purchasing with Us Earns you 1 Point for every 1 Dollar spent to use for future buys!
By ordering the Bilstein 33-187297 B8 5100 Series Shock Absorber (Front, 1999-2004 73./6.0L Powerstroke 4WD) you will earn 124 DIESEL DOLLARS in your SDS Fuel Tank!
General Description
The Bilstein 33-187297 5100 Series Shock Absorbers for your 1999-2004 Ford F-250/350 & 2000-2005 Ford Excursion are high gas pressure monotube shocks designed specifically for your stock height and lifted pickup. These shocks feature a 46mm digressive piston with self-adjusting deflective disc valving and a zinc-plated steel body with Triple-C-Technology coating. They offer super damping ability that makes them ideal for heavy hauling or occasional off-road use, while maintaining an exceptional street ride. Shock Absorbers sold individually.
- Collapsed Length (IN): 14.44
- Extended Length (IN): 23.23
- Collapsed Length (MM): 366.8
- Extended Length (MM): 590
Applications:
- 2000-2005 Ford Excursion
- 1999-2004 Ford Super Duty F-250/350
Note: *Lift Height is suggested by mfg. Due to the many different aftermarket suspension systems it is recommended that a measurement is taken for proper application. An eye to eye shock is measured from the center of one eyelet to other.
WARRANTY INFO:
Limited Lifetime
Specifications
- Part Number: 33-187297
- Old Part Number: F4-BE5-F580-H0
- Setting: 5100 Series
- Drive Type: 4WD
- Position: Front
- Front Spring Type: Leaf Rear Spring Type: Leaf
- Descriptor: Front Lifted Height: 0-2.5"
- Quantity Per Vehicle: 2
- Finish: Zine plated
- Reservoir: No
- Body Design: 46mm ID smooth body (Non-coilover)
