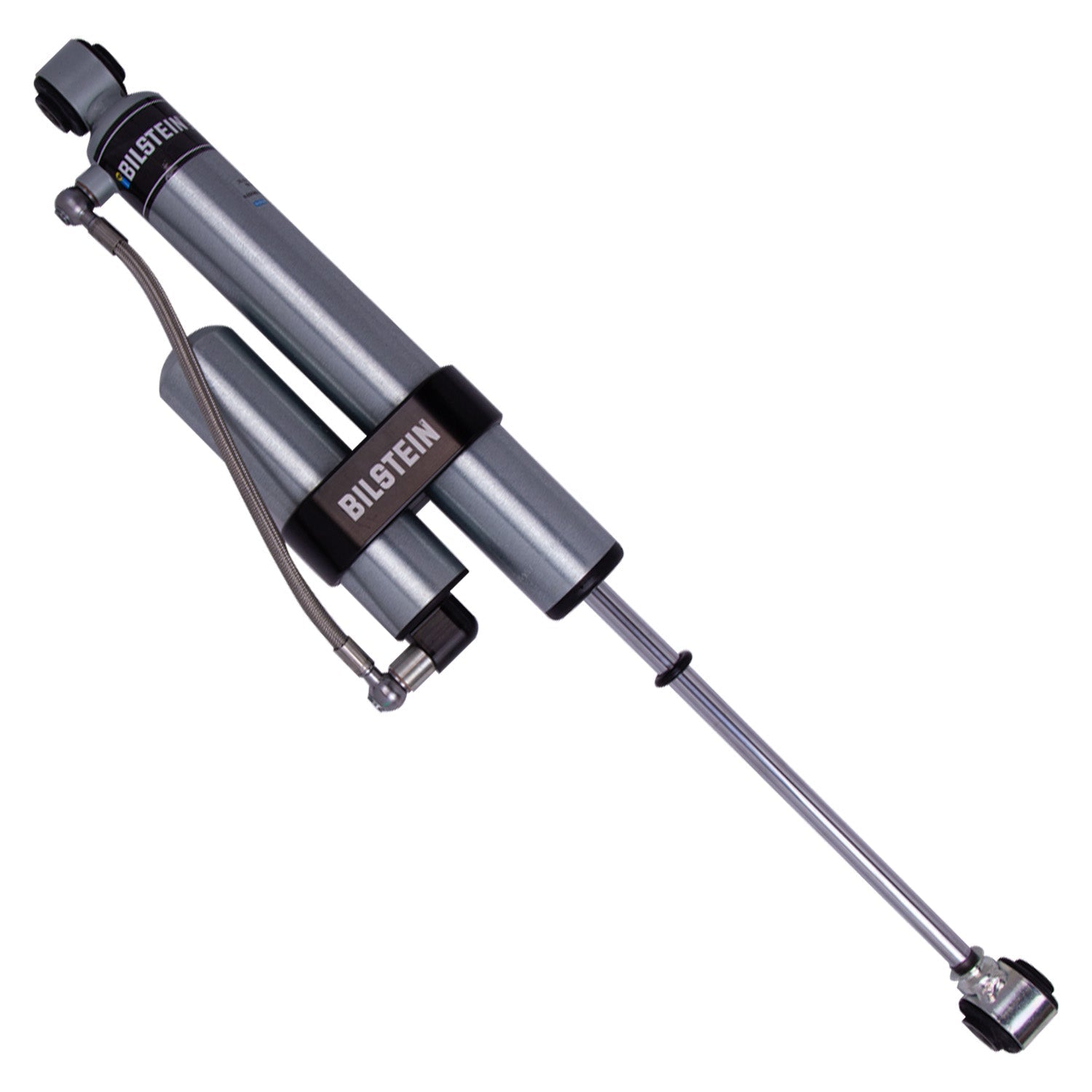

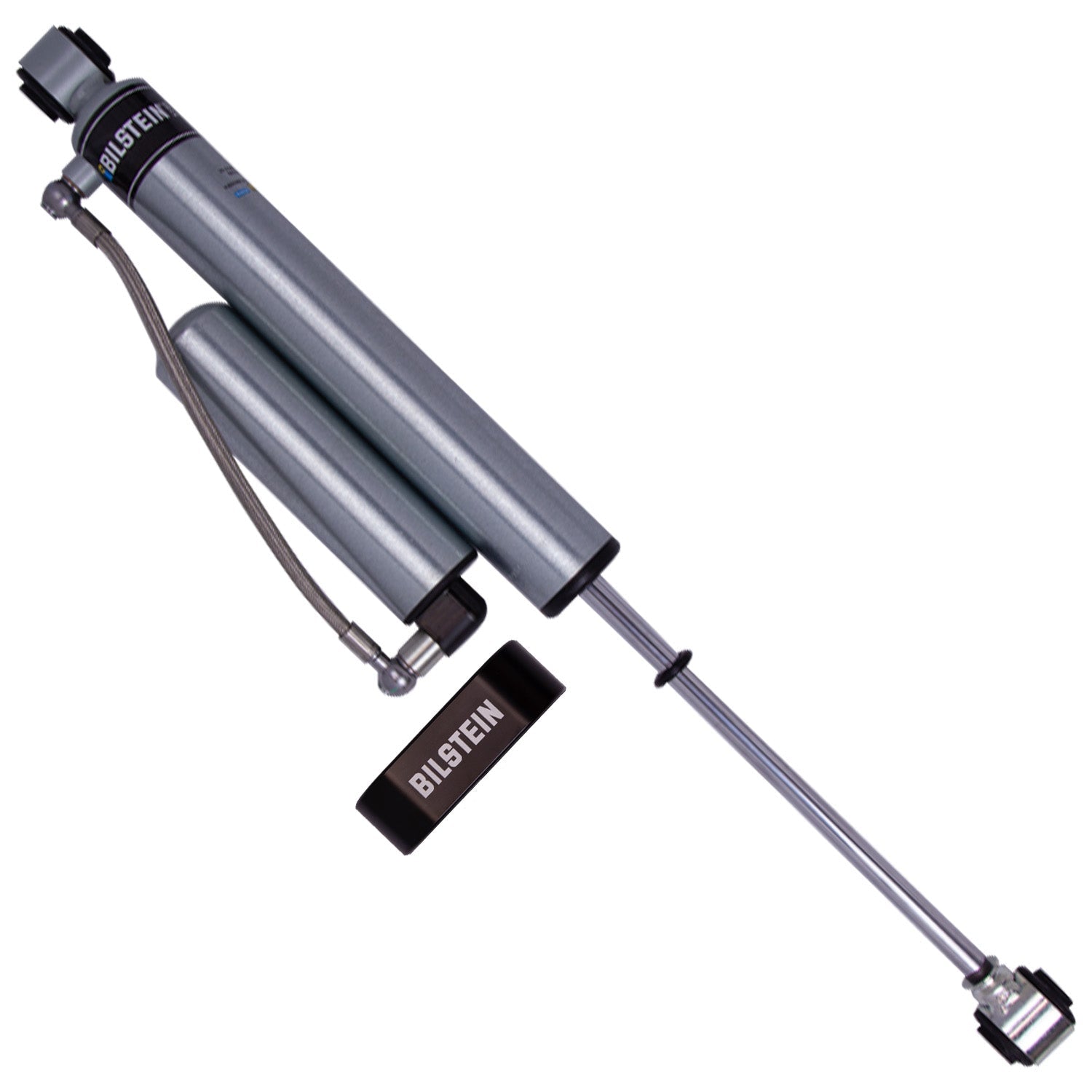

Bilstein 25-316964 B8 5160 Series Shock Absorber (Rear, 2019-2025 3.0L Duramax 4WD)

Upgrade the ride and handling in your GM Silverado/Sierra 1500 with the Bilstein 25-316964 5160 Series Shock Absorber from SDS. The B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUV's. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360-degree swivel banjo hose fitting, providing a clean, low=profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.

Measurements:

• Collapsed Length (IN): 17.40
• Extended Length (IN): 27.61
• Collapsed Length (MM): 442.0
• Extended Length (MM): 701.2

WARRANTY INFO:

2 Year

Note: 4WD; For Rear Lifted Height: 0-3"

*Lift Height is suggested by mfg. Due to the many different aftermarket suspension systems it is recommended that a measurement is taken for proper application. A pin to eye shock is measured from the base of the stem where the mounting hardware rests to the center of the eyelet. Shock Absorbers sold individually.

• Part Number: 25-316964
• Series: 5160 Series
• Position: Rear
• Quantity Per Vehicle: 2 (Sold Individually)
• Finish: Zinc Plated
• Reservoir: Yes

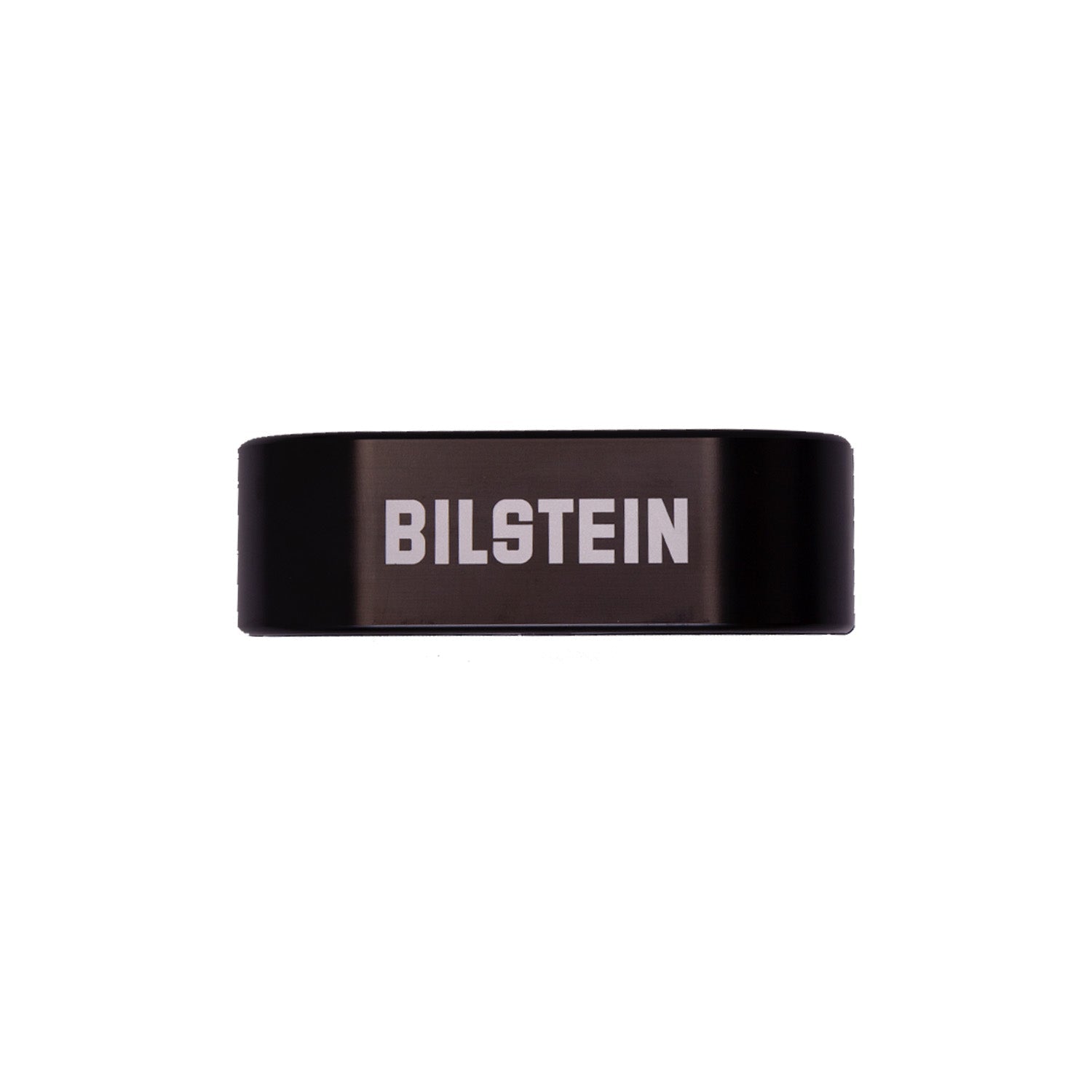

• Billet Reservoir Clamp Included: Yes
• Body Design: Smooth Body (Non-Coilover)
• Body Diameter: 46mm
• Spring Seat Included: No
• Adjustable Damping: Non-Adjustable
