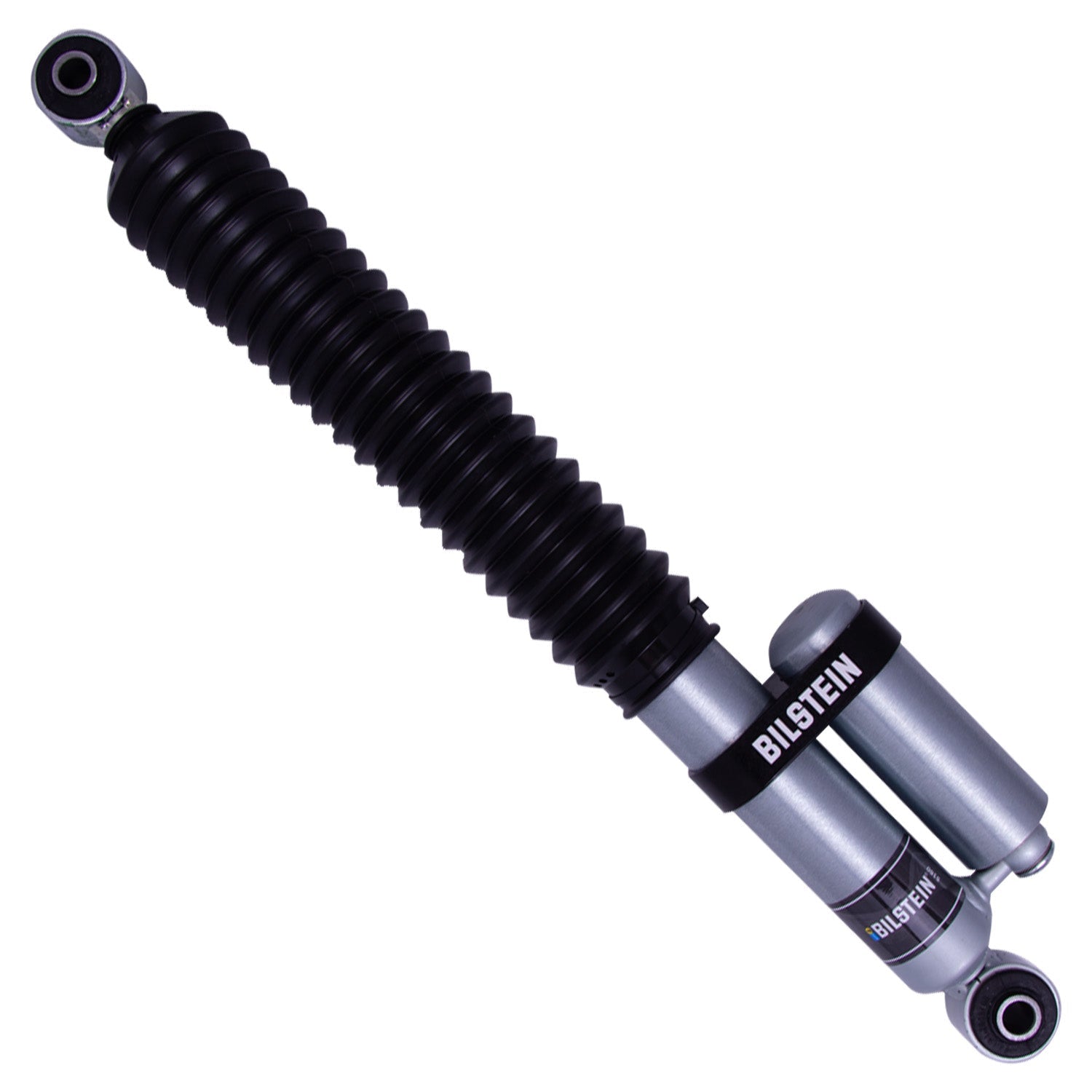

Bilstein 25-316926 B8 5160 Series Shock Absorber (Rear, 2015-2022 2.8L Duramax)

Upgrade the shocks in your GM Colorado/Canyon with the Bilstein 25-316926 5160 Series Shock Absorber from SDS. The Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUV's. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360-degree swivel banjo hose fitting, providing a clean, low-profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.

Measurements:

• Collapsed Length (IN): 14.80
• Extended Length (IN): 23.58
• Collapsed Length (MM): 376.0
• Extended Lenath (MM): 599.0

WARRANTY INFO:

2 Year

Note: For Rear Lifted Height: 0-1.5"

*Lift Height is suggested by mfg. Due to the many different aftermarket suspension systems it is recommended that a measurement is taken for proper application. A pin to eve shock is measured from the base of the stem where the mounting hardware rests to the center of the eyelet. Shock Absorbers sold individually.

• Part Number: 25-316926
• Series: 5160 Series
• Position: Rear
• Quantity Per Vehicle: 2 (Sold Individually)
• Finish: Zinc Plated
• Reservoir: Yes
• Billet Reservoir Clamp Included: Yes
• Body Design: Smooth Body (Non-Coilover)
• Body Diameter: 46mm
• Spring Seat Included: No
• Adjustable Damping: Non-Adjustable
