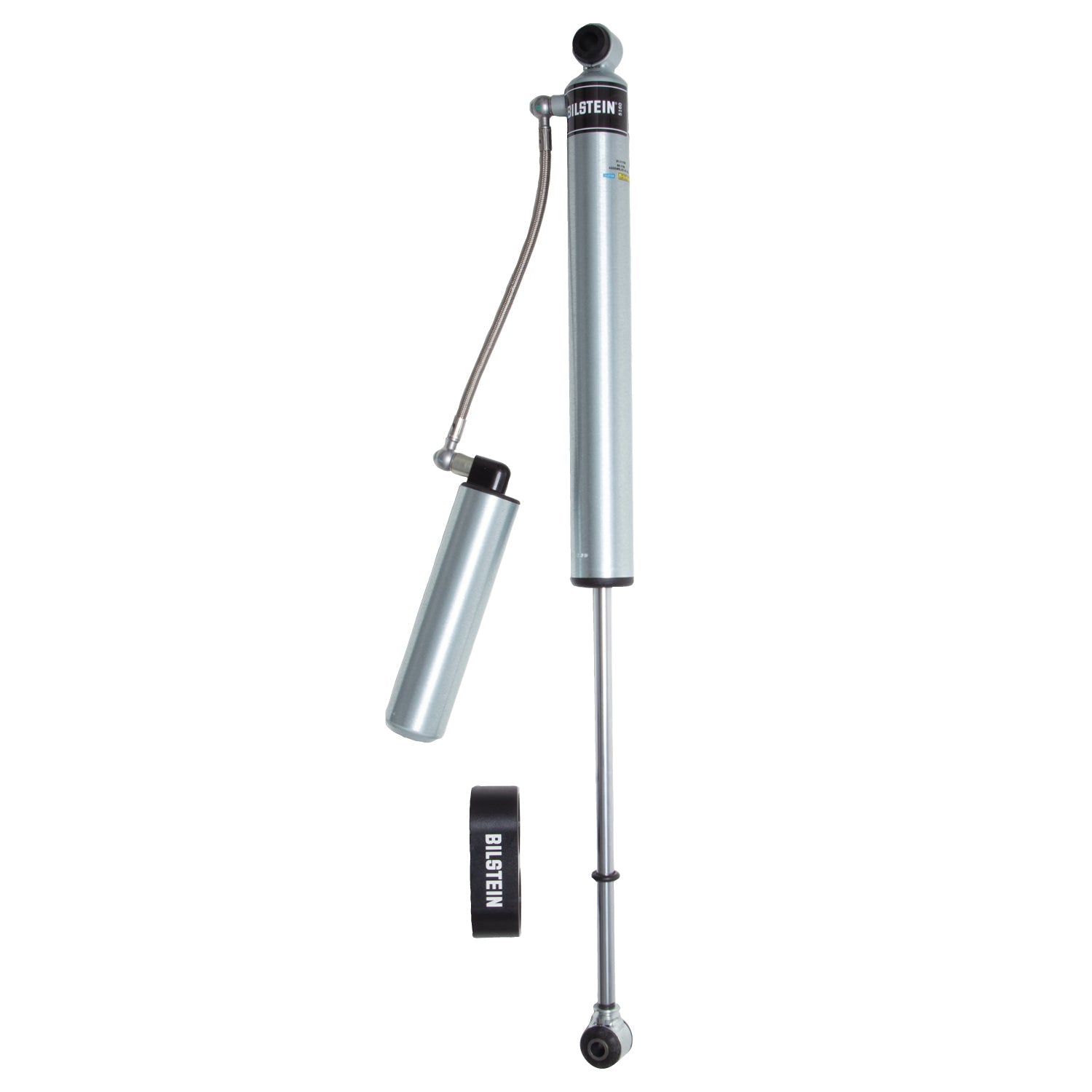

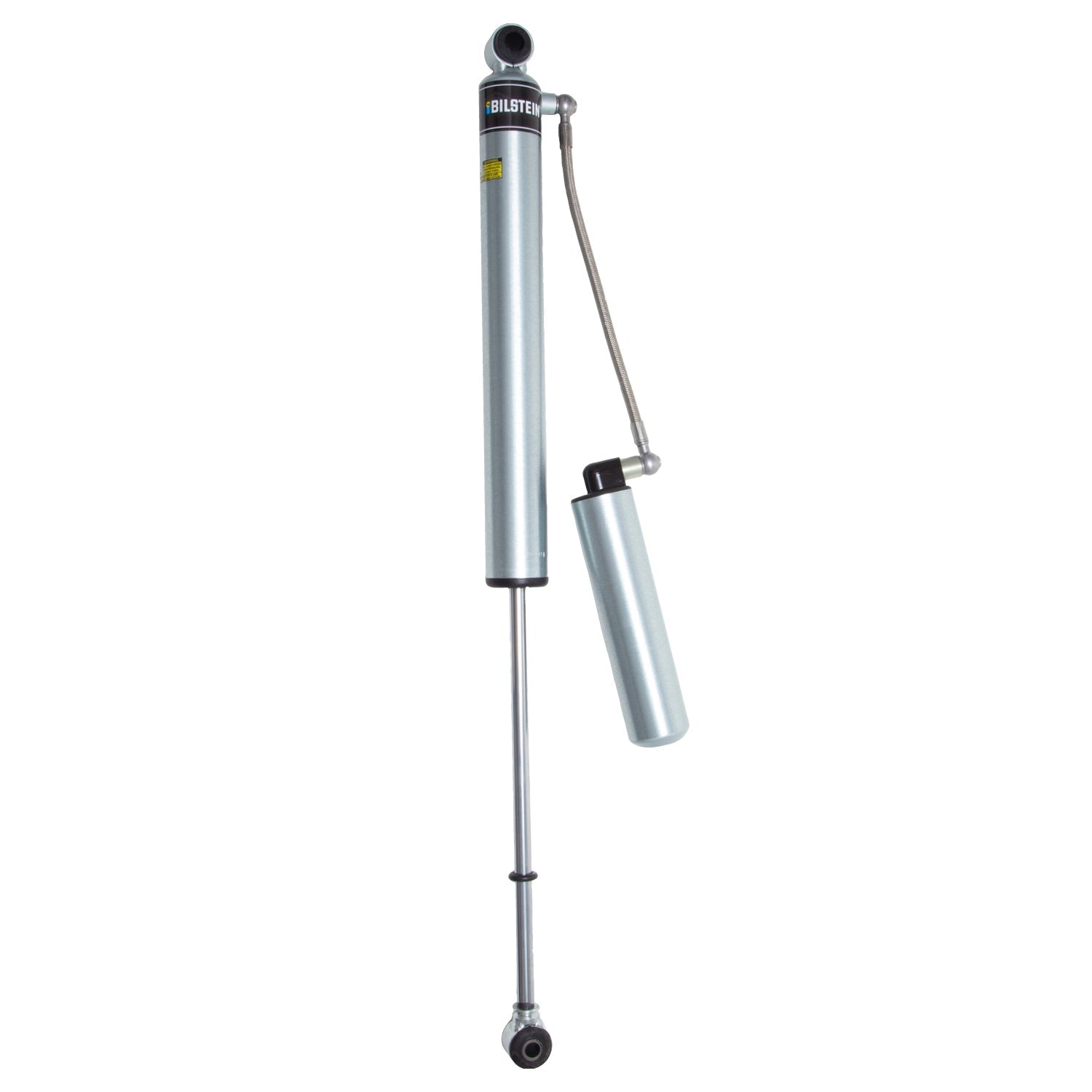

Bilstein 25-311785 B8 5160 Series Shock Absorber (Rear, 2005-2016 6.0/6.4/6.7L Powerstroke 4WD)

SDS offers the Bilstein 25-311785 5160 Series Shock Absorber that is an excellent replacement for the bad shock in your 2005-2016 Ford F-250/350 4WD Pickup. This bolt-in replacement is designed to help you avoid fabrication that is generally associated with being able to run a high-performance reservoir shock. This monotube shock features a 46mm digressive piston with self-adjusting deflective disc valving for a better ride and comes with a Triple-C-Technology zinc-plated steel body. Benefits of the reservoir include increased cooling capacity and increased shock travel.

Specifications:

• Part Number: 25-187786
• Old Part Number: F4-BR5-H076-HO
• Series: 5160 Series
• Drive Type: 4WD
• Position: Rear
• Descriptor: Rear Lifted Height: 0-2'
• Quantity Per Vehicle: 2 (Sold Individually)
• Finish: Zinc Plated
• Reservoir: Yes
• Body Design: 46mm ID Smooth Body (Non-Coilover)

Measurements:

• Collapsed Length (IN): 18.03
• Extended Length (IN): 31.24
• Collapsed Length (MM): 458
• Extended Length (MM): 793.5

Applications:

• 2005-2016 F-250 Super Duty
• 2005-2016 F-350 Super Duty

WARRANTY INFO:

2 Year

Note: Lift Height is suggested by mfg. Due to the many different aftermarket suspension systems it is recommended that a measurement is taken for proper application. A pin to eye shock is measured from the base of the stem where the mounting hardware rests to the center of the eyelet. Shock Absorbers sold individually.
