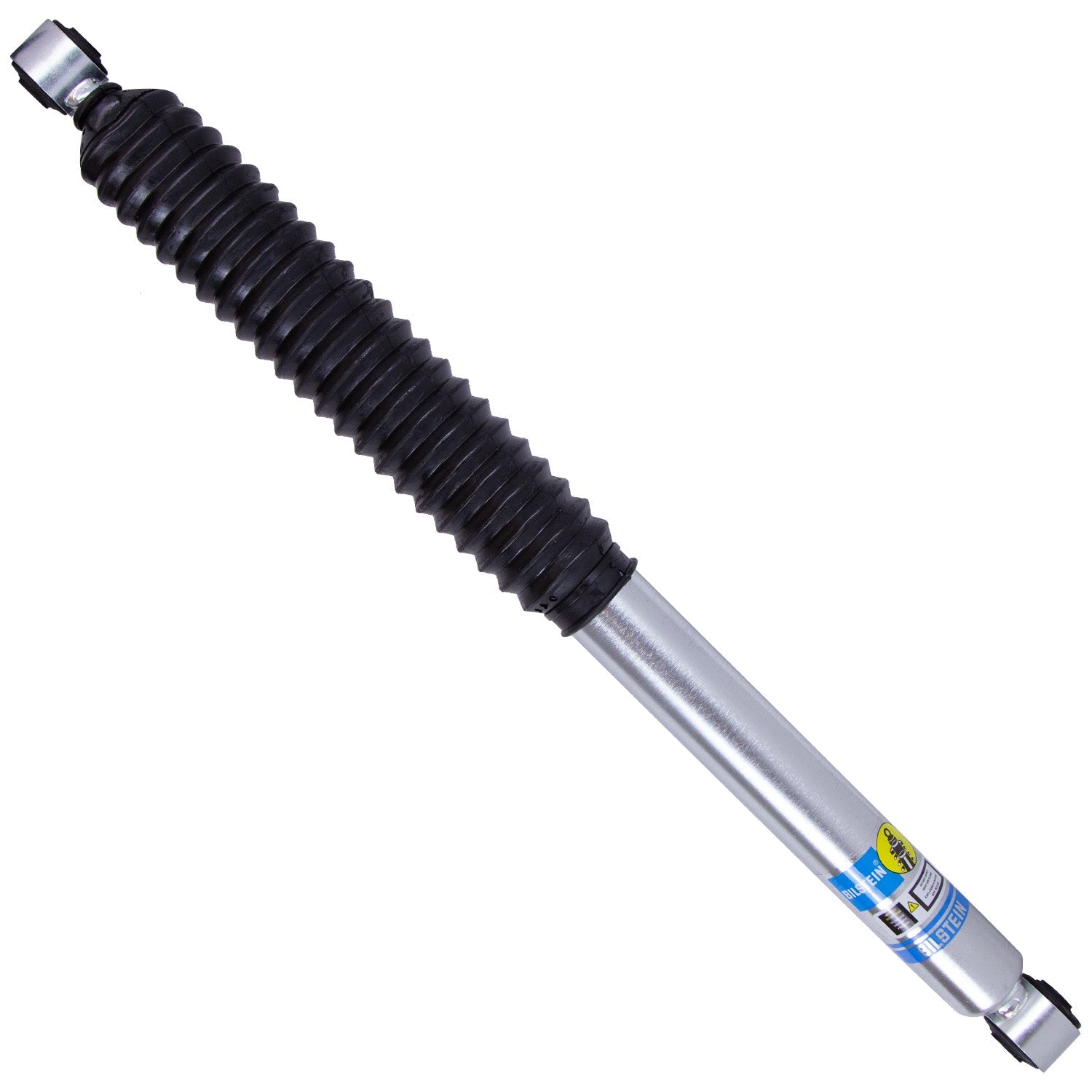

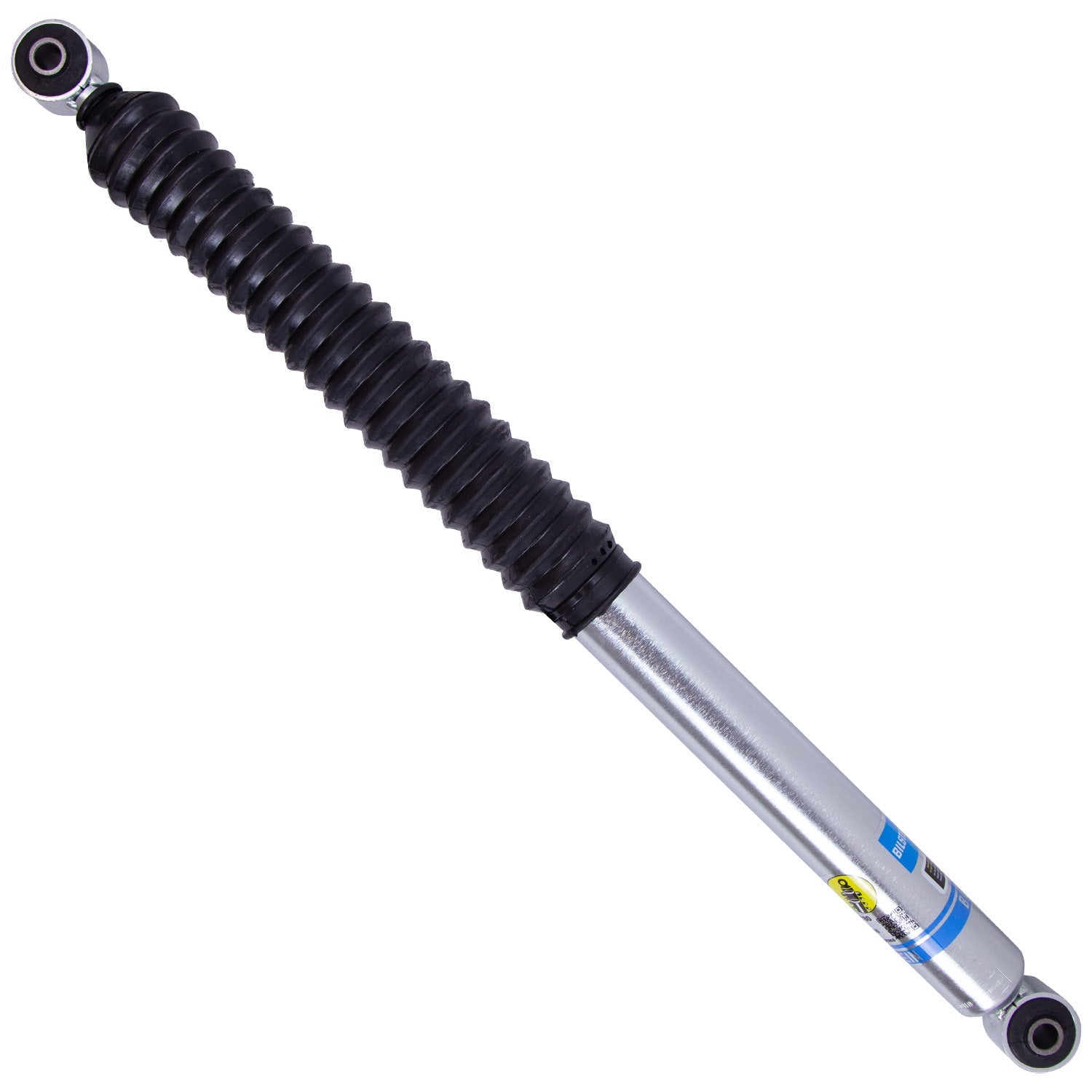

Bilstein 24-285780 B8 5100 Series Shock Absorber (Rear, 2013-2025 3500 6.7L Cummins)

Upgrade the suspension on your Ram 3500 with 2-3" Lift with the Bilstein 24-285780 5100 Series Shock Absorber from SDS. Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV's. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

Measurements:

• Collapsed Length (IN): 19.57
• Extended Length (IN): 29.88
• Collapsed Length (MM): 497.0
• Extended Length (MM): 759.0

WARRANTY INFO:

Limited Lifetime

Note: For Rear Lifted Height: 2-3"

*Lift Height is suggested by mfg. Due to the many different aftermarket suspension systems it is recommended that a measurement is taken for proper application. A pin to eye shock is measured from the base of the stem where the mounting hardware rests to the center of the eyelet. Shock Absorbers sold individually.

• Part Number: 24-285780
• Series: 5100 Series
• Position: Rear
• Quantity Per Vehicle: 2 (Sold Individually)
• Finish: Zinc Plated
• Reservoir: No
• Body Design: Smooth Body (Non-Coilover)
• Body Diameter: 46mm
• Spring Seat Included: No
• Adjustable Damping: Non-Adjustable
