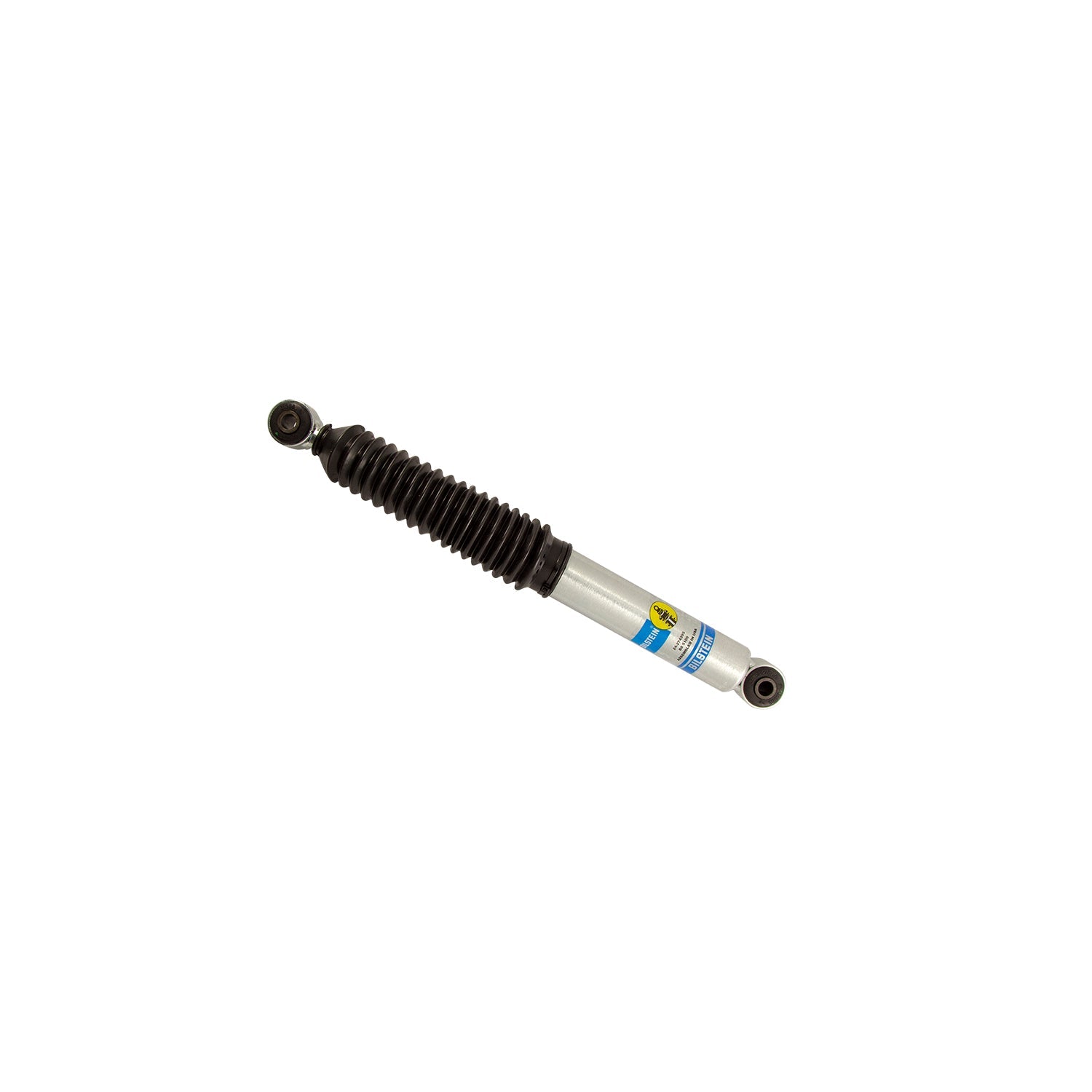

Bilstein 24-274395 B8 5100 Series Shock Absorber (Rear, 2014-2025 2500 6.7L Cummins Rear Axle Anti-Wrap Power Hop Shock Absorber)
Want this installed at our shop?
Fill out the form below and we'll reach out to schedule your installation.
Diesel Dollars is Southern Diesel Supply's Loyalty Program. Purchasing with Us Earns you 1 Point for every 1 Dollar spent to use for future buys!
By ordering the Bilstein 24-274395 B8 5100 Series Shock Absorber (Rear, 2014-2025 2500 6.7L Cummins Rear Axle Anti-Wrap Power Hop Shock Absorber) you will earn 124 DIESEL DOLLARS in your SDS Fuel Tank!
General Description
Replace the Rear Axle Anti-Wrap Power Hop Shock Absorber in your 2014-2024 Dodge Ram 2500 when you mount the Bilstein 24-274395 5100 Series Shock Absorber. Engineered as a direct fit solution, the 5100 Series Shock Absorber has a monotube design that is incredibly consistent and does not fade. The 5100 Series Shock Absorber has a unique, velocity sensitive, digressive piston and is tuned for each specific application.
Measurements:
- Collapsed Length: (IN) 14.69
- Extended Length: (IN) 20.33
- Collapsed Length: (MM) 373.0
- Extended Length: (MM) 516.5
Note:
This is a replacement shock used in the Rear Axle Anti-Wrap Power Hop System on 2500 2WD/4WD trucks. It is NOT a replacement shock absorber for the suspension.
WARRANTY INFO:
Limited Lifetime
Specifications
- Series: 5100 Series
- Drive Type: 2WD/4WD
- Lifted Height: 0
- Quantity Needed Per Vehicle: 1
- Finish: Zinc Plated
- Reservoir: No
- Body Design: 46mm Smooth Body (Non-Coilover)
