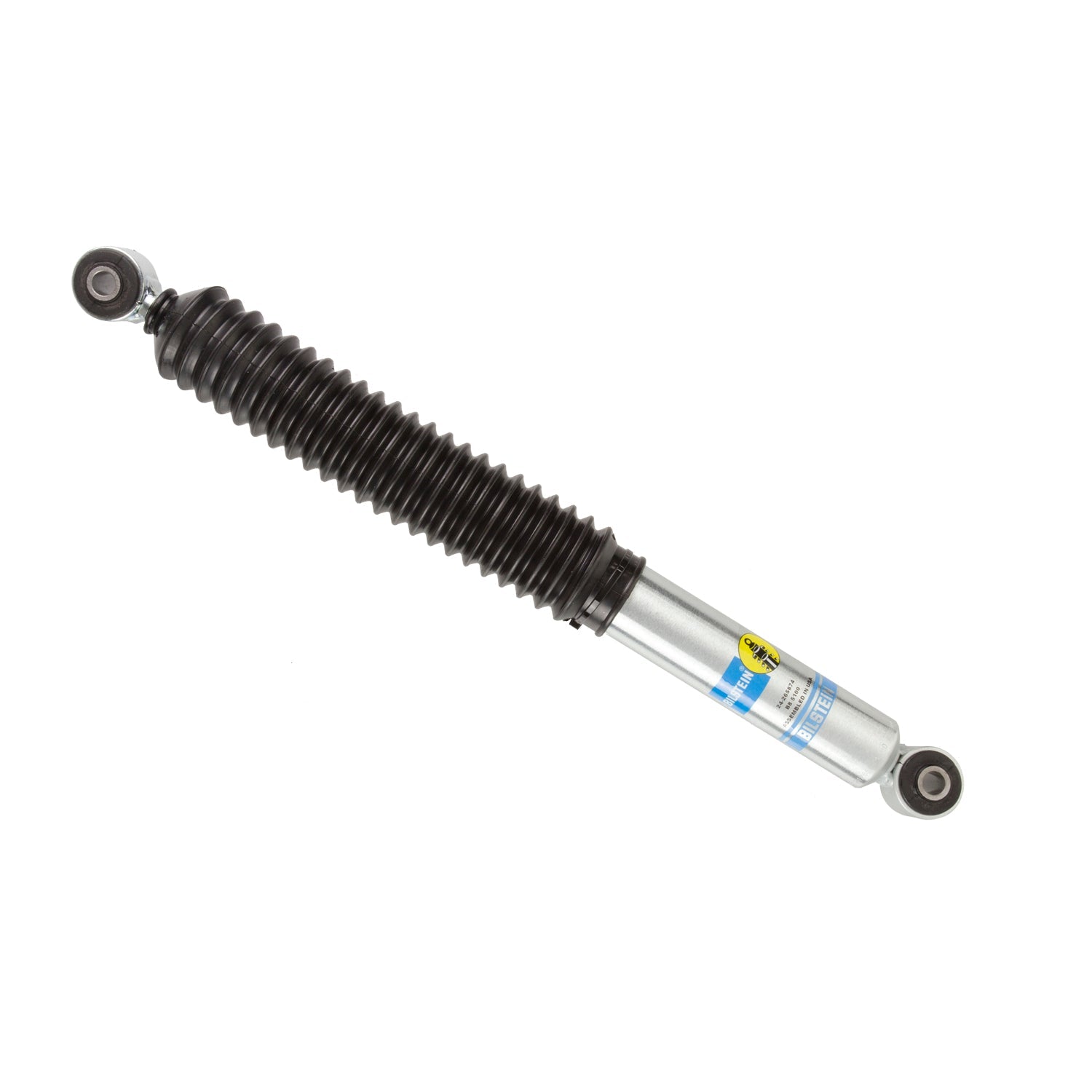

Bilstein 24-265874 B8 5100 Series Shock Absorber (Rear, 2016-2022 2.8L Duramax 4WD)
Diesel Dollars is Southern Diesel Supply's Loyalty Program. Purchasing with Us Earns you 1 Point for every 1 Dollar spent to use for future buys!
By ordering the Bilstein 24-265874 B8 5100 Series Shock Absorber (Rear, 2016-2022 2.8L Duramax 4WD) you will earn 124 DIESEL DOLLARS in your SDS Fuel Tank!
General Description
Get better handling on and off-road in your 2016-2022 GM Colorado/Canyon 4WD by installing the Bilstein 24-265874 5100 Series Shock Absorber. This high gas pressure shock features longer service life under intense conditions, a monotube design with patented digressive valving to give your truck fade-free handling, stability and enhanced safety. Sold Individually.
Measurements:
- Collapsed Length (IN) 14.80
- Extended Length (IN)23.24
- Collapsed Length (MM)376.0
- Extended Length (MM)590.2
Applications:
- 2016-2022 GM Colorado/Canyon
Note: Lift height is suggested by mfg. Due to the many different aftermarket suspension systems it is recommended that a measurement is taken for proper application. A pin to eye shock is measured from the base of the stem where the mounting hardware rests to the center of the eyelet.
WARRANTY INFO:
Limited Lifetime
Specifications
- Part Number: 24-265874
- Series: 5100 Series
- Drive Type: 4WD
- Position: Rear
- Descriptor: Rear Lifted Height: 0-1*
- Quantity Needed Per Vehicle: 2
- Finish: Zinc Plated
- Reservoir: No
- Body Design: 46mm ID Smooth Body (Non-Coilover)
