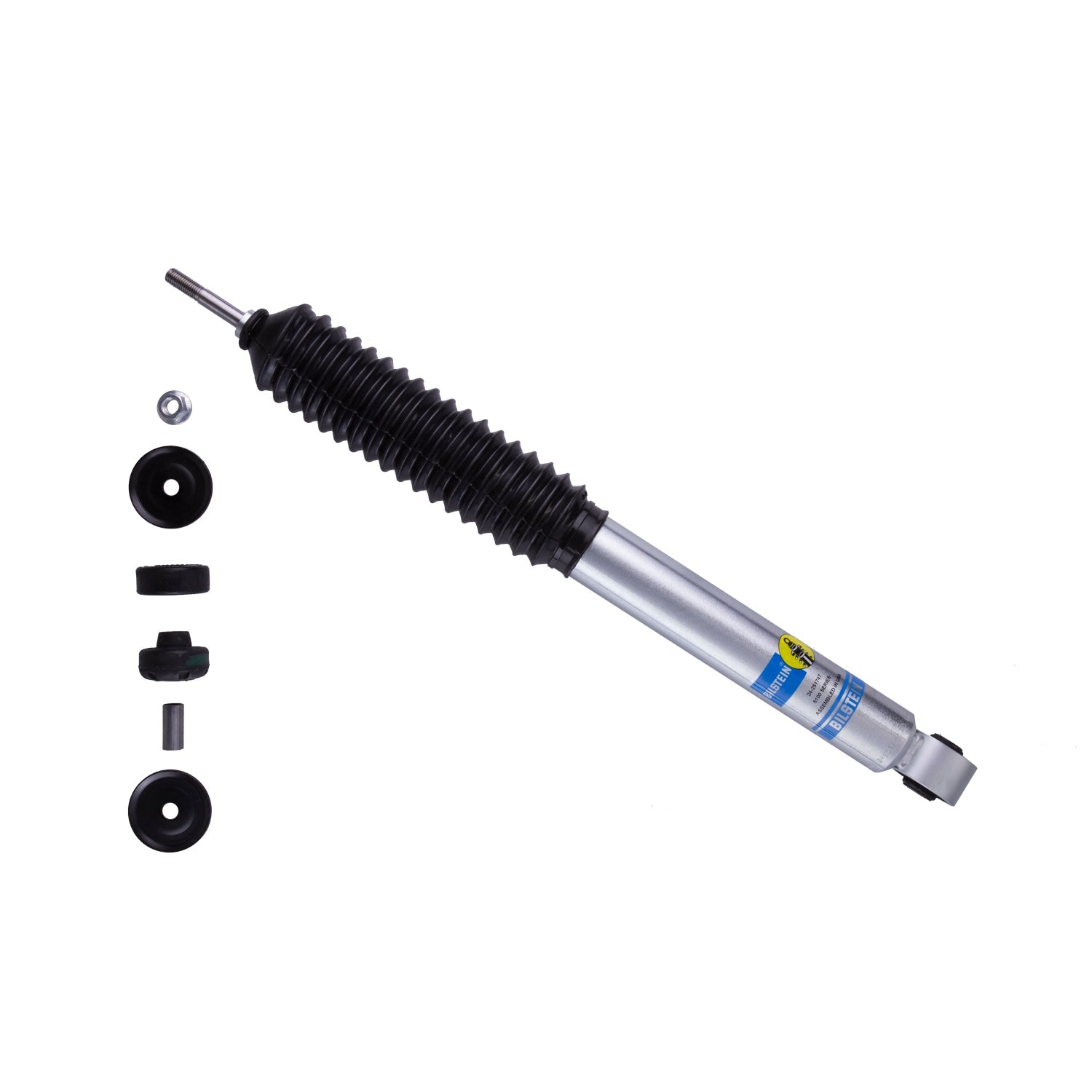

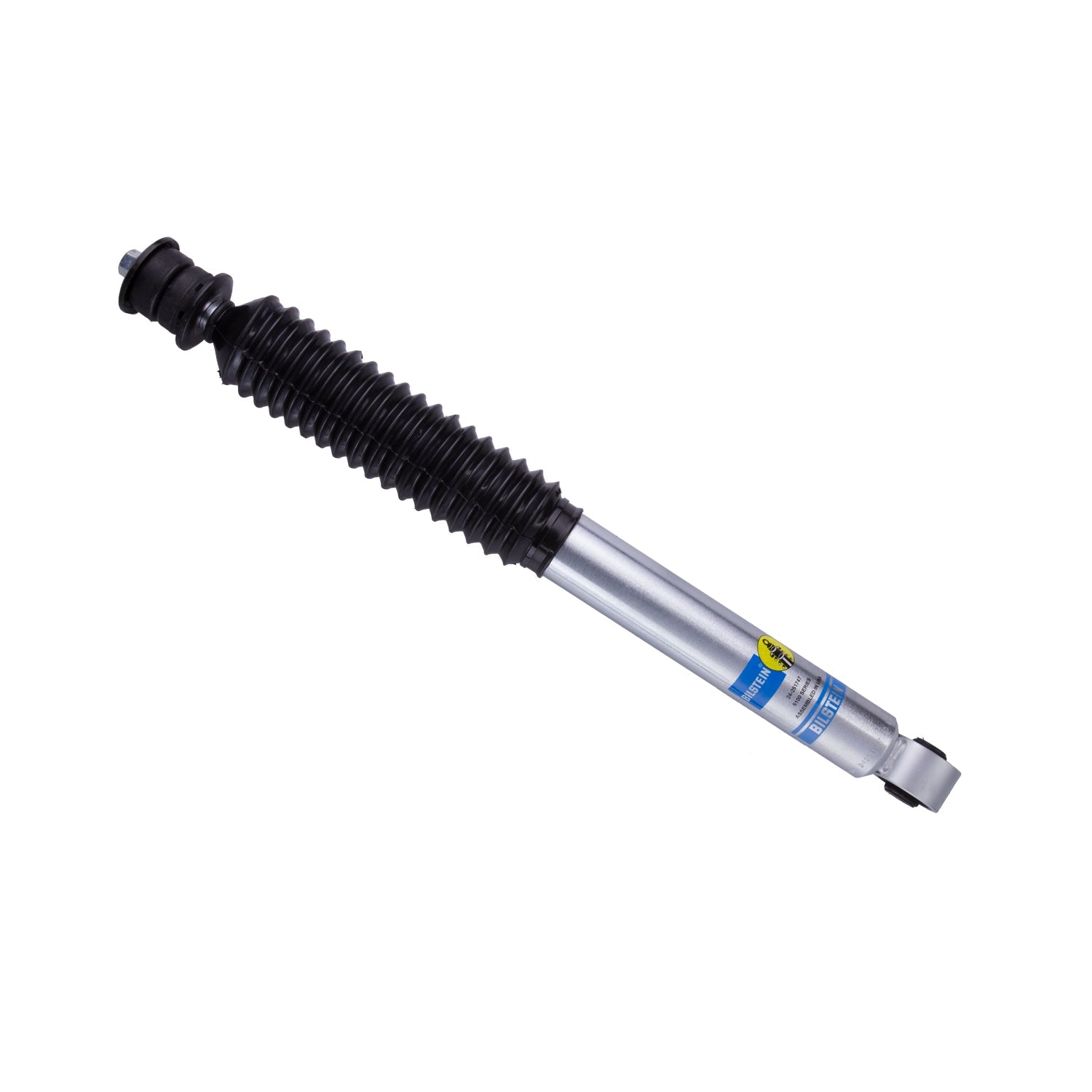

The Bilstein 24-251747 5100 Series Shock Absorber is designed as a direct fit upgrade for your 2013-2026 Ram 3500 4WD Pickup. This shock absorber features a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

Measurements:

• Collapsed Length (IN): 15.04
• Extended Length (IN): 22.64
• Collapsed Length (MM): 382
• Extended Length (MM): 575

Note: Lift is suggested by mfg. Due to the many different aftermarket suspension systems it is recommended that a measurement is taken for proper application. A pin to eye shock is measured from the base of the stem where the mounting hardware rests to the center of the eyelet. Shock absorbers are sold individually.

WARRANTY INFO:

Limited Lifetime

• Series: B8 5100
• Drive Type: 4WD
• Position: Front
• Descriptor: For Front Lifted Height: 2-2.5"
• Quantity Per Vehicle: 2 (Sold Individually)
• Finish: Zinc Plated
• Body Design: 46mm ID Smooth Body (Non-Coilover)
• Reservoir: No
