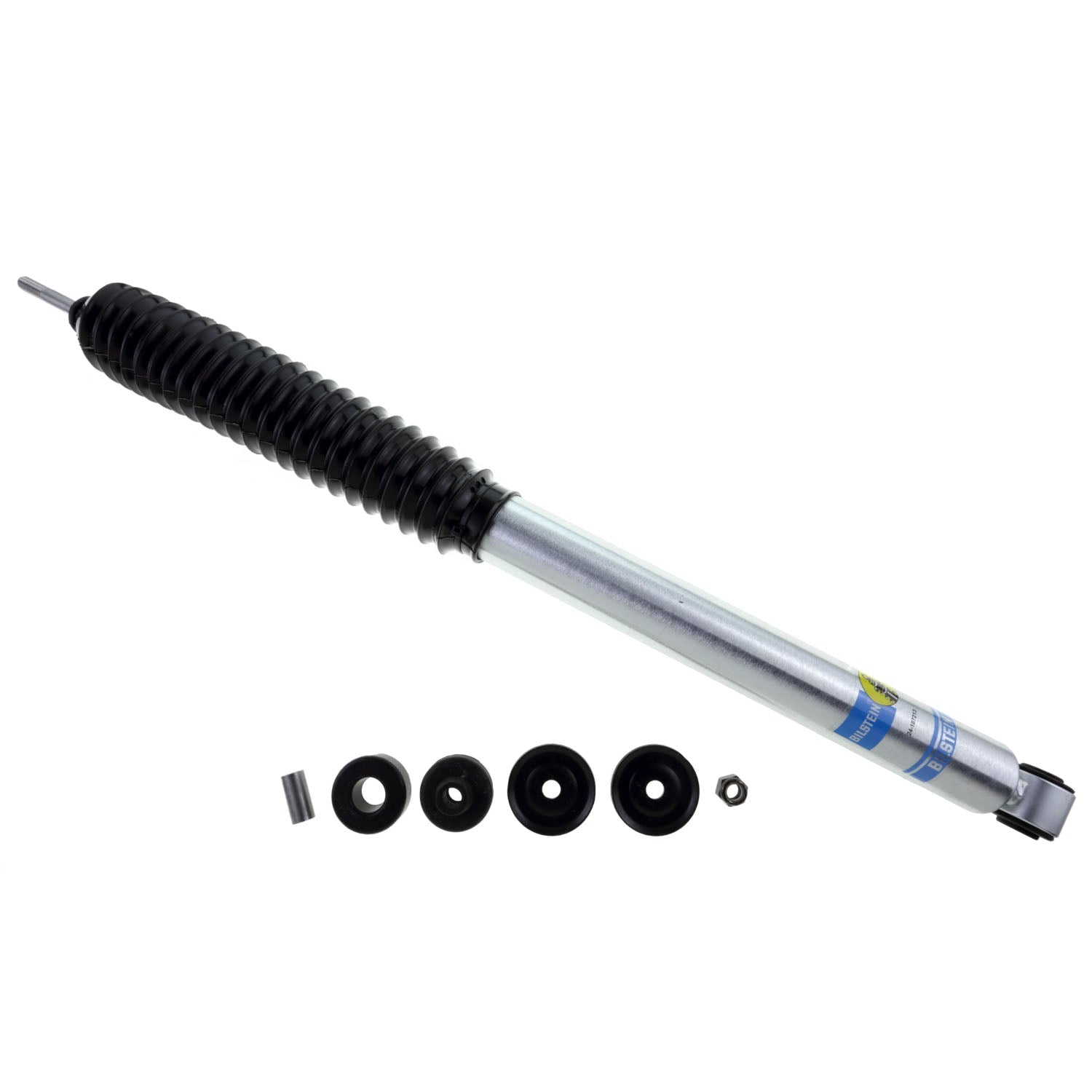

Designed specifically for lifted pickups, SUV's and Jeeps, the Bilstein 24-187213 5100 Series Shock Absorber are high performance, high gas pressure monotube shocks. These shocks look as good as they perform with a zinc-plated steel body and triple-c coating technology. Internally, they feature a 46mm digressive piston with self-adjusting deflective disc valving. The super damping ability that makes them ideal for heavy hauling or occasional off-road use, while maintaining an excellent ride on the street.

Measurements:

• Collapsed Length (IN): 19.57
• Extended Length (IN): 30.31
• Collapsed Length (MM): 497
• Extended Length (MM): 770

Applications:

• 1994-2013 Dodge Ram 2500
• 1994-2012 Dodge Ram 3500

Note: * 6-8* Lift is suggested by mfg. Due to the many different aftermarket suspension systems it is recommended that a measurement is taken for proper application. A pin to eye shock is measured from the base of the stem where the mounting hardware rests to the center of the eyelet. Shock Absorbers sold individually.

WARRANTY INFO:

Limited Lifetime

• Part Number: 24-187213
• Old Part Number: F4-BE5-F255-HO
• Setting: 5100 Series
• Drive Type: 4WD
• Position: Front
• Descriptor: Front Lifted Height: 6-8*
• Quantity Needed Per Vehicle: 2 (Sold Separately)
• Finish: Zinc plated
• Reservoir: No
• Body Design: 46mm ID smooth body (Non-coilover)
