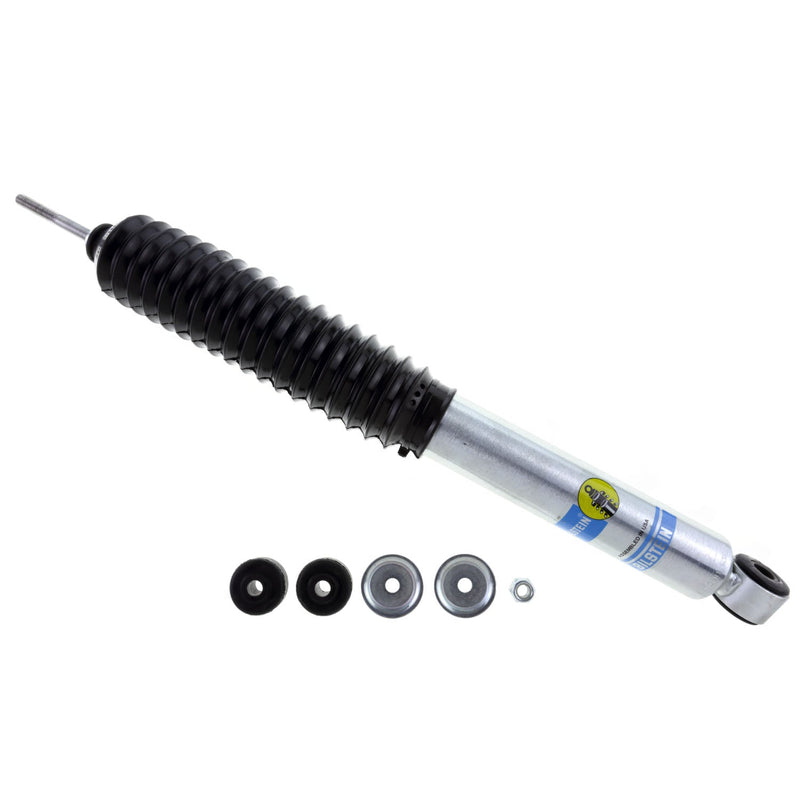

Bilstein 24-187183 B8 5100 Series Shock Absorber (Front, 2001-2010 6.6L Duramax)
Diesel Dollars is Southern Diesel Supply's Loyalty Program. Purchasing with Us Earns you 1 Point for every 1 Dollar spent to use for future buys!
By ordering the Bilstein 24-187183 B8 5100 Series Shock Absorber (Front, 2001-2010 6.6L Duramax) you will earn 124 DIESEL DOLLARS in your SDS Fuel Tank!
General Description
Bilstein 5100 Series Shock Absorbers are high gas pressure monotube shocks expertly created for lifted pickups, SUVs and Jeeps. The shocks feature a 46mm digressive piston with self-adjusting deflective disc valving. 5100 Series Shock Absorbers offer super damping ability that makes them ideal for heavy hauling or occasional off-road use, while maintaining an exceptional street ride.
Measurements:
- Collapsed Length (IN): 13.52
- Extended Length (IN): 21.46
- Collapsed Length (MM): 343.3
- Extended Length (MM): 545
Applications:
- 2001-2010 GM 2500/3500 HD (Non-Quadrasteer)
Note: *Lift Height is suggested by mfg. Due to the many different aftermarket suspension systems it is recommended that a measurement is taken for proper application. A pin to eye shock is measured from the base of the stem where the mounting hardware rests to the center of the eyelet. Shock Absorbers sold individually.
WARRANTY INFO:
Limited Lifetime
Specifications
- Part Number: 24-187183
- Old Part Number: F4-BE5-E710-H1
- Setting: 5100 Series
- Position: Front
- Front Spring Type: Torsion Bar
- Rear Spring Type: Leaf
- Descriptor: Excludes vehicles equipped with Quadrasteer; Front Lifted Height: 4-6°
- Quantity Needed Per Vehicle: 2 (Sold Individually)
- Finish: Zinc plated
- Reservoir: No
- Body Design: 46mm ID smooth body (Non-coilover)
