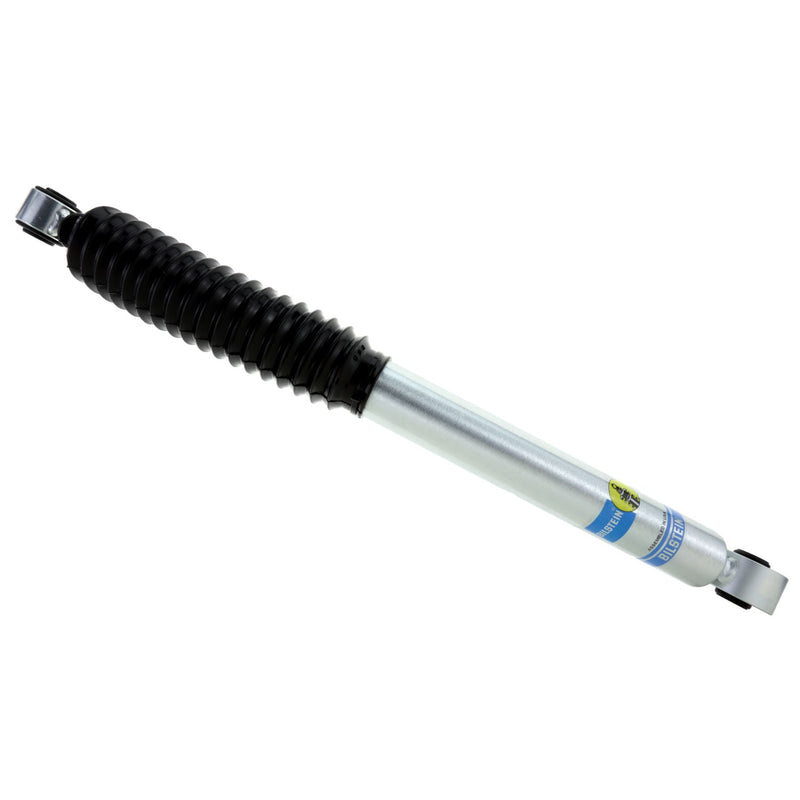

Purchase the Bilstein 24-186742 5100 Series Shock Absorbers are high gas pressure monotube shocks designed specifically for lifted pickups, SUVs and Jeeps. The shocks feature a 46mm digressive piston with self-adjusting deflective disc valving. They offer super damping ability that makes them ideal for heavy hauling or occasional off-road use, while maintaining an exceptional street ride.

Measurements:

• Collapsed Length (IN): 16.14
• Extended Length (IN): 26.15
• Collapsed Length (MM): 410
• Extended Length (MM): 664.2

Applications:

• 2001-2010 GM 2500/3500 HD (Non-Quadrasteer)

Note: *Lift Height is suggested by mg. Due to the many different aftermarket suspension systems it is recommended that a measurement is taken for proper application. An eye to eye shock is measured from the center of one eyelet to the center of the other eyelet. Shock Absorbers sold individually.

WARRANTY INFO:

Limited Lifetime

• Part Number: 24-186742
• Old Part Number: F4-BE5-D147-H0
• Setting: 5100 Series
• Position: Rear
• Front Spring Type: Torsion Bar
• Quantity Needed Per Vehicle: 2 (Sold Separately)
• Rear Spring Type: Leaf
• Descriptor: Excludes vehicles equipped with Quadrasteer; Rear Lifted Height: 0-1|
• Finish: Zinc plated
• Reservoir: No
• Body Design: 46mm ID smooth body (Non-coilover)
