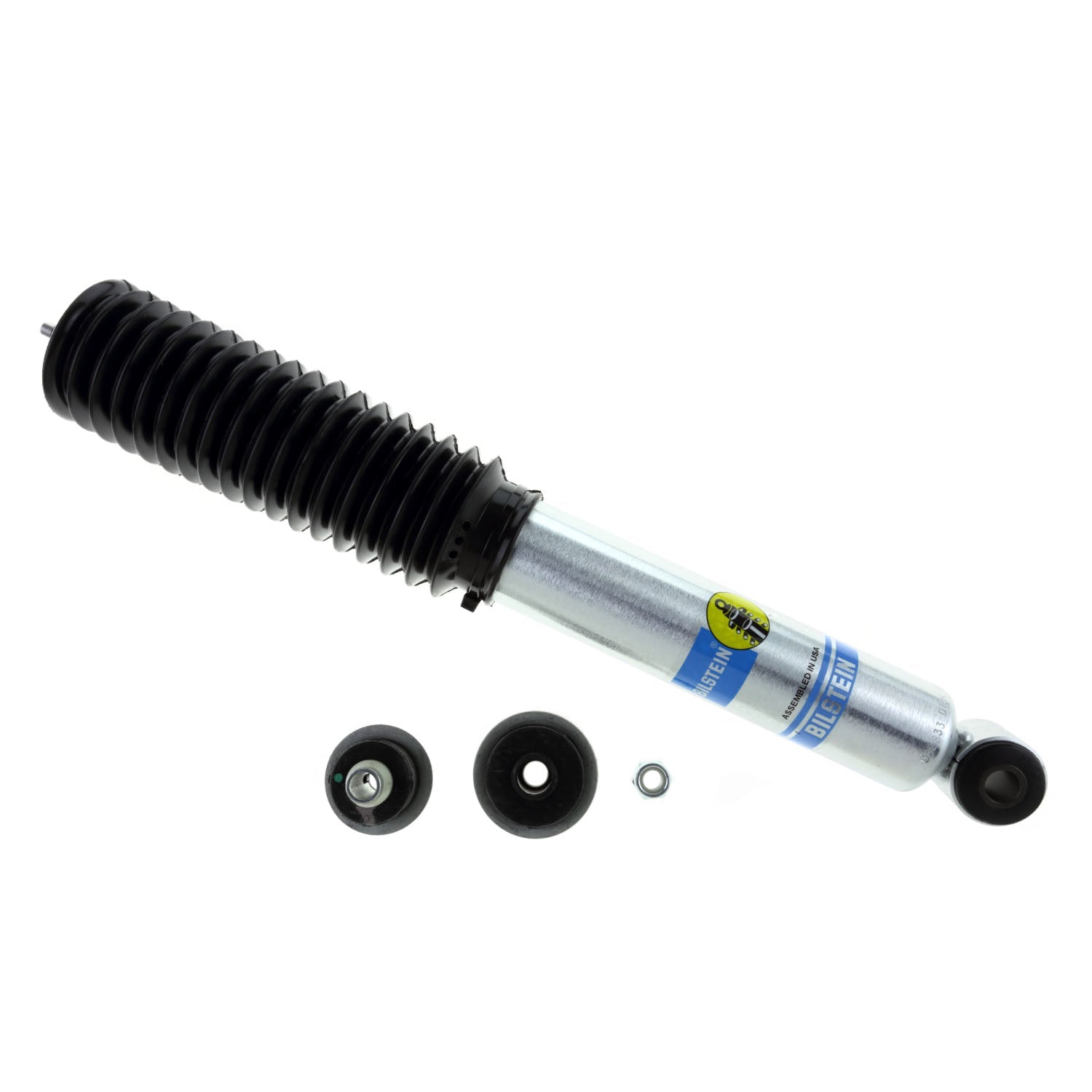

Bilstein 24-186735 B8 5100 Series Shock Absorber (Front, 2001-2010 6.6L Duramax)
Diesel Dollars is Southern Diesel Supply's Loyalty Program. Purchasing with Us Earns you 1 Point for every 1 Dollar spent to use for future buys!
By ordering the Bilstein 24-186735 B8 5100 Series Shock Absorber (Front, 2001-2010 6.6L Duramax) you will earn 124 DIESEL DOLLARS in your SDS Fuel Tank!
General Description
The Bilstein 24-186735 5100 Series Shock Absorber is high gas pressure monotube shocks specifically designed for lifted pickups, SUVs and Jeeps. This shock features a 46mm digressive piston with self-adjusting deflective disc valving. It offers super damping ability that makes it ideal for heavy hauling or occasional off-road use, while maintaining an exceptional street ride. Sold Individually.
Measurements:
- Collapsed Length (IN): 11.3
- Extended Length (IN): 15.76
- Collapsed Length (MM): 287
- Extended Length (MM): 400.2
Applications:
- 2001-2010 GM Silverado/Sierra 2500HD/3500HD
Sold Individually.
*Lift Height is suggested by mfg. Due to the many different aftermarket suspension systems it is recommended that a measurement is taken for proper application. A pin to eye shock is measured from the base of the stem where the mounting hardware rests to the center of the eyelet. Shock Absorbers sold individually.
WARRANTY INFO:
Limited Lifetime
Specifications
- Part Number: 24-186735
- Old Part Number: F4-BE5-D146-H1
- Setting: 5100 Series
- Position: Front
- Descriptor: Front Lifted Height: 0-2.5*; Torsion Key Lift / Leveled
- Quantity Needed Per Vehicle: 2 (sold individually)
- Finish: Zinc plated
- Reservoir: No
- Body Design: 46mm ID smooth body (Non-coilover)
