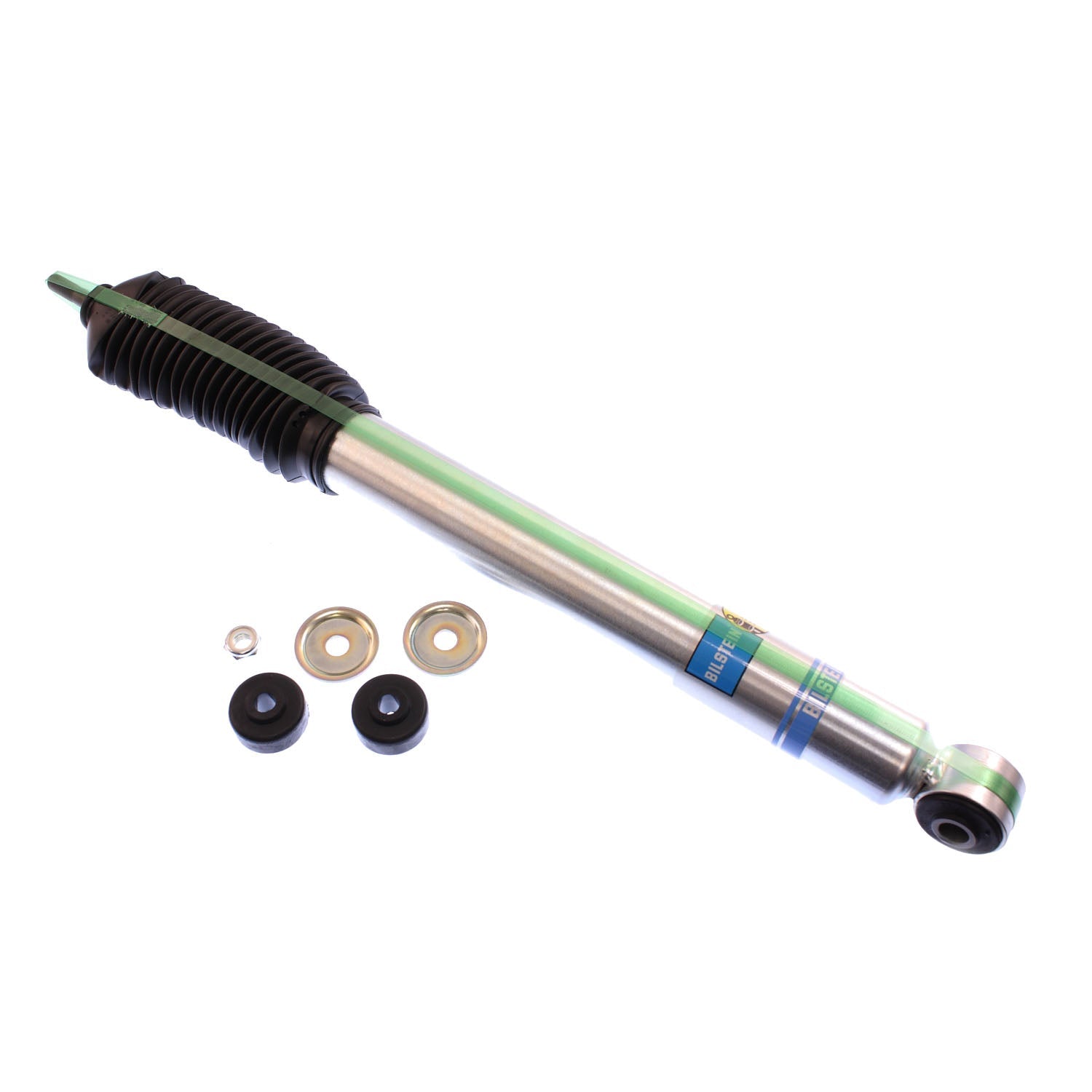

Bilstein 24-186681 B8 5100 Series Shock Absorber (Front, 2005-2016 6.0/6.4/6.7L Powerstroke 4WD)
Diesel Dollars is Southern Diesel Supply's Loyalty Program. Purchasing with Us Earns you 1 Point for every 1 Dollar spent to use for future buys!
By ordering the Bilstein 24-186681 B8 5100 Series Shock Absorber (Front, 2005-2016 6.0/6.4/6.7L Powerstroke 4WD) you will earn 124 DIESEL DOLLARS in your SDS Fuel Tank!
General Description
The Bilstein 5100 Series Shock Absorber 24-186681 is a high gas pressure monotube shocks designed specifically for your lifted 2005-2016 Ford F-250/350 4WD Pickup. These shocks feature a 46mm digressive piston with self-adjusting deflective disc valving. They offer super damping ability that makes them ideal for heavy hauling or occasional off-road use, while maintaining an exceptional street ride.
Applications:
- F-250 Super Duty 2005-2016
- F-350 Super Duty 2005-2016
Note: Lift Height is suggested by mfg. Due to the many different aftermarket suspension systems it is recommended that a measurement is taken for proper application. A pin to eye shock is measured from the base of the stem where the mounting hardware rests to the center of the eyelet. Shock Absorbers sold individually.
WARRANTY INFO:
Limited Lifetime
Specifications
- Part Number: 24-186681
- Old Part Number: F4-BE5-C297-H0
- Series: 5100 Series
- Drive Type: 4WD
- Position: Front
- Description: Front Lifted Height: 6°
- Quantity Per Vehicle: 2 (Sold Individually)
- Collapsed Length (IN): 16.33
- Extended Length (IN): 26.61
- Collapsed Length (MM): 414.8
- Extended Length (MM): 676
- Finish: Zinc Plated
- Reservoir: No
- Body Design: 46mm ID Smooth Body (Non-Cailover)
