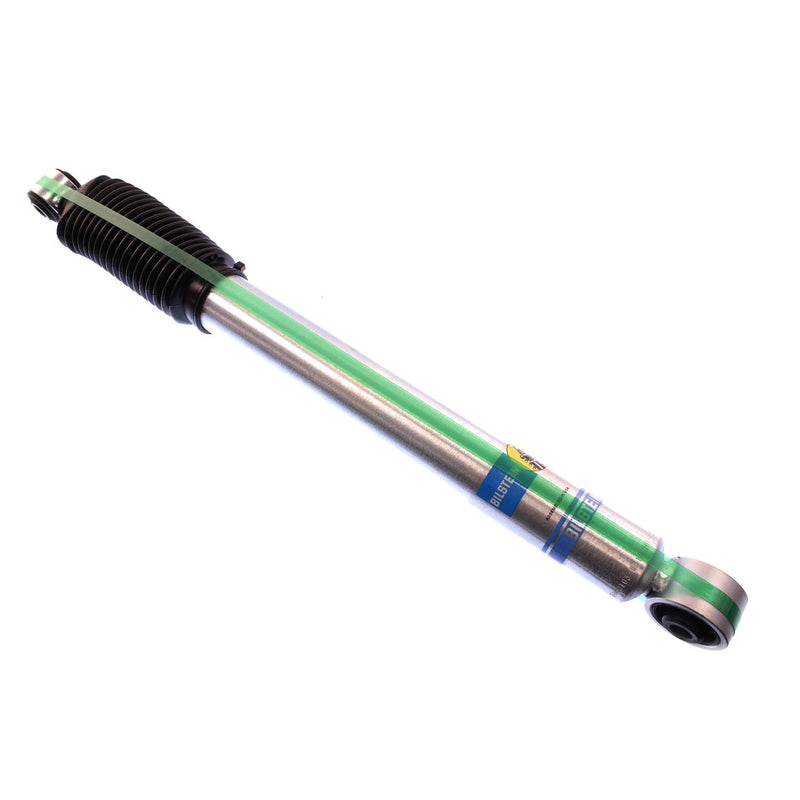

Bilstein 5100 Series Shock Absorbers 24-186636 are high gas pressure monotube shocks expertly designed to be installed onto lifted pickups, SUVs and Jeeps. The shocks feature a 46mm digressive piston with an innovative self-adjusting deflective disc valving. They offer super damping ability that makes them perfect for heavy hauling or occasional off-road use, while maintaining an exceptional street ride.

Measurements:

• Collapsed Length (IN): 18.17
• Extended Length (IN): 29.92
• Collapsed Length (MM): 461.5
• Extended Length (MM): 760

Applications:

• 2003-2012 Ram 3500 4WD - Rear Lifted 2"
• 2003-2013 Ram 2500 4WD - Rear Lifted 2"
• 1999-2010 GM 2500/3500HD 4WD - Rear Lifted 4" (NON-Quadrasteer)

Note: *Lift Height is suggested by mfg. Due to the many different aftermarket suspension systems it is recommended that a measurement is taken for proper application. An eye to eye shock is measured from the center of one eyelet to the center of the other eyelet. Shock Absorbers sold individually.

WARRANTY INFO:

Limited Lifetime

• Part Number: 24-186636
• Old Part Number: F4-BE5-B514-H0
• Setting: 5100 Series
• Drive Type: 4WD
• Position: Rear
• Descriptor: Rear Lifted Height: 4* GM / 2" Dodge
• Quantity Needed Per Vehicle: 2 (Sold Separately)
• Finish: Zinc plated
• Reservoir: No
• Body Design: 46mm ID smooth body (Non-coilover)
