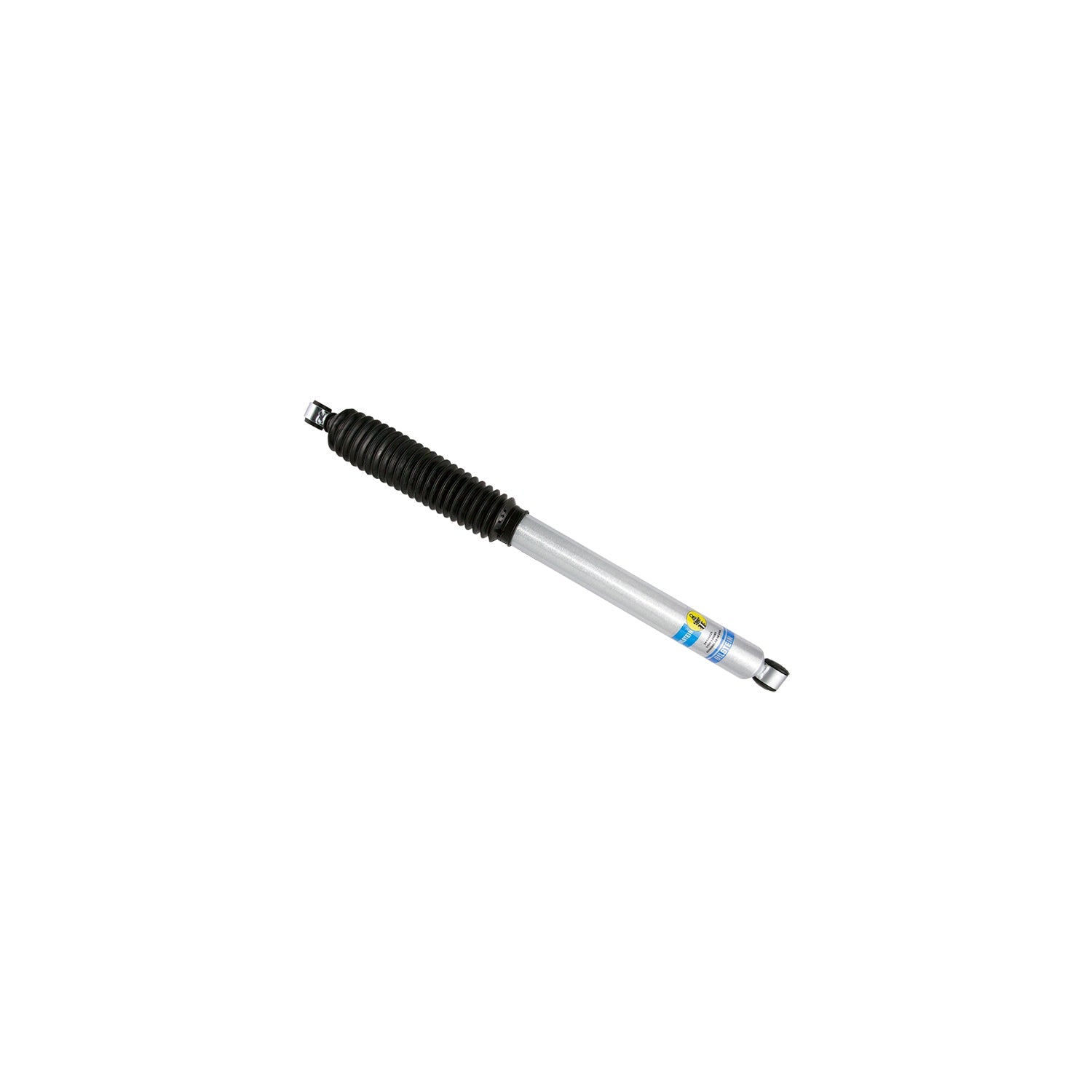

Bilstein 24 - 186025 B8 5100 Series Shock Absorber (Rear, 1999 - 2016 Powerstroke 4WD) - Southern Diesel Supply
Part #: 24-186025

Bilstein 24-186025 B8 5100 Series Shock Absorber (Rear, 1999-2016 7.3/6.0/6.4/6.7L Powerstroke 4WD)

Sale price$129.99 Regular price$179.99

Fits: Ford 6.0L (2003-2007 Powerstroke) • Ford 6.4L (2008-2010 Powerstroke) • Ford 6.7L (2011-2016 Powerstroke) • Ford 7.3L (1999-2003 Powerstroke)

Get It Installed at Our Shop
Skip the Driveway — Our 9-Bay Diesel Shop in Wildwood, FL can Install this for You.

Request Installation

Come to Our 9-Bay Diesel Shop in Wildwood, FL — Fill Out the Request Form to Schedule.

Part: Bilstein 24-186025 B8 5100 Series Shock Absorber (Rear, 1999-2016 7.3/6.0/6.4/6.7L Powerstroke 4WD)
Secure Checkout
Genuine Parts
Fast Shipping
Diesel Experts
Not sure this fits your build? Call or Text Us: (352) 722-5295 Save Contact
Ships from our vendor network — most orders ship in 2–5 business days. Text us to confirm stock on big-ticket items.

Diesel Dollars is Southern Diesel Supply's Loyalty Program. Purchasing with Us Earns you 1 Point for every 1 Dollar spent to use for future buys!

By ordering the Bilstein 24-186025 B8 5100 Series Shock Absorber (Rear, 1999-2016 7.3/6.0/6.4/6.7L Powerstroke 4WD) you will earn 130 DIESEL DOLLARS in your SDS Fuel Tank!

General Description

The Bilstein 5100 Series Shock Absorbers 24-186025 are high gas pressure monotube shocks designed specifically for your 1999-2016 Ford F-250/350 4WD Pickup. These shocks feature a 46mm digressive piston with self-adjusting deflective disc valving. They offer super damping ability that makes them ideal for heavy hauling or occasional off-road use, while maintaining an exceptional street ride. (zinc-plated steel body, Triple-C-Technology coating )



Measurements:

  • Collapsed Length (IN): 18.04
  • Extended Length (IN): 29.7
  • Collapsed Length (MM): 458.3
  • Extended Length (MM): 754.5

Applications:

  • 1999-2016 Ford Super Duty F-250/350

Note: Lift Height is suggested by mfg. Due to the many different aftermarket suspension systems it is recommended that a measurement is taken for proper application. An eye to eye shock is measured from the center of one eyelet to other.Shock Absorbers sold individually.


WARRANTY INFO:

Limited Lifetime

Specifications

  • Part Number: 24-186025
  • Setting: 5100 Series
  • Drive Type: 4WD
  • Position: Rear
  • Descriptor: Rear Lifted Height: 0°
  • Quantity Per Vehicle: 2 (sold individually)
  • Finish: Zinc plated
  • Reservoir: No
  • Body Design: 46mm ID smooth body (Non-coilover)
