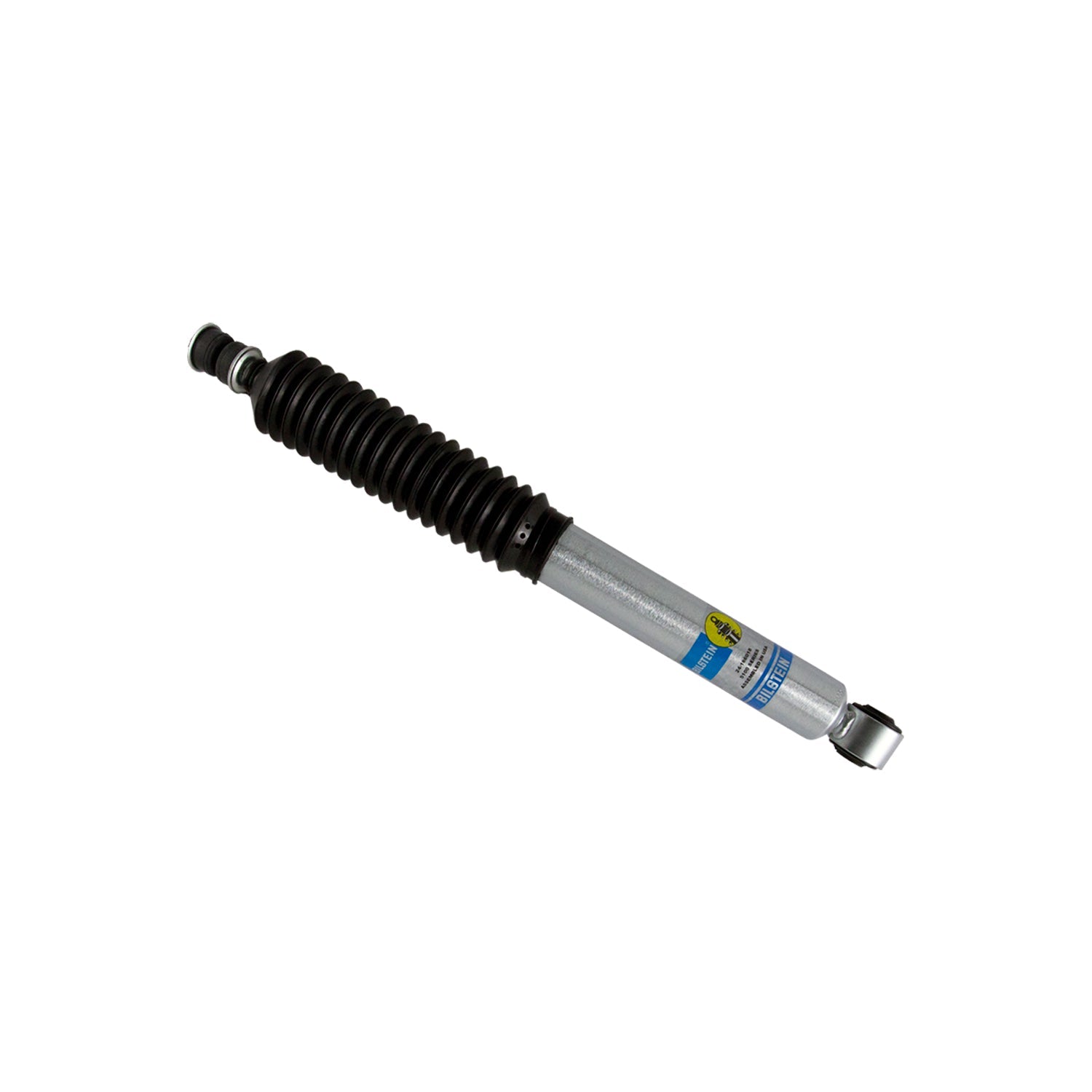

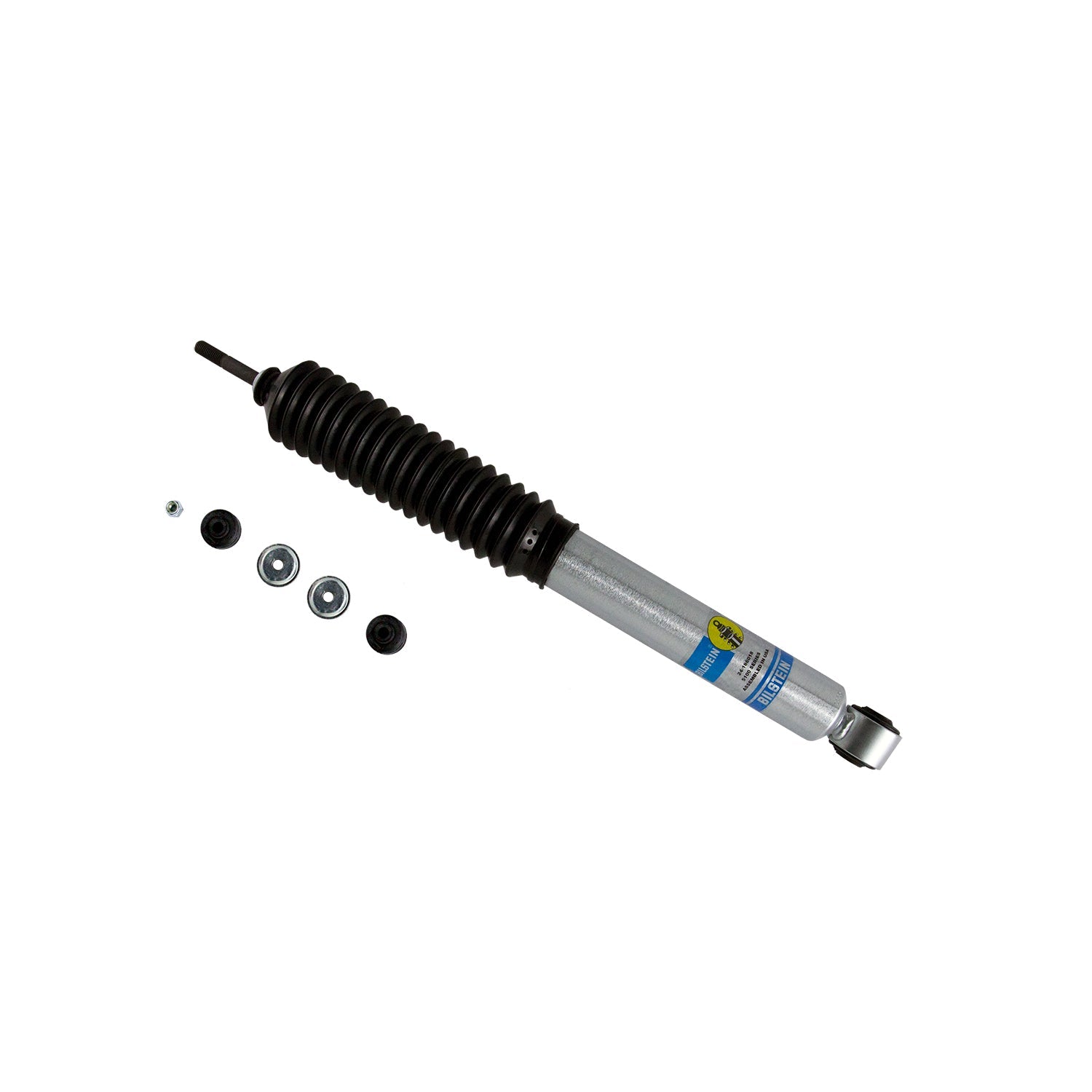

The Bilstein 5100 Series Shock Absorber 24-186018 designed specifically to help your 2005-2016 Ford F-250/350 4WD reach its pinnacle in ride performance, while supplying the correct length shock for your specific lift. A 5100 Series equipped vehicle offers a much more controlled ride compared to the competitors lifted vehicle shocks, allowing you to maintain a similar feeling of comfort and control you have with a stock vehicle.

Measurements:

• Collapsed Length (IN): 13.59
• Extended Length (IN): 21.42
• Collapsed Length (MM): 345.3
• Extended Length (MM): 544

Applications:

• 2005-2016 Ford Super Duty F-250/350

Note: Lift height is suggested by mfg. Due to the many different aftermarket suspension systems it is recommended that a measurement is taken for proper application. A pin to eye shock is measured from the base of the stem where the mounting hardware rests on the center of the eyelet.

WARRANTY INFO:

Limited Lifetime

• Part Number: 24-186018
• Series: 5100 Series
• Drive Type: 4WD
• Position: Front
• Descriptor: Front Lifted Height: 0-2"
• Quantity Needed Per Vehicle: 2
• Finish: Zinc Plated
• Reservoir: No
• Body Design: 46mm ID Smooth Body (Non-Coilover)
