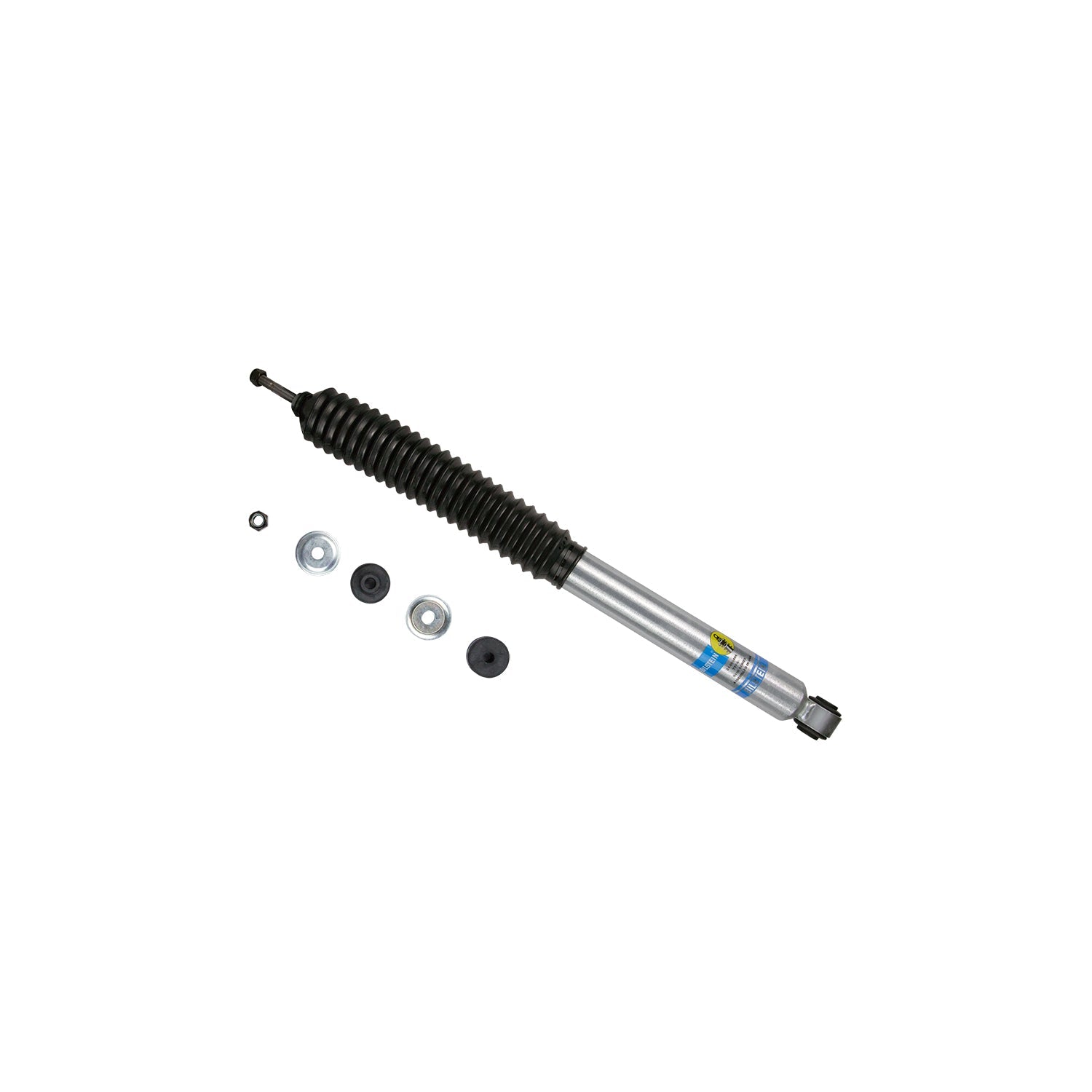

Bilstein 24-066464 B8 5100 Series Shock Absorber (Front, 1994-2013/12 5.9/6.7L Cummins 4WD)
Want this installed at our shop?
Fill out the form below and we'll reach out to schedule your installation.
Diesel Dollars is Southern Diesel Supply's Loyalty Program. Purchasing with Us Earns you 1 Point for every 1 Dollar spent to use for future buys!
By ordering the Bilstein 24-066464 B8 5100 Series Shock Absorber (Front, 1994-2013/12 5.9/6.7L Cummins 4WD) you will earn 124 DIESEL DOLLARS in your SDS Fuel Tank!
General Descriptions
Bilstein 5100 Series Shock Absorbers 24-066464 are high gas pressure monotube shocks designed specifically for lifted pickups, SUVs and Jeeps. The shocks feature a 46mm digressive piston with self-adjusting deflective disc valving. They offer super damping ability that makes them ideal for heavy hauling or occasional off-road use, while maintaining an exceptional street ride.
Measurements:
- Collapsed Length (IN): 16.34
- Extended Length (IN): 27.32
- Collapsed Length (MM): 415
- Extended Length (MM): 694
APPLICATIONS:
- Ram 2500 1994-2013
- Ram 3500 1994-2012
Note: *4-5* Lift is suggested by mfg. Due to the many different aftermarket suspension systems it is recommended that a measurement is taken for proper application. A pin to eye shock is measured from the base of the stem where the mounting hardware rests to the center of the eyelet. Shock Absorbers sold individually.
WARRANTY INFO:
Limited Lifetime
Specifications
- Part Number: 24-066464
- Old Part Number: 24-185769;4-BE5-6646-H7
- Setting: 5100 Series
- Drive Type: 4WD
- Position: Front
- Descriptor: Front Lifted Height: 4-5*
- Quantity Needed Per Vehicle: 2 (Sold Separately)
- Finish: Zinc plated
- Reservoir: No
- Body Design: 46mm ID smooth body (Non-cailover)
