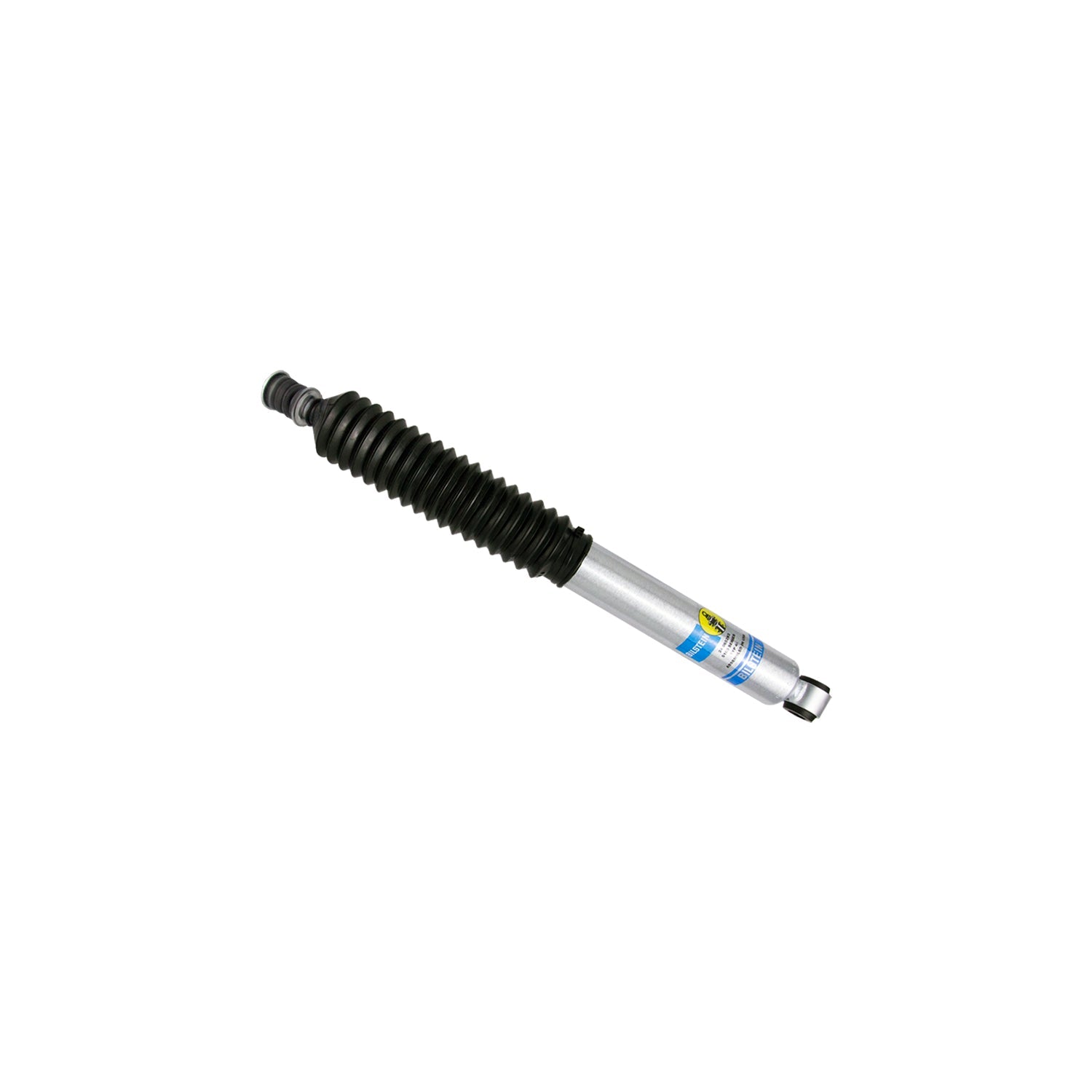

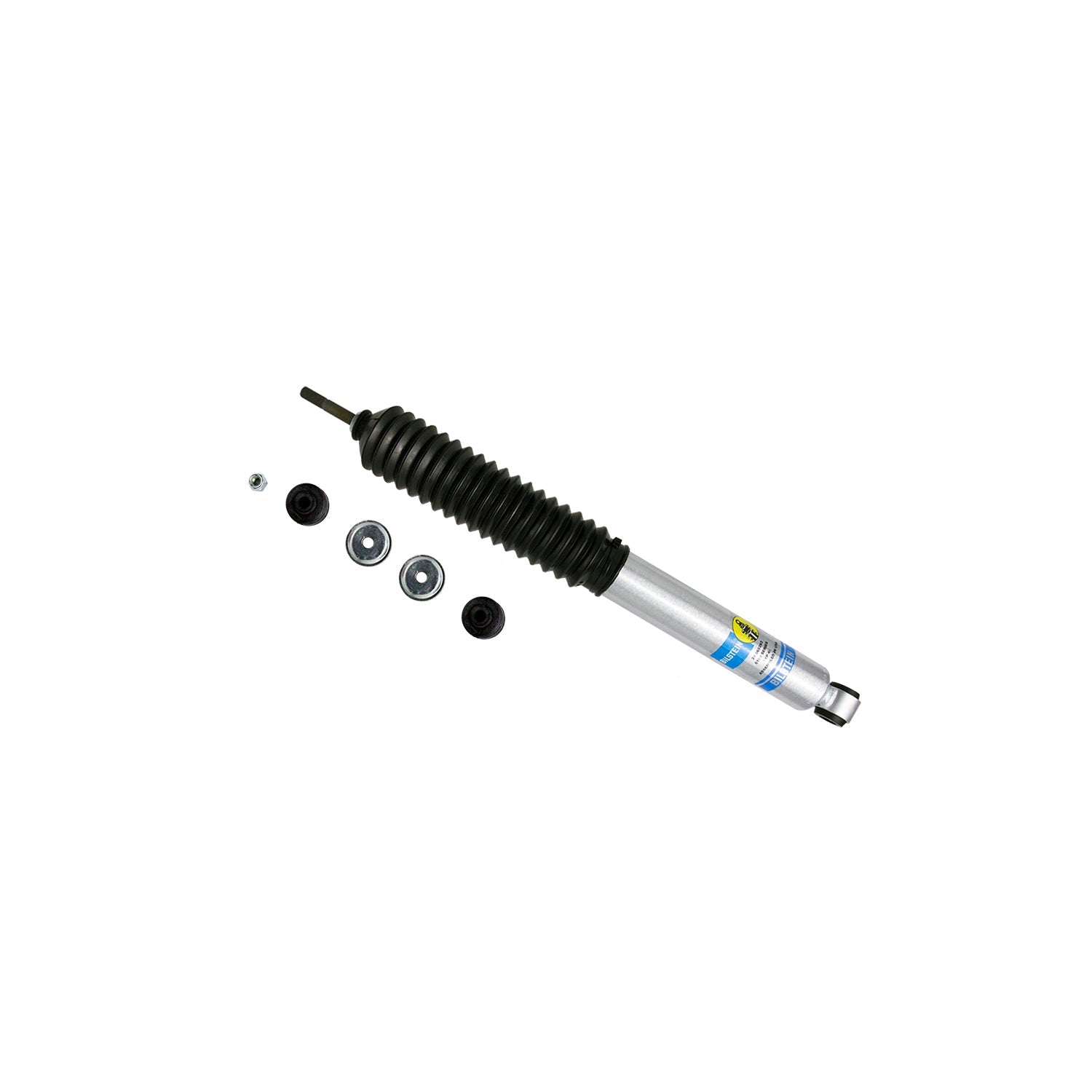

The Bilstein 24-065283 5100 Series Shock Absorber is specially valved to give your 1994-2016 Ford F-250/350 an enhanced ride. Bilstein shock absorbers as a direct-fit solution for your lifted truck. These shocks are made with a monotube design to give you exceptional on and off-road handling. Bilstein's 5100 Series Shock Absorbers are built with a velocity sensitive, digressive piston that reacts to changing road conditions.

Measurements:

• Collapsed Length (IN): 13.27
• Extended Length (IN): 21.52
• Collapsed Length (MM): 337.00
• Extended Length (MM): 546.50

Applications:

• 1999-2016 Ford F-250/350 2WD Front (Lifted 6*) With Factory Radius Arms

Note:

Lift height is suggested by mfg. Due to the many different aftermarket suspension systems it is recommended that a measurement is taken for proper application. A pin to eye shock is measured from the base of the stem where the mounting hardware rests to the center of the eyelet.

WARRANTY INFO:

Limited Lifetime

• Part Number: 24-186018
• Series: 5100 Series
• Drive Type: 4WD
• Position: Front
• Descriptor: Front Lifted Height: 0-2'
• Quantity Needed Per Vehicle: 2
• Finish: Zinc Plated
• Reservoir: No
• Body Design: 46mm ID Smooth Body (Non-Coilover)
