BHP BHP10032 Behind Roll Pan 2.5 Inch Hidden Receiver Hitch (2003-2018 5.9/6.7L Cummins)
Fits: Cummins 6.7L (2007.5-2012 Cummins) • Cummins 6.7L (2013-2018 Cummins) • Cummins CR (2003-2007 5.9L Cummins)
Diesel Dollars is Southern Diesel Supply's Loyalty Program. Purchasing with Us Earns you 1 Point for every 1 Dollar spent to use for future buys!
By ordering the BHP BHP10032 Behind Roll Pan 2.5 Inch Hidden Receiver Hitch (2003-2018 5.9/6.7L Cummins) you will earn 550 DIESEL DOLLARS in your SDS Fuel Tank!

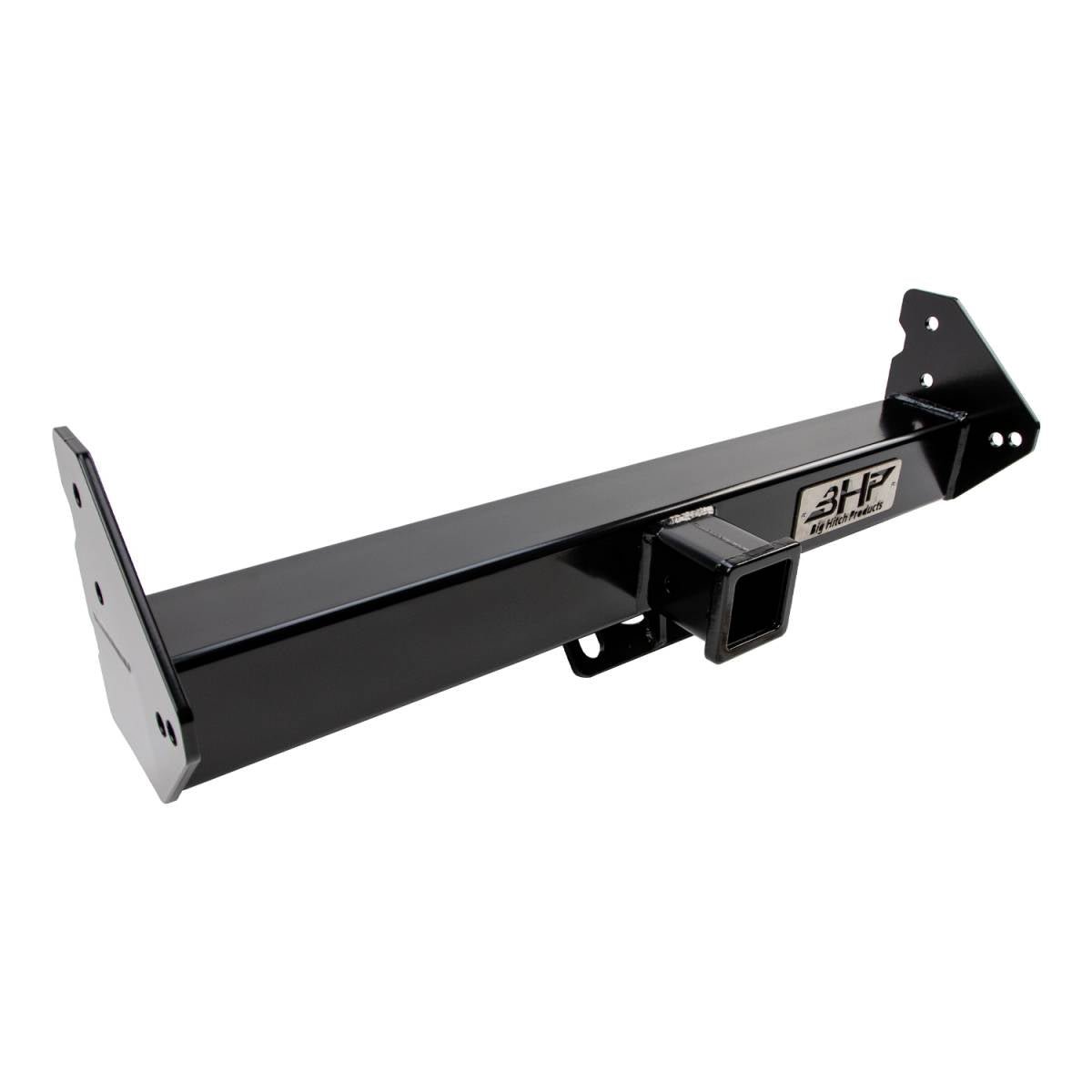

The BHP10032 is a 2.5-inch Class 4+ receiver hitch that bolts in behind the roll pan on 2003-2018 Dodge Ram and Ram 2500/3500 trucks with the 5.9L or 6.7L Cummins. It gives you a tow point back with the roll pan installed, and the hitch stays hidden, with access through the license plate hole.
Fitment
Fits 2003-2018 Dodge Ram and Ram 2500/3500 short bed and long bed trucks with the Cummins: the 5.9L common-rail (2003-2007), the 6.7L (2007.5-2012) and the 6.7L (2013-2018). It is for 2500/3500 trucks only, and it is built for a truck with a roll pan installed. Chassis cabs use a different frame, so call us before ordering for one. Verify fitment by VIN or call the shop and we will confirm it.
Why this part

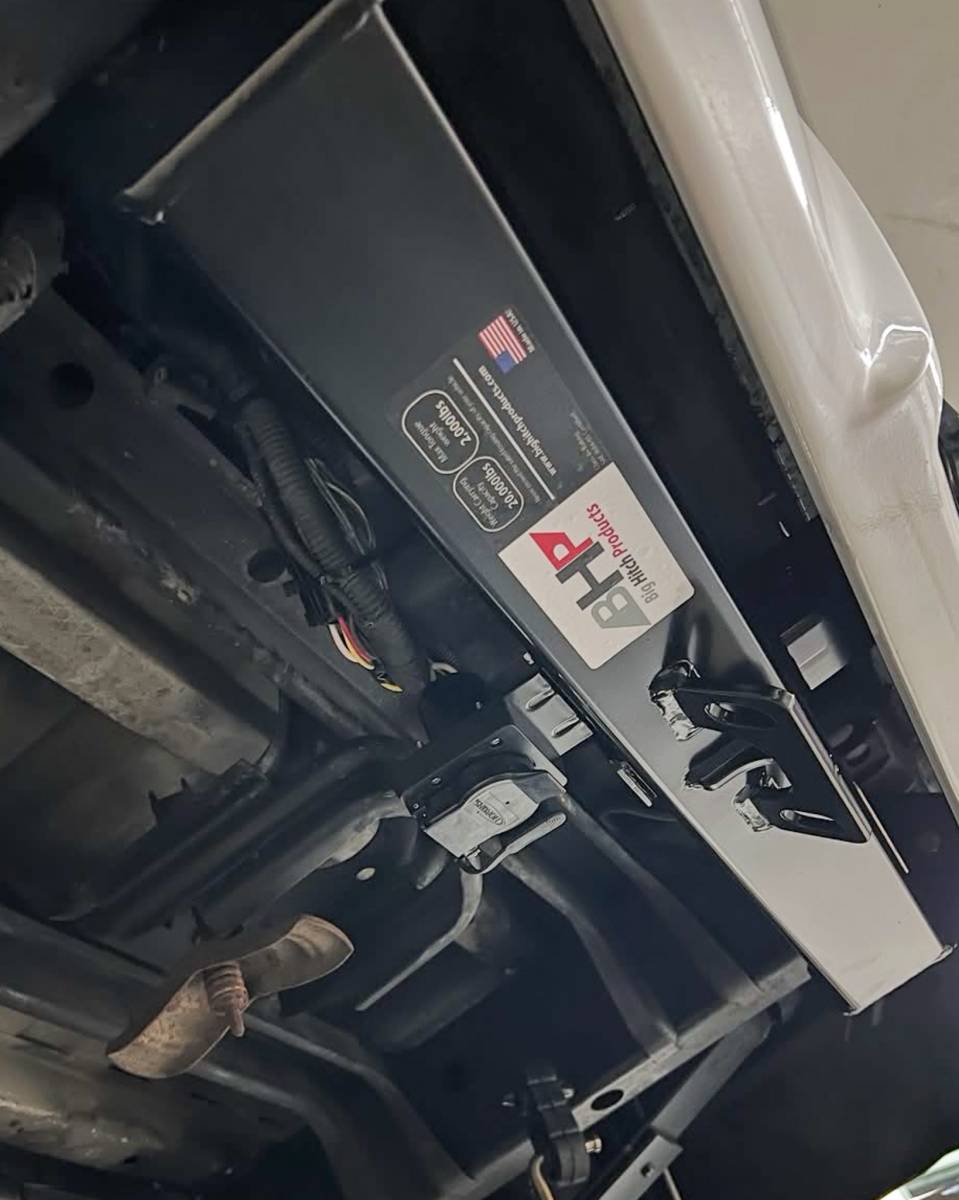

A roll pan cleans up the back of the truck, but bolting one on usually means losing the factory receiver. This BHP BEHIND Roll Pan hitch puts the tow point back without spoiling that smooth look. The hitch sits completely hidden behind the roll pan, and you reach the 2.5-inch receiver through the license plate hole when it is time to tow.
It also moves the towing point forward almost 8 inches. BHP says that gives better weight distribution and an advantage when truck pulling, so it suits a dedicated pulling truck or a daily driver. The hitch is SAE J684-05 certified as a Class 4+ receiver, rated at 20,000 lbs weight carrying capacity and 2,000 lbs max tongue weight. It has a powdercoated black finish and is compatible with BHP's other hitch products. Browse more hitches for your truck.
What you get

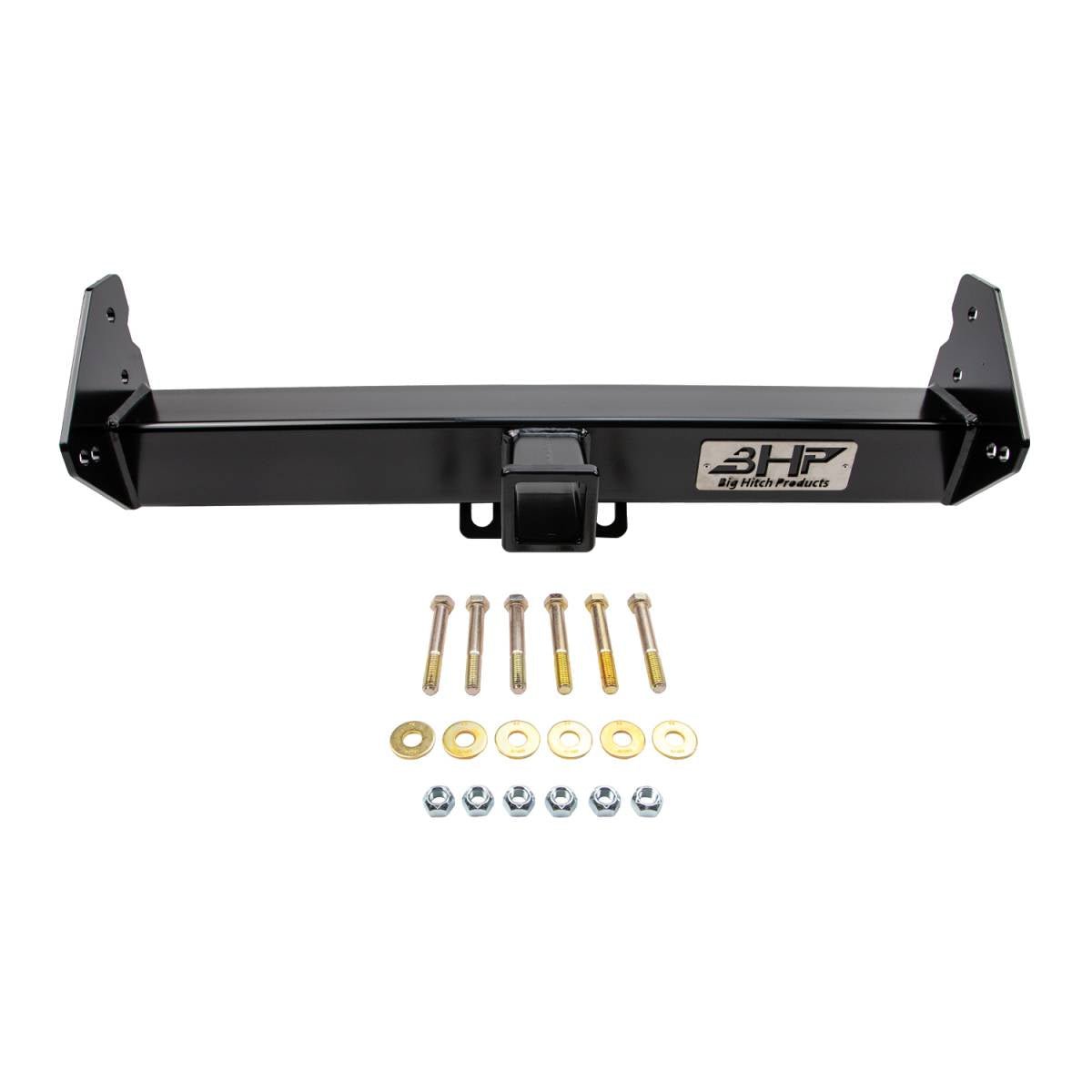

- BHP10032 Behind Roll Pan 2.5" hidden receiver hitch, powdercoated black finish
- All necessary hardware included
Specifications
- SAE J684-05 certified
- Class 4+ Receiver
- Complete bolt in design
- No cutting or welding required
- All necessary hardware included
- For 2500/3500 trucks only
Product Features
- Hitch is completely hidden BEHIND the roll pan allowing easy access through the license plate hole for towing
- Moves the towing point forward almost 8" resulting in better weight distribution and an advantage when truck pulling
- Powdercoated Black Finish
- Compatible with our other Hitch Products
Weight Rating
- SAE J684-05 certified
- Class 4+ Receiver
- (20,000 lbs Weight Carrying Capacity / 2,000 lbs Max Tongue Weight)
Installation notes
- Complete bolt in design. No cutting or welding required. The spare tire must be removed.
- Some trucks may require the factory frame holes to be reamed out a little bit to allow for the larger hardware to be installed.
- Box will need to be either pulled off completely or simply tilted up in the back to get factory hitch out.
The bed step is the biggest job here: the factory hitch does not come out until the box is pulled off or tilted up at the back. If you would rather not do that in the driveway, our shop installs what we sell.
About Big Hitch Products
Big Hitch Products (BHP) started in 2009 in Union Grove, Wisconsin, and is based today in DeKalb, Illinois. BHP builds receiver hitches for trucks running a roll pan, mounted either hidden behind the pan or below it, and they install as bolt-in kits. We also carry BHP's steel, urethane and fiberglass roll pans, along with its adjustable pulling hitches and clamp-on sled stops.
Frequently asked questions
Do I need a roll pan to run this hitch?
It is made for a truck with a roll pan installed. The hitch sits completely hidden behind the pan, and you reach the receiver through the license plate hole. If you are keeping the factory bumper, BHP makes Stock Bumper receiver hitches instead.
Will I have to cut or weld anything?
No. It is a complete bolt-in design with all necessary hardware included. Expect to remove the spare tire, possibly ream the factory frame holes a little for the larger hardware, and pull or tilt up the box to get the factory hitch out.
What is the hitch rated for?
It is SAE J684-05 certified as a Class 4+ receiver, with a 20,000 lbs weight carrying capacity and 2,000 lbs max tongue weight. That is the hitch's rating, not your truck's towing rating.
Questions on fitment? Call the shop at the number in the header. We install everything we sell.
