Part #: BDS199H

BDS Suspension 6.5 Inch Lift Kit (2011-2019 6.6L Duramax)

Sale price$2,499.99
Rear Lift Options: 3 Inch Block Kit with Overload
Shock Option: NX2 Nitro Series

Fits: Chevrolet • GMC

Get It Installed at Our Shop
Skip the Driveway — Our 9-Bay Diesel Shop in Wildwood, FL can Install this for You.

Request Installation

Come to Our 9-Bay Diesel Shop in Wildwood, FL — Fill Out the Request Form to Schedule.

Part: BDS Suspension 6.5 Inch Lift Kit (2011-2019 6.6L Duramax)

Secure Checkout
Genuine Parts
Fast Shipping
Diesel Experts
Not sure this fits your build? Call or Text Us: (352) 722-5295 Save Contact
Ships from our vendor network — most orders ship in 2–5 business days. Text us to confirm stock on big-ticket items.

Diesel Dollars is Southern Diesel Supply's Loyalty Program. Purchasing with Us Earns you 1 Point for every 1 Dollar spent to use for future buys!

By ordering the BDS Suspension 6.5 Inch Lift Kit (2011-2019 6.6L Duramax) you will earn 2500 DIESEL DOLLARS in your SDS Fuel Tank!

The BDS Suspension 6.5-inch lift kit fits 2011-2019 Chevrolet Silverado 2500HD and GMC Sierra 2500HD 4WD trucks with the 6.6L Duramax. BDS's No Torsion Bar Drop design lifts the front without a dropped crossmember hanging under the truck, and the kit clears up to 37-inch tires. You choose the rear block height and one of three shock packages.

Fitment

Fits 2011-2019 Chevrolet Silverado 2500HD and GMC Sierra 2500HD 4WD trucks with the 6.6L Duramax, which covers the LML (2011-2016) and the L5P (2017-2019). BDS writes this kit up for the 2500HD 4WD. If you have a 3500HD or a 2WD truck, call us before you order.

The frame and torsion-bar front suspension carried over through the 2015 body change, which is why BDS catalogs this kit 2011-2019 and why it fits both body styles. Check bumper and body clearance on your truck separately. Kits for 2001-2010 trucks do not fit these trucks, and 2020-and-newer trucks need a different kit.

Before you pick a rear option, determine if your truck was manufactured with or without top-mounted overload springs on the rear leaf springs. Rear lift blocks differ between the two. Verify fitment by VIN or call us.

Why this part

These are heavy trucks, and a lift changes the angles every front-end part works at. On these trucks, ball joints, control-arm bushings and tie rods wear together, especially with larger tires, and independent front suspension parts wear faster once the geometry is altered. A lift that corrects geometry instead of just cranking the front up is how you avoid chasing front-end wear later.

BDS's answer is the No Torsion Bar Drop design. The torsion bars mount directly to the top of the lower control arms, so there is no dropped torsion bar crossmember and the truck keeps more clearance underneath. Heavy-duty torsion bar relocation brackets, high-arched 1/4-inch steel crossmembers and rugged skid plates form the front structure, and the laser cut crossmembers bolt to the skid plate system to make a rigid subframe that protects the underside on the trail. Multi-piece differential relocation brackets secure the front axle and improve CV angles. CNC-machined ductile cast iron steering knuckles reset suspension and steering geometry at the new ride height and work with the factory tie rod ends to maintain steering angles. BDS says the knuckles keep the ESC system compliant.

Shocks are the other half of the job. Factory shocks fade, and even a leveled truck on stock shocks rides harsh, so this kit is sold with your choice of precision-tuned NX2 Nitro shocks, FOX 2.0 Performance Series shocks, or FOX 2.5 Performance Elite shocks with DSC adjustment. The FOX 2.5 Performance Elite package uses large 2.5-inch aluminum shock bodies, remote reservoirs for increased cooling capacity, and Dual Speed Compression (DSC) adjusters that let you tune high-speed and low-speed compression damping separately. That gives you room to set the ride for smooth highway cruising, towing, rough off-road terrain or high-speed desert driving.

Out back, BDS offers multiple rear lift block options so you can dial in the stance. In BDS's overview, the 3-inch block gives a level stance front to rear, the optional 4-inch block retains about half of the factory rake for a slightly nose-high look that works well for towing and hauling, and the 5-inch block restores most of the factory rake. BDS's block guide in the specifications below describes the same blocks a little differently, so if the exact stance matters to you, call us and we will talk it through for your truck. Each option is designed to keep ride quality and load-carrying capability, and a heavy-duty u-bolt flip kit maximizes ground clearance and reduces the risk of trail damage.

Know the trade-offs going in. A lifted truck can pick up driveline vibration in 4WD at speed, and it gives up some towing capacity.

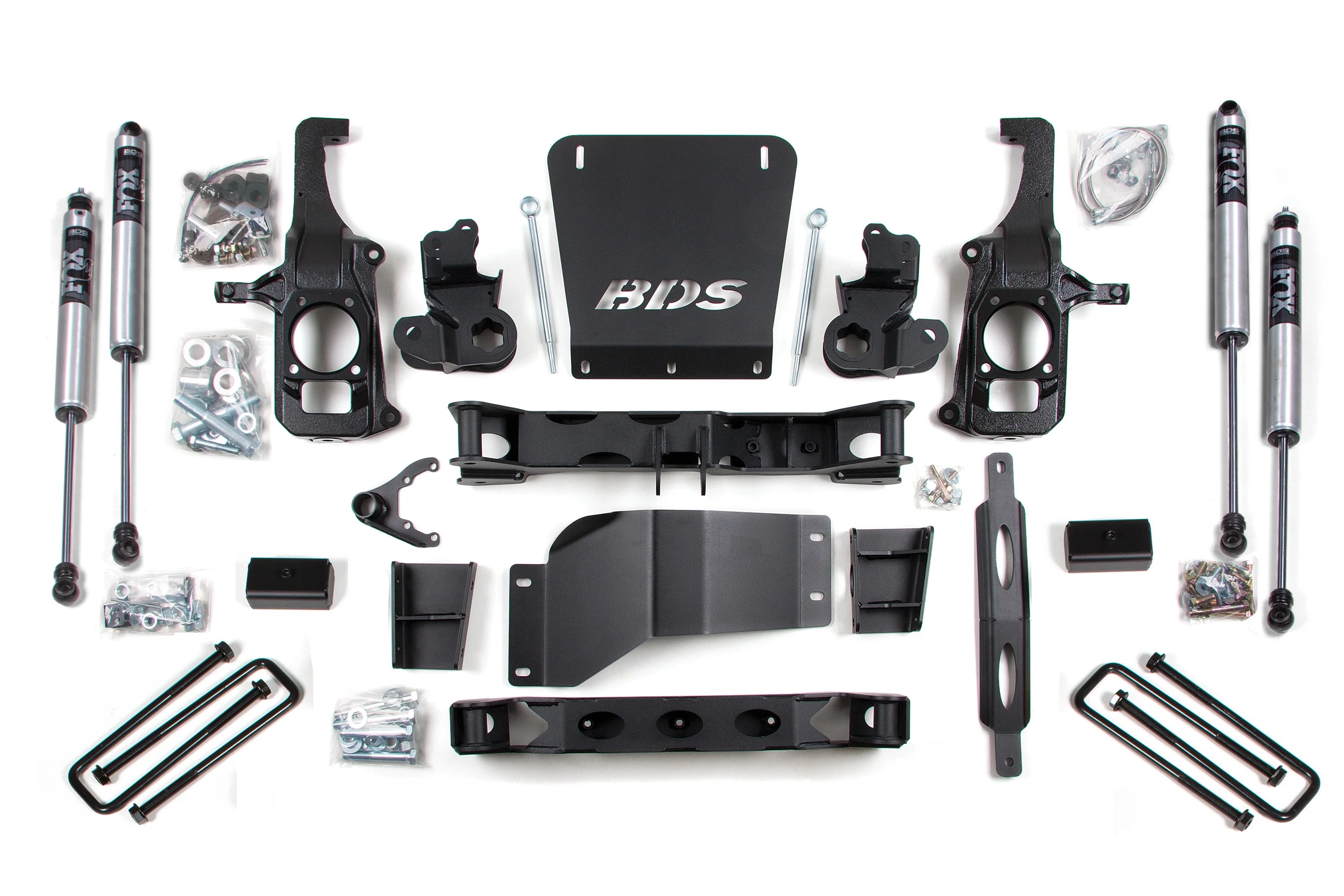

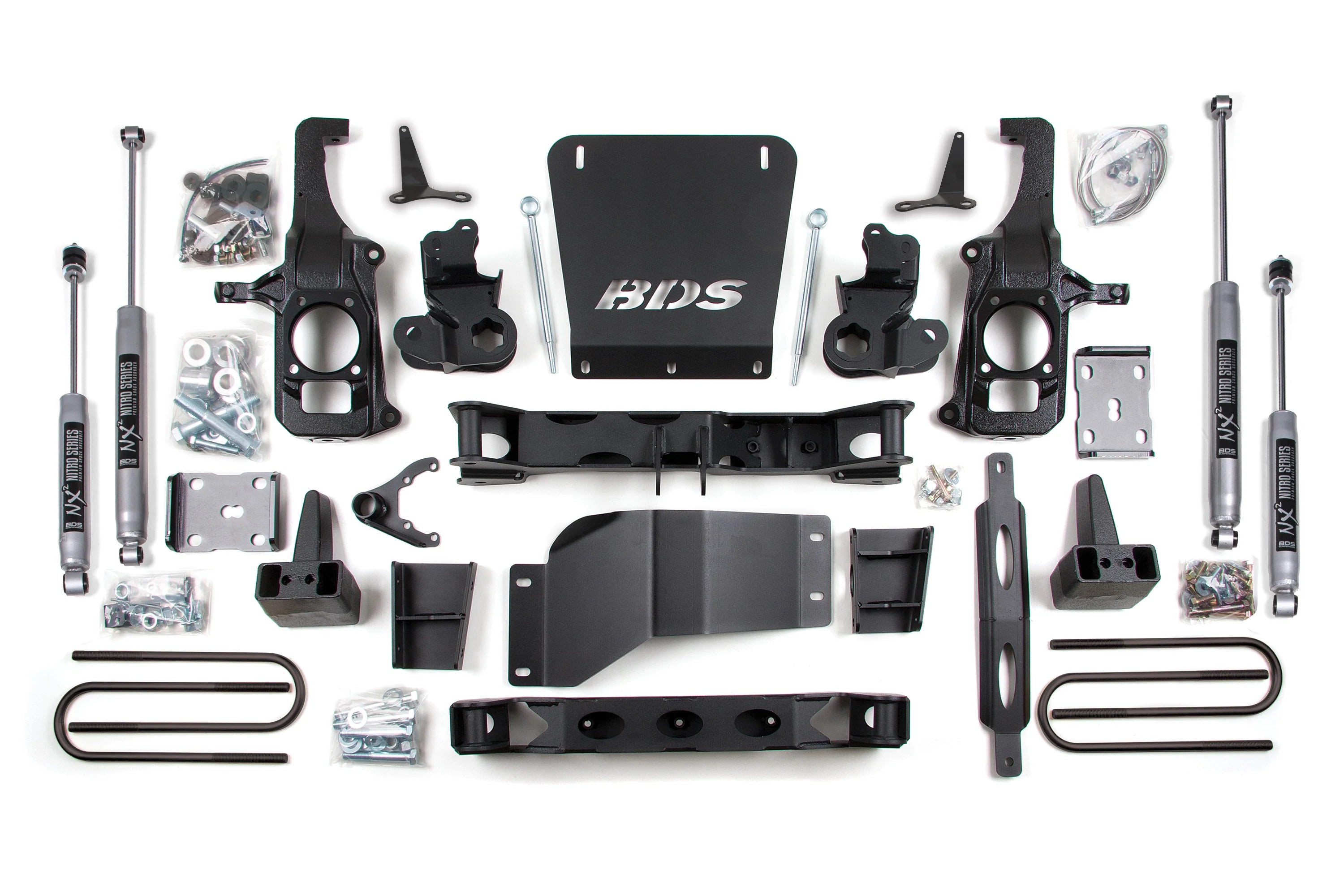

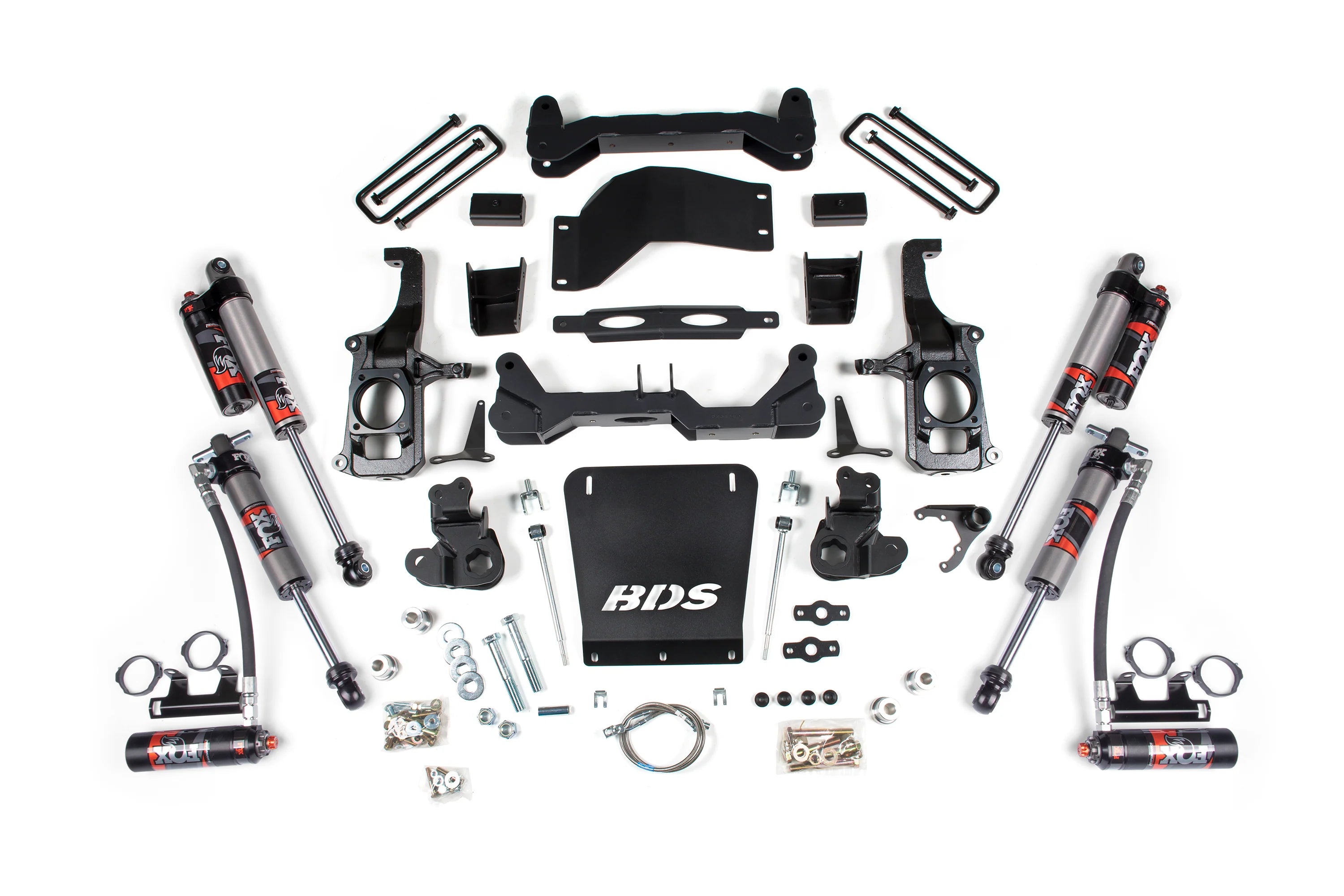

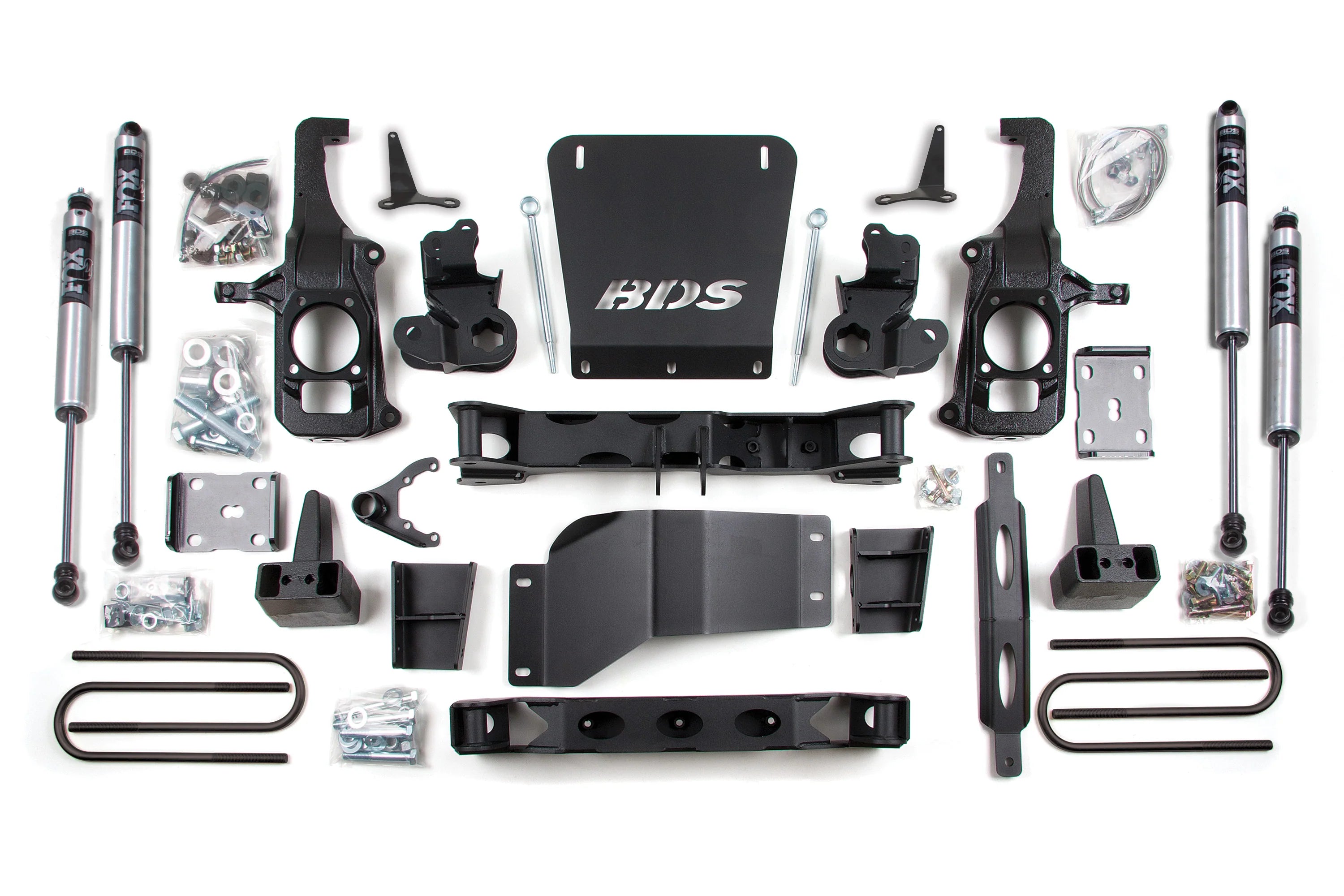

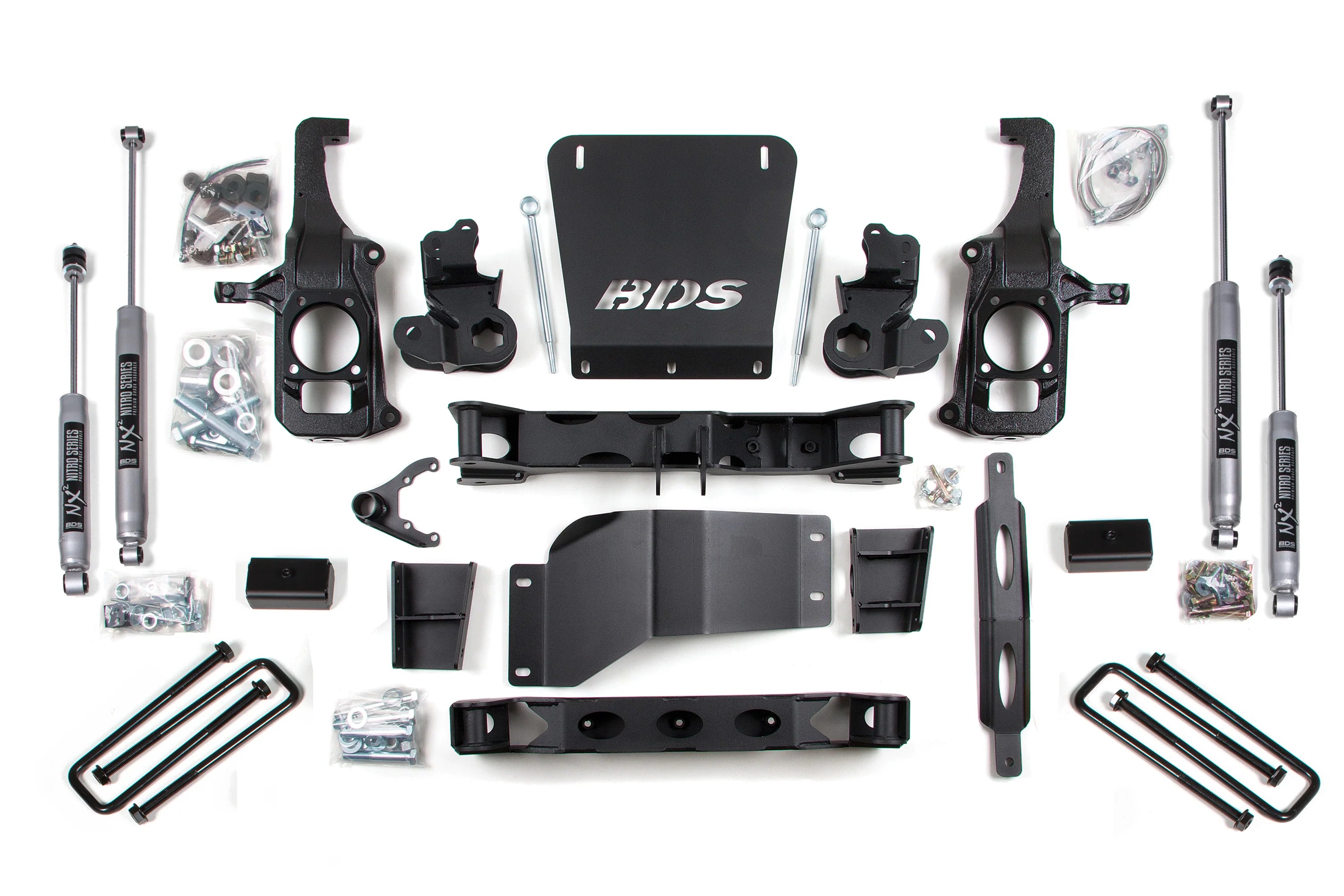

What you get

  • Heavy-duty torsion bar relocation brackets
  • High-arched 1/4-inch steel crossmembers
  • Multi-piece differential relocation brackets
  • Skid plates
  • CNC-machined ductile iron steering knuckles
  • Sway bar links
  • Bump stop extensions
  • Stainless steel brake lines
  • Rear lift blocks (3, 4 or 5 inch, per your selection)
  • Heavy-duty u-bolt flip kit
  • NX2 Nitro, FOX 2.0 Performance Series or FOX 2.5 Performance Elite shocks, per your selection
  • All necessary installation hardware

Freight note: you will be contacted and charged separately about the shipping cost for this lift kit.

Specifications

Features & Benefits

  • High Clearance design w/ no torsion bar drop maximizes ground clearance
  • Robust steering knuckles maintain ESC system compliance
  • HD skid plate system improved offroad protection
  • Multipoint differential relocation brackets to secure the front axle and improve CV angles
  • Factory Protection Plus drivetrain warranty included
  • Choice of NX2 or FOX 2.0 gas shocks for improved performance

Recommended Tires & Wheels

(Trimming may be required)

  • 37 x 12.5 with 17 x 8 and 4.625 in. Backspace
  • 37 x 12.5 with 18 x 9 and 4.625 in. Backspace
  • 37 x 12.5 with 20 x 9 and 6 in. Backspace

Rear Lift Option

Determine if your truck was manufactured with or without top-mounted overload springs on the rear leaf springs.

  • 3" block - Will result in a slightly tail-low stance.
  • 4" block - Most common for level front/rear stance.
  • 5" block - Will result in a level to slightly tail high stance, integrates a u-bolt flip kit with new spring plate.

Shock Option: NX2 Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

Shock Option: FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

About BDS Suspension

BDS Suspension was founded in 1996 in Coldwater, Michigan. It builds lift kits, leveling kits, traction bars, steering stabilizers and other suspension parts for pickups, and its diesel line covers Duramax, Cummins and Powerstroke trucks all the way up to 8-inch lifts with 4-Link and FOX 2.5 coil-over setups.

Frequently asked questions

Which rear block should I choose?

Start with your rear springs. Check whether your truck was built with or without top-mounted overload springs, because the block choice depends on it. In BDS's block guide, the 4 inch block is the most common for a level front/rear stance, the 3 inch block sits slightly tail-low, and the 5 inch block sits level to slightly tail high and comes with a u-bolt flip kit and new spring plate.

Will this kit fit a 2020 or newer Silverado 2500HD?

No. This kit is built for the 2011-2019 chassis, and trucks from 2020 on need a different kit. Call us with your VIN and we will point you to the right one.

How do the three shock options compare?

NX2 Nitro shocks are nitrogen-charged twin-tube units with 10-stage velocity-sensitive valving. FOX 2.0 Performance Series shocks use a 2-inch aluminum monotube body with an internal floating piston. The FOX 2.5 Performance Elite package steps up to 2.5-inch bodies with remote reservoirs and DSC adjusters for separate high-speed and low-speed compression tuning.

Questions on fitment? Call the shop at the number in the header. We install everything we sell.
