BD Diesel 1453105 12" Flexible Turbo Oil Drain (2003-2024 Cummins)
Fits: Cummins 6.7L (2007.5-2012 Cummins) • Cummins 6.7L (2013-2018 Cummins) • Cummins 6.7L (2019-Current Cummins) • Cummins CR (2003-2007 5.9L Cummins)
Diesel Dollars is Southern Diesel Supply's Loyalty Program. Purchasing with Us Earns you 1 Point for every 1 Dollar spent to use for future buys!
By ordering the BD Diesel 1453105 12" Flexible Turbo Oil Drain (2003-2024 Cummins) you will earn 62 DIESEL DOLLARS in your SDS Fuel Tank!

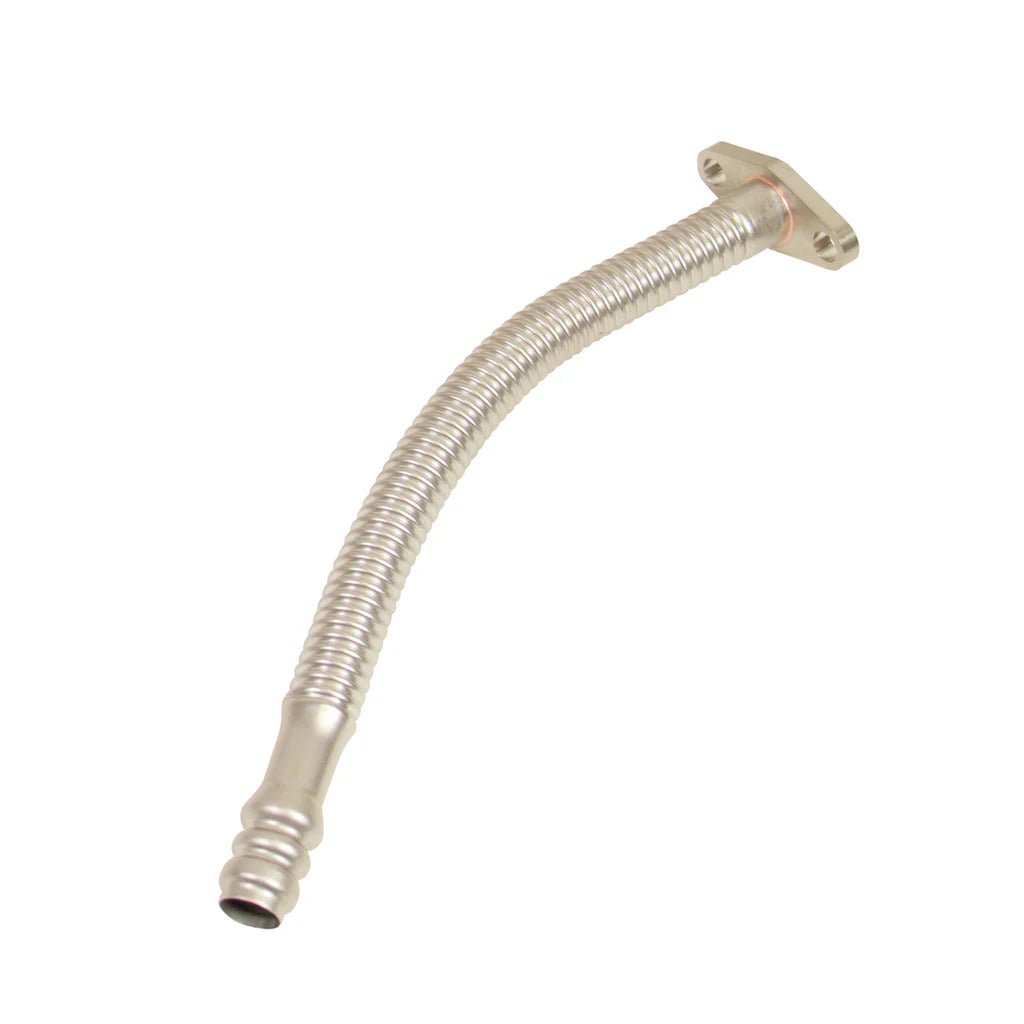

The BD Diesel 1453105 is a 12" flexible turbo oil drain line made from stainless steel tubing, with a gasket included. It slips into the oil drain port on 2003-2024 Dodge Ram and Ram 5.9L and 6.7L Cummins engines, and it suits performance single or compound turbo installs on common drain mounts like the S300, S400, HX35, HX40 and HX50.
Fitment
BD designed this drain to slip into the oil drain ports on Dodge/Ram 5.9L and 6.7L Cummins engines. We list it for 2003-2024 Dodge Ram and Ram 2500 and 3500 pickups: the 2003-2007 5.9L common-rail trucks, the 2007.5-2012 6.7L, the 2013-2018 6.7L and the 2019-2024 6.7L. Our engine tag for the current 6.7L reads 2019-current, but this listing stops at 2024, so verify fitment by VIN.
The 2025 6.7L got a new turbo, and parts for the 2019-2024 turbo should not be assumed to fit it. If you have a 2025 or newer truck, call us before you order.
On the turbo end, this drain uses a common oil drain mount found on many turbochargers, including the S300, S400, HX35, HX40 and HX50. BD says it fits most turbocharger applications. If you are running something else, call us with the turbo model.
Why this part
The 1453105 is made for diesel trucks running a performance single turbo or a compound turbo setup. Whatever turbo you bolt on, its oil still has to drain back into the engine. This 12-inch line is built from flexible stainless steel tubing, so you can route it between the turbo and the engine, and it is designed to slip into the oil drain port on the 5.9L and 6.7L.
If you are still choosing the turbo itself, browse our turbos.
What you get
In the box: the 12" stainless drain line and a gasket. BD's feature list:
- 12" Length
- Includes Gasket
- Flexible Stainless Steel Tubing
- For Single Or Compound Turbo Installations
- Designed To Slip Into Oil Drain Ports On Dodge/Ram 5.9L/6.7L Diesel Engines
- Common Oil Drain Mount For Many Including S300, S400, HX35, HX40, HX50 Turbochargers
About BD Diesel
BD Diesel has been making diesel pickup parts in Abbotsford, British Columbia for more than five decades. Along with transmissions and fuel system parts, they build remanufactured stock-replacement turbochargers, turbo accessories and exhaust brakes for Cummins, Power Stroke and Duramax trucks.
Frequently asked questions
Will this drain fit my turbo?
It uses a common oil drain mount found on many turbochargers, including the S300, S400, HX35, HX40 and HX50, and BD says it fits most turbocharger applications. If yours is not on that list, call us with the turbo model before you order.
Is a gasket included?
Yes. The 1453105 comes with a gasket.
Will it fit a 2025 or newer Ram?
It is not listed for 2025 and newer trucks. The 2025 6.7L uses a new turbo, and 2019-2024 turbo parts should not be assumed to fit. Call us with your VIN.
Questions on fitment? Call the shop at the number in the header. We install everything we sell.
