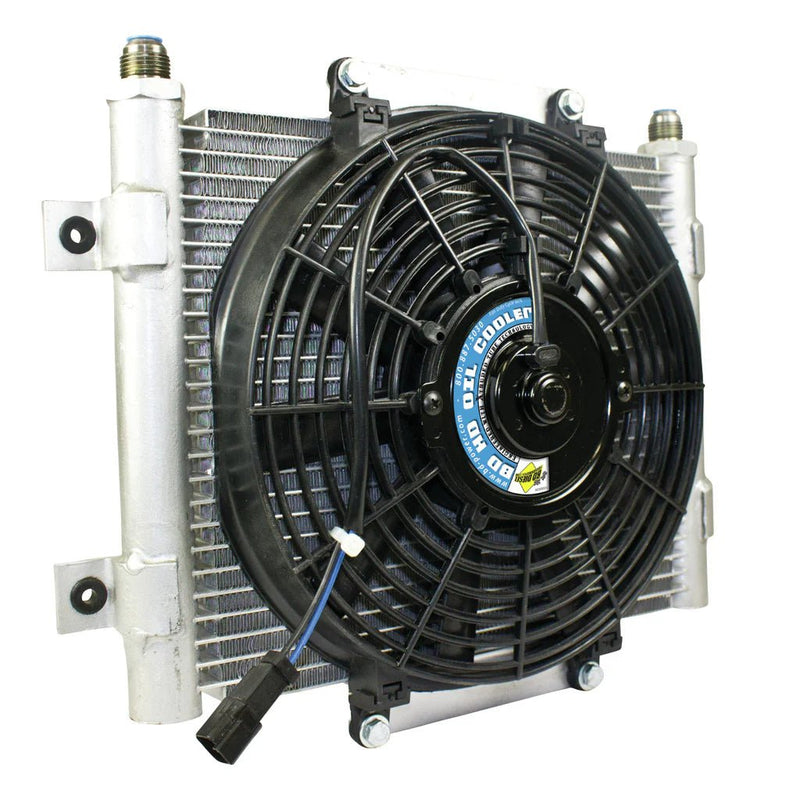

BD Diesel 1300611 Xtruded Auxiliary Trans Cooler
Diesel Dollars is Southern Diesel Supply's Loyalty Program. Purchasing with Us Earns you 1 Point for every 1 Dollar spent to use for future buys!
By ordering the BD Diesel 1300611 Xtruded Auxiliary Trans Cooler you will earn 355 DIESEL DOLLARS in your SDS Fuel Tank!
General Description
The BD Diesel 1300611 Xtruded Auxiliary Trans Cooler is the Coolest Xtruded Transmission Oil Cooler for your diesel pickup. The BD Diesel high efficiency micro extruded bar technology provides 22% more cooling over other designs. The 25 flat tubes have 200 micro extruded passages providing a large surface area to transfer heat for external air flow cooling.
With a power rating of 33,930 BTU/HR it's designed for an excess of 30,000 GVW. Large end tanks provide up to 5/8" ID hose compatibility. 80-Watt, 10-inch, 800CFM electric fan offers the ultimate automatic transmission oil temperature control.
Features
- 800 CFM Electric Fan
- -10 JIC Male Connection
- 15.75" Wide x 12.75" Tall
- High Efficiency Micro Extruded Technology
- Large Ends Tanks Allow up to 5/8" Hose
- Designed for an Excess of 30,000 GVW
- Cooler Only - Brackets, Hoses & Wiring Not Included
