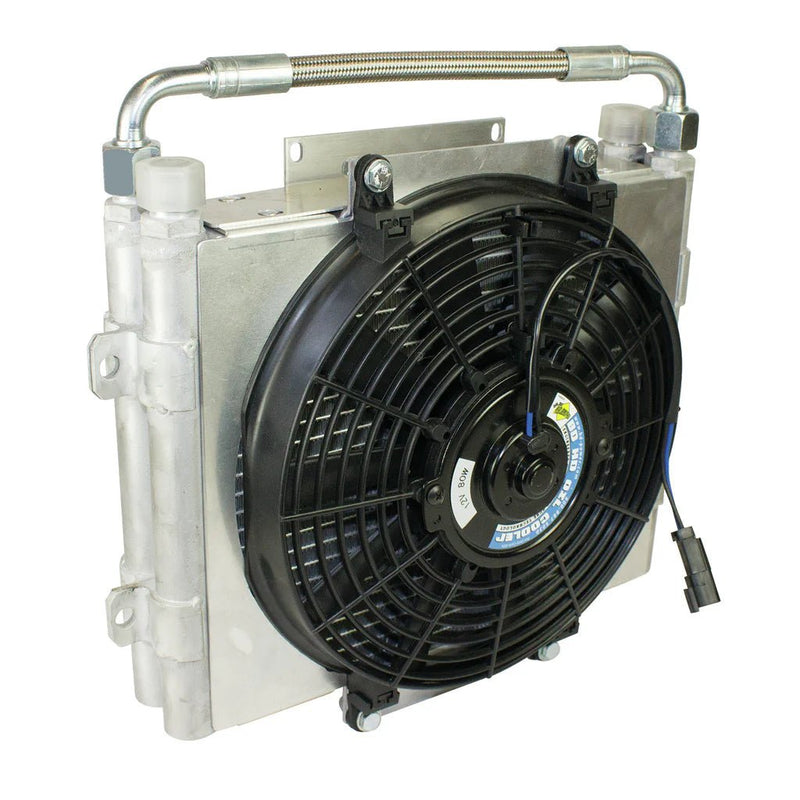

Low your transmission temperatures with the BD Diesel Xtruded Double Stacked Transmission Cooler 1300601-DS. Quick firm shifting Automatic transmissions cant be beat at the race track. But, the HOT transmission oil has to be COOLED to stay on track. Hot oil temperatures must be kept under control! Heating of transmission oil is caused from torque multiplying stators redirecting and shearing the oil, heat transfer when cooling down of the clutches as they are on the edge of slipping on the steels, and, end thrusting loads on the bushings transfer heat into the case.

BDs double stacked their proven Xtruded Trans Oil cores to deliver over 40,000 BTU/HR of cooling and over 350% temperature drop versus the factory system 136% better temperature drop than BDs standard single core kit.

Using the same Micro Extruded bar technology as is in our air-to-air Charge Air Coolers, the 200 Micro Extruded passages in each cooler provide a large surface area to transfer heat for external air flow cooling while turbulent oil flow design promotes a more complete cooling.

Large 5/8-inch ports prevents inlet/outlet restriction and furnace brazed rails have been tested to 300psi of pressure. The thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan offers ultimate automatic oil temperature control.

• This Auxiliary cooler is designed as an add-on. It is not a replacement for your factory cooler.
• Cooler only. Wiring, brackets, fittings, and hoses are not included.
• Additional hardware must be sourced by the end user.

• "Double Stacked" For Maximum Cooling
• Over 350% Temperature Drop Over Factory System
• Universal Application Includes Cooler Only
• Fittings, Brackets, Wiring & Hoses Not Included
