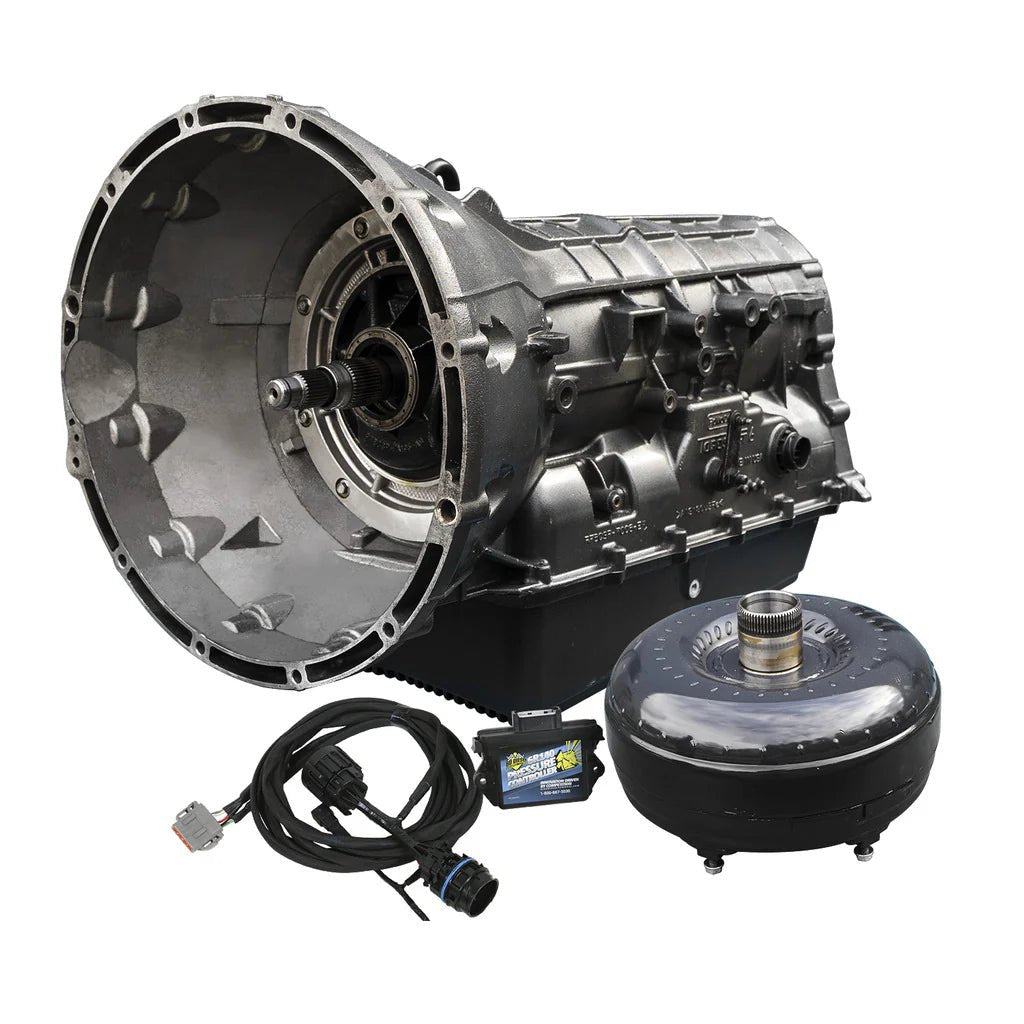

The BD Diesel 1064514SS Transmission & Converter Package Stage 4 is a performance-built transmission for your 2017-2019 Ford 6.7L Powerstroke 4WD. This transmission package includes a stronger transmission with a greater clutch count, high-performance dual surface clutch converter, deep pan and a pressure controller. Dyno tested to ensure all parts work perfectly together, this transmission package comes with matched components for greater reliability.

The transmission in this Stage 4 package features unique pressure plates that allow for a greater clutch count without sacrificing strength. With more clutches than stock and other aftermarket transmissions, this package is engineered to handle increased torque and horsepower. A brand-new valve body has been included to improved transmission life and ensure there is no contamination.

The torque converter included with the BD Diesel 1064514SS Transmission has a dual surface clutch that can withstand greater loads. Featuring furnace brazed turbine fins & pump, this converter also has a machined reaction ring to replace the bendable factory stamped reaction ring. These components combine to make the optimal replacement for the worn-out stock converter and make it the ideal choice for towing or street use.

A key component in the BD Diesel 1064514SS Transmission & Converter Package Stage 4 is the BD Diesel 6R140 Pressure Controller. The pressure controller delivers up to 300 PSI of line pressure to offer up to 76% more theoretical holding power. This unit is not active fulltime unlike solenoid foolers or plugs as it is only activated when boost reaches over 15 PSI. The pressure controller will not create any excess heat when disengaged as it does not create parasitic load when not in use.

**You will be contacted and charged separately about shipping cost.**

Notes:

• No race abuse covered.
• Ford scanner required to update the TCM with the new solenoid code and initiate a relearn. This is very critical component to ensure the transmission works properly.

• Dual Clutch Converter
• Deep Transmission Pan
• BD-Power Pressure Controller
• 3 Year/ 150,000 Mile Warranty

TRANSMISSION:

• Brand New Valve Body
• More Clutches Compared To Stock & Competitors
• Clutch Count: FORWARD 6 (20% Increase Over Stock)
• Clutch Count: DIRECT 6 (20% Increase Over Stock)
• Clutch Count: INTERMEDIATE 8 (60% Increase Over Stock)
• Clutch Count: OVERDRIVE 8 (14% Increase Over Stock)
• Clutch Count: LOW REVERSE 5
• Electronic Line Pressure Controller Adds Up To 300psi Of Line Pressure
• Custom BD Patent Pending Pressure Plates Increase Clutch Count Without Sacrificing Part Strength

TORQUE CONVERTOR:

• Dual Surface Clutch Assembly
• Furnace-Brazed Pump & Turbine Fins
• Great For Street & Towing Applications
• Fully Remanufactured For Long Service Life
• Ideal Replacement For Tired Stock Torque Converter
• Machined Steel Reaction Ring Replaces Flexible Factory Stamping

PRESSURE CONTROLLER:

• 76% More Theoretical Holding Power
• Delivers Up To 300PSI Line Pressure At WOT
• Does Not Create Parasitic Load Or Extra Heat When Inactive
• Only Active When Boost Over 15PSI, Unlike Solenoid Foolers Or Plugs Which Are Active All The Time
