Part #: 1064302

BD Diesel 1064302 Roadmaster 68RFE Transmission (2019-2024 Cummins)

Sale price$4,659.99
Drivetrain: 2WD

Fits: Cummins 6.7L (2019-Current Cummins)

Get It Installed at Our Shop
Skip the Driveway — Our 9-Bay Diesel Shop in Wildwood, FL can Install this for You.

Request Installation

Come to Our 9-Bay Diesel Shop in Wildwood, FL — Fill Out the Request Form to Schedule.

Part: BD Diesel 1064302 Roadmaster 68RFE Transmission (2019-2024 Cummins)

Secure Checkout
Genuine Parts
Fast Shipping
Diesel Experts
Not sure this fits your build? Call or Text Us: (352) 722-5295 Save Contact
Ships from our vendor network — most orders ship in 2–5 business days. Text us to confirm stock on big-ticket items.

Diesel Dollars is Southern Diesel Supply's Loyalty Program. Purchasing with Us Earns you 1 Point for every 1 Dollar spent to use for future buys!

By ordering the BD Diesel 1064302 Roadmaster 68RFE Transmission (2019-2024 Cummins) you will earn 4660 DIESEL DOLLARS in your SDS Fuel Tank!

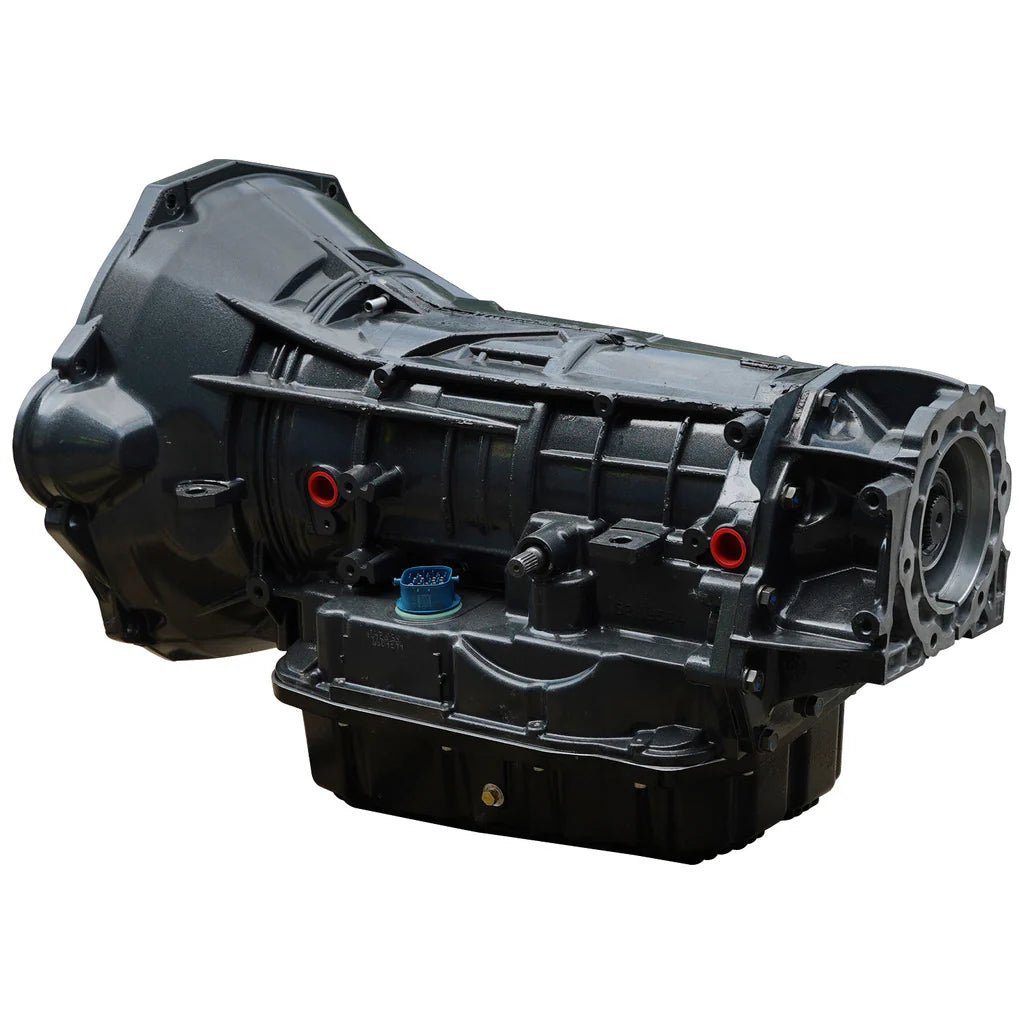

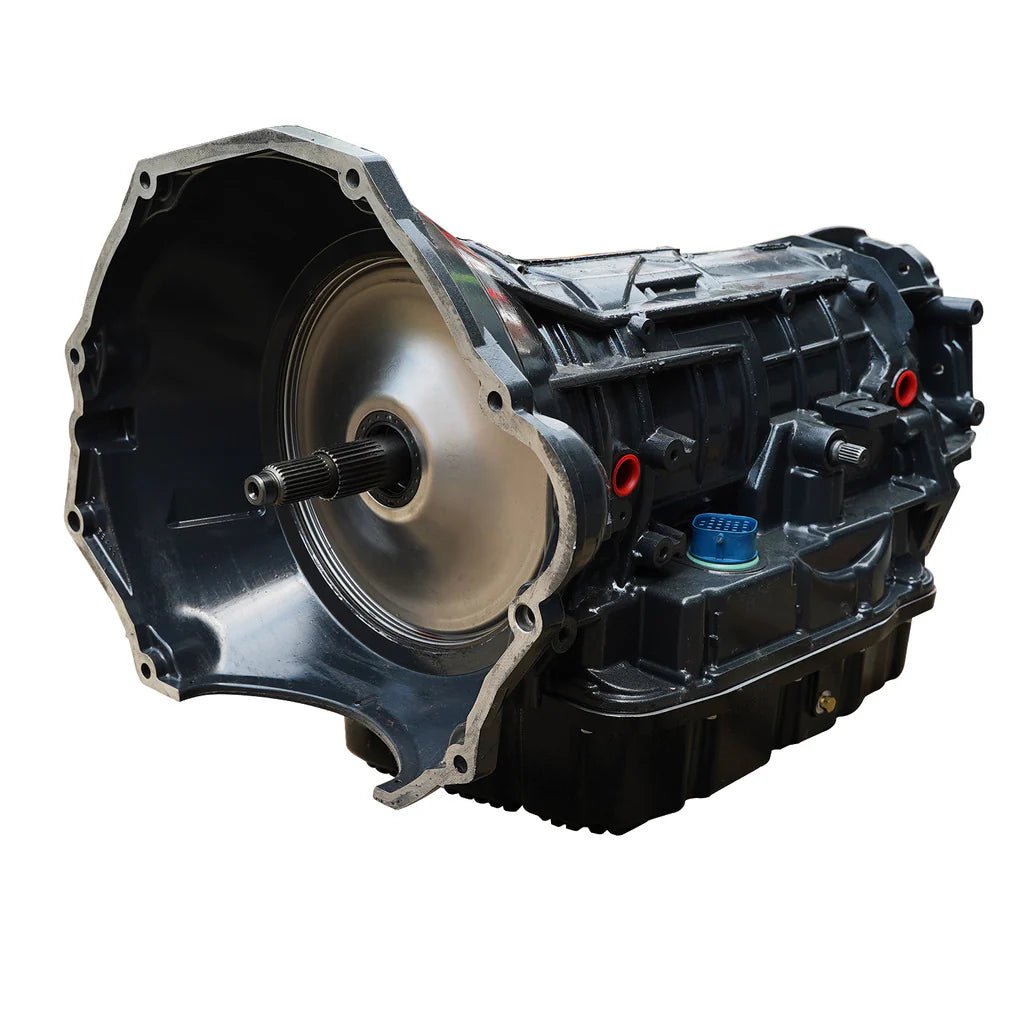

The BD Diesel Roadmaster 68RFE (1064302 / 1064304) is a complete replacement transmission for 2019-2024 Ram 2500 and 3500 pickups with the 6.7L Cummins and the 68RFE automatic. It arrives with BD's Protect68 kit already installed, a valve body with a gasketed separator plate to stop cross-leaks, and a deep sump aluminum pan.

Fitment

Fits 2019-2024 Ram 2500 and 3500 pickups with the 6.7L Cummins and the 68RFE six-speed automatic, which is the transmission in every 2500 and standard-output 3500. BD's description lists 2019-2022 Ram 6.7L trucks, so verify fitment by VIN on 2023-2024 models.

The 68RFE, the Aisin AS69RC used behind the High Output 3500 and the chassis cabs, and the gas-engine 66RFE are not interchangeable. 4x4 and 2WD units also differ: a 4x4 68RFE has a short output shaft and transfer-case flange, while a 2WD unit has a long tailshaft. This listing carries two BD part numbers, 1064302 and 1064304. Choose the one that matches your drivetrain, and call us with your VIN if you are not sure.

Why this part

A known weak spot on the 2019-2024 68RFE is the valve body. When its accumulator plate warps or blows out, fluid cross-leaks between circuits, which sets P0871 (overdrive pressure switch rationality) and brings harsh shifts and limp mode. Torque converter clutch wear can add a shudder around 40-50 mph and spread debris through the unit. The fix is a valve body with an upgraded accumulator plate, or a complete upgraded valve body.

The Roadmaster comes with that work done. BD's Protect68 kit is already installed, and the upgraded valve body includes a BD gasketed separator plate that solves the common cross-leak issues that lead to clutch failure. The included deep sump aluminum pan increases fluid capacity and cooling. Inside, BD keeps stock transmission clutch counts and adds a billet spring retainer (4c). BD rates this transmission for stock or mildly tuned trucks with stock or stock-plus injectors.

If your truck pulls hotshot or heavy-tow loads day in and day out, built 68RFE replacements with about 33% more overdrive clutch capacity are the step up, so call us to talk through which build fits how you use the truck. Before the swap, also run your VIN for open recalls: 68RFE trucks were covered by dipstick-tube fluid expulsion recalls 20V-043 (2019-2020 2500/3500) and 22V-835 (2020-2023 2500, 2020-2022 3500).

What you get

  • BD Roadmaster 68RFE transmission, part number 1064302 or 1064304
  • BD Protect68 kit, already installed
  • Upgraded BD Protect68 valve body with BD gasketed separator plate
  • BD deep sump aluminum oil pan
  • Billet spring retainer (4c)

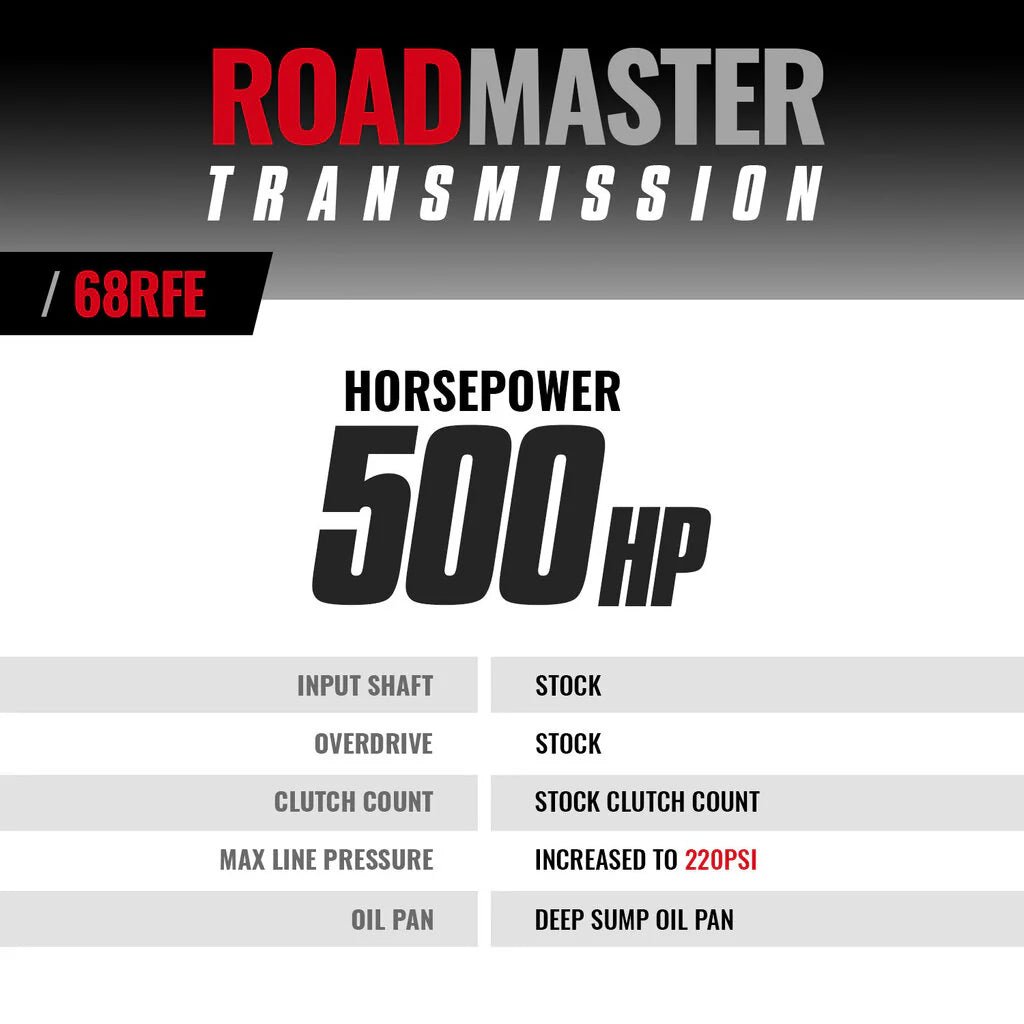

Specifications

BD part numbers 1064302 and 1064304. Features as listed by BD:

  • BD Protect68 Valve Body
  • BD Deep Sump Oil Pan
  • Stock Transmission Clutch Counts
  • Billet Spring Retainer, 4c

About BD Diesel

BD Diesel is based in Abbotsford, British Columbia, where it has built parts for diesel pickups since 1972. Roadmaster and Torquemaster built transmissions lead a lineup that also includes valve bodies, torque converters and Stage 1 through Stage 4 Build-It rebuild kits. Most of the BD parts we carry fit Cummins trucks; see them all on our BD Diesel page.

Frequently asked questions

What kind of truck is this transmission built for?

BD rates the Roadmaster for stock or mildly tuned trucks with stock or stock-plus injectors, and it keeps stock transmission clutch counts. For full-time hotshot or heavy-tow work, ask us about a built 68RFE with more overdrive clutch capacity.

Does it come with a torque converter?

A converter is not listed with this transmission. After a transmission failure, never reuse the old converter, and flush or replace the cooler and lines. Call us and we will match a converter to the job.

How is shipping handled?

You will be contacted and charged separately about the shipping cost on this transmission.

Questions on fitment? Call the shop at the number in the header. We install everything we sell.

Core Charge: This item requires a refundable $1,800.00 core deposit. It's added automatically at checkout and refunded when your old core is returned. See our Core Charge Policy.
