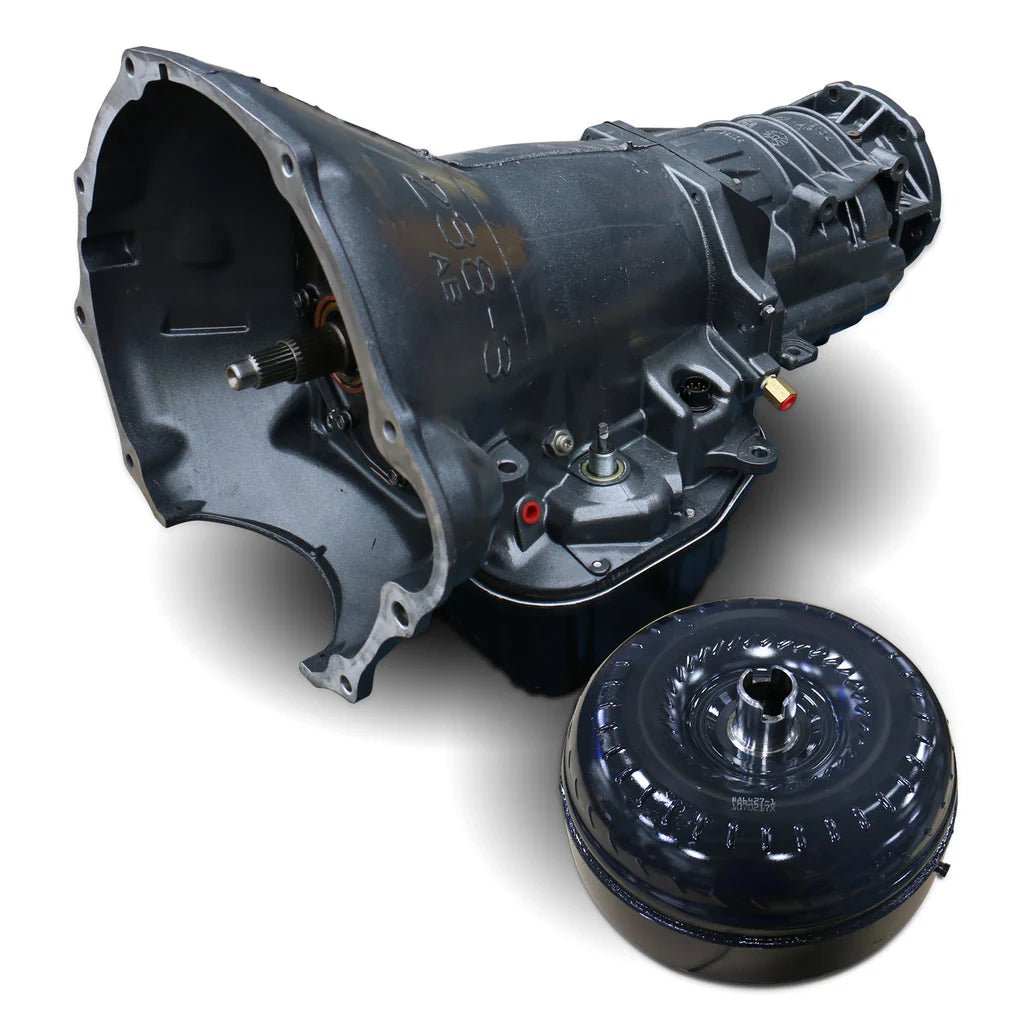

BD Diesel 1064164SS Towmaster 47RE Transmission & Converter 4WD (1996-1998 Cummins)

SDS offers the BD Diesel 1064164SS 47RE 4 Stage Transmission & Converter Package that is ideal for your modified 1996- 1998 Dodge 5.9L Diesel. For maximum performance and dependability, this transmission and converter set has been dyno tested. Each BD Diesel transmission comes with a heavy duty pan, which adds to the fluid capacity. BD is the obvious choice when it comes to a reliable transmission that can handle the power and torque demands of your diesel.

Warranty Note: No Race abuse covered. Remote filter required for inspection with cooler flow rate in GPM at Oil/Air transmission cooler outlet.

**You will be contacted and charged separately about shipping cost.**

TRANSMISSION FEATURES:

• Upgraded Valve Body
• Dyno Tested For Durability
• High Temperature Raybestos Band
• Valve Body Line Pressure Increased To 190-200PSI
• Stock Thrust Bushings Replaced With Roller Torrington Bearings
• Heavy-Duty Aluminum Transmission Pan With 2 QT Extra Oil Capacity
• Transmission Features Pan Heat-Dissipating Fins & Magnetic Drain Plug

TORQUE CONVERTER FEATURES:

• Cast Stator Designs Maximizes Torque
• Lower RPM Response Than Stock Converter
• HD Springs Absorb Shock Of Clutch Engagement
• New Sprag Components Ensure Long Term Durability
• Utilizes Thrust Bearings Instead Of Plastic Thrust Washers
• Reduced Overall Weight By 12Lbs Compared To Competitors
• Stamp Forged 1-Piece Cover Eliminates Warpage From Clutch Heat
• Furnaced Brazed Turbine Fins For Improved Fluid Coupling Efficiency
• Triple Disc Enhanced Stall Converter Is Ideal For Street/Towing Applications
• Self-Centering Trapezoid Teeth Design Increases Contact Decreases Wear & Chatter
• Riveted Piston Ensures Alignment & Eliminates Vibration Or Embrittlement From Welding
