General Description
Rebuild the transmission in your 2007.5-2018 Dodge 6.7L Diesel 68RFE with the BD Diesel 1062022 Stage 2 Transmission Build-It Kit. Are you a looking to rebuild your own transmission and needing some specialty parts to match your application? BD offers a range of rebuild parts kits featuring the same parts used in their own performance transmissions for the seasoned builder to complete the job. All kits include the basic rebuild parts and gaskets and have the added touches that range from stock HP up to their Stage 4 Master Kit - which is pretty well everything they put in their own transmission rebuilds.This kit is engineered by BD to provide your truck with dependable components for quality transmission performance.
Features
- Custom Bonded Gasket Valve Body Separator Plate Increases Line Pressure While Stopping Internal Cross Leaks
- Heavy Duty Accumulator Plate To Prevent Accumulator Blowout
- BD Durable QT100 Pressure Plates Allow For Increased Clutch Counts And Reduce Deflection And Distortion Within The Clutch Drum
- Over Drive Clutches 17% Increase And Under Drive Clutches 20% Increase
- Qty 2: Check Balls 1/4in
- Qty 3: 2C Clutch Friction, 2C Clutch Steel, 4C Clutch Friction, 4C Clutch Steel
- Qty 7: Reverse Clutch Friction, Reverse Clutch Steel
- Qty 15: 0D Clutch Friction, OD Clutch Steel
- Filter - Pan, Spin On
- Billet 4C Spring Retaining Ring
- Gasket Kit - Oil Cooler, Oil Pan, Solenoid Pack
- Seal - Solenoid Pack Connector, 4wd Output Shaft, 2wd Output Shaft, Input Shaft
- Seal Kit - 2-4C, Input Drum, Solenoid Pack, Internal, External
- 0-Ring - Pump Cover

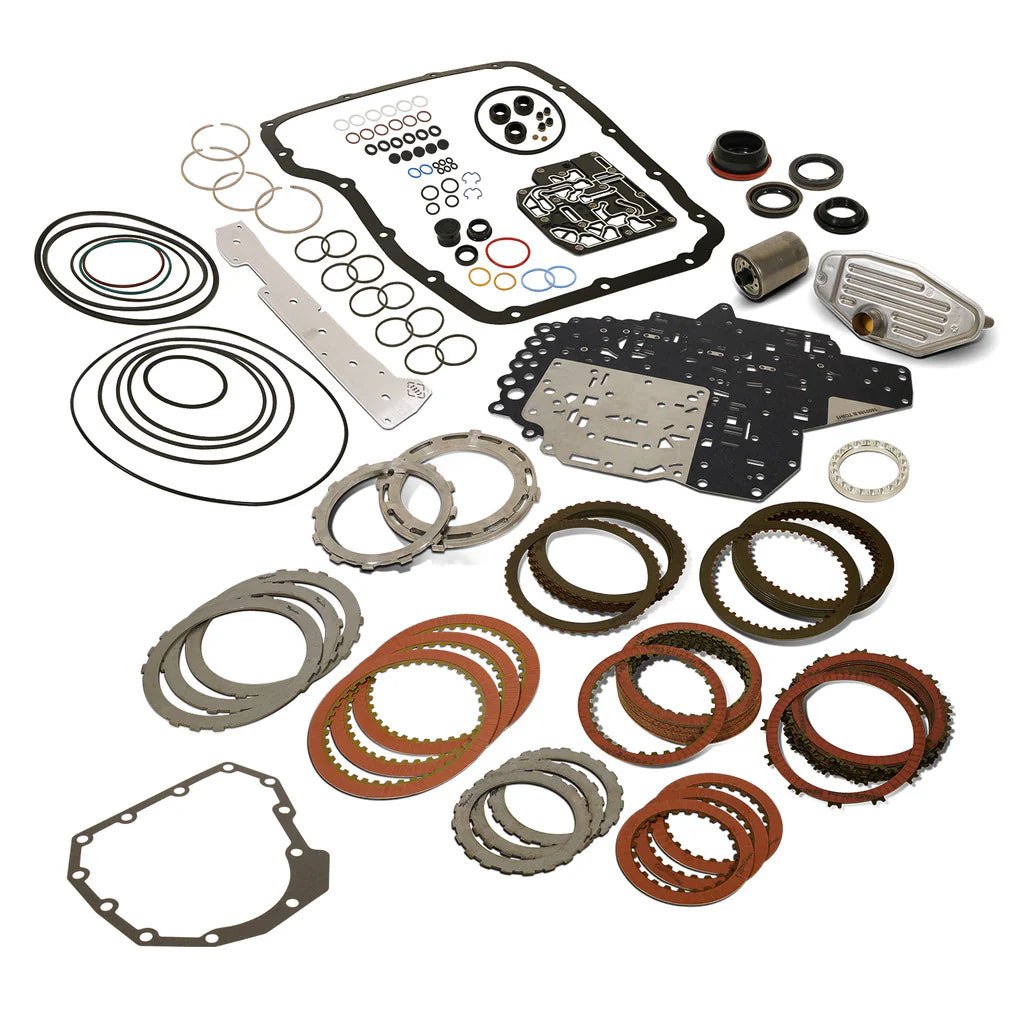

Kit Includes
(3) 2C Clutch Friction
(3) 2C Clutch Steel
(3) 4C Clutch Friction
(3) 4C Clutch Steel
(15) 0D Clutch Friction
(15) OD Clutch Steel
(7) Reverse Clutch Friction
(7) Reverse Clutch Steel
(1) Filter - Pan
(1) Filter - Spin On
(1) Billet OD/Reverse Selector Plate
(1) Billet OD/UD Reaction Plate
(1) Stiffer Billet Intermediate Reaction Plate
(1) Stiffer Billet OverDrive/Rev Reaction Plate
(1) Billet 4C Spring Retaining Ring
(1) Gasket - Oil Pan
(1) Gasket - Solenoid Pack
(1) Gasket Kit - Oil Cooler
(1) Seal - Solenoid Pack Connector
(1) Seal - 4wd Output Shaft
(1) Seal - 2wd Output Shaft
(1) Seal - Input Shaft
(1) Seal Kit - 2-4C
(1) Seal Kit - Input Drum
(1) Seal Kit - Solenoid Pack
(1) Seal Kit - Internal
(1) Seal Kit - External
(1) 0-Ring - pump Cover
(7) Check Balls 1/4in
