BD Diesel 1062003 Stage 3 Transmission Build-It Kit (1994-2002 Cummins)
Want this installed at our shop?
Fill out the form below and we'll reach out to schedule your installation.
Diesel Dollars is Southern Diesel Supply's Loyalty Program. Purchasing with Us Earns you 1 Point for every 1 Dollar spent to use for future buys!
By ordering the BD Diesel 1062003 Stage 3 Transmission Build-It Kit (1994-2002 Cummins) you will earn 774 DIESEL DOLLARS in your SDS Fuel Tank!
General Description
The BD Diesel 1062003 Stage 3 Transmission Build-It Kit for your 1994-2002 Dodge 5.9L Diesel is the perfect option for those looking to rebuild their transmission. These kits feature some of the same parts used by BD Diesel in their own performance transmissions and come with the components needed for the seasoned builder to complete the job. The Stage 3 kit is a more in-depth "Heavy-Duty rebuild kit that is designed for use in many street performance and towing applications.
Note: Transmission Build-It Kits are not covered by any warranty. Components are guaranteed to be free of defects upon receiving the products. However, the build and function of the transmission is the sole responsibility of the builder.
Features
- Stage 3 Heavy Duty Rebuild Kit
- For Street Performance, Towing & General Use

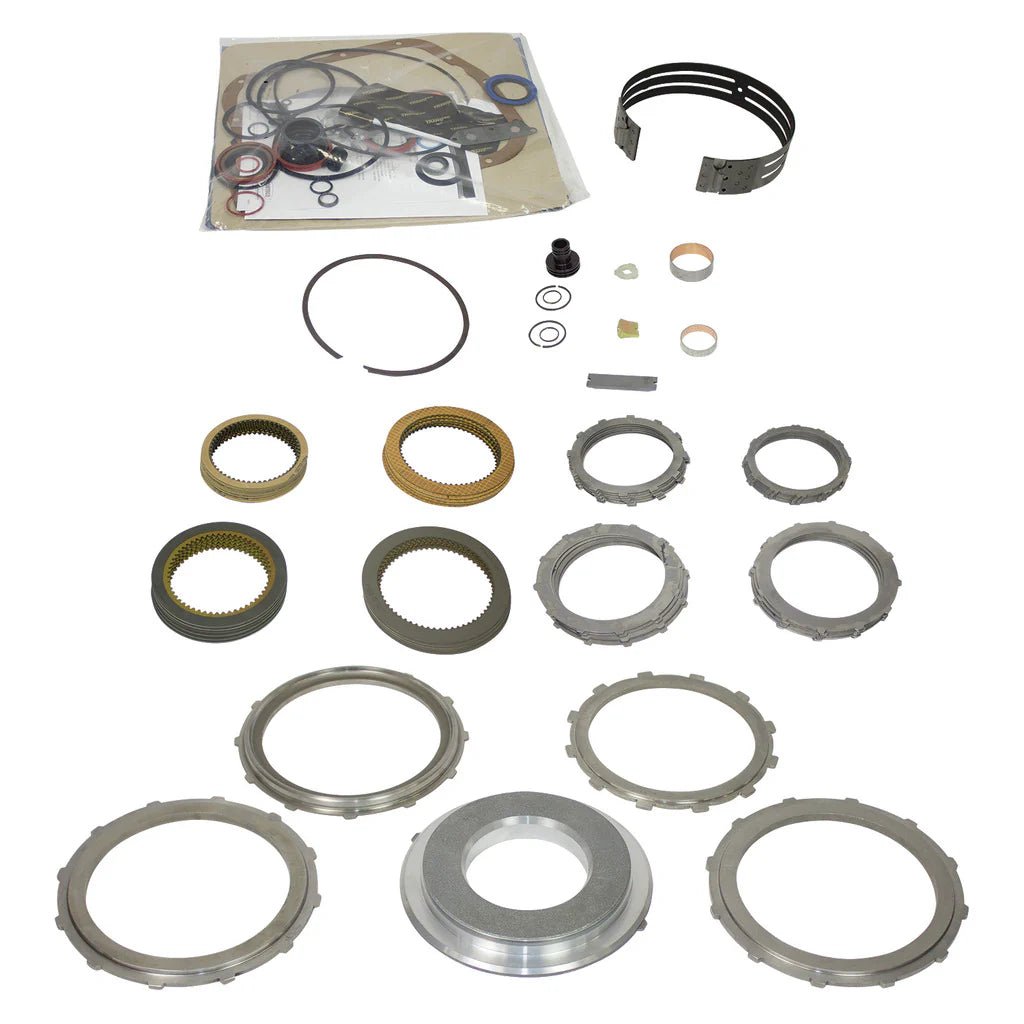

Kit Includes
(1) Band - High Temp
(1) Band Anchor - Billet
(1) Bushing - Front Clutch Drum 0.85
(1) Bushing - Pump - Bronze w/Dimples
(10) Friction - O/D Direct BW
(5) Friction - Rear (FWD)
(1) Gasket Kit - Overhaul
(1) Pressure Plate - Dir/Fwd (Frt) .145
(1) Pressure Plate - Dir/Fwd (Frt) .185
(1) Pressure Plate Forward (Rr) Beveled Machined
(1) Pressure Plate 0/D Brake F&R Machined
(1) Piston - Dir. Clutch (Frt) Machined
(1) Snap Ring - Direct Clutch .074
(4) Steel - Fwd (Dir/Hi/Rev)
(6) Steel - 0/D Brake
(9) Steel - O/D Dir.525
(5) Steel - Frt (Dir/Hi/Rev) Oversize
(1) Strut - Front Band
(1) Washer - Int. Shaft Thrust .052
