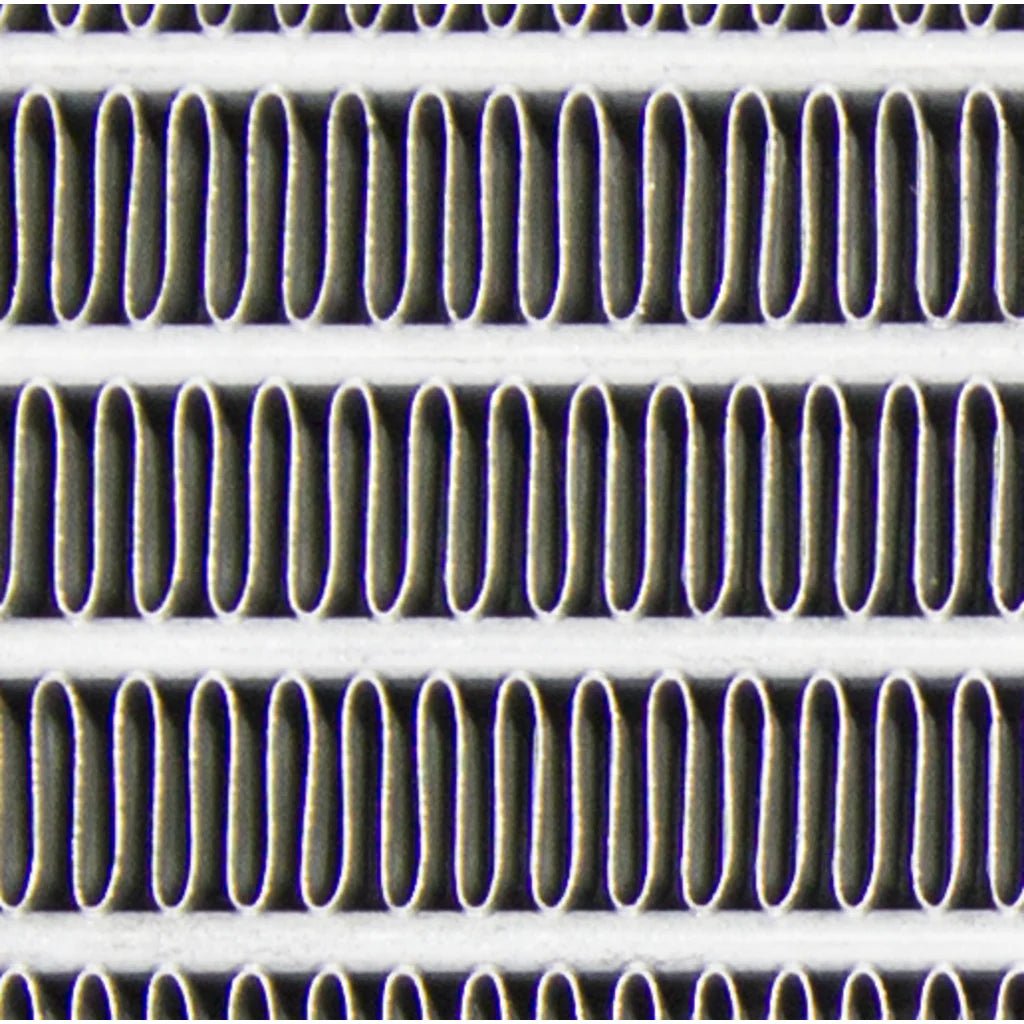

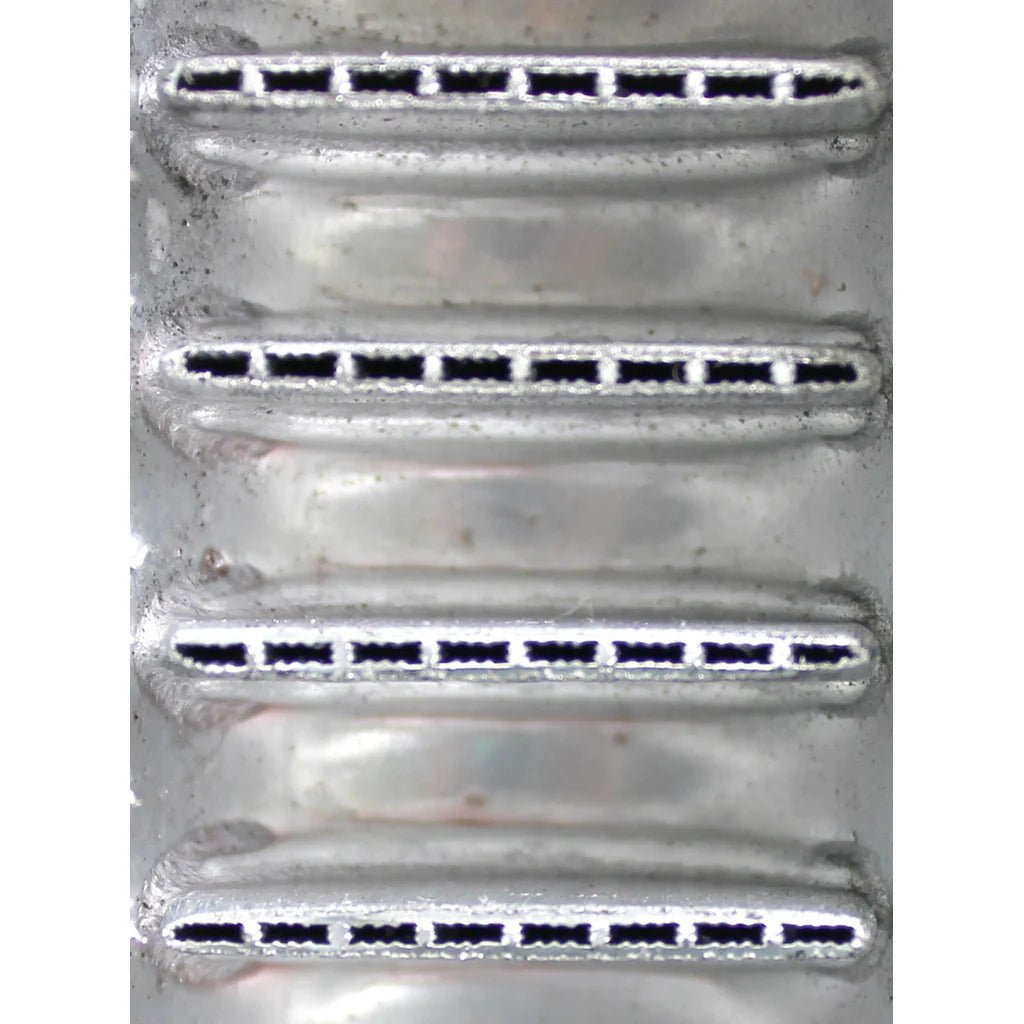

The Coolest Xtruded Transmission Oil Cooler. The BD Diesel high efficiency micro extruded bar technology provides 22% more cooling over other designs. The 25 flat tubes have 200 micro extruded passages providing a large surface area to transfer heat for external air flow cooling.

With a power rating of 33,930 BTU/HR it's designed for an excess of 30,000 GVW. Large end tanks provide up to 5/8' ID hose compatibility. 80-Watt, 10-inch, 800CM electric fan offers the ultimate automatic transmission oil temperature control. See application guide for fitment.

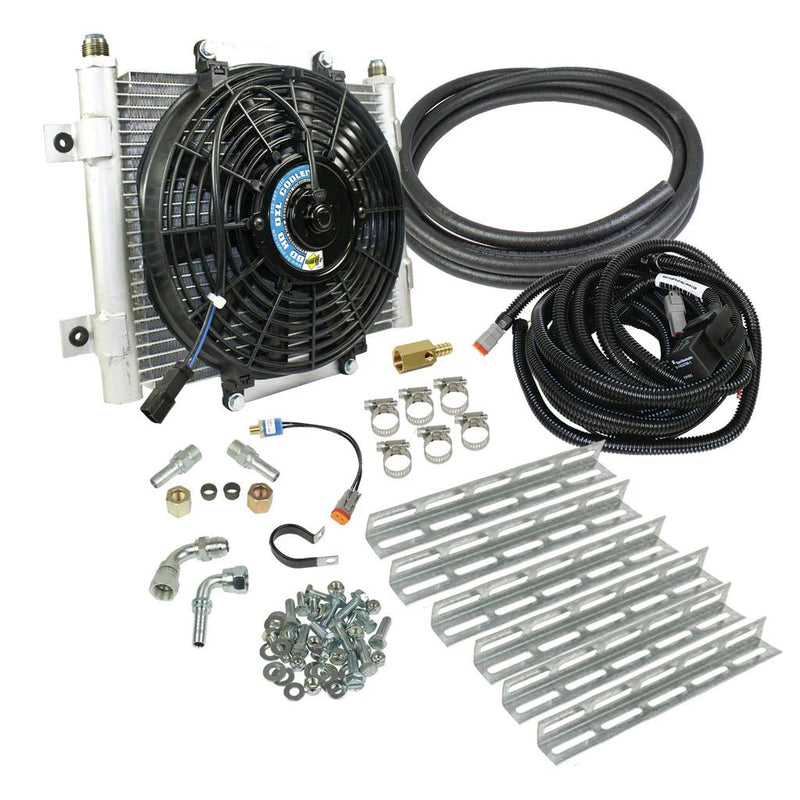

KIT INCLUDES:

• Fittings, Clamps & Hoses
• DIY Galvanized Bracket Kit
• 180-Degree Auto Temp Switch
• Fused Wiring Harness & Relay

APPLICATIONS & SIZES:

• 1999-2010 Ford 4R100, 5R110 - 3/8" Tube Size
• 2001-2016 GM/Duramax Allison 1000 - 5/8* Tube
• 1994-2016 Dodge 47RH, 47RE, 48RE, 68RFE - 1/2' Tube

Application Note:

• This Auxiliary cooler is designed as an add-on. It is not a replacement for your factory cooler.
• The temperature sensor is designed to turn the fan on at 180 degrees F and turn off at 160 degrees F.

• 800 CFM Electric Fan
• Designed for an Excess Of 30,000 GW
• Large Ends Tanks Allow Up To 5/8' Hose
• High Efficiency Micro Extruded Technology
