BD Diesel 1030362 PROTECT68 68RFE Pressure Control Kit (2007.5-2018 Cummins)

Sale price$395.99
Secure Checkout
Genuine Parts
Fast Shipping
Diesel Experts

Want this installed at our shop?

Fill out the form below and we'll reach out to schedule your installation.

Diesel Dollars is Southern Diesel Supply's Loyalty Program. Purchasing with Us Earns you 1 Point for every 1 Dollar spent to use for future buys!

By ordering the BD Diesel 1030362 PROTECT68 68RFE Pressure Control Kit (2007.5-2018 Cummins) you will earn 396 DIESEL DOLLARS in your SDS Fuel Tank!

General Description

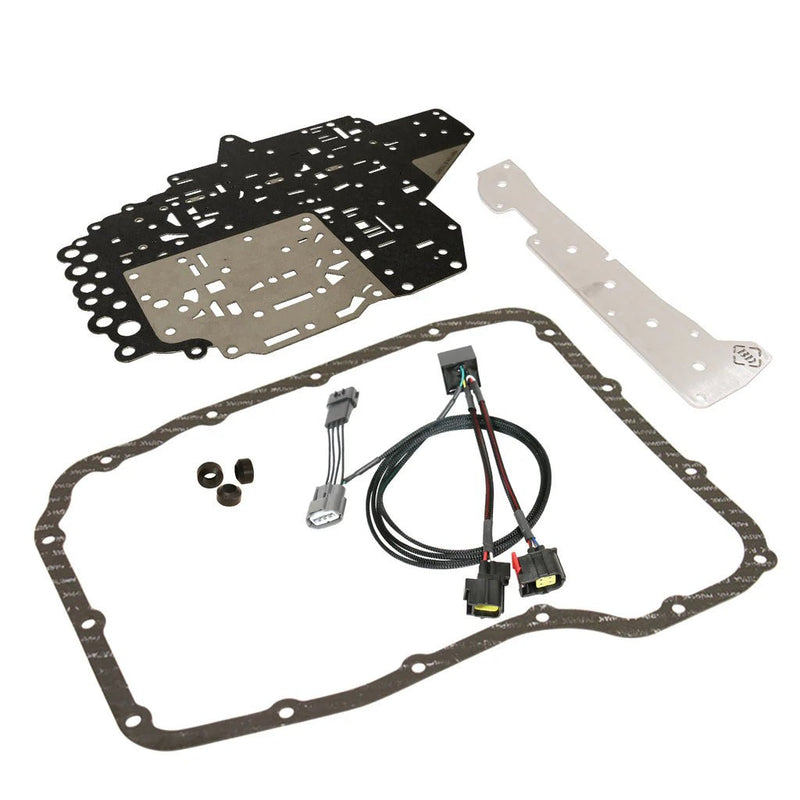

The BD Diesel 1030362 ProTect68 68RFE Pressure Control Kit for your 2007.5-2018 Dodge 6.7L Diesel adds 56% more theoretical holding power in your 68RFE Transmission. The Protect68 includes a new designed valve body separator plate and gaskets that increases line pressure while stopping internal cross leaks. Also included are a Pressure Control Module that delivers up to 250 PSI clutch apply pressure and a heavy-duty accumulator plate to prevent blow-out.


The ProTect68 Electronic Pressure Controller dynamically adjusts the hydraulic apply pressures based on turbo boost/ engine load. The modules dynamic control ramps up the much larger sweep as needed dependent on engine load which creates turbocharger boost dynamically.


Installation takes 2-to-3 hours to complete without having to do a full transmission relearn since no internal tolerances have changed. A fresh stock transmission will have the ability to handle up to around 400HP-450HP. For higher power or demands, a complete BD 68RFE transmission is recommended.

Features

  • Prevents Clutch Slippage
  • 56% More Theoretical Holding Power
  • No Tuning Required Or Full Transmission Relearn Required
  • Increases Line Pressure While Stopping Internal Cross Leaks
  • Allows A "Fresh" Stock Transmission To Handle Up To 400HP-450HP



Part #: 1030362
