Part #: 35146-B

Banks Power 35146-B Ram-Air Transmission Pan (2001-2019 Duramax)

Sale price$429.99 Regular price$479.99

Fits: Chevrolet • GMC

Get It Installed at Our Shop
Skip the Driveway — Our 9-Bay Diesel Shop in Wildwood, FL can Install this for You.

Request Installation

Come to Our 9-Bay Diesel Shop in Wildwood, FL — Fill Out the Request Form to Schedule.

Part: Banks Power 35146-B Ram-Air Transmission Pan (2001-2019 Duramax)

Secure Checkout
Genuine Parts
Fast Shipping
Diesel Experts
Not sure this fits your build? Call or Text Us: (352) 722-5295 Save Contact
Ships from our vendor network — most orders ship in 2–5 business days. Text us to confirm stock on big-ticket items.

Diesel Dollars is Southern Diesel Supply's Loyalty Program. Purchasing with Us Earns you 1 Point for every 1 Dollar spent to use for future buys!

By ordering the Banks Power 35146-B Ram-Air Transmission Pan (2001-2019 Duramax) you will earn 430 DIESEL DOLLARS in your SDS Fuel Tank!

The Banks Power 35146-B Ram-Air Transmission Pan replaces the factory pan on the Allison 1000 in 2001-2019 Chevrolet Silverado and GMC Sierra 2500HD-3500HD trucks with the 6.6L Duramax, from the LB7 through the 2019 L5P. It adds two quarts of fluid and uses a Ram-Air scoop and FlowThru Fins to shed heat. Cooler fluid means a longer-lasting transmission.

Fitment

Banks lists this pan as fitting 2001-2019 models. In our catalog it is tagged for every 6.6L Duramax in that window: LB7 (2001-2004), LLY (2004.5-2005), LBZ (2006-2007), LMM (2007.5-2010), LML (2011-2016) and the 2017-2019 L5P, in the Chevrolet Silverado 2500HD/3500HD and GMC Sierra 2500HD/3500HD. Our L5P tag runs past 2019, but this pan stops at 2019, so verify fitment by VIN. It does not fit 2020 and later L5P trucks. Those use the 10L1000 ten-speed, and Allison 1000 and 10L1000 pans do not interchange. For a 2020-2025 truck, look at the Banks 35148-B. Send us your VIN or call the shop to confirm.

Why this part

Banks designed this pan to extend fluid life by rejecting more heat than stock and all competitors. That matters most on a truck that tows. On 2017-2019 L5P trucks, the factory thermal bypass valve can stick closed so fluid never reaches the cooler, and temperatures climb when you tow or sit in stop-and-go traffic. Heavy-tow trucks that run hot behind the Allison 1000 are the ones that get deep pans, auxiliary coolers and a better bypass valve.

The pan borrows technology from Banks' patented differential covers. It adds two quarts of fluid capacity, so there is more fluid to carry the heat. FlowThru Fins pull heat from the fluid to the outside of the cover, and the Ram-Air scoop pushes air across it while you drive. Banks rates it at 72% more heat absorption surface area and 141% more cooling surface area than stock.

The scoop is a breakaway design, so a hard hit takes the scoop instead of damaging the pan. The pan itself is die-cast, not sand-cast like competing pans, and it allows full fluid drainage, so a fluid change gets all of the old fluid out.

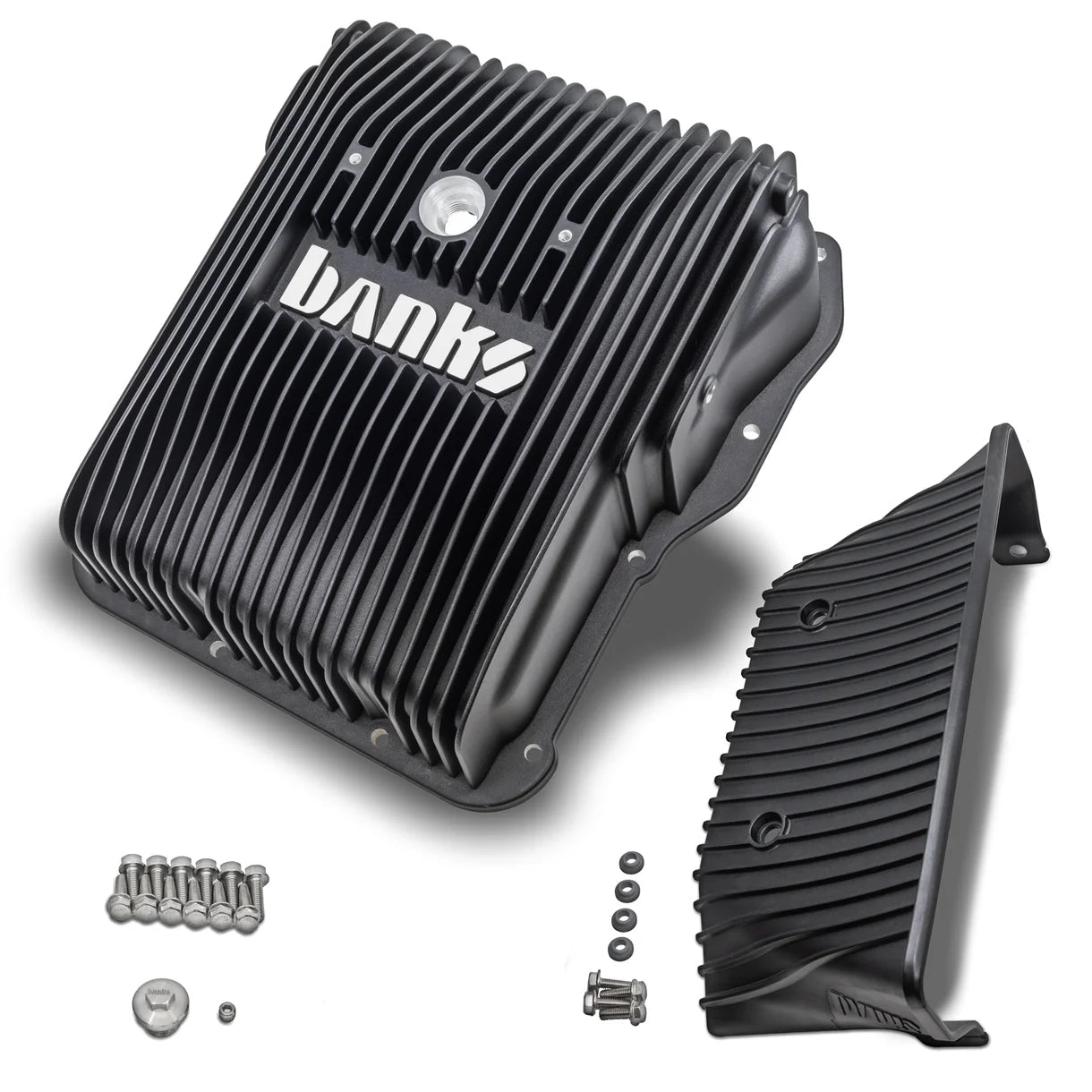

What you get

  • One Banks Power 35146-B die-cast Ram-Air transmission pan
  • Breakaway Ram-Air scoop
  • Banks FlowThru Fins™

Gaskets and bolts are not listed in the description, so ask us and we will confirm what comes with it.

Specifications

  • Engineered for the highest heat rejection, improved oil flow, and full oil drainage
  • Adds 2 additional quarts of fluid capacity
  • FlowThru Fins™ efficiently transfer heat from the oil to the cover's exterior
  • 72% more heat absorption surface area than stock
  • 141% more cooling surface area than stock
  • Breakaway Ram-Air Scoop design prevents pan damage
  • Allows full fluid drainage
  • Die-Cast not sand-cast like competitors
  • Patent Pending
  • Fits 2001-2019 Models

About Banks Power

Gale Banks founded Banks Power in 1958, and the company still engineers and builds its parts in Azusa, California. Banks makes air intakes, exhaust, intercoolers, turbos and gauge hardware for Duramax, Cummins and Power Stroke trucks. We stock only emissions-compliant Banks parts, which is how we build trucks at our shop.

Frequently asked questions

Will this fit my 2020 or newer Duramax?

No. 2020 and later L5P trucks use the 10L1000 ten-speed, and this pan is built for the Allison 1000. Banks makes a separate Ram-Air pan, 35148-B, for 2020-2025 trucks.

How much fluid does it add?

Two quarts over the factory pan. Buy enough fluid to cover the extra capacity when you do the install.

What happens if the scoop hits something?

The Ram-Air scoop is a breakaway design. Banks built it that way to prevent damage to the pan.

Questions on fitment? Call the shop at the number in the header. We install everything we sell.
