ATS Thermal Bypass Valve Up-Grade (2013-2024 6.7L Cummins)
Fits: Cummins 6.7L (2013-2018 Cummins)
Diesel Dollars is Southern Diesel Supply's Loyalty Program. Purchasing with Us Earns you 1 Point for every 1 Dollar spent to use for future buys!
By ordering the ATS Thermal Bypass Valve Up-Grade (2013-2024 6.7L Cummins) you will earn 100 DIESEL DOLLARS in your SDS Fuel Tank!
The ATS Thermal Bypass Valve Up-Grade is a transmission cooler bypass block for 2013-2018 Ram 2500 and 3500 trucks with the 6.7L Cummins and a 68RFE or Aisin AS69RC automatic. It replaces the factory cooler bypass valve, which ATS says leaks and sticks in bypass, so 100 percent of the fluid goes through the cooler.
Fitment
Fits 2013-2018 Ram 2500 and 3500 pickups with the 6.7L Cummins and either the 68RFE or the Aisin AS69RC automatic transmission. ATS describes the part as a 68-RFE Trans Cooler Bypass Block that fits 2013 and up Cummins trucks with the 68-RFE or Aisin AS69RC transmission.
The product title runs to 2024, but our confirmed fitment covers 2013-2018, so we list the narrower range. If your truck is a 2019 or newer, verify fitment by VIN before you order. The block is only for trucks with one of those two automatics; it is not for any other transmission.
Why this part
On 2013 and newer trucks, Dodge built a transmission cooler bypass valve into the cooling system of the 68RFE and the Aisin AS69RC. During cold operation, the valve sends fluid around the transmission cooler instead of through it. The intent is to force the transmission to warm up faster.
ATS says the reality is different. In almost every case, the bypass valve leaks and sticks in the bypass position. When that happens, the cooler flow skips the trans cooler, which essentially eliminates the cooler from the circuit. Over time, that causes severe damage to the transmission.
The ATS cooler block replaces the faulty design. It eliminates the bypass valve and makes sure 100 percent of the trans cooler flow is forced through the cooler. ATS reports that in every case this substantially reduces transmission temperatures, and it calls the block a must for any truck with a 68-RFE or Aisin AS69RC in it.
The fix is simple in concept: take the part that fails out of the circuit and let the cooler do its job full time. That is why we point owners of these two transmissions at this block.
What you get

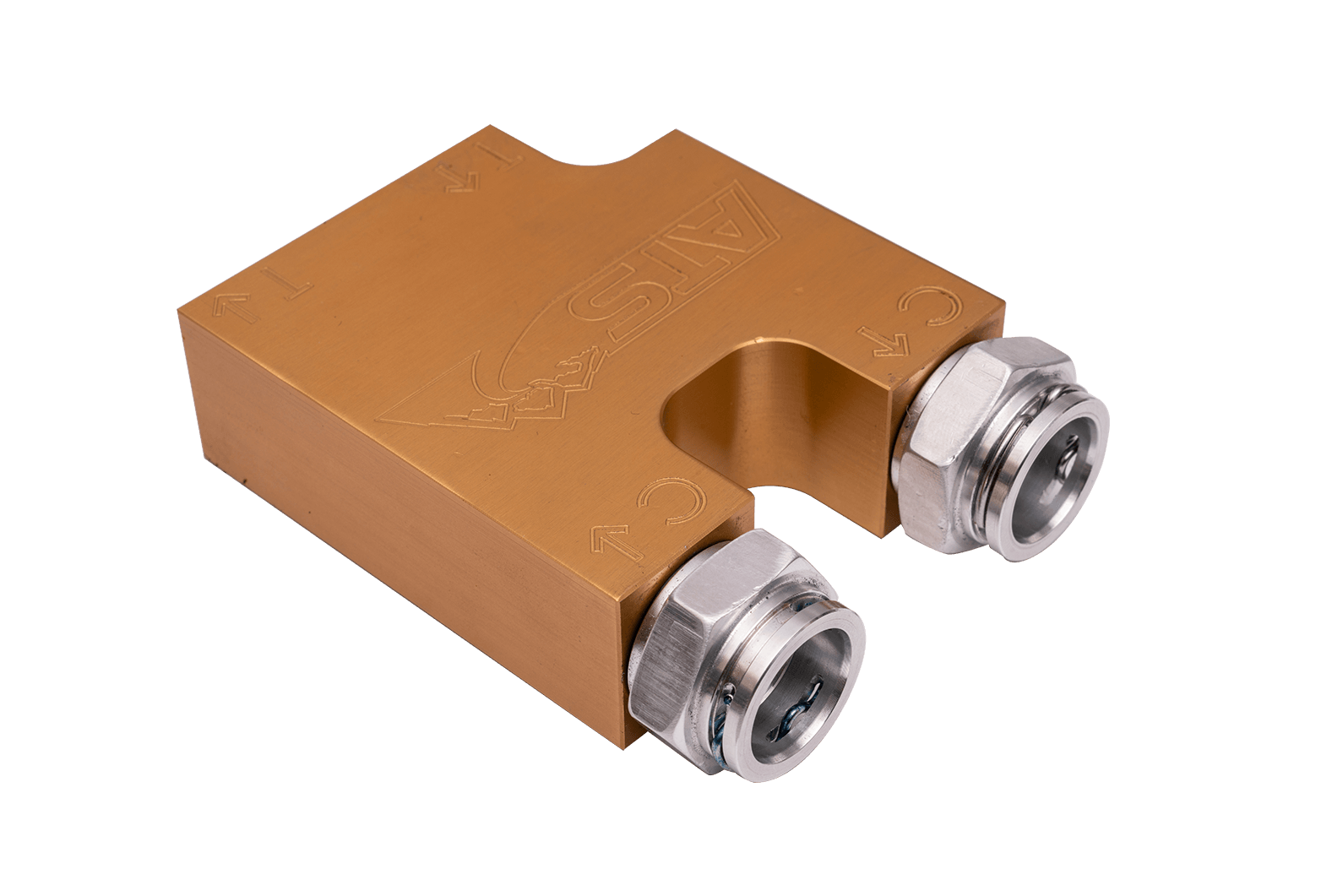

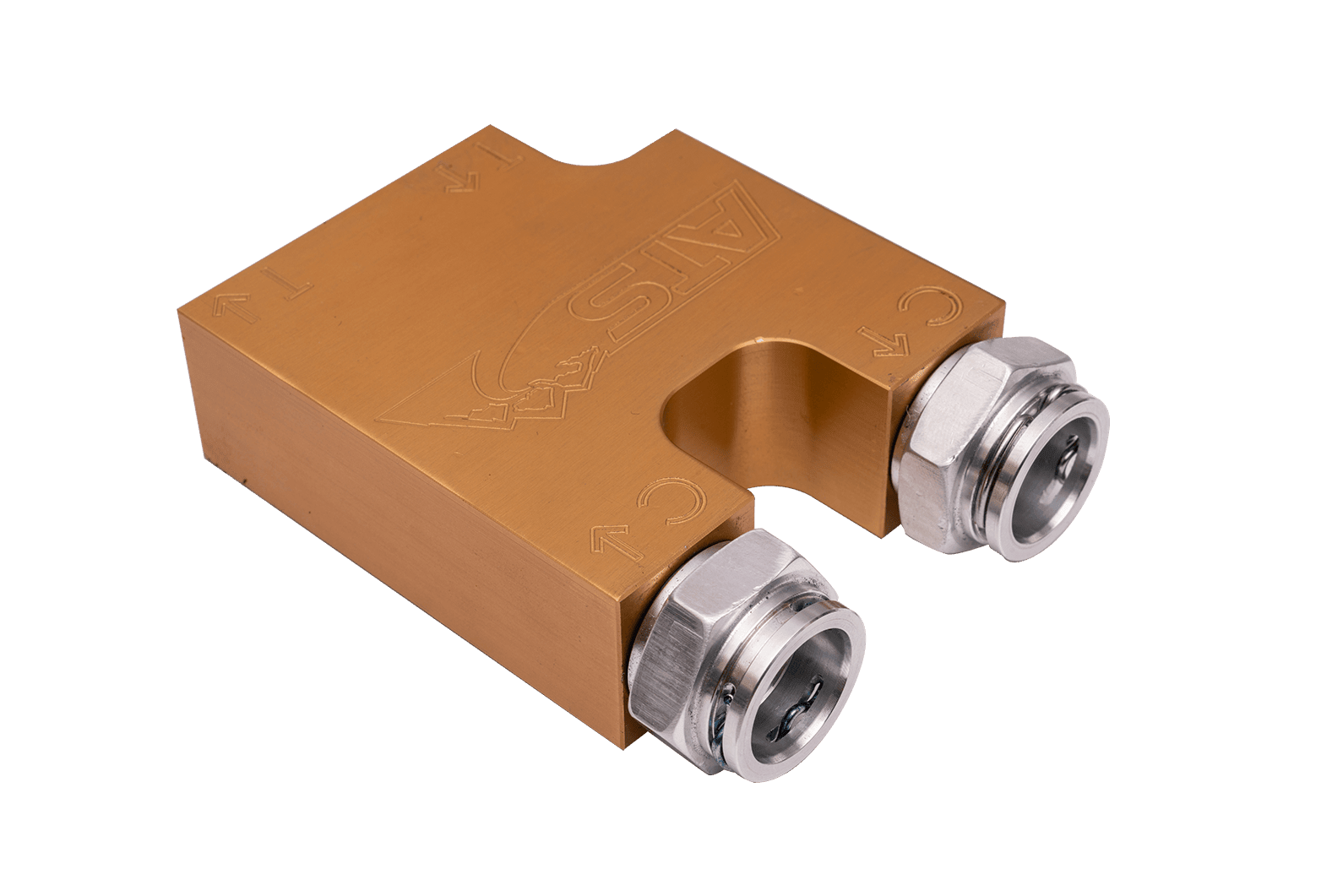

- ATS transmission cooler bypass block (Thermal Bypass Valve Up-Grade) for the 68RFE and Aisin AS69RC
- Replaces the factory thermal bypass valve so all cooler flow goes through the trans cooler
- Two versions in the selector: ATS part numbers 310-005-2392 and 310-005-2464
About ATS Diesel Performance
ATS Diesel Performance was founded in 1993 in Arvada, Colorado, and builds transmission packages, torque converters and transmission hard parts for Cummins, Duramax and Powerstroke trucks. Its hard parts include 68RFE accumulator kits, deep transmission pans and line pressure sensors, and ATS also makes Aurora turbochargers and exhaust manifolds for the 6.7L Cummins.
Frequently asked questions
What does the factory bypass valve do?
It routes transmission fluid around the cooler while the truck is cold so the transmission warms up faster. ATS reports that the valve leaks and sticks in the bypass position in almost every case, which takes the cooler out of the circuit.
Does this fit a 2019 or newer Ram?
The title lists trucks through 2024, but our confirmed fitment is 2013-2018 with the 68RFE or AS69RC. Call us with your VIN before ordering for a newer truck.
Which of the two versions do I need?
This listing carries two ATS part numbers, 310-005-2392 and 310-005-2464. Choose the one that matches your truck in the selector, or call the shop with your VIN and we will confirm it.
Questions on fitment? Call the shop at the number in the header. We install everything we sell.
