ATS Pulse Flow Exhaust Manifold (2019-2024 6.7L Cummins)
Fits: Cummins 6.7L (2019-Current Cummins)
Diesel Dollars is Southern Diesel Supply's Loyalty Program. Purchasing with Us Earns you 1 Point for every 1 Dollar spent to use for future buys!
By ordering the ATS Pulse Flow Exhaust Manifold (2019-2024 6.7L Cummins) you will earn 750 DIESEL DOLLARS in your SDS Fuel Tank!

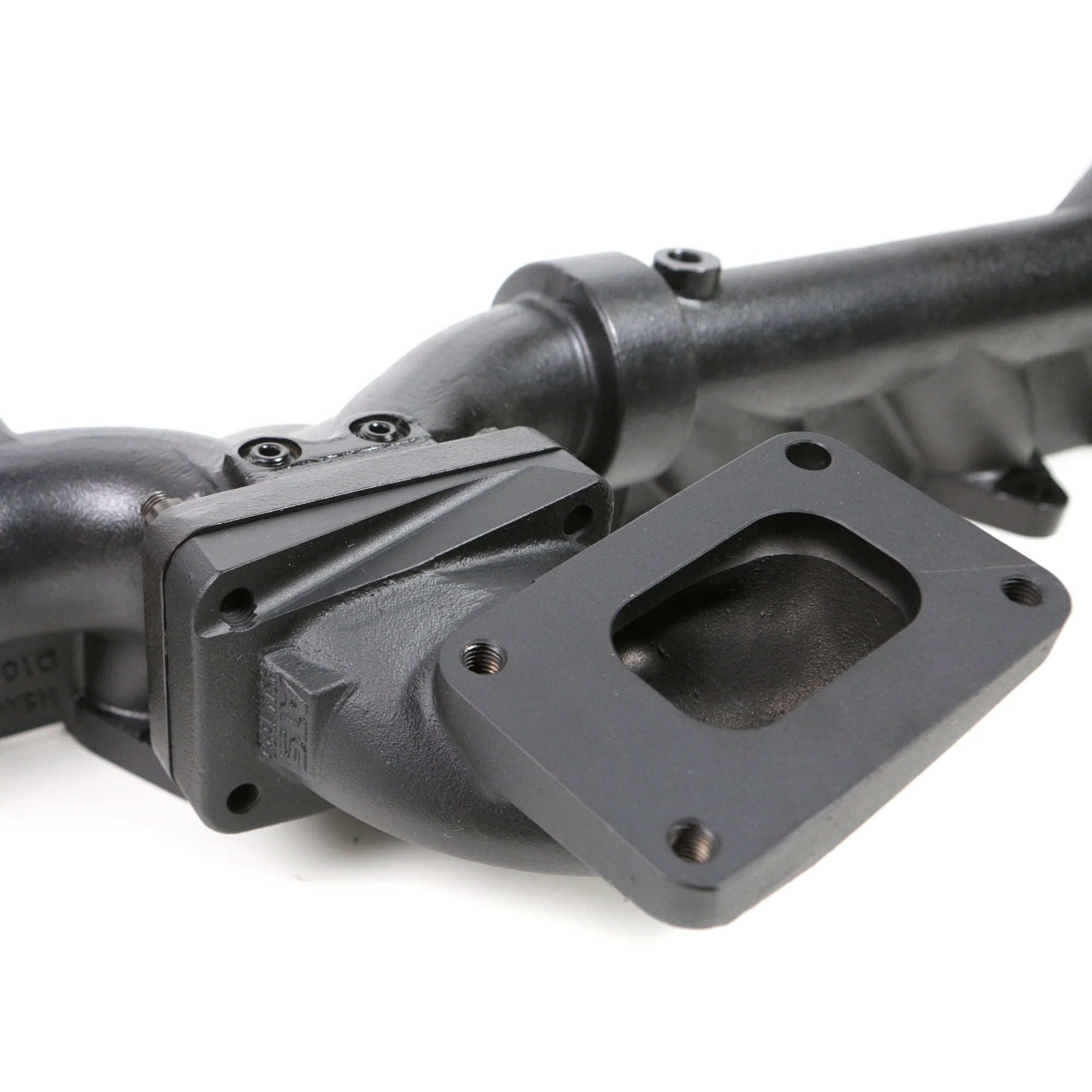

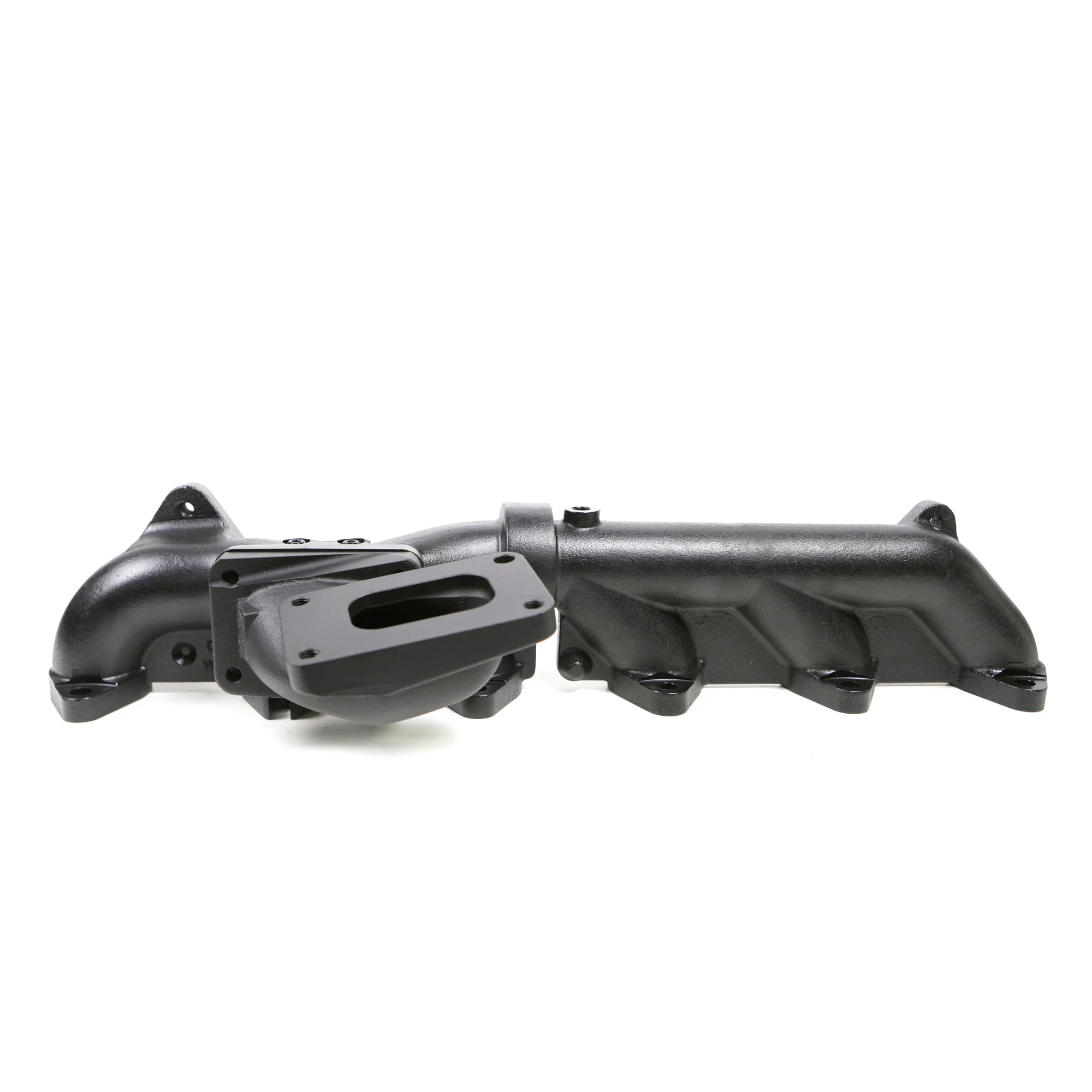

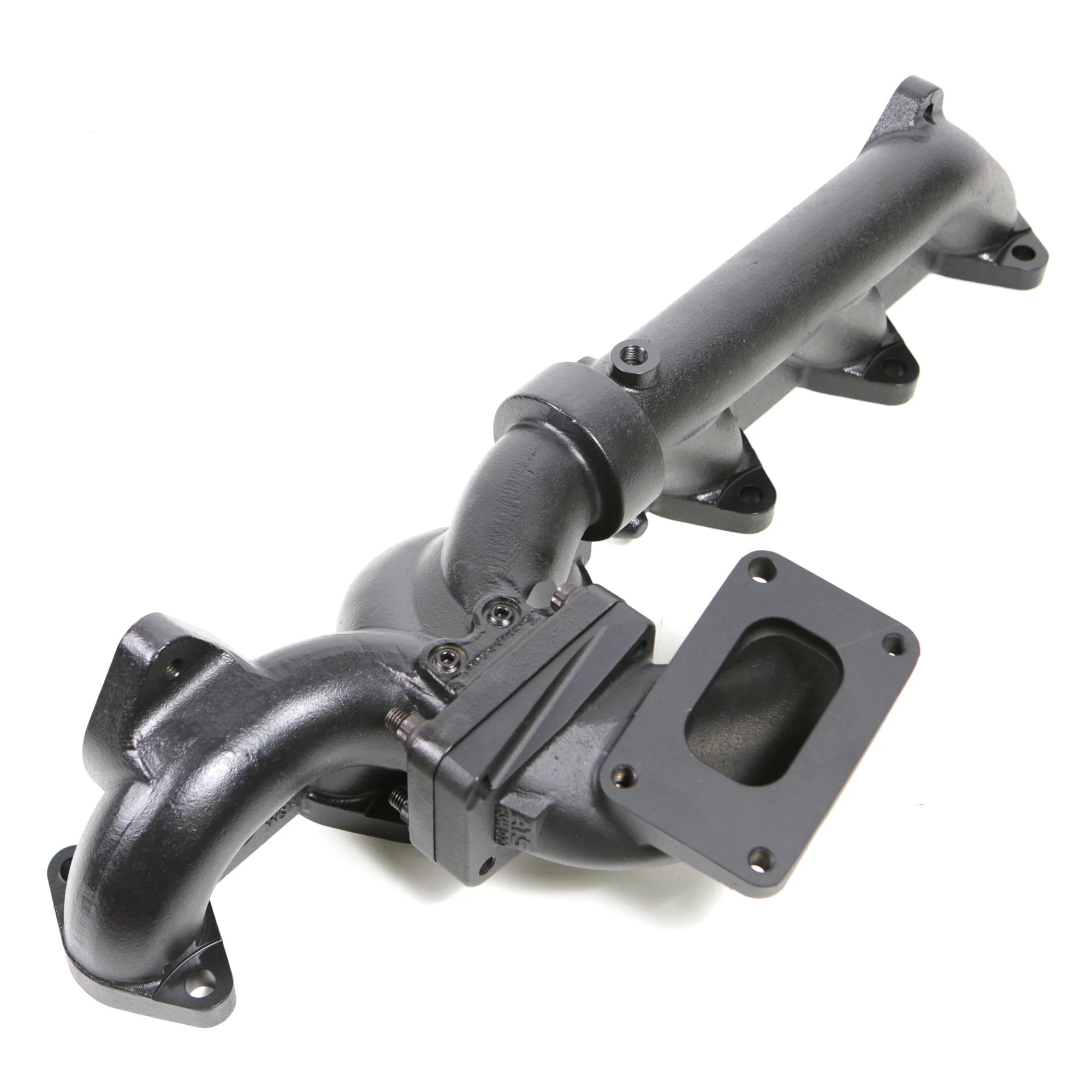

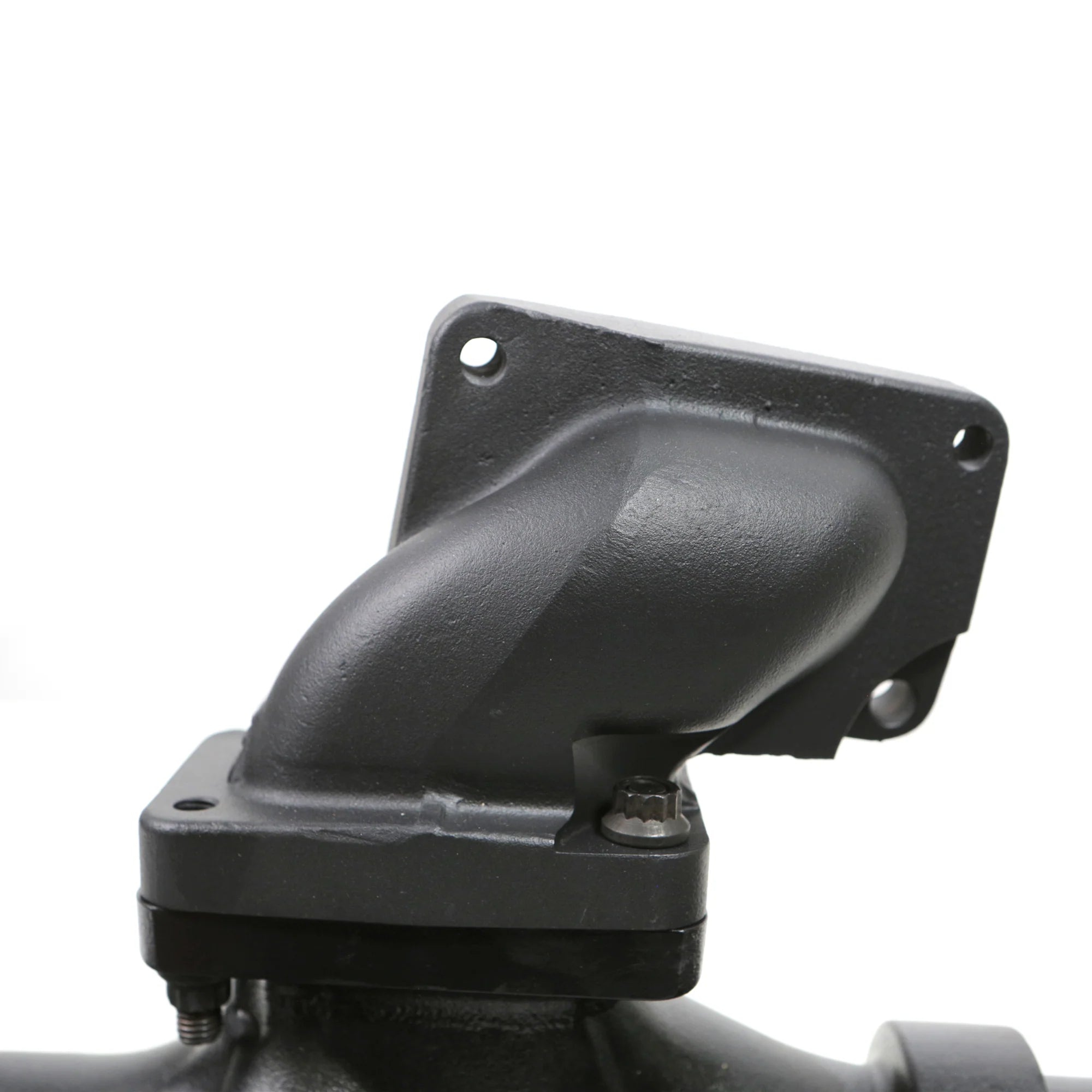

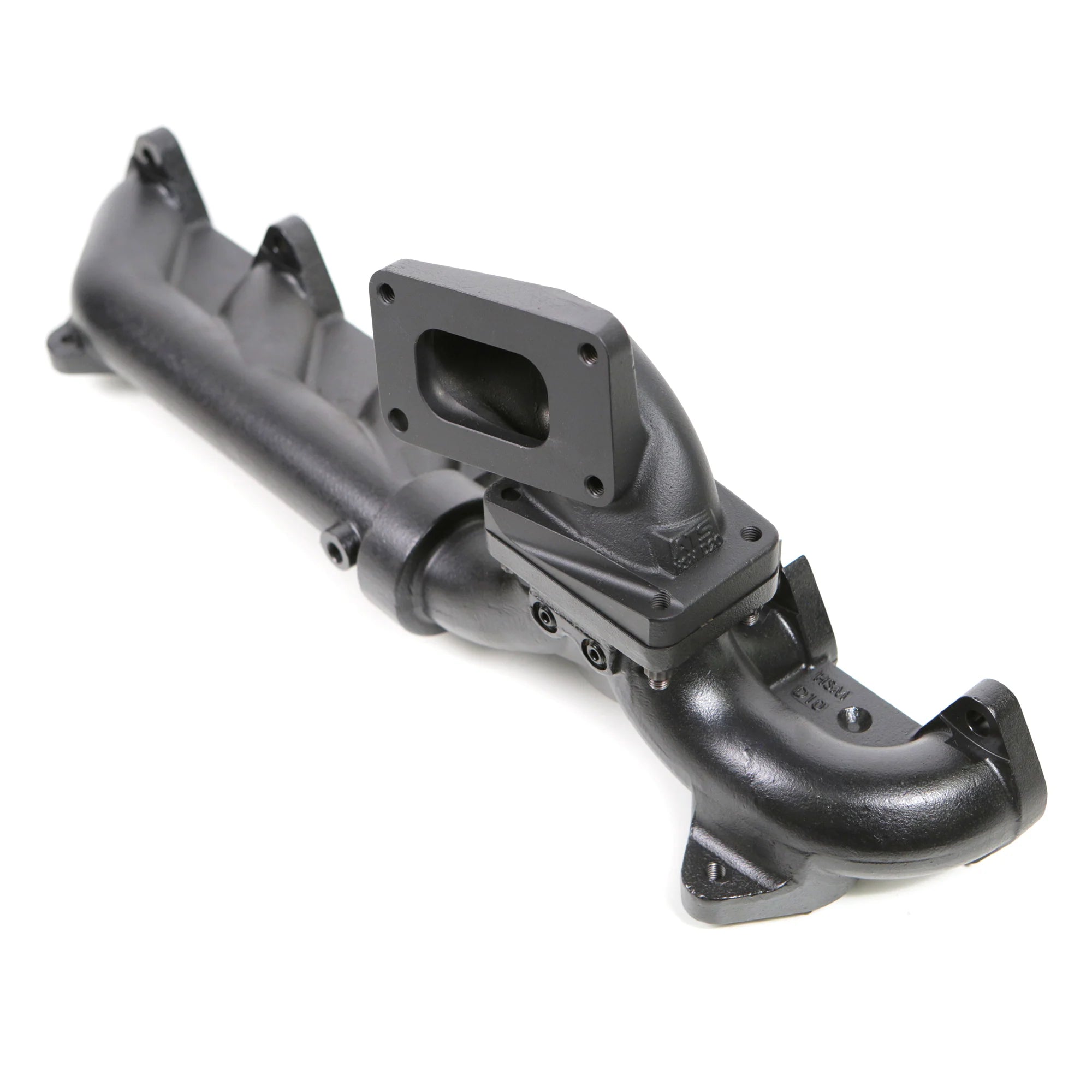

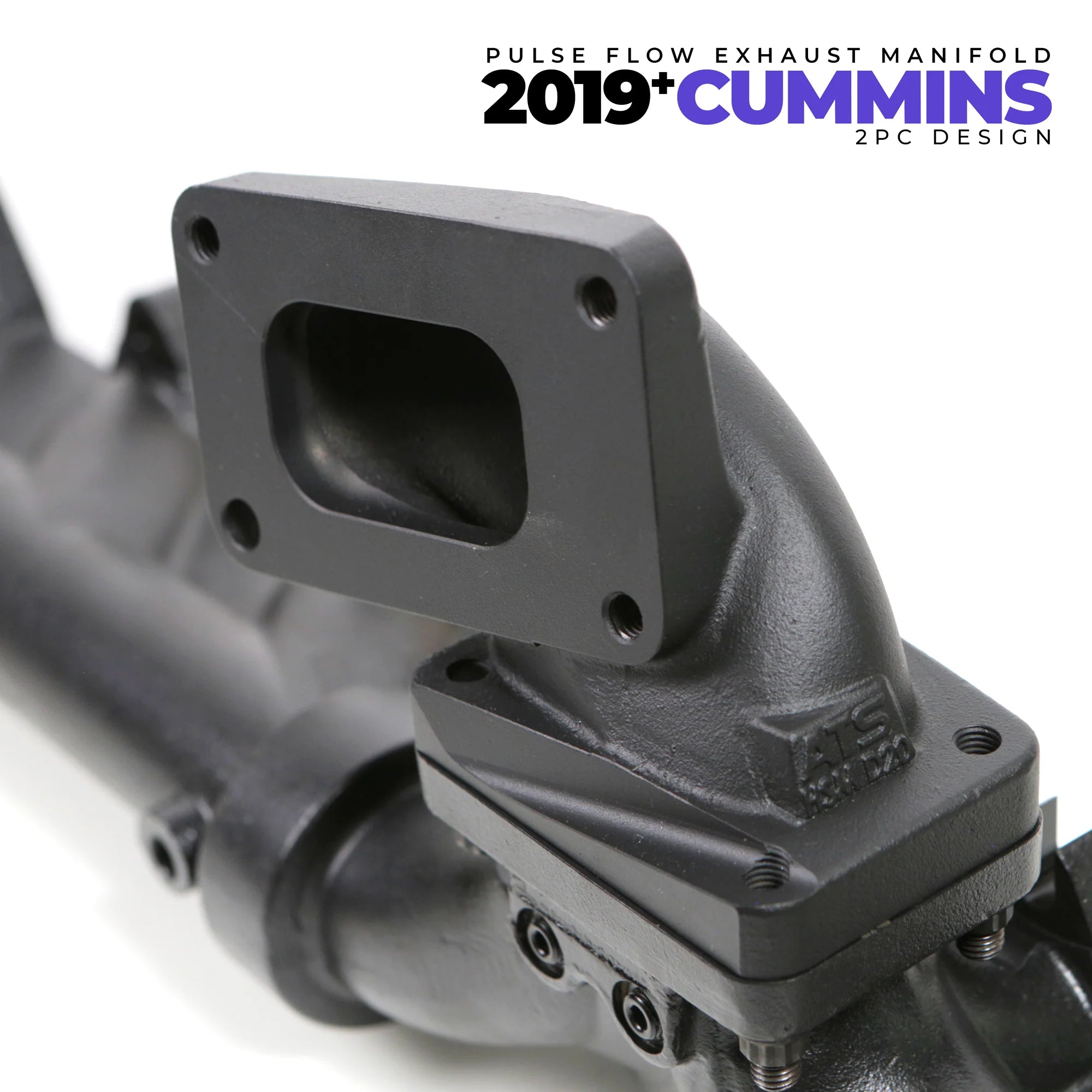

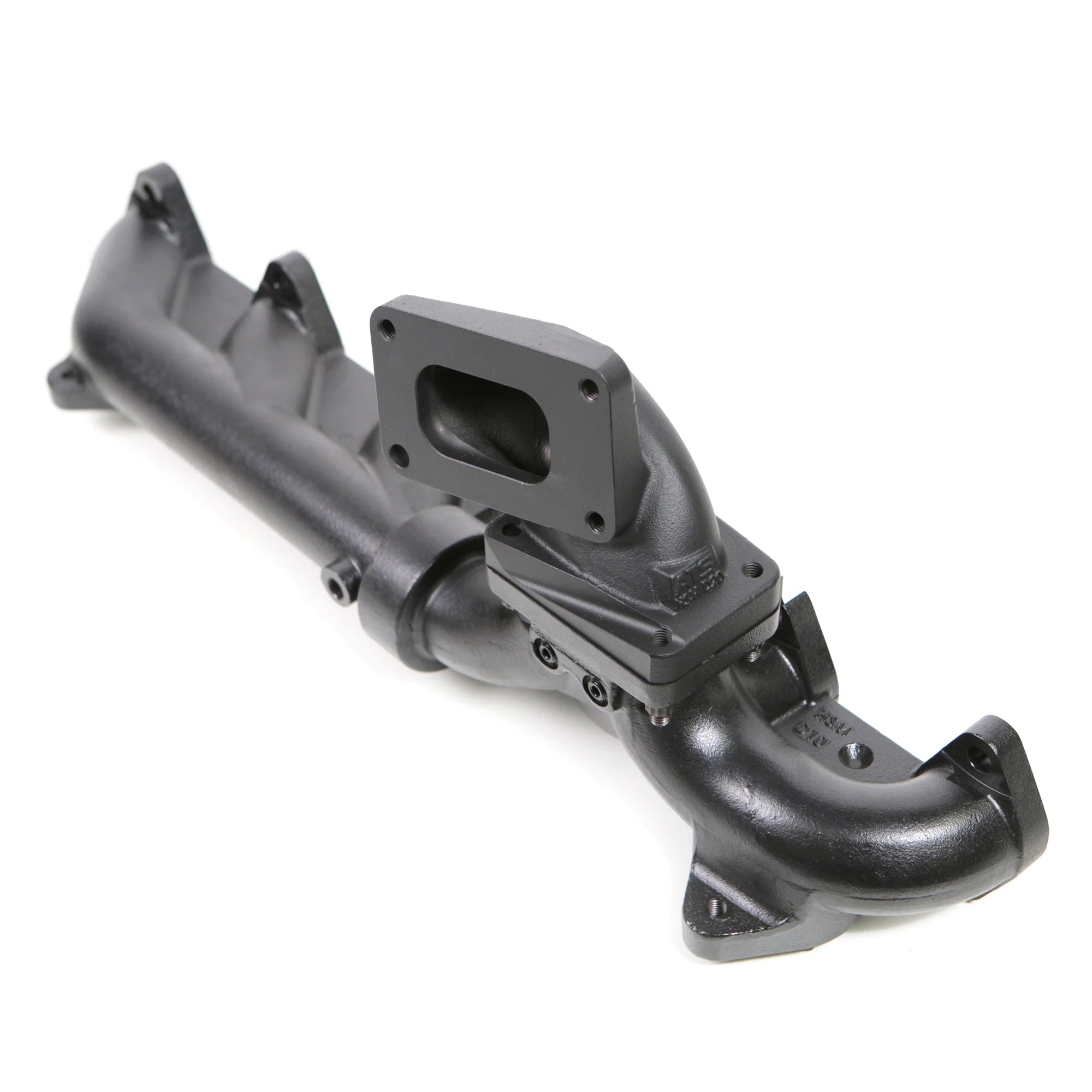

The ATS Pulse Flow exhaust manifold is a direct replacement for the factory MOPAR 68444858AA manifold on 2019-2024 Ram 2500/3500 pickups with the 6.7L Cummins. It is a multi-piece manifold cast from D3 High Silica Moly iron and finished in a high-temp ceramic coating. You buy it to get away from the warping, shrinking and cracking the factory cast-iron manifold is known for.
Fitment
ATS lists this manifold for 2019-2024 Ram 2500 and 3500 pickups with the 6.7L Cummins, replacing MOPAR 68444858AA:
- Make: RAM / Dodge
- Model: 2500, 3500 Pickup
- Years: 2019, 2020, 2021, 2022, 2023, 2024
- Engine: 6.7L Cummins Turbo Diesel
- Replaces OEM Part: MOPAR 68444858AA
Chassis-cab trucks are not on the list. This listing stops at 2024, so verify fitment by VIN, and call us if you have a 2025 or newer. For 2007.5-2018 trucks, ATS makes a separate Pulse Flow kit, 204-910-2326. More parts for your engine are on our Cummins page.
Why this part
ATS built this manifold as the fix for the warping, shrinking and cracking common to the factory MOPAR cast-iron unit. The stock 68444858AA manifold is prone to shrinking, which often snaps studs and causes exhaust leaks. The ATS multi-piece design allows for thermal expansion, so the manifold can grow and shrink with heat without stressing the cylinder head.
The material is D3 High Silica Moly (HSM) iron, made to take the heat cycles of heavy towing without cracking or becoming brittle. ATS pairs it with its patented Pulse Flow geometry: an internal bell mouth design that smooths out exhaust pulses and increases velocity. ATS says that lowers EGTs, reduces back pressure and improves turbocharger spool-up, so the manifold outlasts the stock one and makes the engine more efficient at the same time.
Each manifold is finished in a high-temp black ceramic coating rated for substrate protection up to 1600°F and environmental protection up to 2000°F. The coating traps heat inside the manifold, which cuts extreme under-hood temperatures, and it keeps corrosion and rust off the part. The manifold is designed to work with ATS 12.9-grade black oxide studs for maximum clamping force. Browse more options on our exhaust page.
What you get

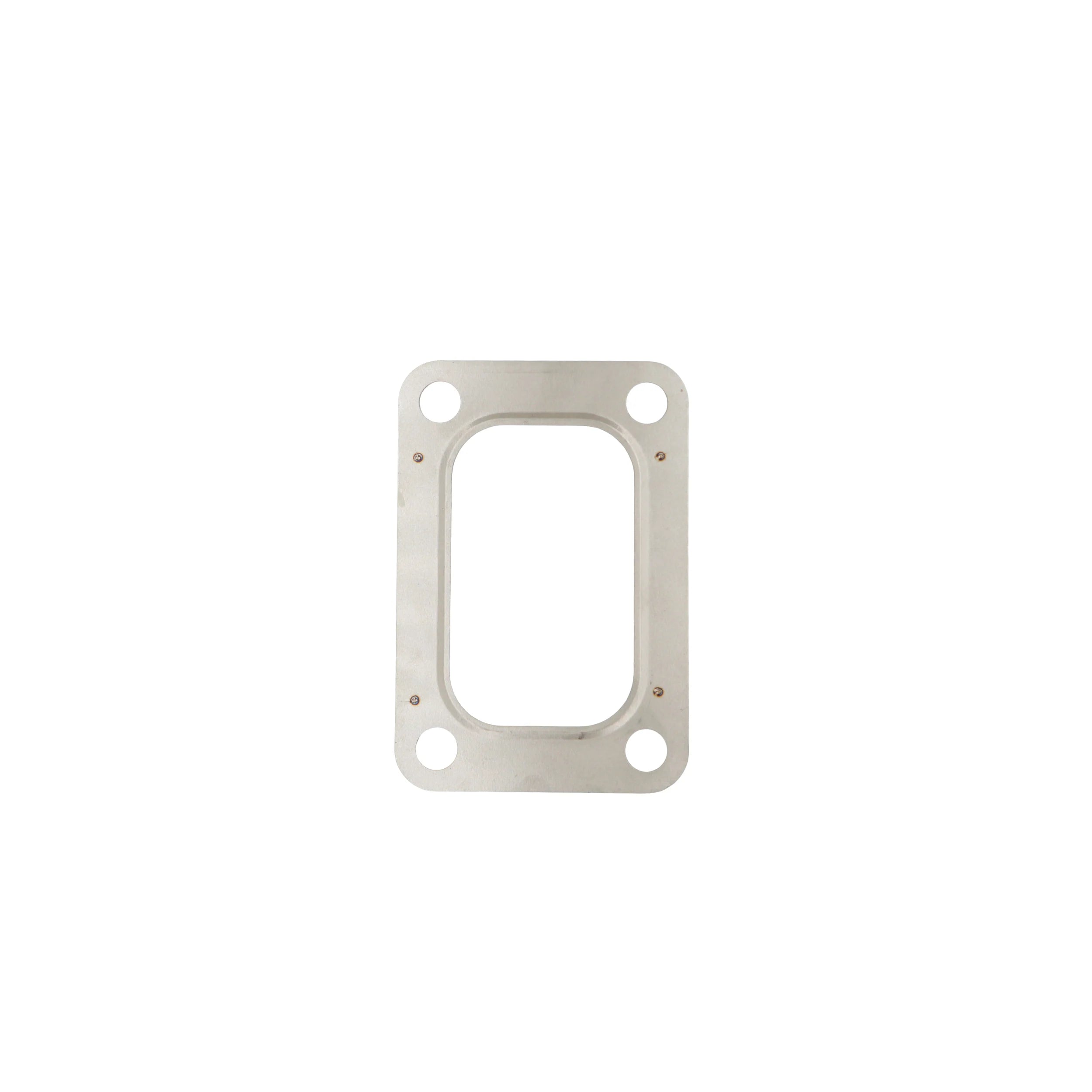

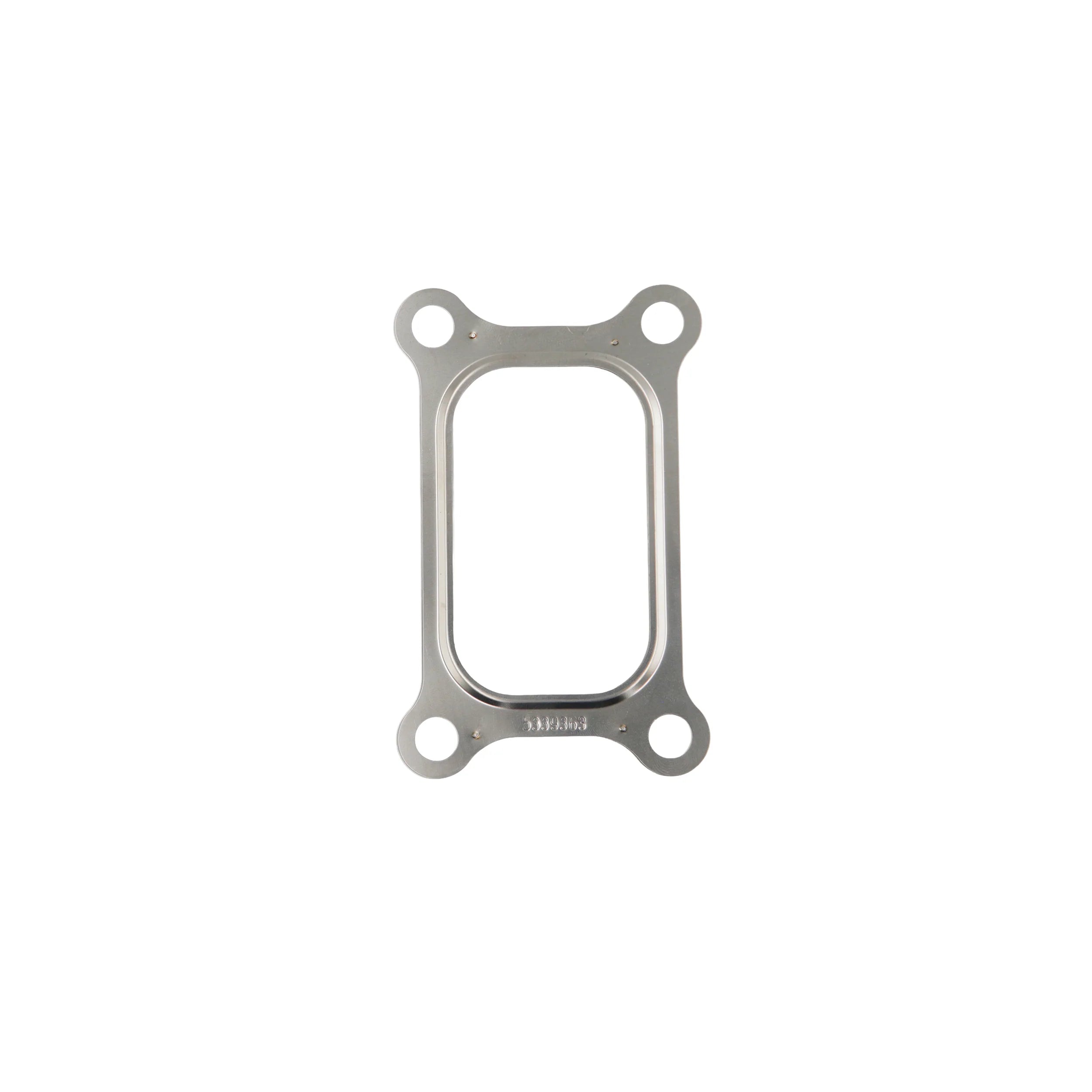

Every version includes the ATS Pulse Flow manifold with the turbo gasket and hardware. The rest depends on the part number:
- 204-910-2464, Manifold & Turbo Hardware: the manifold plus turbo gasket and hardware, for trucks reusing the factory gaskets and hardware

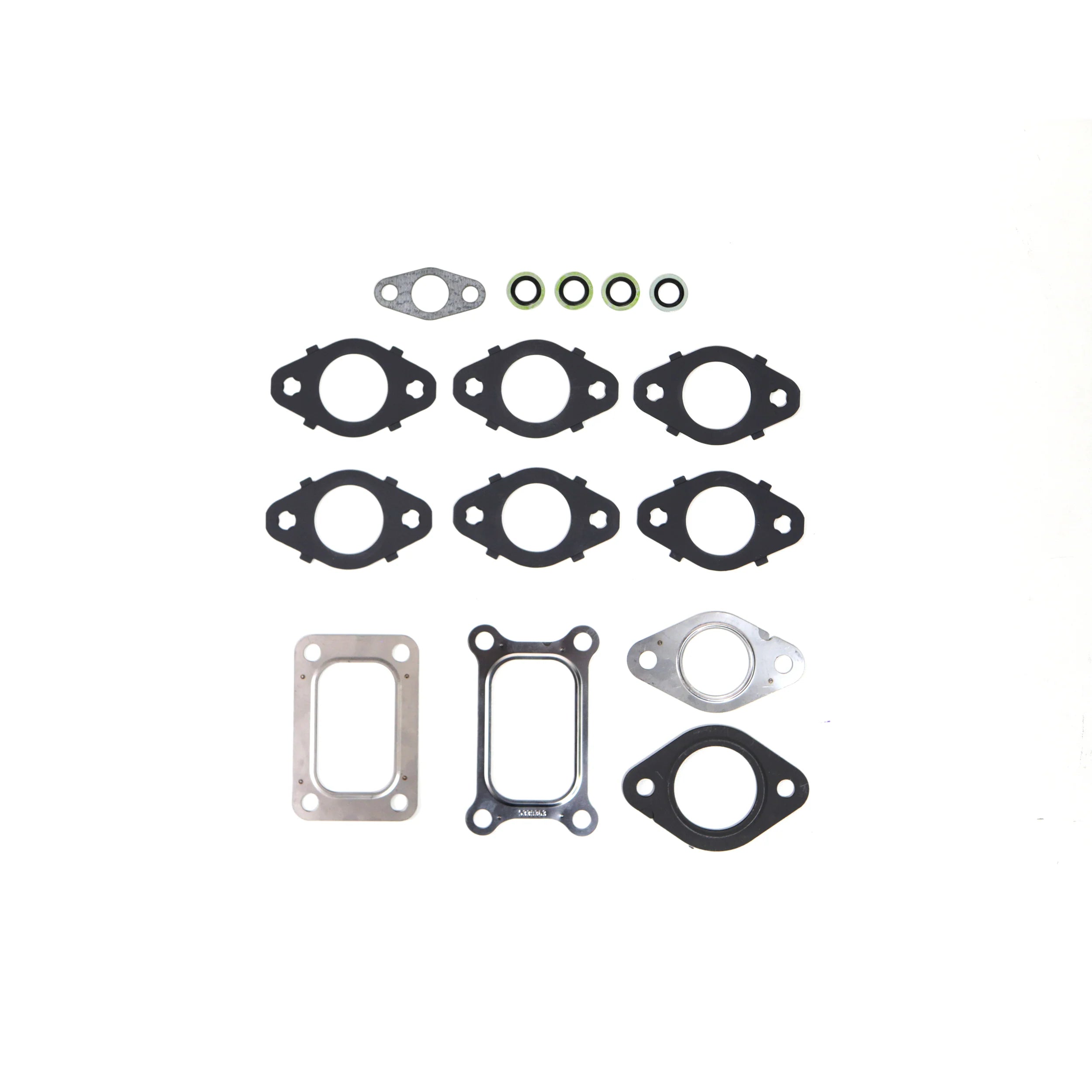

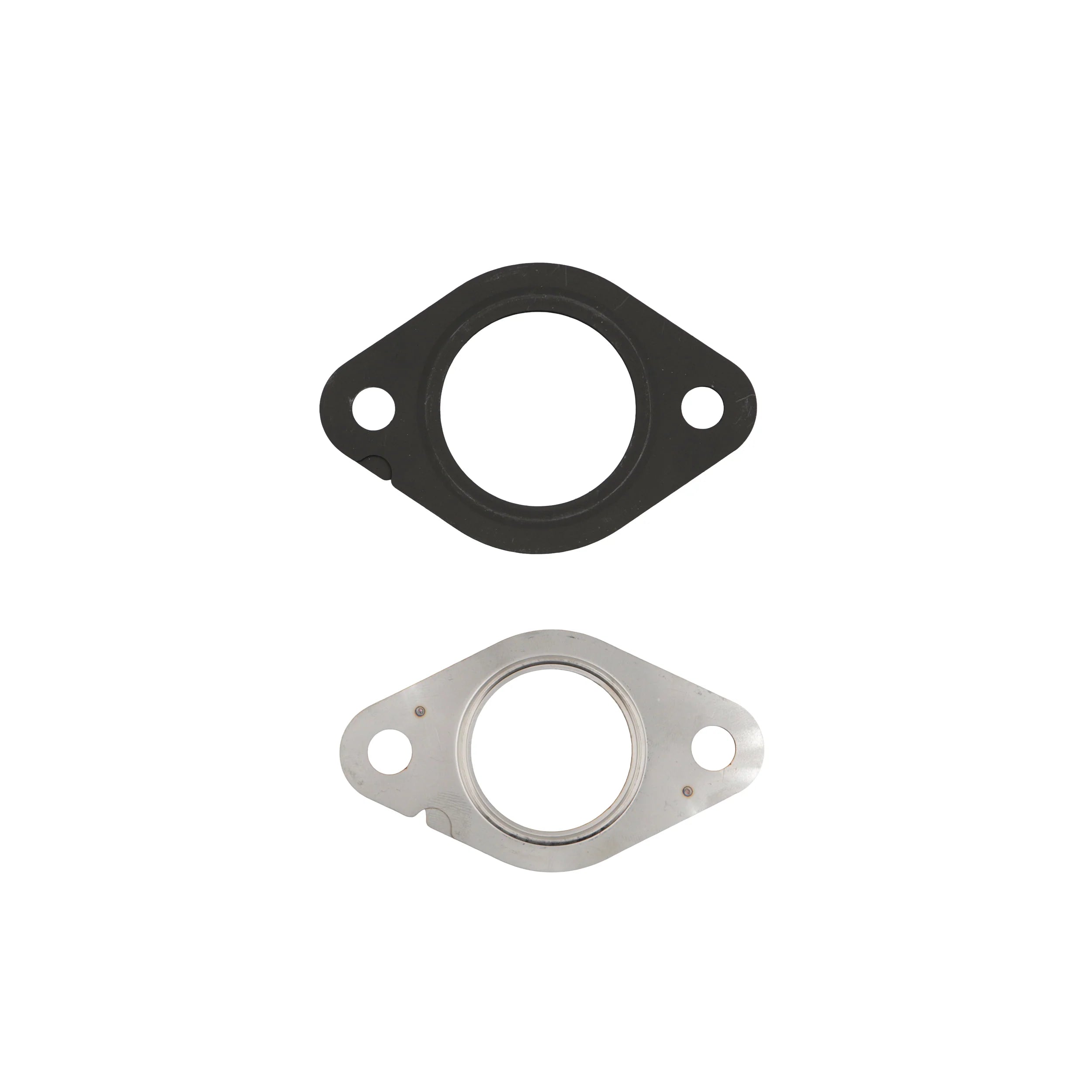

- 204-927-2464, Manifold & Gasket Kit: adds cylinder head gaskets and the EGR gasket set, for a factory-style replacement that reuses the hardware

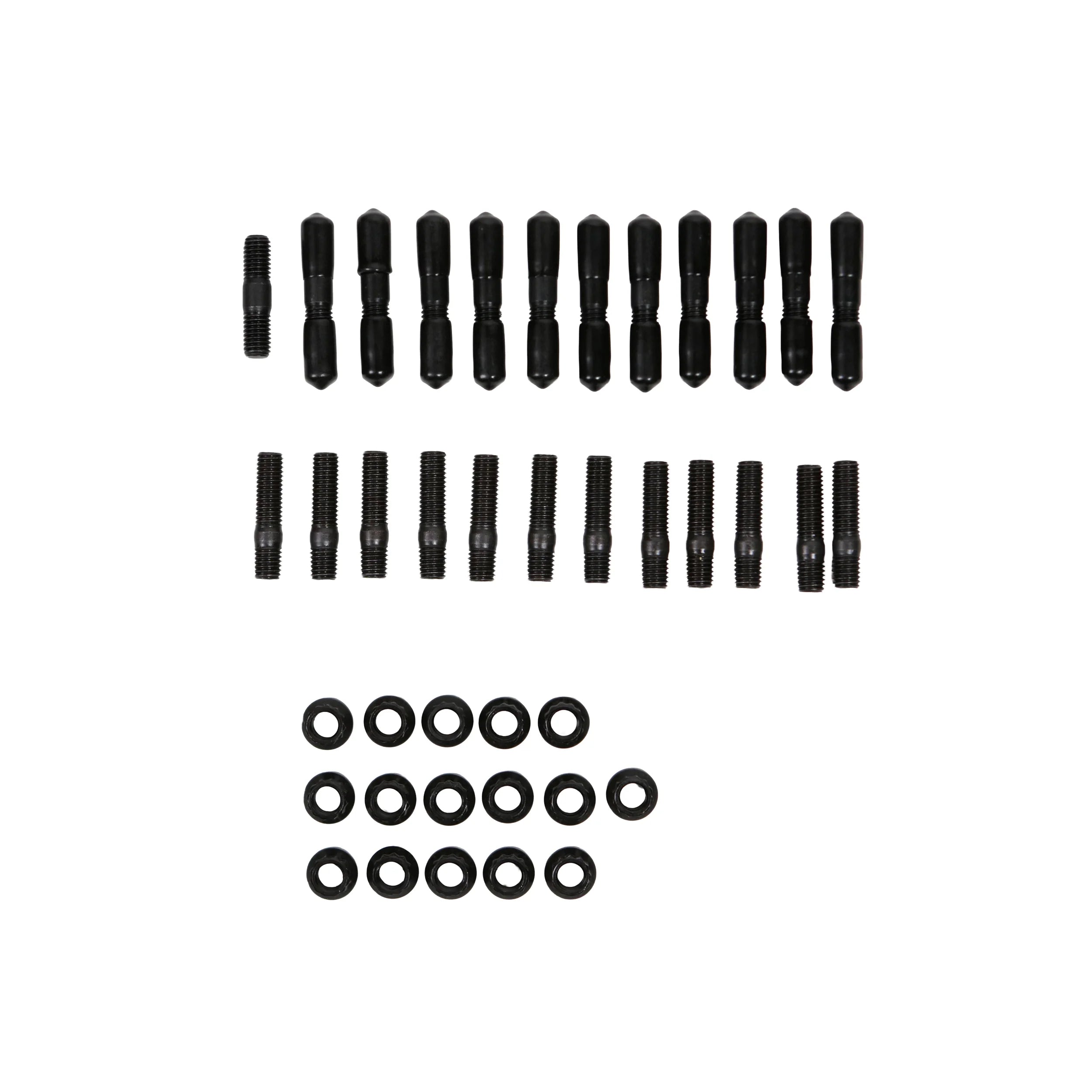

- 204-950-2464, Premium Hardware Kit: adds the 12.9 stud kit on top of the gaskets, rated for 40 ft-lbs of clamping torque, for towing and high horsepower
Specifications
ATS's comparison of the three kits:
| Feature / Component | Manifold & Turbo Hardware (204-910-2464) | Manifold & Gasket Kit (204-927-2464) | Premium Hardware Kit (204-950-2464) |
|---|---|---|---|
| ATS Pulse Flow Manifold | Included | Included | Included |
| Material | D3 High Silica Moly with High-Temp Ceramic Coating | ||
| Coating Protection | 1600°F (Substrate) / 2000°F (Environmental) | ||
| Turbo Gasket & Hardware | Included | Included | Included |
| Cylinder Head Gaskets | — | Included | Included |
| EGR Gasket Set | — | Included | Included |
| Premium 12.9 Stud Kit | — | — | Included |
| Max Clamping Force | Factory Spec | Factory Spec | 40 ft-lbs (High Torque) |
| Best For: | Reusing Factory Gaskets and Hardware | Factory Replacement Reusing Hardware | Towing & High-HP |
About ATS Diesel Performance
ATS Diesel Performance is an Arvada, Colorado company founded in 1993. Its main line is diesel transmissions, from complete packages and torque converters to hard parts, and it also builds Aurora turbochargers and exhaust manifolds for the 5.9L and 6.7L Cummins. ATS has built Pulse Flow manifolds since 1995.
Frequently asked questions
Which kit should I order?
If your factory gaskets and hardware are reusable, 204-910-2464 covers it. If you want new cylinder head gaskets and the EGR gasket set, go to 204-927-2464. For towing and high horsepower, ATS points to 204-950-2464 with the 12.9 stud kit and 40 ft-lbs of clamping torque.
Why does the factory manifold fail?
The stock MOPAR 68444858AA manifold is prone to shrinking with heat, which often snaps studs and causes leaks. The ATS multi-piece design lets the manifold expand without stressing the cylinder head.
What does the ceramic coating do?
It holds heat inside the manifold, which keeps under-hood temperatures down, and it prevents rust and corrosion. ATS rates it for 1600°F substrate and 2000°F environmental protection.
Questions on fitment? Call the shop at the number in the header. We install everything we sell.
