Part #: PF63

ACDelco PF63 Oil Filter (2020-2026 6.6L Duramax)

Sale price$29.99

Fits: Chevrolet • GMC

Get It Installed at Our Shop
Skip the Driveway — Our 9-Bay Diesel Shop in Wildwood, FL can Install this for You.

Request Installation

Come to Our 9-Bay Diesel Shop in Wildwood, FL — Fill Out the Request Form to Schedule.

Part: ACDelco PF63 Oil Filter (2020-2026 6.6L Duramax)

Secure Checkout
Genuine Parts
Fast Shipping
Diesel Experts
Not sure this fits your build? Call or Text Us: (352) 722-5295 Save Contact
Ships from our vendor network — most orders ship in 2–5 business days. Text us to confirm stock on big-ticket items.

Diesel Dollars is Southern Diesel Supply's Loyalty Program. Purchasing with Us Earns you 1 Point for every 1 Dollar spent to use for future buys!

By ordering the ACDelco PF63 Oil Filter (2020-2026 6.6L Duramax) you will earn 30 DIESEL DOLLARS in your SDS Fuel Tank!

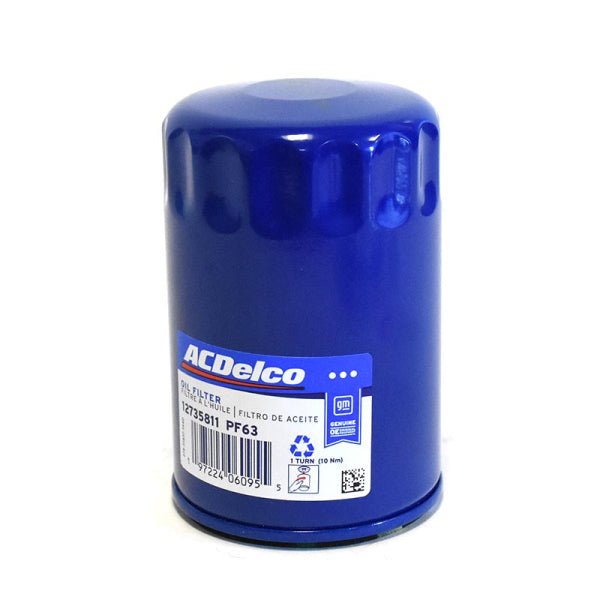

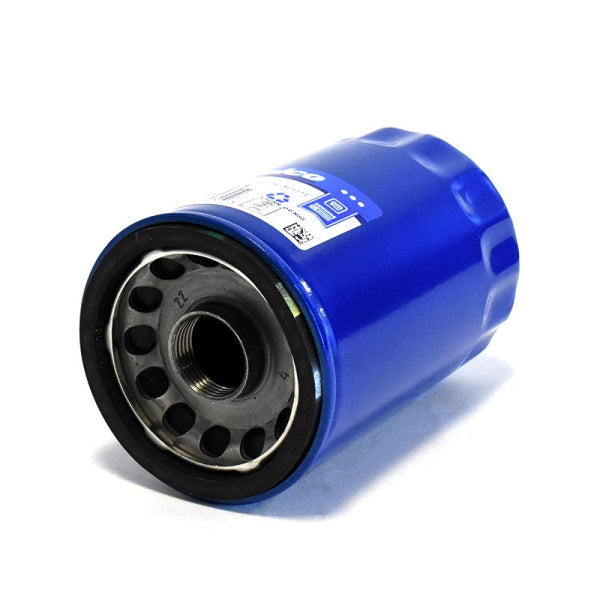

The ACDelco PF63 is a genuine GM spin-on oil filter for the 6.6L Duramax L5P in 2020-2026 Chevrolet Silverado 2500HD/3500HD and GMC Sierra 2500HD/3500HD trucks. It is the OE replacement for routine oil changes, with an anti-drain back valve that keeps motor oil in the filter when the engine is shut off.

Fitment

Listed for 2020-2026 Chevrolet Silverado 2500HD and 3500HD and GMC Sierra 2500HD and 3500HD with the 6.6L Duramax L5P. GM changed the L5P oil filter at the 2020 model year. 2017-2019 trucks use the PF2232, a different filter, so the PF63 is not the filter for those years. For 2020 and later trucks, GM's earlier number for this filter position was PF26, since superseded to PF63B, so you may see those numbers in parts catalogs too. Verify fitment by VIN, or call us with your VIN and we will match the filter to your truck. More L5P parts are on our Duramax page.

Why this part

The PF63 is a genuine GM OEM replacement filter for routine maintenance on your L5P. GM consistently updates production and service part designs with new materials and the latest technologies. This filter uses high-quality filter media and is manufactured to stringent specifications.

The anti-drain back valve keeps motor oil in the filter when the engine is shut off, and a bypass relief valve is built in as well. It is a spin-on filter with an O-ring gasket and a blue housing. If you are doing a full service, note that the fuel filter did not change at 2020: the TP1015 cartridge fits every 2017-2026 L5P. The air filter and belts did change at 2020, along with the oil filter.

What you get

One ACDelco PF63 spin-on oil filter.

  • GM Genuine Part
  • High-Quality Filter Media
  • Manufactured To Stringent Specifications

Specifications

  • Anti-Drain Back Valve: Yes
  • Bypass Relief Valve: Yes
  • Classification: OE
  • Filter Type: spin-on
  • Gasket Inside Diameter: 2.39"
  • Gasket Inside Diameter: 60.7 mm
  • Gasket Outside Diameter: 2.58"
  • Gasket Outside Diameter: 65.5 mm
  • Gasket Thickness: 0.28"
  • Gasket Thickness: 7 mm
  • Gasket Type: O-Ring
  • Height: 113 mm
  • Height: 4.45 in
  • Housing Color: Blue
  • Non Slip Grip: No
  • Outer Diameter Bottom: 2.93"
  • Outer Diameter Bottom: 74.3 mm
  • Outside Diameter Top: 2.95"
  • Outside Diameter Top: 75 mm
  • Torque Nut: No

About ACDelco

ACDelco is the parts brand General Motors owns, and it traces back to 1908. For your L5P, that means the filter comes from the company that built the truck. We stock ACDelco engine oil, fuel and transmission filters for the 6.6L and 3.0L Duramax.

Frequently asked questions

Will the PF63 fit my 2017-2019 L5P?

No. The 2017-2019 L5P uses the PF2232 oil filter, which is a different part. The PF63 is listed for 2020-2026 trucks.

Did the fuel filter change at 2020 too?

No. The oil filter, air filter and belts changed at 2020, but the TP1015 fuel filter cartridge is shared across all 2017-2026 L5P trucks.

What does the anti-drain back valve do?

It keeps motor oil in the filter when the engine is shut off. The PF63 also has a bypass relief valve.

Questions on fitment? Call the shop at the number in the header. We install everything we sell.
