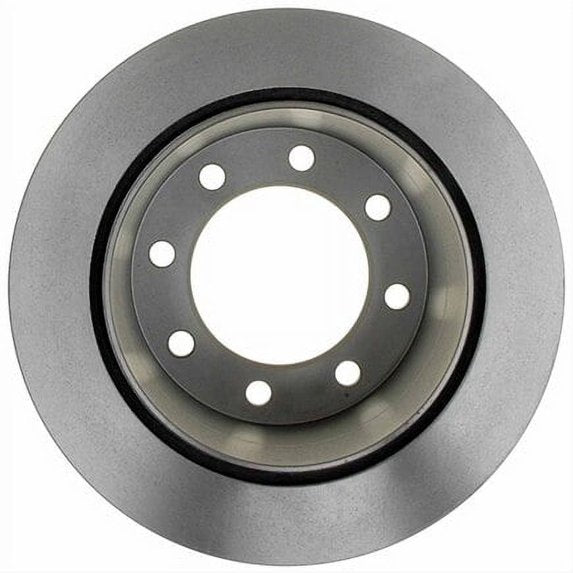

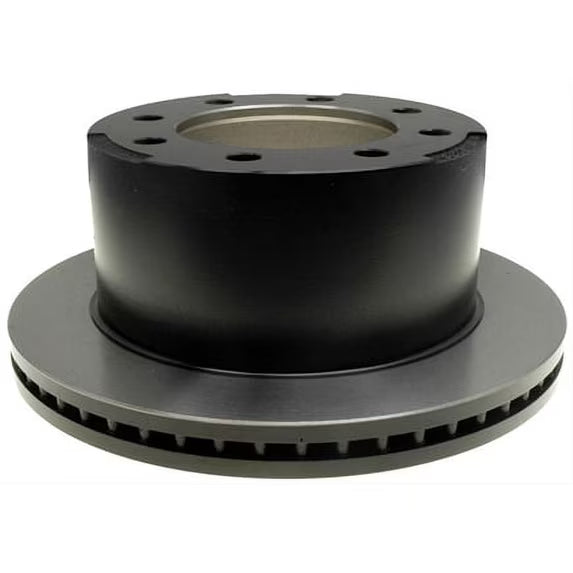

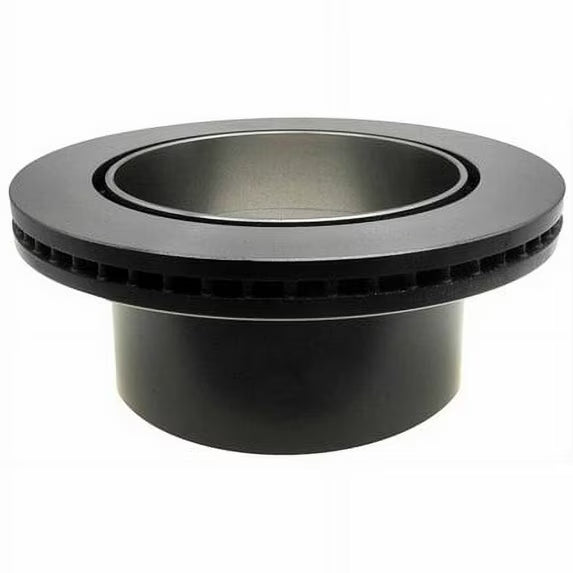

ACDelco 18A1417 Gold Disc Brake Rotor - Black Coated Hat (Rear) (2001-2010 6.6L Duramax)
Secure Checkout
Genuine Parts
Fast Shipping
Diesel Experts
Not sure this fits your build? Call or Text Us: (352) 722-5295
Save Contact
Diesel Dollars is Southern Diesel Supply's Loyalty Program. Purchasing with Us Earns you 1 Point for every 1 Dollar spent to use for future buys!
By ordering the ACDelco 18A1417 Gold Disc Brake Rotor - Black Coated Hat (Rear) (2001-2010 6.6L Duramax) you will earn 157 DIESEL DOLLARS in your SDS Fuel Tank!
The ACDelco Gold Disc Brake Rotor - Black Coated Hat (Rear) 18A1417 is an ideal replacment for the worn brake rotor on your Chevy Silverado or GMC Sierra 2500HD/3500HD. This rotor features a thickness variation that is less than 0.0004 to minimize pedal pulsation, noise, and help with brake pad life. ACDelco Gold (formerly known as ACDelco Professional) parts are manufactured to meet your expectations for fit, form, and function, and are backed by General Motors.
Features:
- Inspected For Balance - Helping With Smooth Brake Operation And Noise Levels
- Rust-Preventative Coating - Applied To The Rotor Hat, Edges And Cooling Vanes, Provides Corrosion Protection For Superior Durability
- Independently Tested With Noise/Vibration/Harshness (NVH) And Durability/Wear Testing - Resulting In High Quality And Reliable Rotors
- Follows Original Manufacturers' Designs For Dispersing Heat, Helping To Prolong Pad And Rotor Life While Also Helping To Minimize Noise And Vibration
Specifications:
Slotted: No
Height (IN): 5.2
Width (IN): 13.1
Length (IN): 13.1
Weight (lb): 29.8
Hat Finish: Turned
Height (MM): 132.1
Disc Finish: Ground
Material: Cast Iron
Surface Type: Smooth
Construction: Full Cast
Overall Height (IN): 5.2
ABS Tone Ring Included: No
Overall Height (MM): 132.1
Outside Diameter (IN): 12.8
Rust Resistant Coating: Yes
Discard Thickness (MM): 28.5
Nominal Thickness (MM): 30.1
Outside Diameter (MM): 325.1
Discard Thickness (IN): 1.122
Nominal Thickness (IN): 1.185
Bolt Circle Diameter (IN): 6.5
Center Hole Diameter (IN): 4.84
Bolt Circle Diameter (MM): 165.1
Center Bore Diameter (IN): 4.8 IN
Center Hole Diameter (MM): 122.95
Center Bore Diameter (MM): 122.8mm
Solid Or Vented Type Rotor: Vented
Pad Contact Surface Width (IN): 1.9
Overall Rotor Diameter (mm): 325.12mm
Pad Contact Surface Width (MM): 48.75
Mounting Bolt Hole Diameter (IN): 0.66
Mounting Bolt Hole Diameter (MM): 16.75
Mounting Bolt Hole Circle Diameter (IN): 6.5
Mounting Bolt Hole Circle Diameter (MM): 165.1
Directional or Non-Directional Brake Surface: No
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
