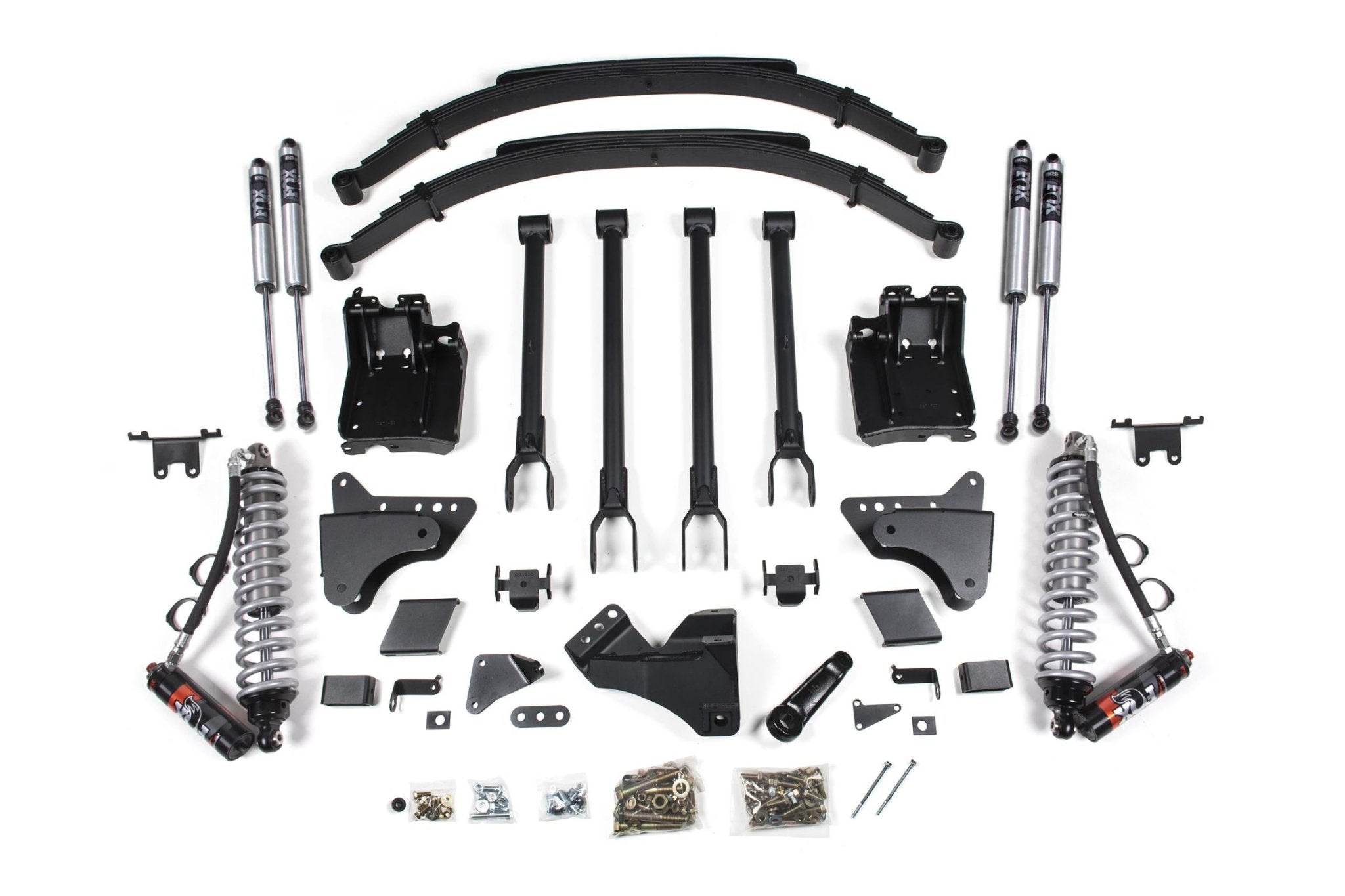

Turn heads with the BDS Suspension 8-inch lift kit and FOX 2.5 Performance Elite Coil-over plus 4-link conversion installed on your 2011-2016 Ford Super Duty F250 and F350 diesel truck. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 38 inch Tires.

Up front the lift kit includes diesel-specific FOX 2.5 coil-over shocks, heavy-duty 4-link control arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets, and custom-tuned FOX 2.0 secondary shocks.

In the rear this kit utilizes a replacement GlideRide leaf springs with integrated overload leaf, u-bolts, brake line brackets and a matching set of FOX 2.0 Performance shocks.

FOX Performance Elite Coil-Over

FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The Dual Speed Compression Adjust adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.

4-Link Conversion

Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength 1/4-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.

BDS Glide-Ride Leaf Springs

Built to outperform, BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design that provides a smooth ride with any load. This is accomplished with an exclusive triple-stage leaf spring design where the main leaf pack is broken into two stages:

1. First, the primary three leafs are functional with no additional load in the vehicle for excellent everyday ride quality. As moderate loads are applied, the secondary leafs are engaged.
2. Second, if the truck is fully loaded, the bottom overload is engaged for maximum hauling capacity. This setup allows your truck to maintain ride quality unloaded without sacrificing payload.

Upgrading to BDS Glide-Ride leaf springs will reduce axle wrap and provide flexibility throughout the suspension cycle.

• Front Lift Method: Coil-Over
• Rear Lift Method: Leaf Spring
• Shocks Included: Yes
• Front Lift Height: 8 inch
• Rear Lift Height: 6 inch

1. Exhaust modification may be required to clear the front driveshaft (gas only)
2. Front bumper spacer kit may be required to run 38 inchx15.50 inch Tires
3. Although extremely rare, front driveline vibration may occur
4. If equipped with 2-piece rear driveshaft, a driveshaft alignment kit (#123406) will be required
5. Front driveshaft u-joints may max out at full droop. If so, a new front shaft will be required.
6. If equipped with a rear sway bar, 123009 is required.
7. U-bolts will not work on dually.
8. Front auxiliary shocks can be omitted from kit - the system can be used with Coil Over installed alone

BDS leaf springs are not intended for use beyond the truck's maximum payload capacity. Trucks equipped with overload springs will only have the capacity of a non-overload equipped truck. If heavy payload use is desired, supplemental rear airbags are recommended.

• FOX 2.5 Coil-Over mounts in factory coil bucket location
• Adds additional secondary FOX 2.0 shock for max performance
• Eibach coil springs ride smooth through the roughest terrain
• Heavy duty 4-Link control arms offer improved handling, stability, strength and caster control during wheel travel
• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
• Glideride leaf springs to provide full lift height and increased capacity with a built in overload spring
• FOX shocks are fully serviceable and resistant to corrosion and harsh environments.

Tire Size: 38 x 15.5 Tire Size 2: 38 x 15.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 20 x 10 Back Spacing: 4.5/4.58-10 hrs

Kit Components:

• Includes two BDS003829, 08-16 Ford F250 8 inch Rear Leaf, UPC Code 658848611430
• Includes one BDS013810, 05 Ford F250/350 4-link Box Kit (1of2), UPC Code 658848613854
• Includes one BDS013813, 11-16 Ford Super Duty 8in Box Kit, UPC Code 658848613885
• Includes one BDS123212, 2005-2016 Ford F250/F350 Super Duty Coilover Mount Kit (2 inch-8 inch), UPC Code 711745604063
• Includes one FOX88406429, Kit: BDS 05-ON Ford SD, Front Coilover, 2.5 Truck Fox Performance Elite Series, R/R, 8 inchРЎСљ Lift, Dual Speed Compression Adjust
• Includes two FOX98224751, Fox 2.0 Shock 29.85 x 18.25 x 2- S50/EB1
• Includes two FOX98224765, Fox 2.0 Shock 35.95 x 21.85 x 2-EB1/EB1
