Go farther and raise the bar of performance on your 2011-2016 Ford Super Duty F250 and F350 diesel truck to the next level with this 6-inch radius arm lift kit with 4-link and FOX Performance Elite coil-over conversion from BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 inch Tires.

Up front the lift kit includes diesel-specific FOX 2.5 coil-over shocks, heavy-duty 4-link control arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets, and custom-tuned secondary FOX 2.0 shocks.

In the rear this kit utilizes a replacement GlideRide leaf springs with integrated overload leaf, u-bolts, brake line brackets and a matching set of FOX 2.0 Performance shocks.

FOX Performance Elite Coil-Over

FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain.

The Dual Speed Compression Adjust adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.

4-Link Conversion

Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.

BDS Glide-Ride Leaf Springs

Built to outperform, BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design that provides a smooth ride with any load. This is accomplished with an exclusive triple-stage leaf spring design where the main leaf pack is broken into two stages:

1. First, the primary three leafs are functional with no additional load in the vehicle for excellent everyday ride quality. As moderate loads are applied, the secondary leafs are engaged.
2. Second, if the truck is fully loaded, the bottom overload is engaged for maximum hauling capacity. This setup allows your truck to maintain ride quality unloaded without sacrificing payload.

Upgrading to BDS Glide-Ride leaf springs will reduce axle wrap and provide flexibility throughout the suspension cycle.

• Front Lift Method: Coil Spring
• Rear Lift Method: Leaf Spring
• Shocks Included: Yes
• Front Lift Height: 6 inch
• Rear Lift Height: 3 inch

1. Front exhaust modification may be required to clear front drive shaft (gas only).
2. If equipped with 2-piece driveshaft, a driveshaft alignment kit may be required.
3. Although extremely rare, front driveline vibration may occur.
4. If equipped with rear sway bar, #123009 required.
5. U-bolts will not work on dually.

• FOX 2.5 Coil-Over mounts in factory coil bucket location
• Adds additional secondary FOX 2.0 shock for max performance
• Eibach coil springs ride smooth through the roughest terrain
• Heavy duty 4-Link control arms offer improved handling, stability, strength and caster control during wheel travel
• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
• Fabricated steel blocks provide level stance from front to rear
• FOX shocks are fully serviceable and resistant to corrosion and harsh environments.

Rear Lift Option Factory 2 Inch Rear Blocks

This lift system retains the factory rear blocks with the addition of the new BDS leaf springs to achieve a level stance. Choose the height of your factory lift blocks for proper u-bolt length.

Tire Size: 37 x 12.5 Tire Size 2: 37 x 12.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 4.5/4.5

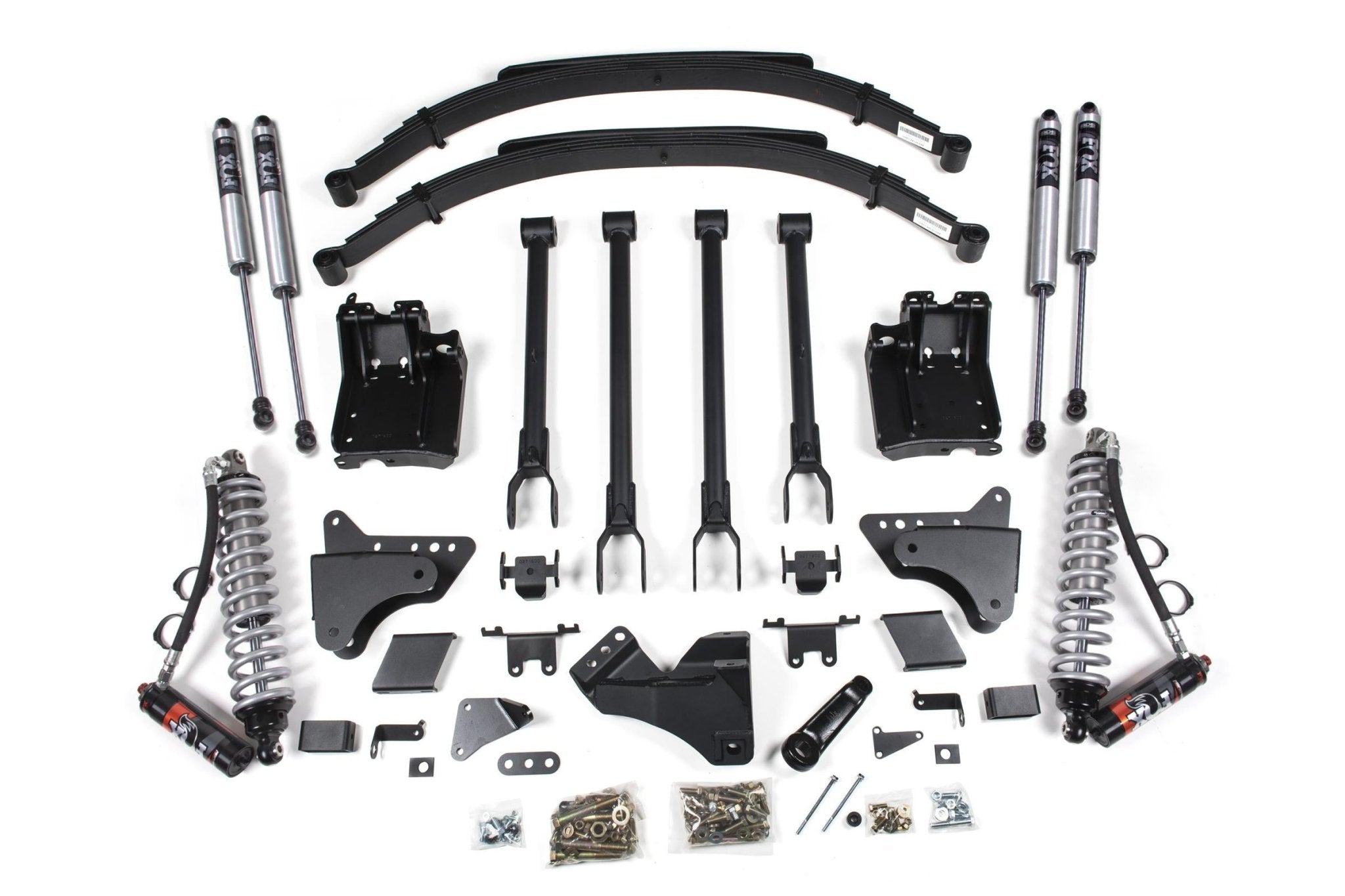

Kit Components:

• Includes two BDS003629, Ford F250/350 6 Inch Rear Spring, UPC Code 658848611393
• Includes one BDS013010, 05 Ford F250/350 4-link Kit (1of2), UPC Code 658848612994
• Includes one BDS013014, 11 Ford F250/350 4-link 6 Inch Box (2of2), UPC Code 658848613038
• Includes one BDS013608, 2011-2016 Ford F250/F350 Rear Box Kit -- 2 inch Factory Block, UPC Code 658848613762
• Includes one BDS123212, 2005-2016 Ford F250/F350 Super Duty Coilover Mount Kit (2 inch-8 inch), UPC Code 711745604063
• Includes one FOX88406428, Kit: BDS 05-On Ford SD Front Coilover, 2.5 Truck Fox Performance Elite Series, R/R 6 inch Lift, Dual Speed Compression Adjust
• Includes two FOX98224751, Fox 2.0 Shock 29.85 x 18.25 x 2- S50/EB1
• Includes two FOX98224760, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
