Improve the ride on your 23-26 Ford Super Duty diesel truck with this 5-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 inch Tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned nitrogen charged shocks.

In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts, brake line brackets and a matching set of NX2 Nitro or FOX Performance shocks.

HD Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

• Front Lift Method: Coil Spring
• Rear Lift Method: Leaf Spring
• Shocks Included: Yes
• Front Lift Height: 5 inch
• Rear Lift Height: 4 inch

1. Vehicles with radius arm mounted ride height sensors will require BDS123303.
2. Ford recommends the replacement of the pitman arm nut after each time it has been removed.
3. Use a small pitman arm puller to remove the drag link joint and steering stabilizer taper.
4. If your truck is equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required: BDS123402.
5. Due to the taller factory ride height, Tremor models will not net full advertised lift height. Final ride height will be the same as standard models.
6. Larger Tires on stock wheel are not recommended due to interference with brake line, radius arm and sway bar. Use recommended specs listed in wheel and Tire fitment section.
7. Minor trimming may be necessary for clearance of 37x12.50 Tires on certain wheel setups.
8. Installation requires a torque wrench capable of 406 ft-lbs.
9. Vehicles with leaf spring ride height sensors must select the rear block option.

• Easy, 100 percent Bolt-on installation
• Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
• Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
• Fabricated steel blocks provide level stance from front to rear
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Rear Lift Option 5 Inch Block with 3 Leaf Main

Some F250/350 factory options increase the main leaf pack count from 2 to 3 leaf's (this is for top overload options only). Be sure to verify which factory leaf spring configuration your vehicle has and choose the appropriate option.

Tire Size: 37 x 12.5 Tire Size 2: 37 x 12.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 5/5

Shock Option

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (Internal Floating Piston) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

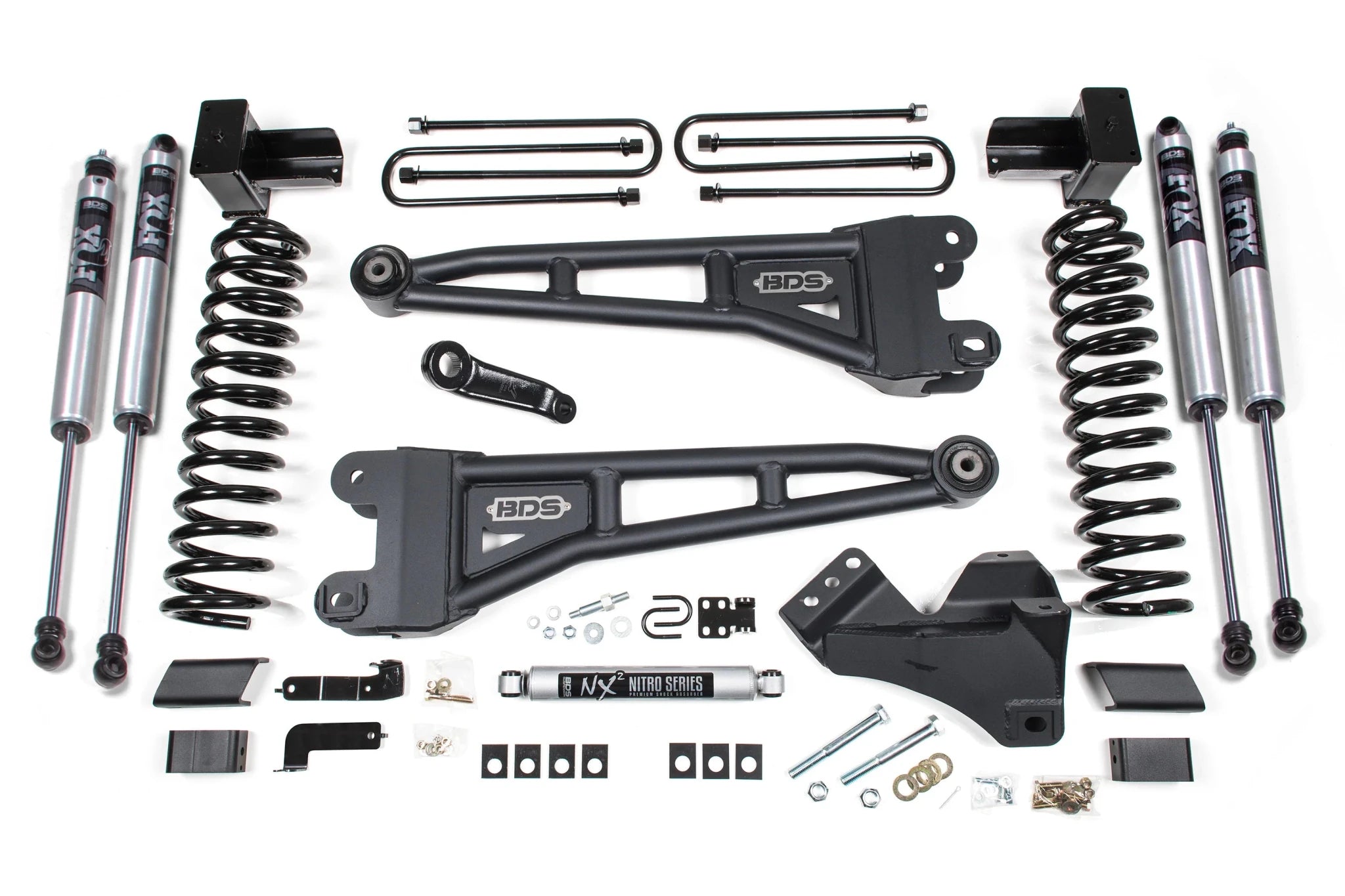

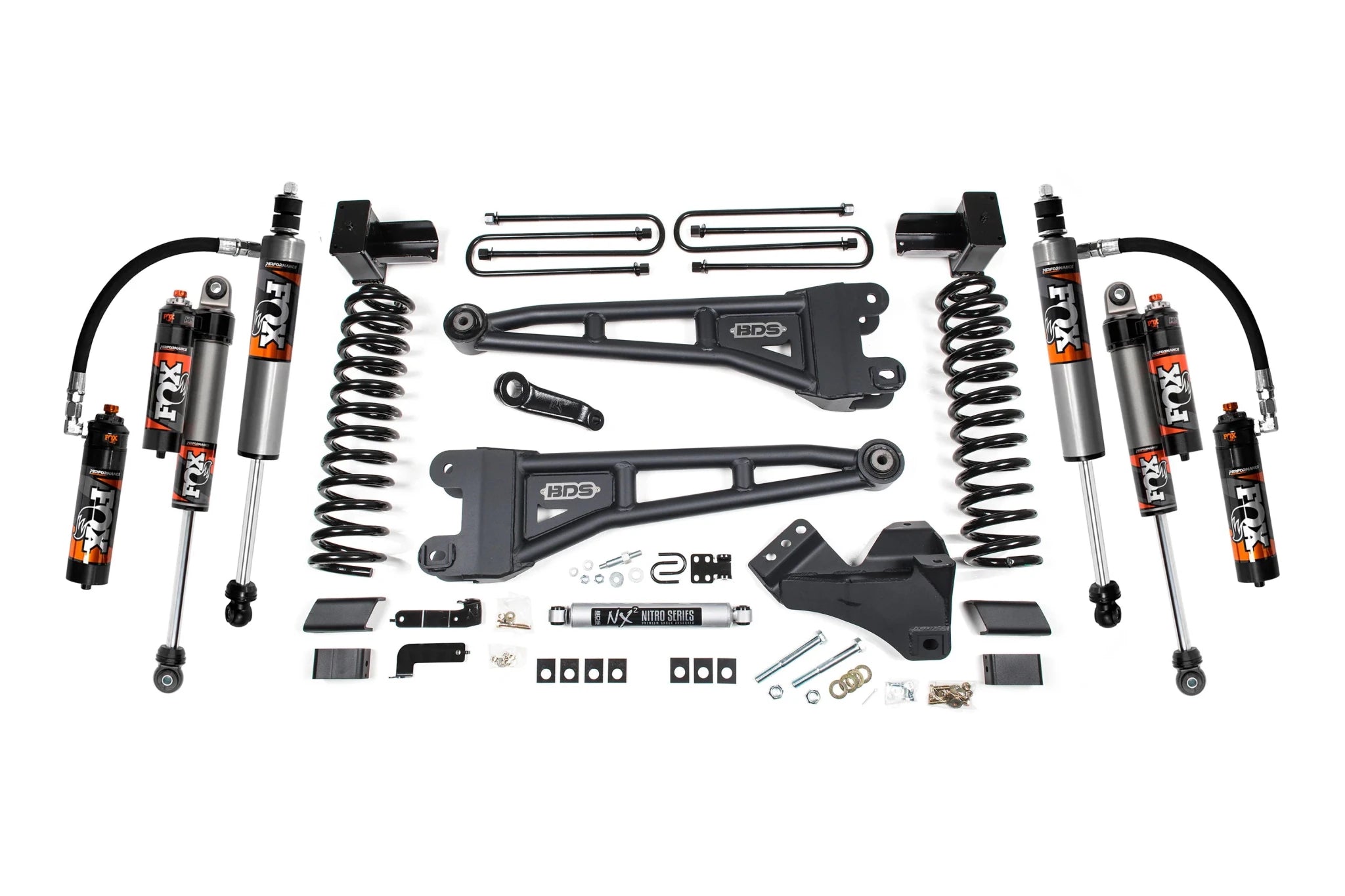

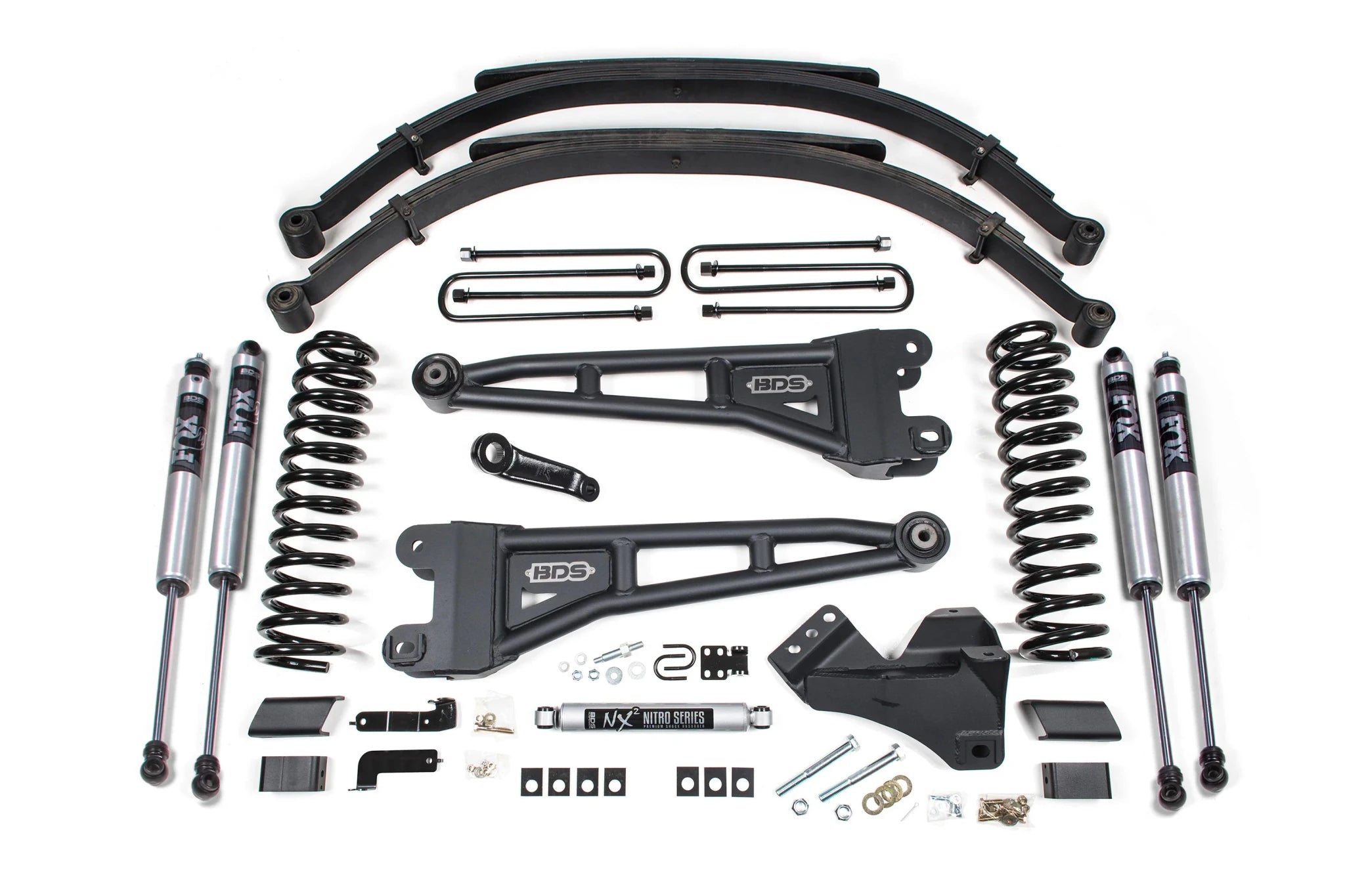

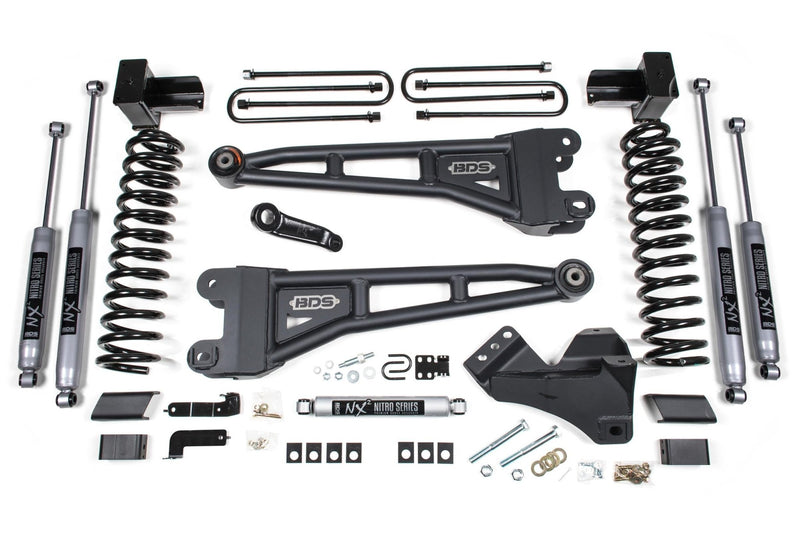

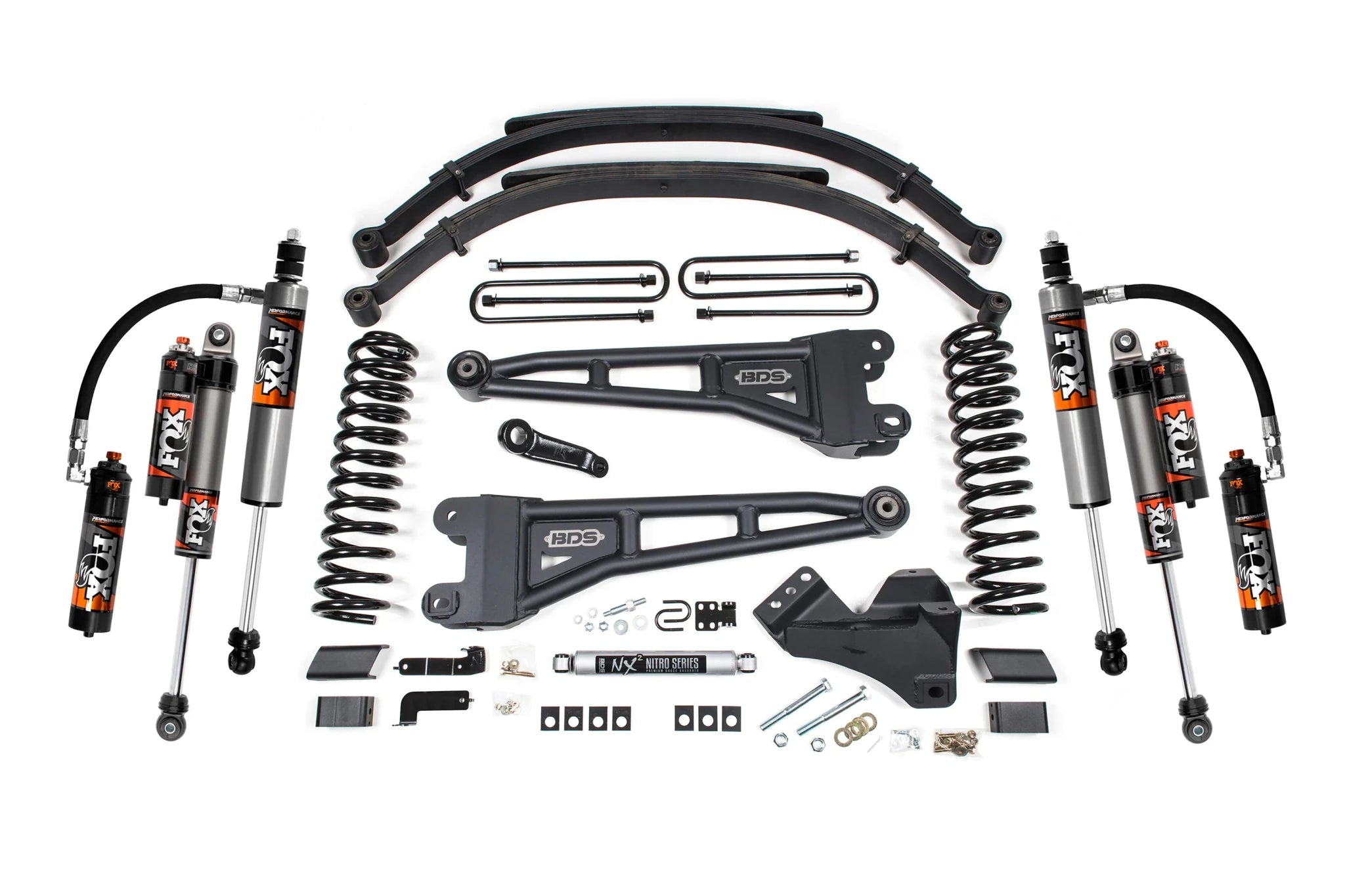

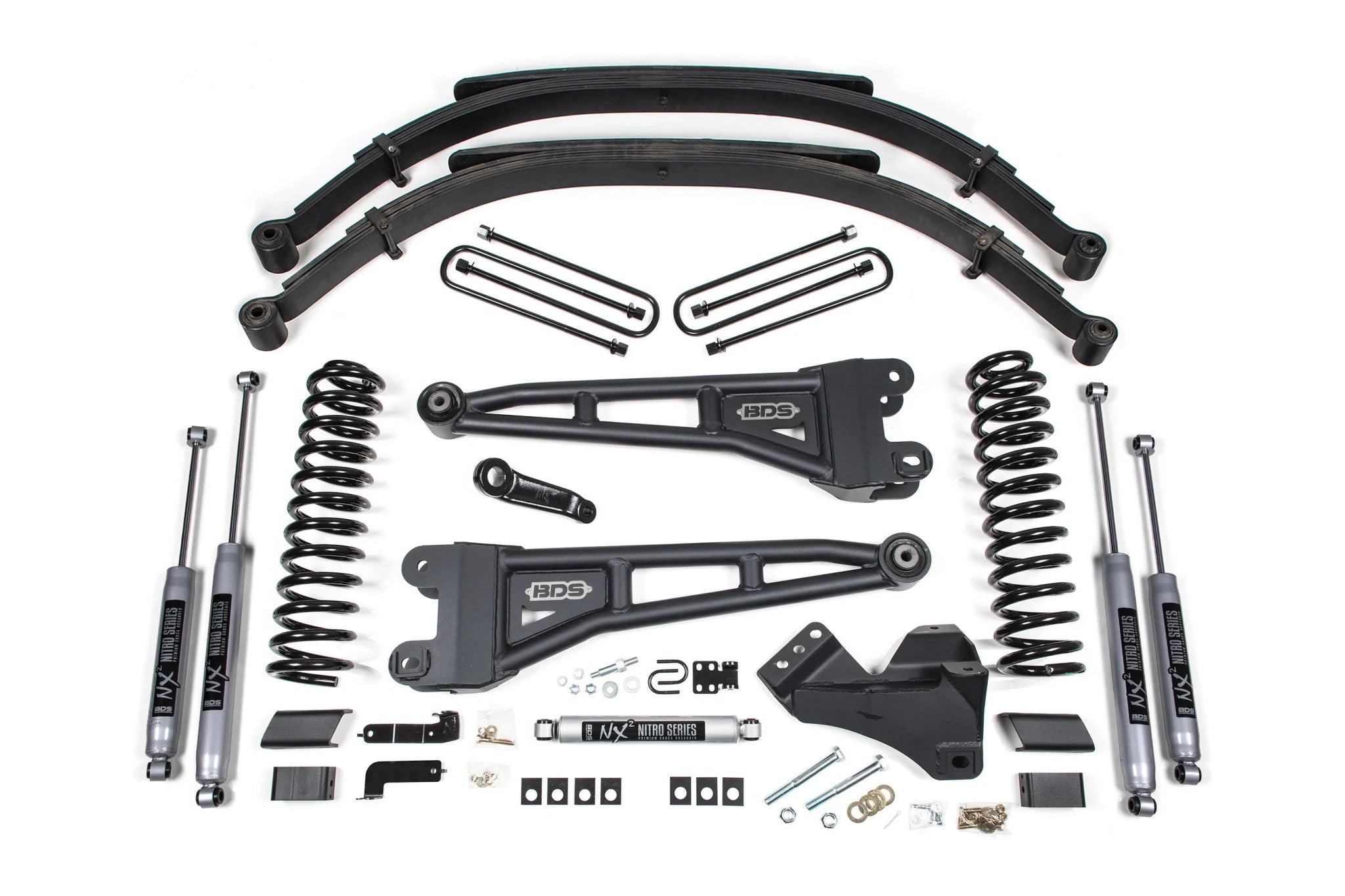

Kit Components:

• Includes one BDS013414, 2017-2024 Super Duty 4 inch Front Box Kit, UPC Code 658848613458
• Includes one BDS013516, 2017-2024 F250 5 inch Rear Block Kit -3 Leaf Main, UPC Code 658848613595
• Includes one BDS033411, 2005-2024 Ford F250/F350 Superduty 4 inch Coil Kit - Diesel, UPC Code 658848616527
• Includes one BDS123263, 2023-2024 Ford F250/350 4wd Radius Arm Kit, Pair, UPC Code 711745612709
• Includes one BDS85431, 2017-2024 F250/F350 Single Stabilizer, UPC Code 711745609242
• Includes two FOX98224700, Fox 2.0 Shock 25.65 x 16.05 x 2- S50/EB1
• Includes two FOX98224718, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
