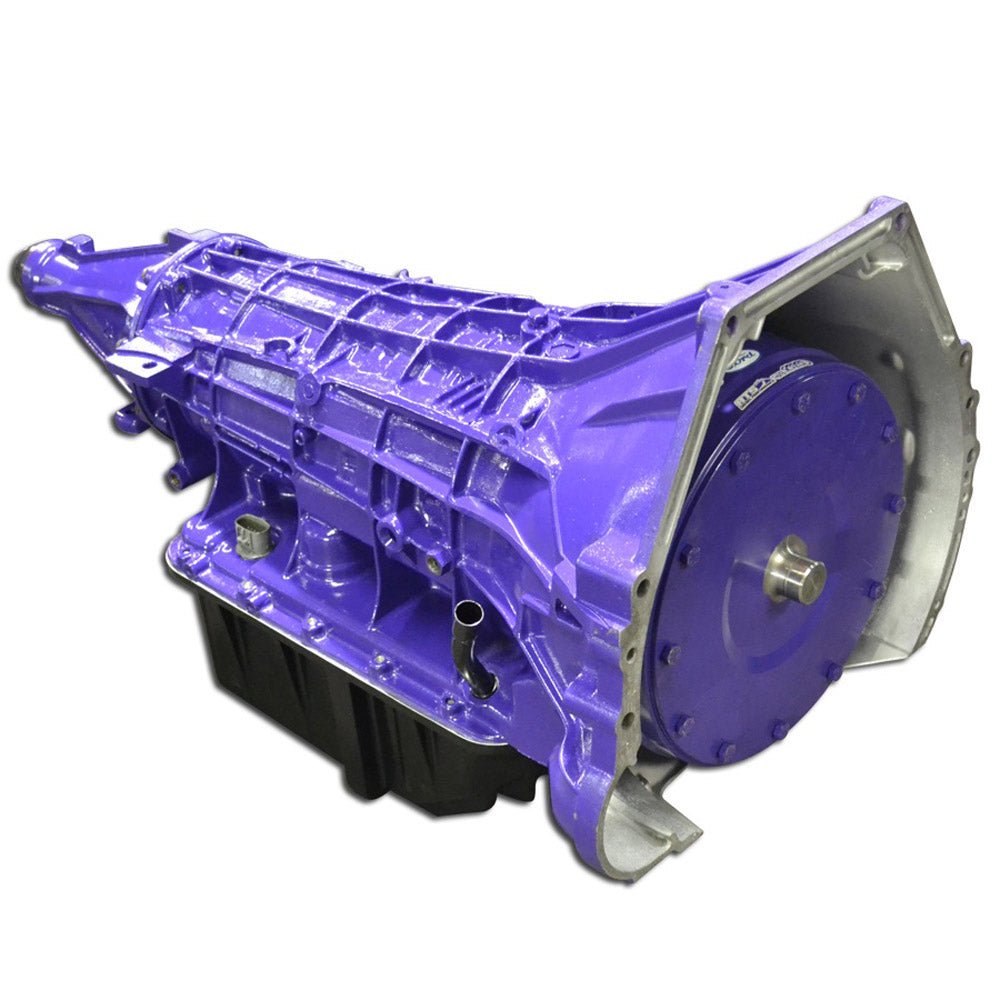

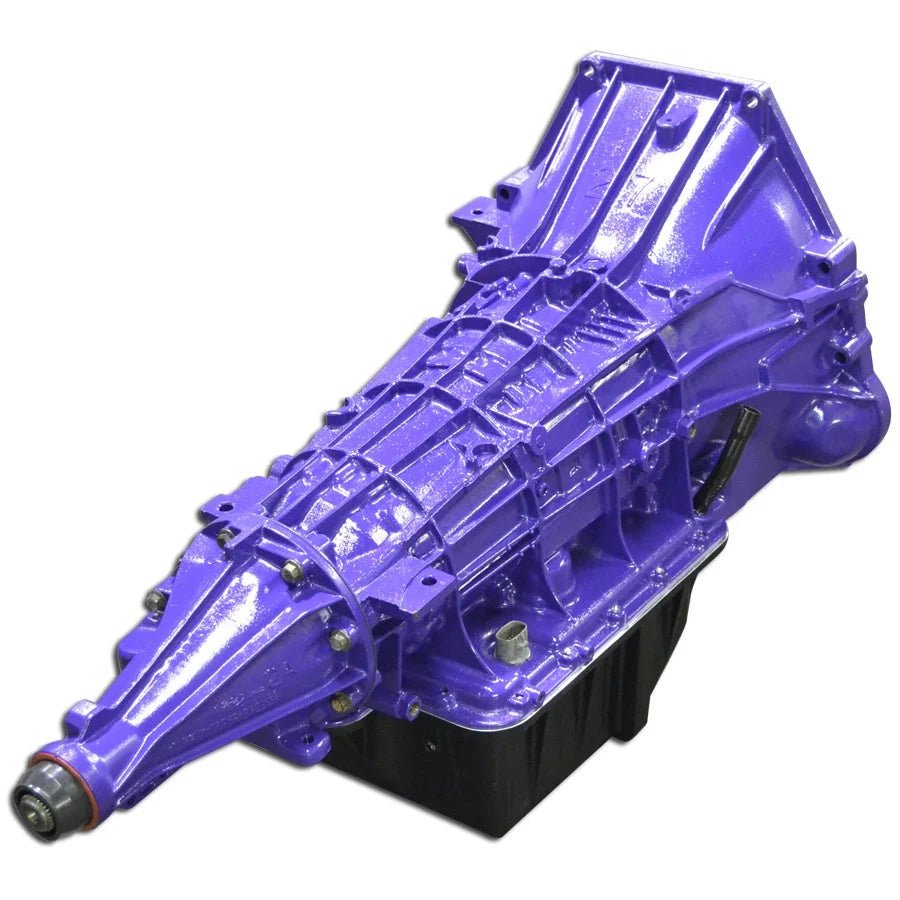

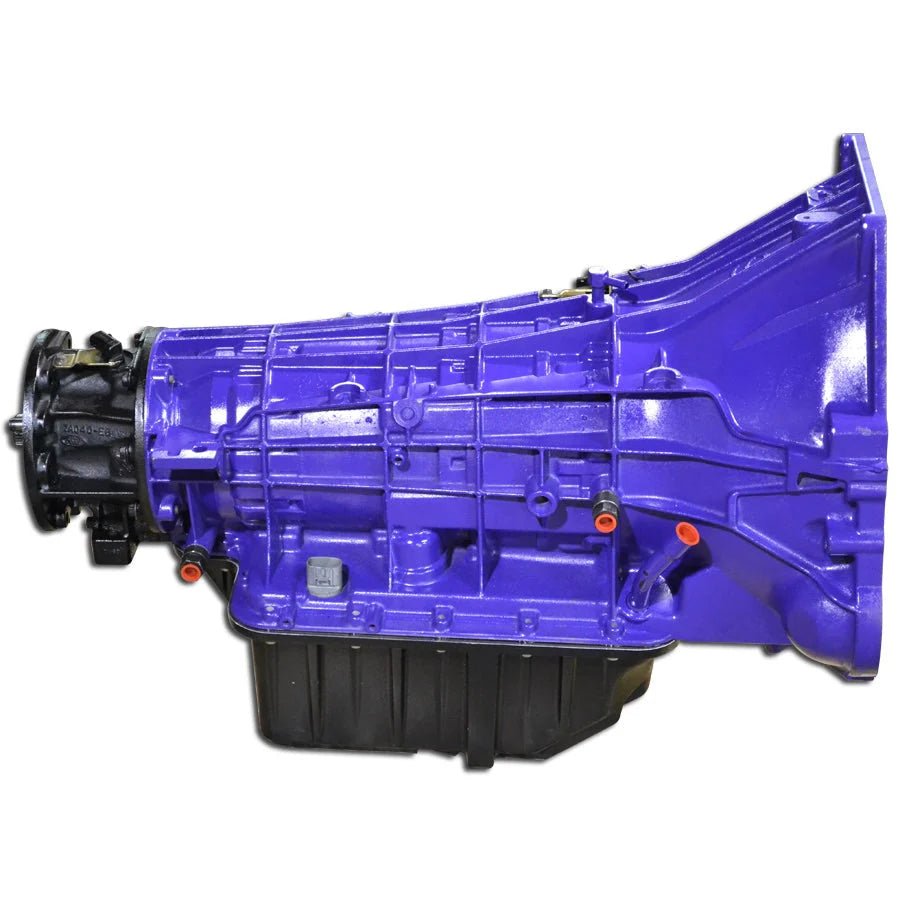

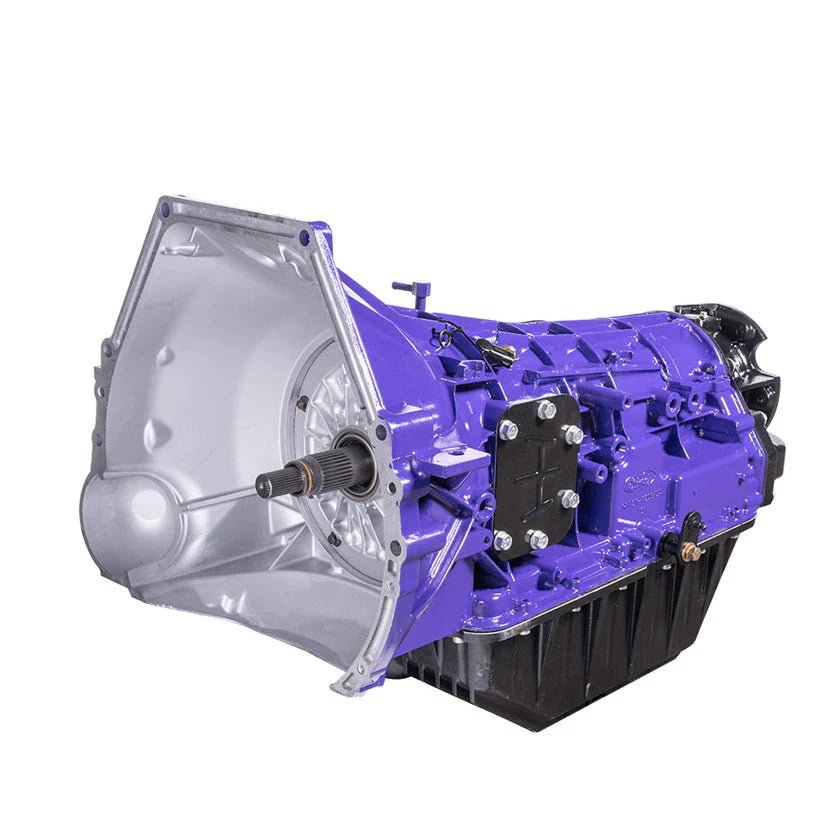

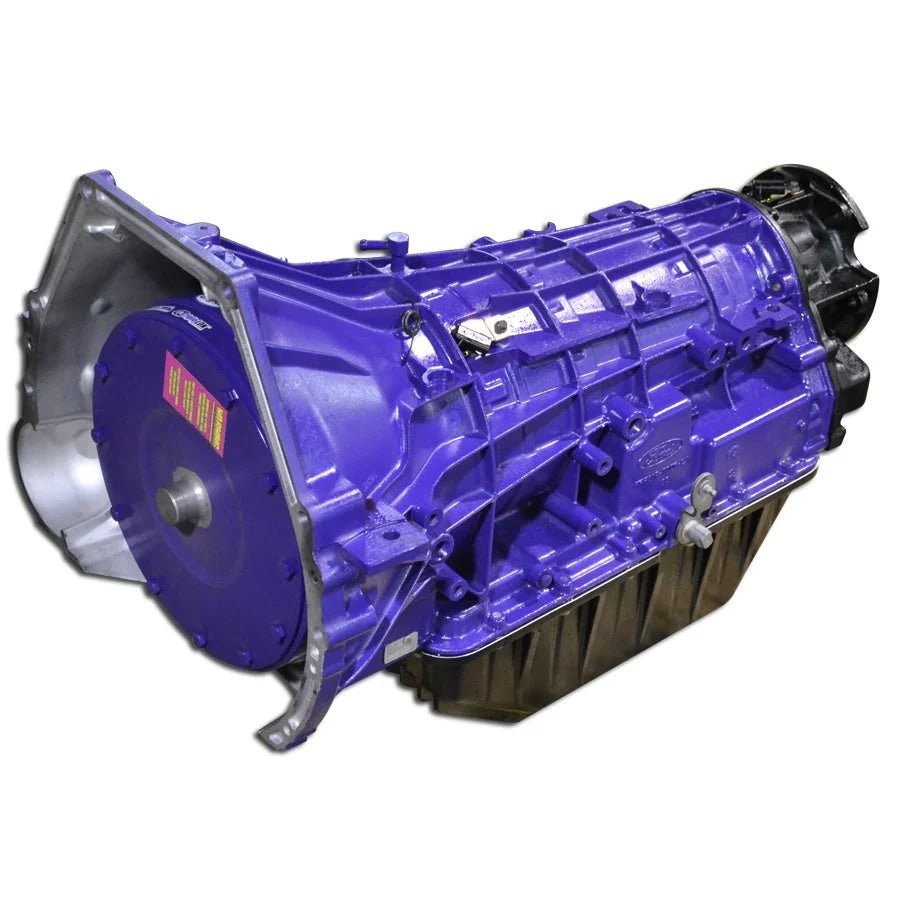

ATS 4R100 Transmission Package (1999-2003 7.3L PowerStroke)
Fits: Ford 7.3L (1999-2003 Powerstroke)
Diesel Dollars is Southern Diesel Supply's Loyalty Program. Purchasing with Us Earns you 1 Point for every 1 Dollar spent to use for future buys!
By ordering the ATS 4R100 Transmission Package (1999-2003 7.3L PowerStroke) you will earn 5190 DIESEL DOLLARS in your SDS Fuel Tank!
The ATS Stage 1 4R100 Transmission Package is a complete ATS-built 4R100 automatic for 1999-2003 Ford F-250 and F-350 Super Duty trucks with the 7.3L Power Stroke. ATS reworked the converter, pump, valve body and clutch packs so the transmission stays consistent through daily driving, towing and mild upgrades, and backs it with a 5 year/500,000 mile warranty.
Fitment
This package is built for 1999-2003 Ford Super Duty trucks with the 7.3L Power Stroke and the 4R100 four-speed automatic. ATS lists it for the F-250, F-350 and F-450. The listing carries 22 versions, and 2WD and 4WD 4R100 cases are not the same, so pick the version that matches your truck's drivetrain. It is not for 1994-1997 trucks: those use the E4OD, which is a different transmission even though the gear ratios match. You may also see the 1999-2003 automatic called a 4R110 in some catalogs; it is the 4R100. Verify fitment by VIN or call us before you order.
Why this part
ATS says the factory Ford 4R100 has weak points in the converter, clutch pack assemblies, valve body and line pressure limits, and that they show up when engine power goes up or the truck tows. Torque converter ballooning, valve body wear and cracked flexplates are known 4R100 failure modes on tuned or heavily loaded trucks. You feel them as lockup slip, erratic shifts, and vibration or noise from a cracked flexplate.
ATS went after each weak point by redesigning the torque converter, transmission pump, valve body and clutch packs. Raising line pressure, adding clutch pack surface area and modifying the valve body turns the 4R100 into a consistent, responsive and dependable transmission that meets the demands of a working Super Duty. A billet, furnace-brazed converter like the Five Star is the standard fix for lockup slip and handles more torque than stock, and a deep pan helps control fluid temperature when you tow.
Stage 1 is the ATS build for trucks that see daily driving and towing duties, plus minor modifications like an upgraded air intake, exhaust or mild tune. If your plans go further than that, call us before you order so we can talk it through.
What you get
- ATS Five Star Torque Converter featuring a billet cover, five lock-up clutches, billet stator and a furnace-brazed impeller
- Modified transmission pump for increased line pressure
- High performance clutch packs with more clutches than stock
- Re-designed accumulator pistons for a precise shift feel

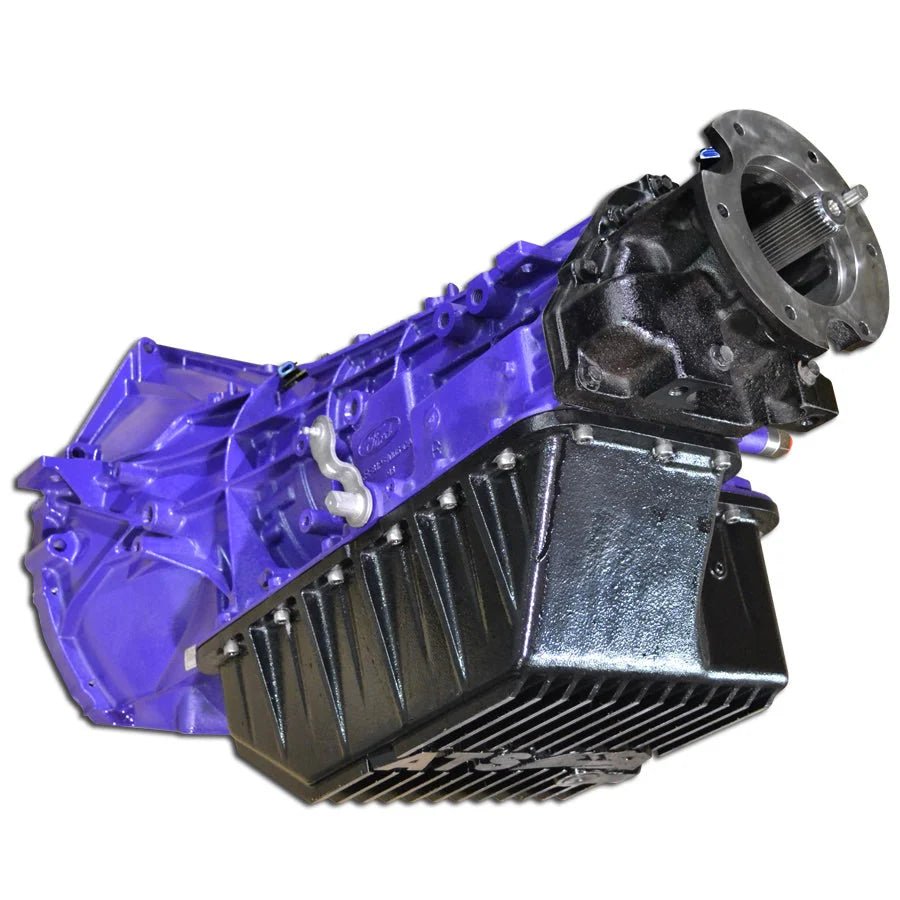

- ATS Deep Transmission Pan that adds 5 quarts of fluid, featuring a finned design, magnetic drain plug and is tapped for a temperature probe
Shipping: You will be contacted and charged separately about shipping cost on this package.
Specifications
- Engine Manufacturer: Powerstroke
- Make: Ford
- Models: F-250/F-350/F-450
- Fuel Type: Diesel
- Transmission Model: 4R100
- Warranty: 5 year/500,000 mile warranty
- Sold As: Kit
ATS transmissions are backed by a 5 year/500,000 mile warranty regardless of power level or use.
About ATS Diesel Performance
ATS Diesel Performance has built diesel drivetrain parts in Arvada, Colorado since 1993. Transmissions are the core of the line: complete transmission packages, Five Star torque converters and hard parts like billet shafts and deep pans. ATS also makes Aurora turbochargers and exhaust manifolds.
Frequently asked questions
What kind of truck is Stage 1 meant for?
ATS designed Stage 1 for trucks that see daily driving and towing, with minor modifications like an upgraded air intake, exhaust or mild tune.
Will this fit my 1997 F-350?
No. The 1994-1997 7.3L trucks use the E4OD, which is a different unit from the 4R100 even though the two share gear ratios. This package is for 1999-2003 Super Duty trucks.
How much fluid does the deep pan add?
The ATS Deep Transmission Pan adds 5 quarts of fluid. It has a finned design and a magnetic drain plug, and it is tapped for a temperature probe so you can keep an eye on transmission temperature.
Questions on fitment? Call the shop at the number in the header. We install everything we sell.
