Part #: 309-912-2272

ATS 48RE Transmission Package (2003-2007 5.9L Cummins)

Sale price$5,109.99
Year: 2003
Stage: Stage 1
Drivetrain: 2WD

Fits: Cummins CR (2003-2007 5.9L Cummins)

Get It Installed at Our Shop
Skip the Driveway — Our 9-Bay Diesel Shop in Wildwood, FL can Install this for You.

Request Installation

Come to Our 9-Bay Diesel Shop in Wildwood, FL — Fill Out the Request Form to Schedule.

Part: ATS 48RE Transmission Package (2003-2007 5.9L Cummins)

Secure Checkout
Genuine Parts
Fast Shipping
Diesel Experts
Not sure this fits your build? Call or Text Us: (352) 722-5295 Save Contact
Ships from our vendor network — most orders ship in 2–5 business days. Text us to confirm stock on big-ticket items.

Diesel Dollars is Southern Diesel Supply's Loyalty Program. Purchasing with Us Earns you 1 Point for every 1 Dollar spent to use for future buys!

By ordering the ATS 48RE Transmission Package (2003-2007 5.9L Cummins) you will earn 5110 DIESEL DOLLARS in your SDS Fuel Tank!

This ATS package replaces the 48RE automatic in a 2003-2007 Dodge Ram 2500 or 3500 with the 5.9L Cummins. It pairs an ATS-built 48RE with a 5 Star Viskus Clutch Drive torque converter, billet input shaft, billet flex plate, extra deep pan and CoPilot lock-up controller. You buy it to get the transmission and its supporting parts done in one job.

Fitment

This package is listed for 2003-2007 Dodge Ram 2500 and 3500 pickups with the 5.9L common-rail Cummins and the 48RE automatic. Check two things before you order. Some early-2003 standard-output trucks came with a 47RE instead of a 48RE; converters interchange only one way (48RE into 47RE), and the electrical connectors differ, 3-prong versus 5-prong NSS. Drivetrain matters too: 2WD output shafts are longer and more vulnerable than 4WD, and billet output shafts are sold 2WD- or 4WD-specific and in 23- or 29-spline. With 55 variants on this listing, verify fitment by VIN or call us before you pick one.

Why this part

The stock 48RE has well-documented weak spots. The factory converter has limited clutch area and a cast apply piston that deflects during lockup, which shows up as slipping lockup, shudder and high trans temps while towing. The intermediate band is soft metal with a paper-thin friction lining that stretches and loses material by 120,000-150,000 miles. On modified trucks the direct clutch drum's cast-aluminum piston can crack. And towing in overdrive can push fluid past 260°F, which triggers protective downshifts.

The usual upgrade path starts with a lower-stall billet converter and a deep pan, then moves to a billet input shaft for anything over about 500 hp with lockup; stock input shafts have snapped with as little as 500 rwhp. Built 48RE packages from ATS and other builders are sold by horsepower stage for 2003-2004 trucks. This one puts the ATS-built transmission, converter, billet input shaft, billet flex plate and extra deep pan together, with the CoPilot controller handling converter lockup.

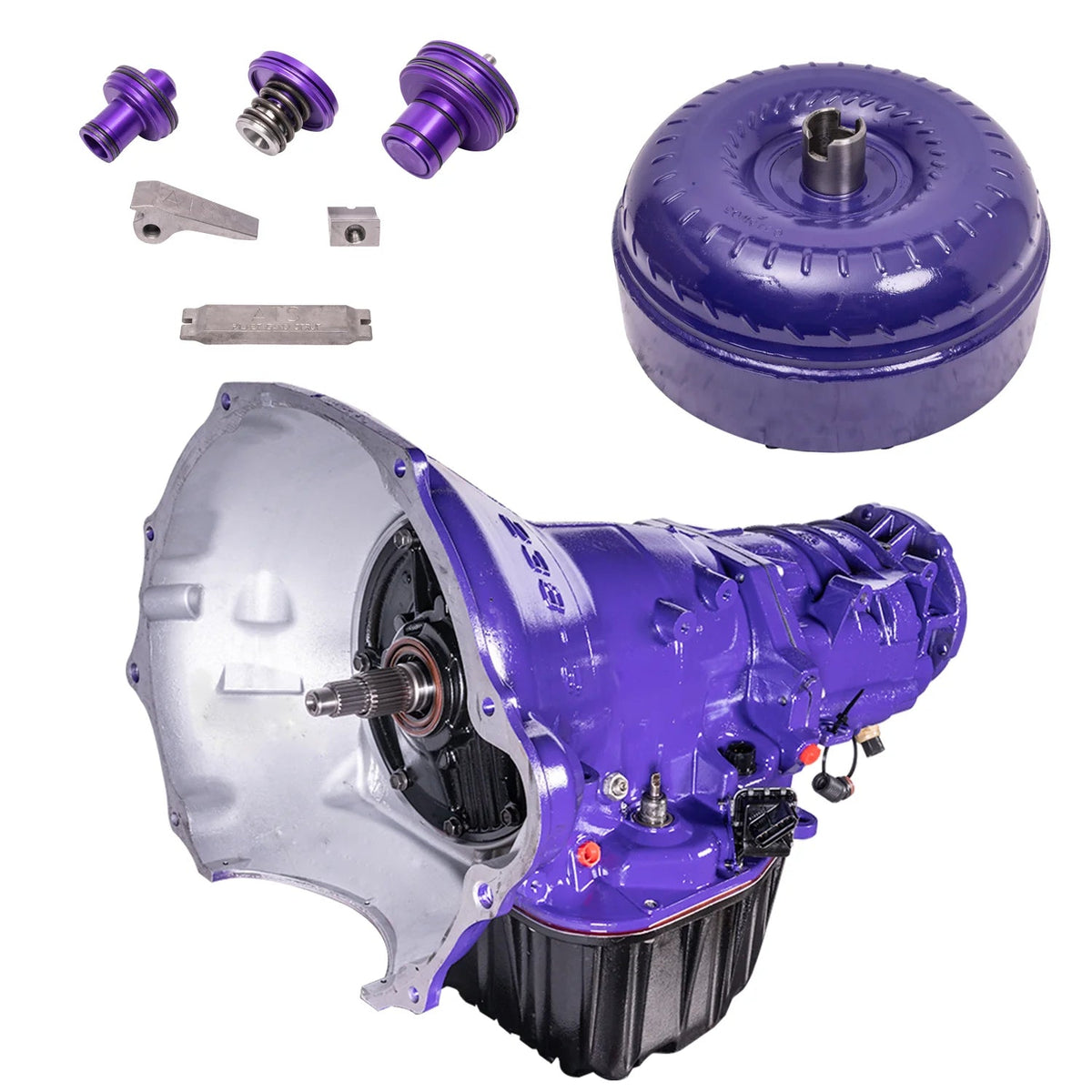

What you get

Includes:

  • ATS Built 48-RE Auto Trans
  • ATS 5 Star Viskus Clutch Drive Torque Converter
  • ATS Extra Deep Transmission Pan
  • ATS Billet Input Shaft
  • ATS CoPilot Torque Converter Lock-Up Controller
  • ATS Billet Flex Plate

Shipping on this package is billed on its own. You will be contacted and charged separately about shipping cost.

About ATS Diesel Performance

Arvada, Colorado-based ATS Diesel Performance dates to 1993, and transmissions are the core of its line. Beyond complete packages, ATS makes Five Star torque converters, master rebuild kits for the 47RH/47RE, billet input and output shafts and deep pans, plus Aurora turbochargers and exhaust manifolds for the 5.9L and 6.7L Cummins. Shop ATS Diesel Performance.

Frequently asked questions

Does this package include a transmission cooler?

No. A cooler is not on the parts list. A deep pan and an auxiliary cooler are the usual pair for 48RE temperature control, so if you tow in overdrive, plan on adding a cooler.

How do I pick from the 55 variants?

The variants run across ATS part numbers in the 309 series, from 309-912-2272 through 309-964-2317. Drivetrain is one deciding factor, since 2WD and 4WD units differ. Send us your VIN, drivetrain and how you use the truck, and we will match the right variant.

What is the CoPilot?

It is the ATS CoPilot torque converter lock-up controller, included in this package to control converter lockup on the built 48RE. Call the shop if you want to talk through how it is set up on your truck.

Questions on fitment? Call the shop at the number in the header. We install everything we sell.

Core Charge: This item requires a refundable $2,600.00 core deposit. It's added automatically at checkout and refunded when your old core is returned. See our Core Charge Policy.
