Part #: BDS1667H

BDS Suspension 4 Inch Lift Kit w/ 4-Link (2019-2024 3500 6.7L Cummins 4WD)

Sale price$2,352.99
Indexing Ring Option: 6 Bolt
Shock Option: NX2 Nitro Series
Get It Installed at Our Shop
Skip the Driveway — Our 9-Bay Diesel Shop in Wildwood, FL can Install this for You.

Request Installation

Come to Our 9-Bay Diesel Shop in Wildwood, FL — Fill Out the Request Form to Schedule.

Part: BDS Suspension 4 Inch Lift Kit w/ 4-Link (2019-2024 3500 6.7L Cummins 4WD)
Secure Checkout
Genuine Parts
Fast Shipping
Diesel Experts
Not sure this fits your build? Call or Text Us: (352) 722-5295 Save Contact

Diesel Dollars is Southern Diesel Supply's Loyalty Program. Purchasing with Us Earns you 1 Point for every 1 Dollar spent to use for future buys!

By ordering the BDS Suspension 4 Inch Lift Kit w/ 4-Link (2019-2024 3500 6.7L Cummins 4WD) you will earn 2353 DIESEL DOLLARS in your SDS Fuel Tank!

**You will be contacted and charged separately about shipping cost.**

  • Front Lift Method: 4-Link
  • Rear Lift Method: Block
  • Shocks Included: Yes
  • Front Lift Height: 4 inch
  • Rear Lift Height: 3 inch
  1. Dually with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
  2. Mega Cab inch's with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
  3. Vehicles equipped with a Manual T-case requires BDS122423 Manual transfer case shifter extension
    1. Vehicles equipped with a 2-piece rear drive shaft (carrier bearing), require BDS122406 Carrier bearing drop.

Indexing Ring Option 6 Bolt Indexing Ring

  • Kits come standard with 6-Bolt indexing ring kit.

FOX 2.5 Performance Elite Series

  • Increased off-road capabilities
  • Easily adjust your shock for terrain, load and speed
  • 2.5-inch Impact extruded aluminum body
  • Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
  • External reservoir design separates shock oil from the high-pressure nitrogen
  • Dual Speed Compression Adjust - Dual Speed Compression Adjuster comes standard
  • Fully serviceable for a lifetime of use
  • 1-year Manufacturer's Warranty

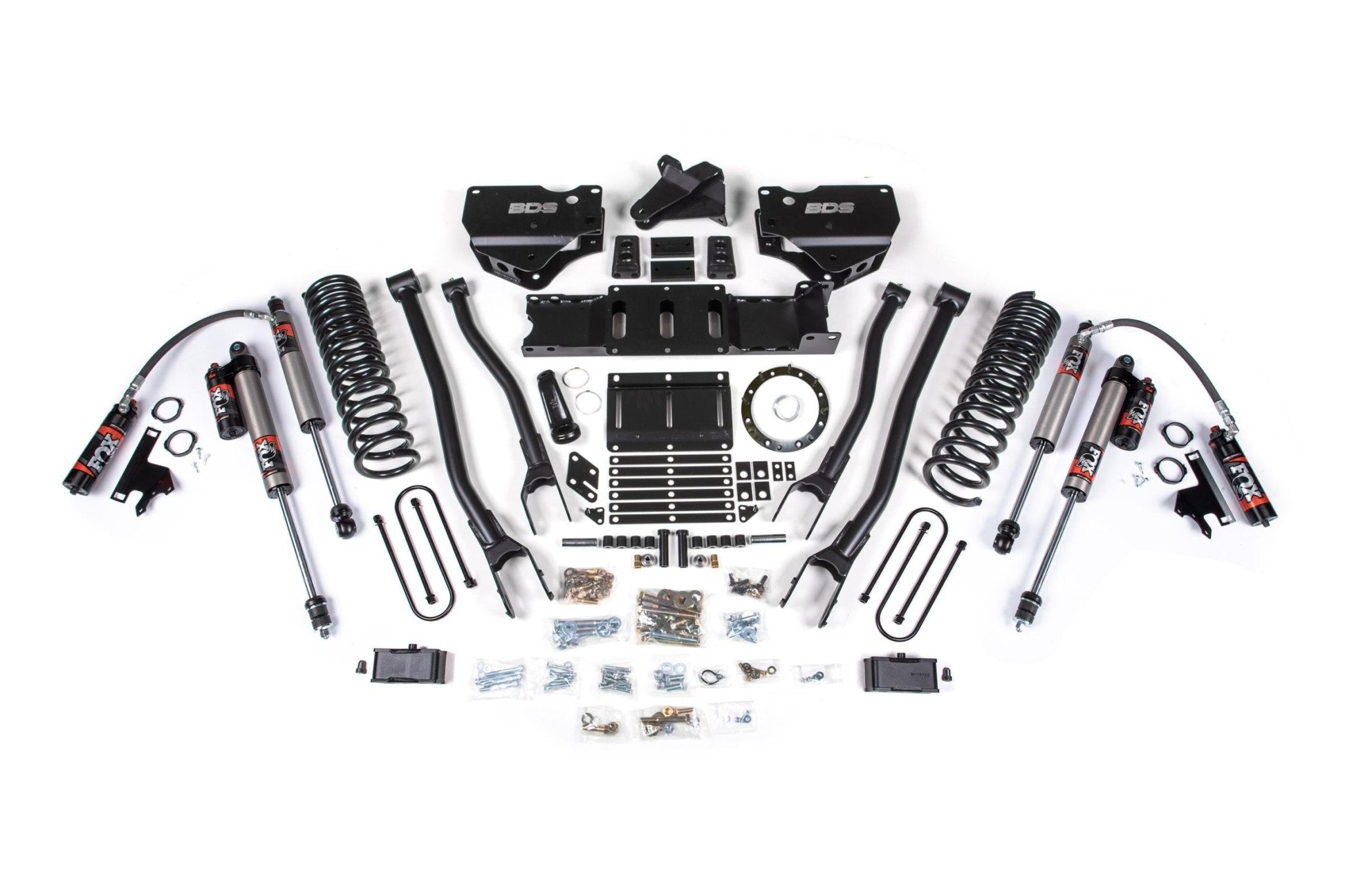

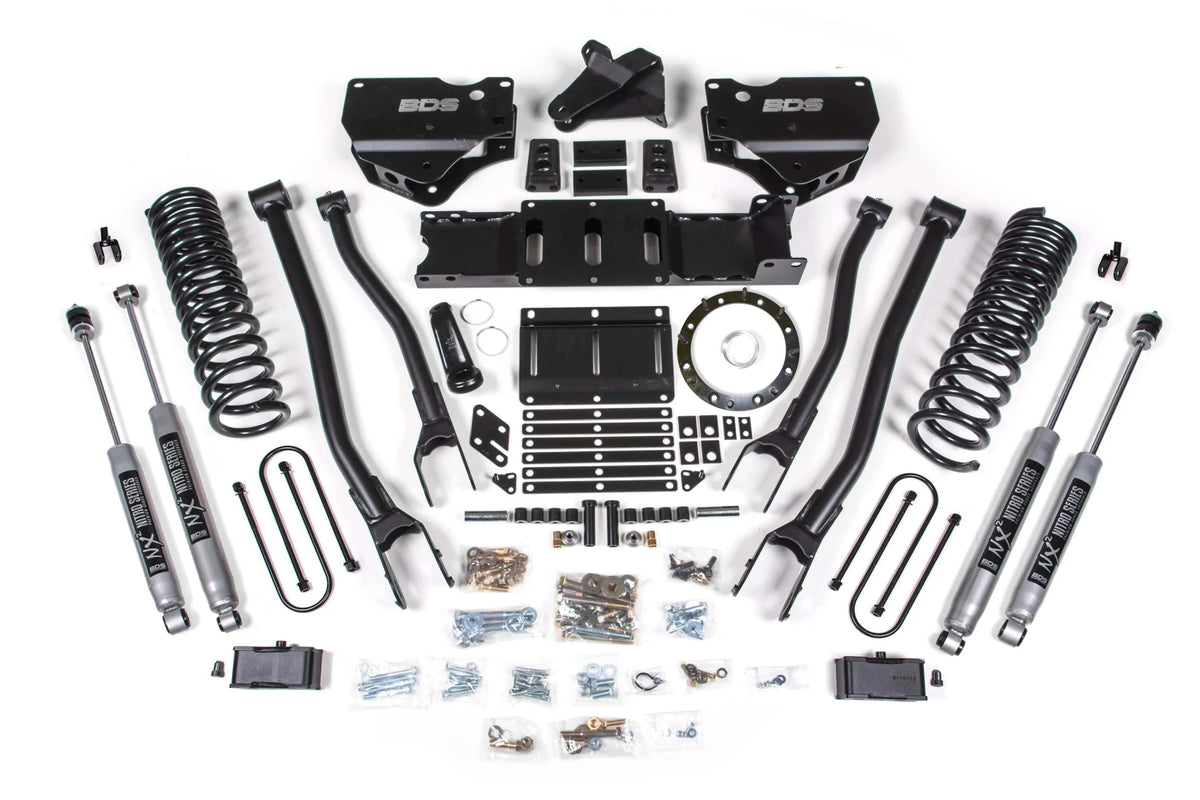

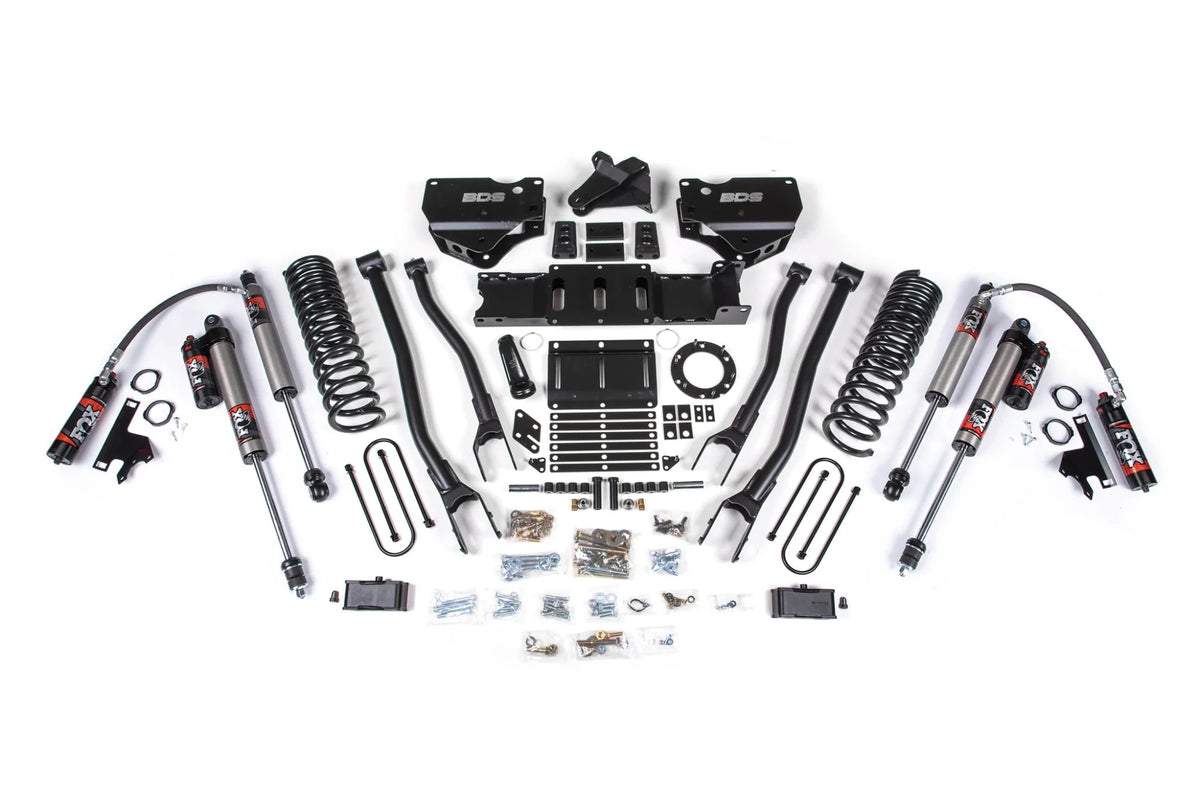

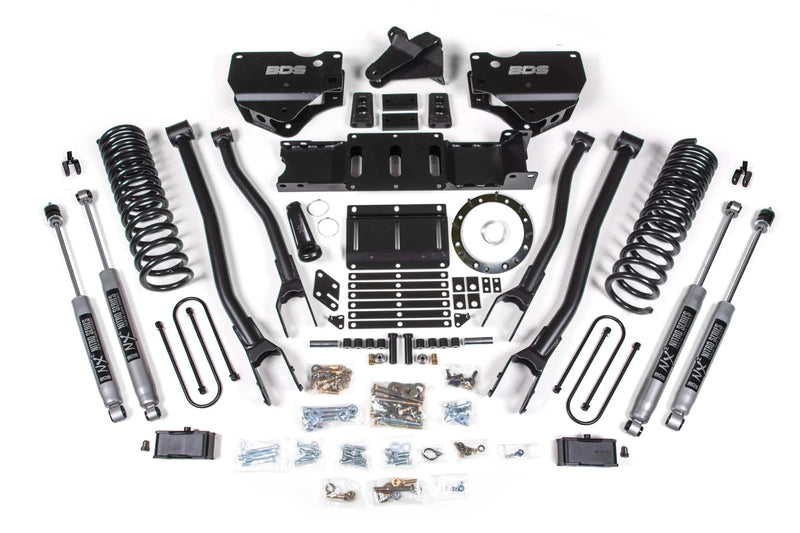

Kit Components:

  • Includes one BDS012329, 2019-2024 Ram 3500 3 inch Rear Box 4 3/8 inch U-bolt w/ overload, UPC Code 658848612291
  • Includes one BDS012433, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit 1of2, UPC Code 658848612437
  • Includes one BDS012434, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit - 2 of 2, UPC Code 658848612444
  • Includes one BDS032491, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 Coil Springs - 4 inch Diesel/5.5 inch Gas, UPC Code 658848616374
  • Includes one BDS122624, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 T-Case Index - 6 Bolt - Diesel, UPC Code 658848619764
  • Includes one FOX88326064, Kit: 2014-2024 Ram 2500, Front, 2.5 Truck Fox Performance Elite Series, R/R, 6 inch Lift, Dual Speed Compression Adjust
  • Includes one FOX88326101, Kit: 2014-2024 Ram 3500, Rear, 2.5 Truck Fox Performance Elite Series, P/B, 2-3.5 inchРЎСљ Lift, Dual Speed Compression Adjust
