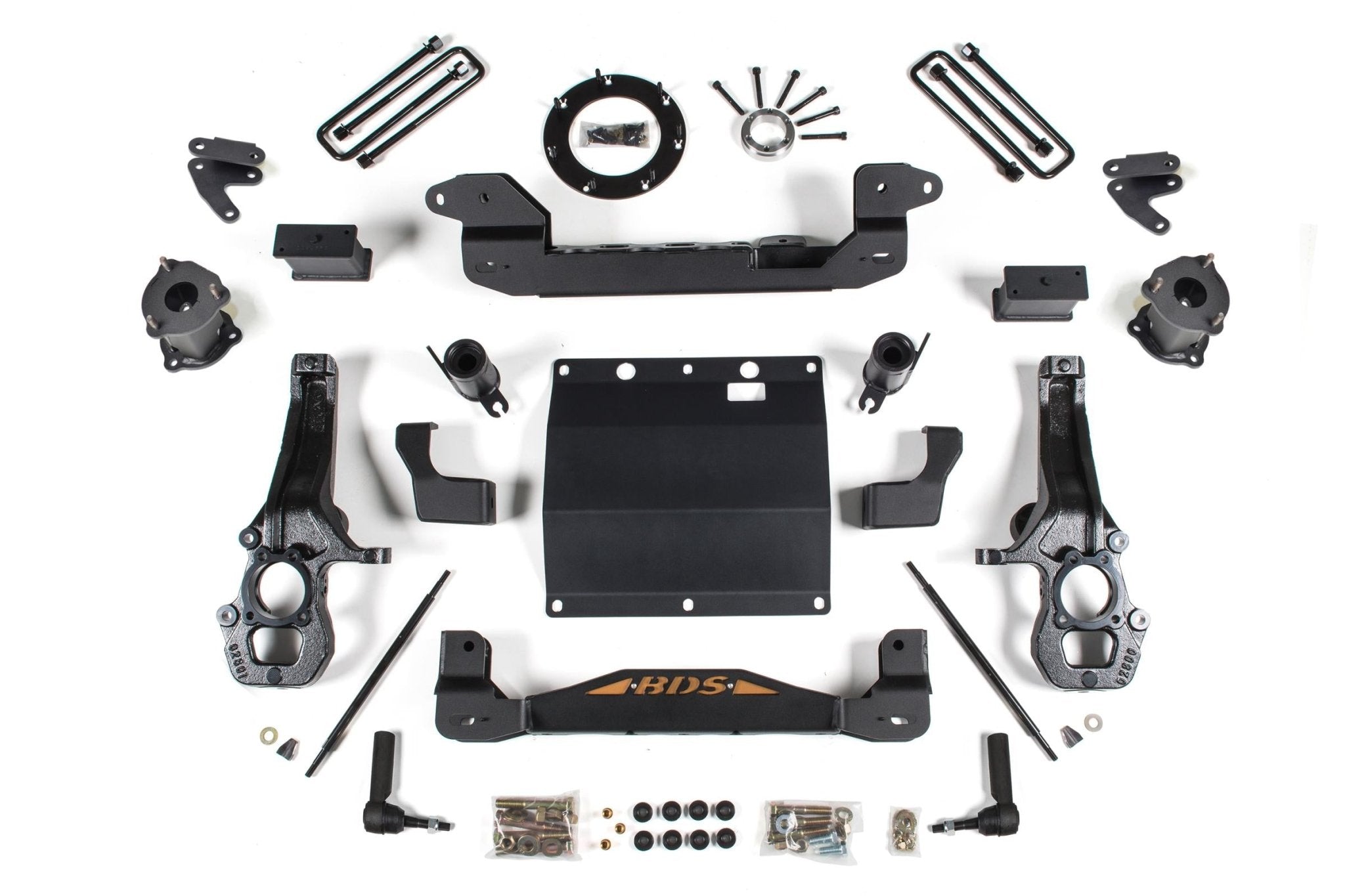

BDS Suspension 4 Inch Lift Kit ZR2 (2017-2022 2.8L Duramax)

**You will be contacted and charged separately about shipping cost.**

Want to lift your Colorado ZR2 and maintain the factory DSSV shocks? Then check out the BDS 4-inch suspension lift kit. Designed to improve stance, performance, and capability, this lift kit includes everything necessary to set your ZR2 Colorado up right with clearance for up to 35 inch Tires. Specifically engineered strut spacers are supplied to correctly position the DSSV coilovers to set ride height and achieve clearance throughout suspension travel.

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics.

Up front, the kit utilizes top mounted strut spacers, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection.

Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles and replacement tie rod ends allowing for ESC system compatibility. These combined with the provided sway bar links, bump stop extensions, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

High Clearance Crossmembers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.

• Front Lift Method: Cross-Member
• Rear Lift Method: Block
• Shocks Included: No
• Front Lift Height: 4 inch
• Rear Lift Height: 4 inch

1. Will fit gas and diesel models
2. Inner Fender trimming required
3. Minor welding required
4. Electronic assisted steering system is sensitive to out of round, unbalanced, and more aggressive tread pattern Tires. High speed steering wheel feedback can occur.
5. Stock 17 inch and 18 inch wheels cannot be reinstalled with the lift kit. Aftermarket 20 inch wheels with a maximum 5.25 inch backspacing are recommended. Certain wheel and Tire combinations will require weld on steering stops, these are included in the kit. See end of instructions sheet for details on installation.

• Retains DSSV Dampers
• High clearance crossmember design maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• HD skid plate system improved offroad protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• Factory Protection Plus drivetrain warranty included

Tire Size: 305 / 70 Tire Size 2: 35 x 12.5 Wheel Diameter: 17 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 4.5/58 hrs

Kit Components:

• Includes one BDS021400, 2017-2022 Chevrolet Colorado ZR2 Box Kit 1of5, UPC Code 658848614585
• Includes one BDS021401, 2017-2022 Chevrolet Colorado ZR2 Box Kit 2of5, UPC Code 658848614592
• Includes one BDS021402, 2017-2022 Chevrolet Colorado ZR2 Box Kit 3of5, UPC Code 658848614608
• Includes one BDS021403, 2017-2022 Chevrolet Colorado ZR2 Box Kit 4of5, UPC Code 658848614615
• Includes one BDS021404, 2017-2022 Chevrolet Colorado ZR2 Box Kit 5of5, UPC Code 658848614622
