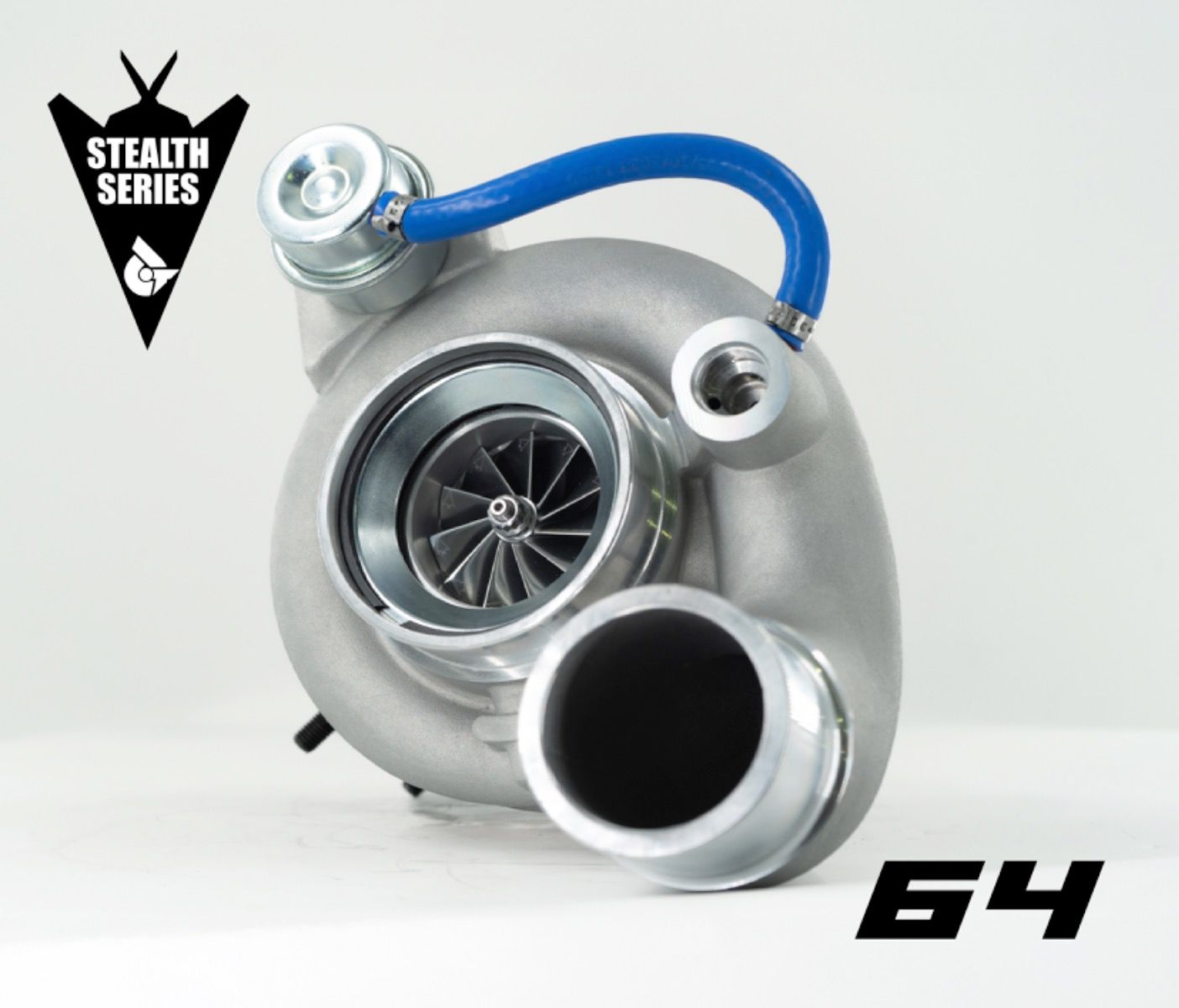

3rd Gen Stealth 64 Turbo (HE351cw)
-
Airflow to support 700HP
- Up to 425 RWHP with stock emissions equipment and basic supporting mods
- Tested in competition setups with extensive supporting mods to make 700+ RWHP
-
Custom Billet Compressor Wheel
- 63mm, 11-Blade extended tip wheel
- Wider RPM range of turbo efficiency
- Tow without the risk of surge (even while lugging)
- Lightweight and high strength
- Provides 72 lbs/min mass airflow compared to 60lbs/min stock
-

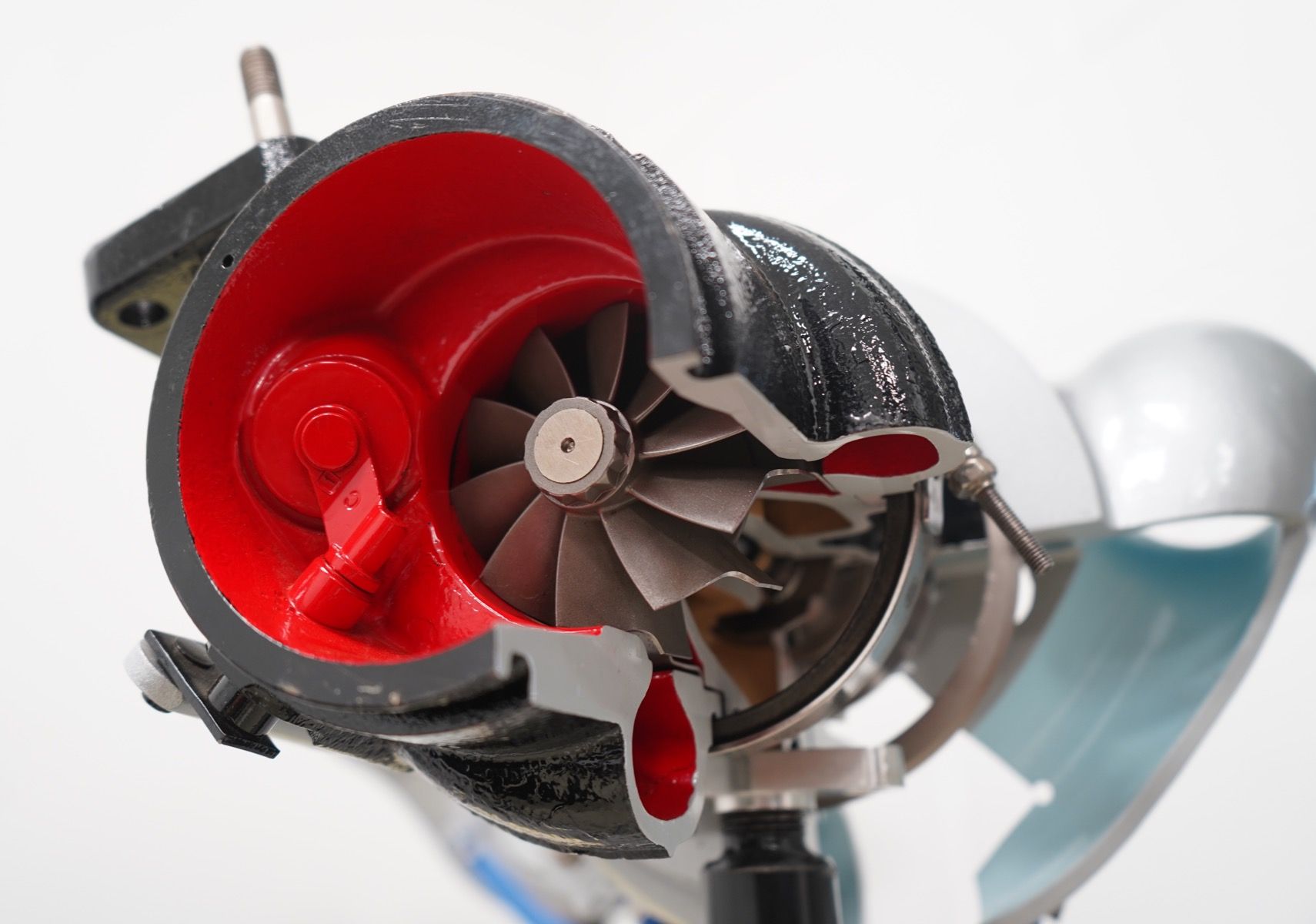

Beast Wheel™: The Ultimate Turbine Wheel
-
Exclusive 10-blade design and casting
- Improve turbine efficiency
- Helps produce our distinct Stealth turbo exhaust sound
-
30% larger than stock
- Sized to maximize throttle response
- Lower EGTs
- Lower drive pressures at high load
-
40% Thicker blades than others on the market
- Increased temperature resistance
- Higher strength
-
Exclusive 10-blade design and casting
-
Brand New Parts
- No Core Charges
Do You Need A New Electronic Waste Gate Actuator Solenoid?
Before you purchase a new turbo it's important to make sure your electronic wastegate actuator solenoid is in proper working condition. Here is how to test your stock electronic wastegate actuator solenoid along with a few signs that your solenoid may need replacing.
He351cw Electronic Waste Gate Actuator Solenoid Test:
- Unplug the electrical connection from the wastegate actuator solenoid.
- Apply a 12v charge to one of the prongs protruding from the waste gate actuator solenoid connector and apply a ground to the other. (You should hear a click when voltage is applied)
- If you have a boost gauge in the truck you can also reference it to make sure you are reaching proper boost levels. (30psi Max)
Signs that you need a new Electronic waste gate actuator solenoid:
- Your actuator solenoid does not click when voltage is applied
- You are failing to reach or exceeding 30psi of boost pressure under sustained load
- Your actuator solenoid is stuck in your HE351cw compressor cover
- Your wires are starting to crack or are exposed
- You just want peace of mind that everything is working correctly
