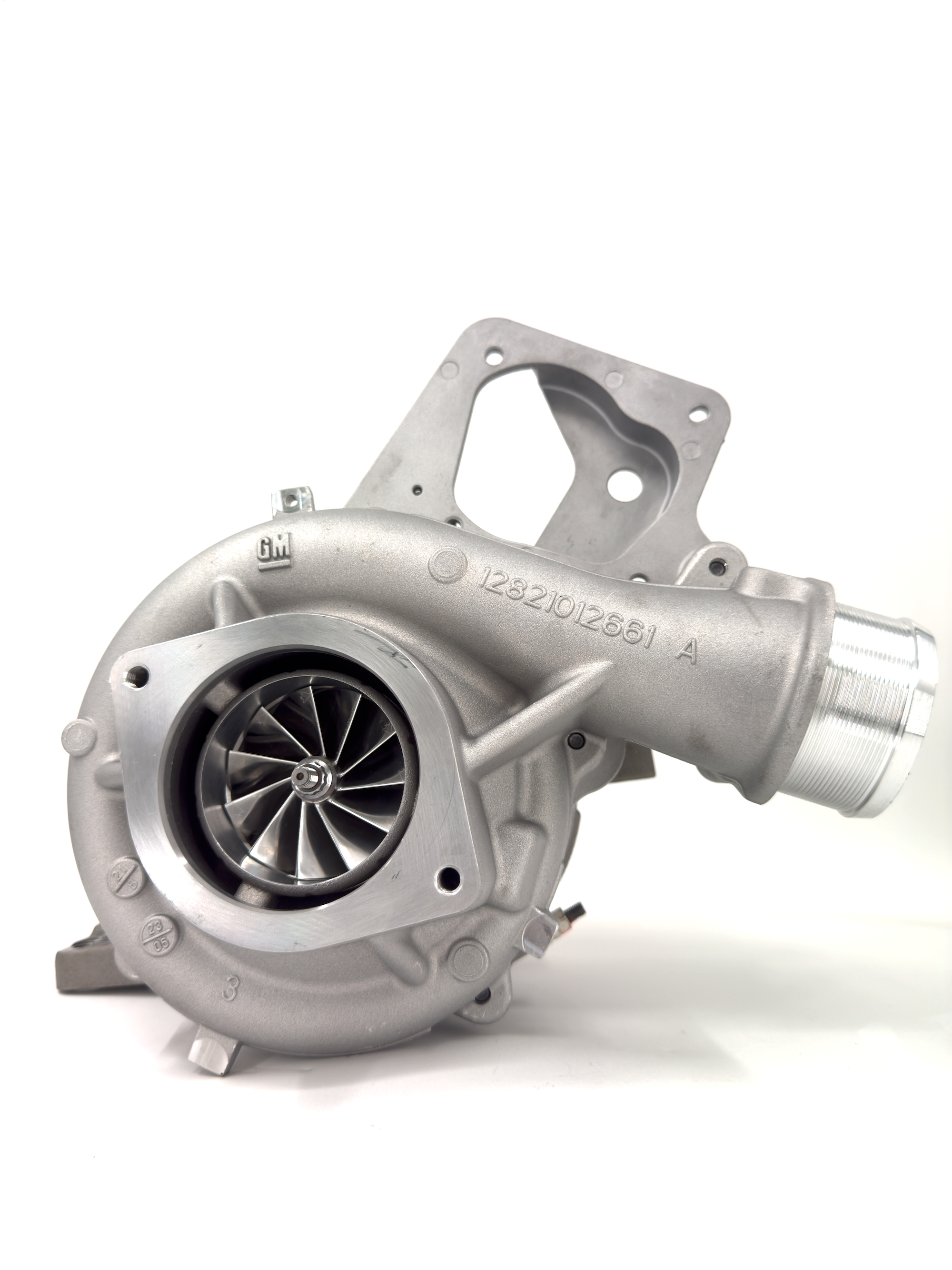

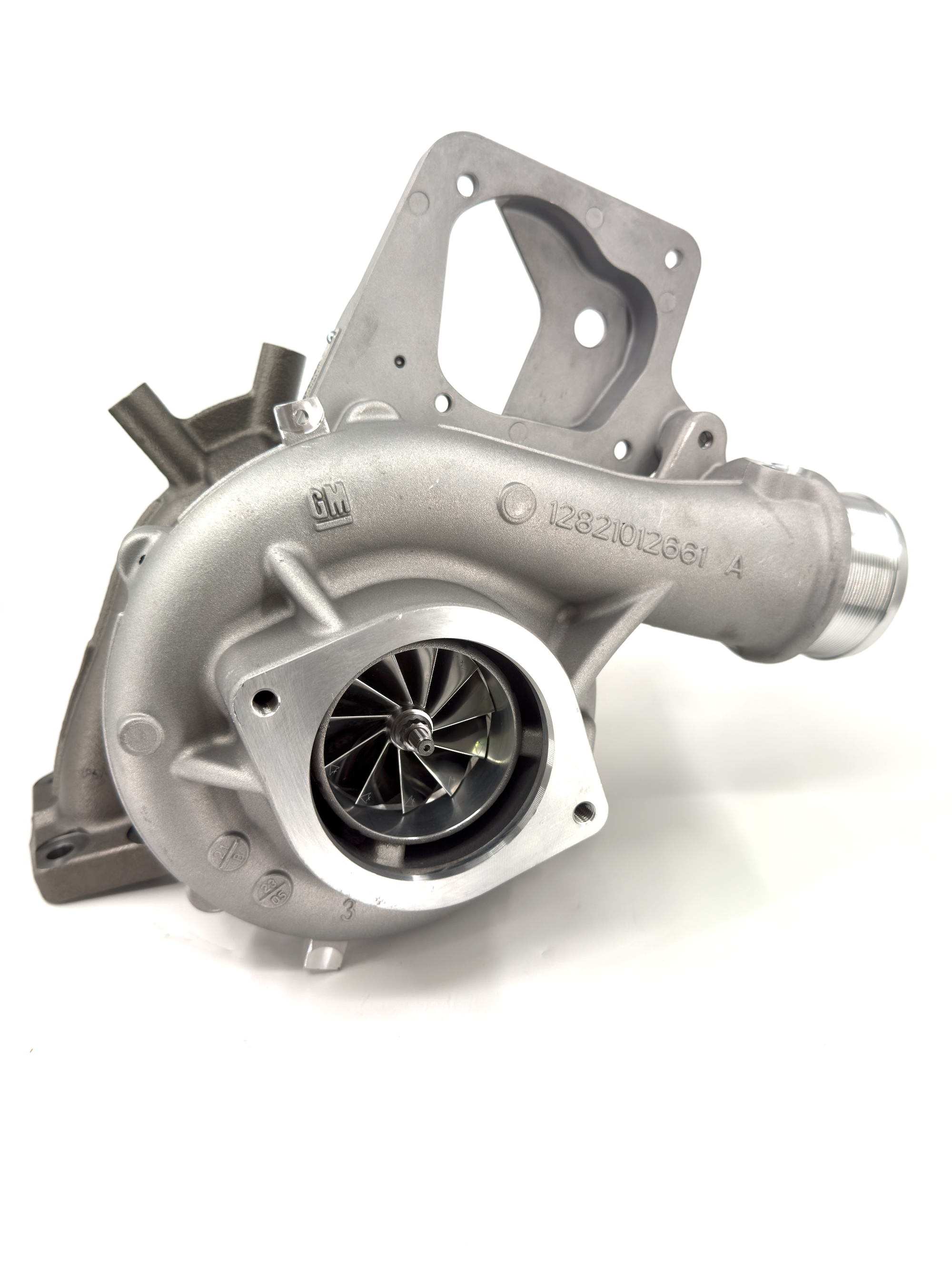

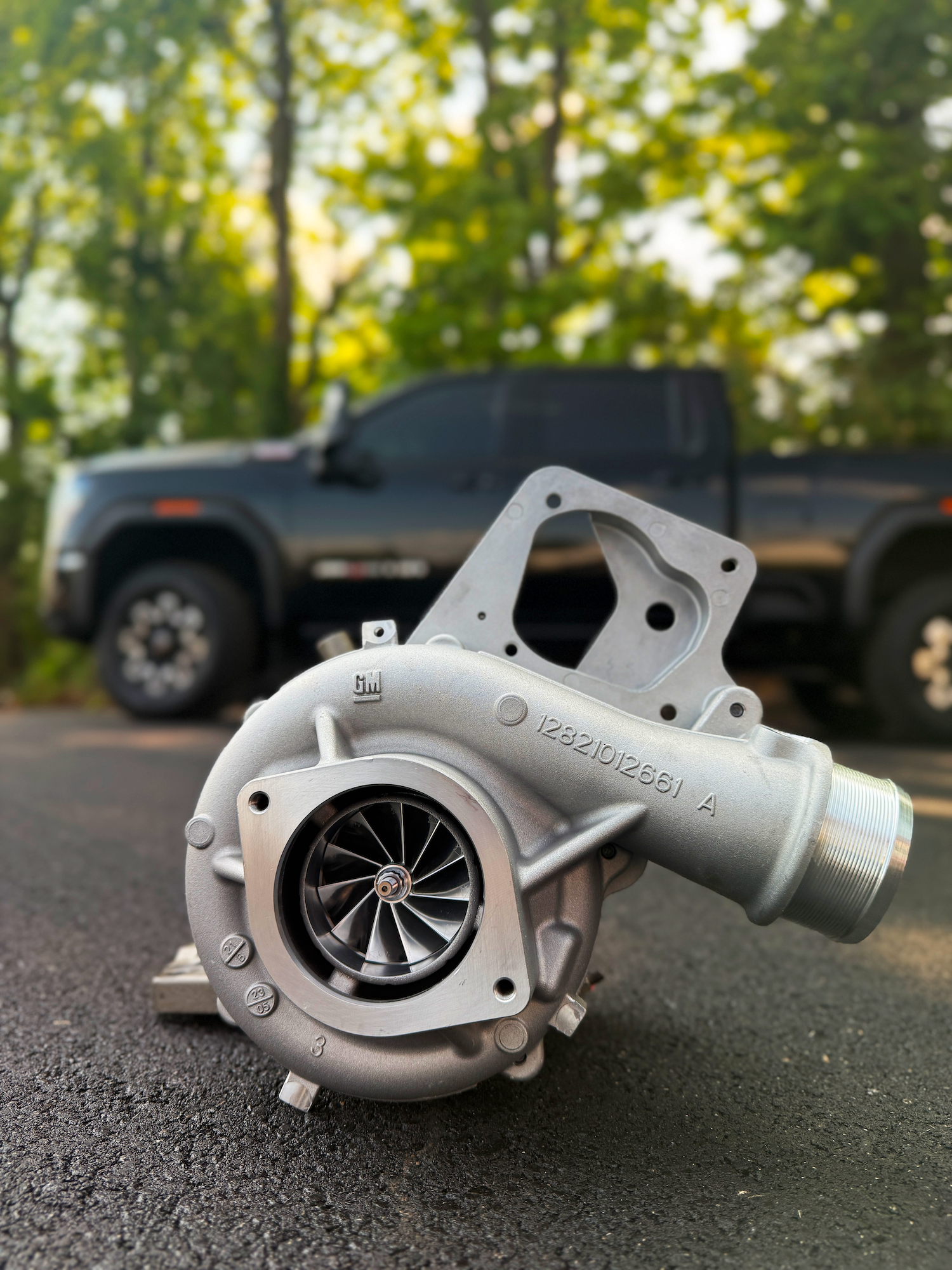

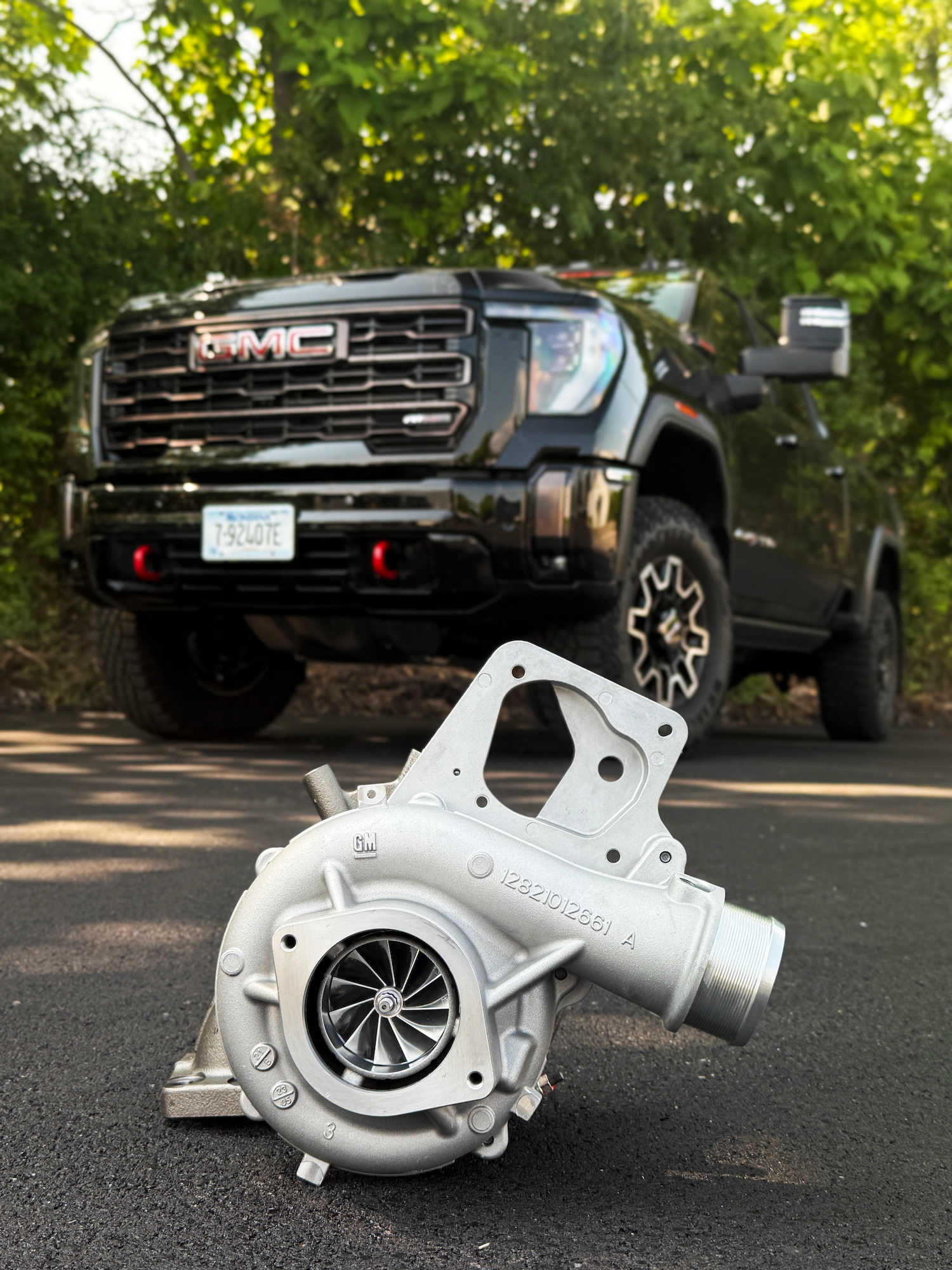

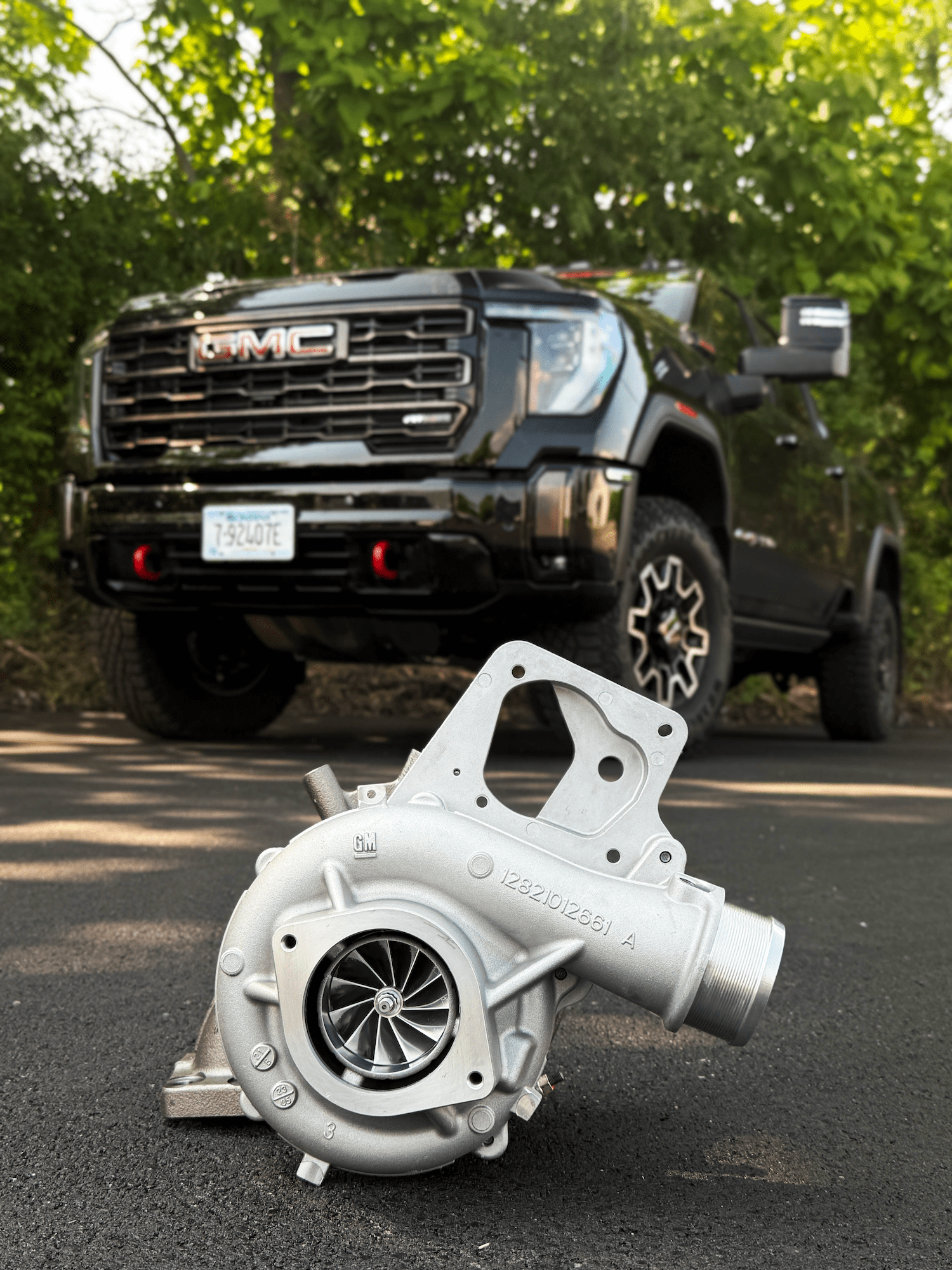

The Calibrated Power Solutions Stealth Mach 2 (CPS200329) is a 67 mm drop-in variable-geometry turbo for 2024-2026 Chevrolet Silverado and GMC Sierra 2500HD/3500HD trucks with the 6.6L L5P Duramax. Owners buy it for more air than the factory charger can move, 81 lbs/min against 60 stock, while keeping the factory actuator and the factory exhaust brake.

Fitment

Built for 2024-2026 Chevrolet Silverado 2500HD/3500HD and GMC Sierra 2500HD/3500HD with the 6.6L L5P Duramax, single and dual rear wheel. Our engine tag for this turbo covers the L5P from 2017 on, but the title and part number are for 2024-2026 only, so verify fitment by VIN. The 2024 L5P turbo differs from the earlier one, and drop-in turbos for 2024-2026 trucks carry different part numbers from 2017-2023 units. This turbo does not fit a 2017-2023 truck. Stealth turbos cannot ship to California and do not fit California-emissions trucks. If you are not sure what you have, send us your VIN or call the shop.

Why this part

The Mach 2 is the step for an L5P owner who wants a lot more air without a fabricated turbo kit. It drops in where the factory turbo goes, runs on the factory actuator, and keeps the factory exhaust brake. Calibrated Power built it around its latest compressor wheel design and a larger, higher-flowing turbine for better exhaust energy capture and lower EGTs at high RPM.

Be clear on the power numbers. Calibrated Power sizes the airflow for 750 hp. With stock emissions equipment and basic supporting mods, it reports up to 625 rwhp. The 750+ rwhp figure comes from competition setups with extensive supporting mods, not a street truck with a tune.

The turbine side is what lets the bigger compressor work. The 9-blade turbine wheel is larger than stock with a more aggressive blade angle, and its blades are 50% thicker for heat tolerance. That lowers drive pressure and EGTs under high load. A rotating assembly lighter than stock keeps spool-up close to the factory turbo, so the truck still drives like a daily driver.

One shop note before you buy. On any L5P, lazy spool, underboost codes and a weak exhaust brake are more often VGT vane or actuator sticking from carbon, or a boost leak at the charge pipes and clamps, than a worn-out turbo. If you are chasing a power complaint rather than building power, have those checked first.

Calibrated Power says this turbo is designed for you if you:

  • Want maximum power with great street performance
  • Want a turbo that's easy to tune
  • Have reliable performance as your top priority
  • Have a modified fuel system
  • Want more power with excellent street performance

What you get

  • One Calibrated Power Stealth Mach 2 67mm drop-in turbo, part number CPS200329
  • Brand new parts and electronics, so there is no core charge and no old turbo to send back
  • Calibrated Power's tailored tuning instructions, written so you and your tuner know how to dial it in

Specifications

  • Airflow to support 750HP
    • Up to 625 RWHP with stock emissions equipment and basic supporting mods
    • Tested in competition setups with extensive supporting mods to make 750+ RWHP

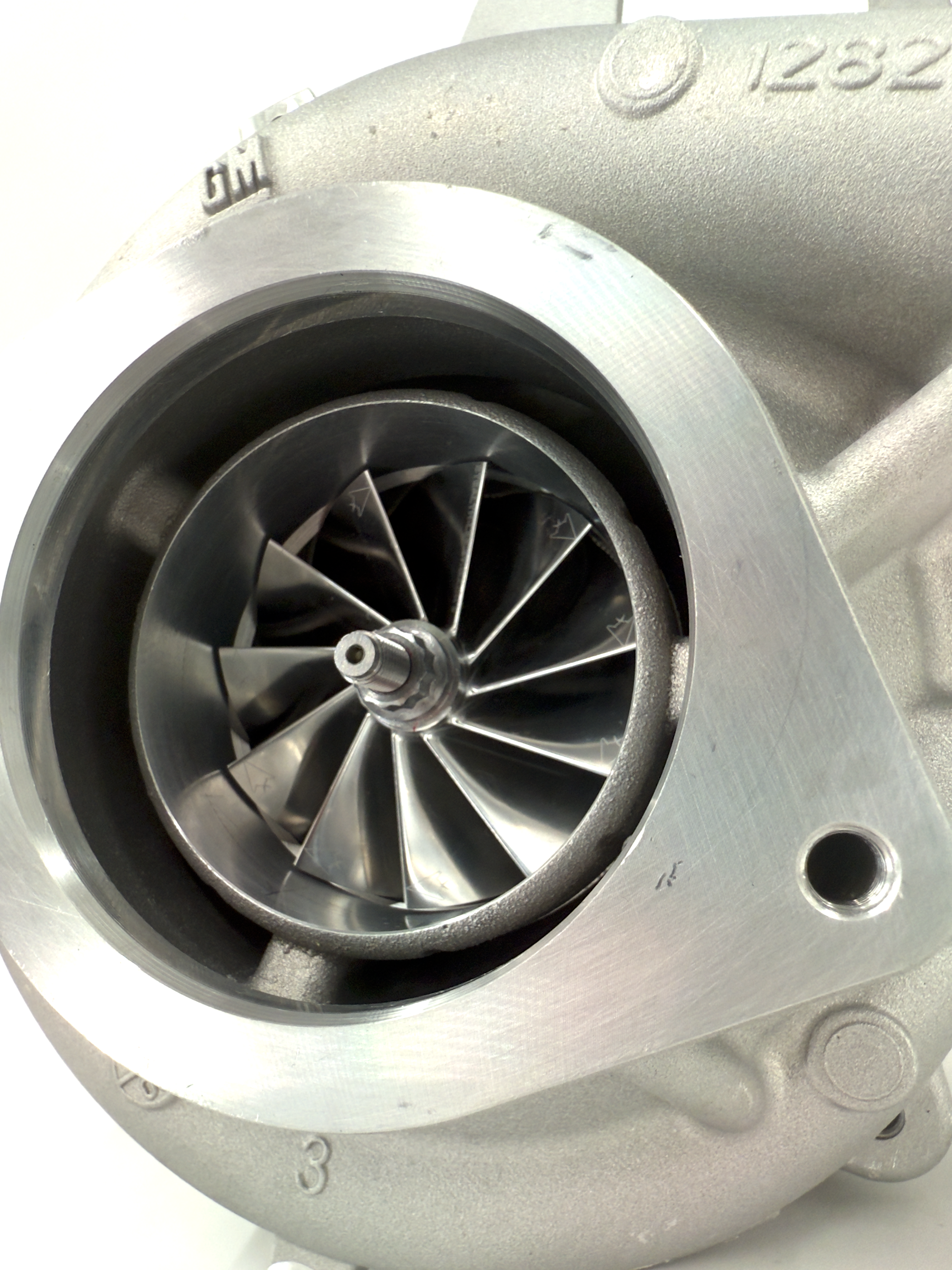

  • Custom Billet Compressor Wheel
    • 67mm 11-Blade extended tip billet compressor wheel
    • Provides a wide efficiency range
    • Less surge prone than other compressor wheel designs
    • Lightweight and high strength
    • Provides 81 lbs/min mass airflow compared to 60lbs/min stock

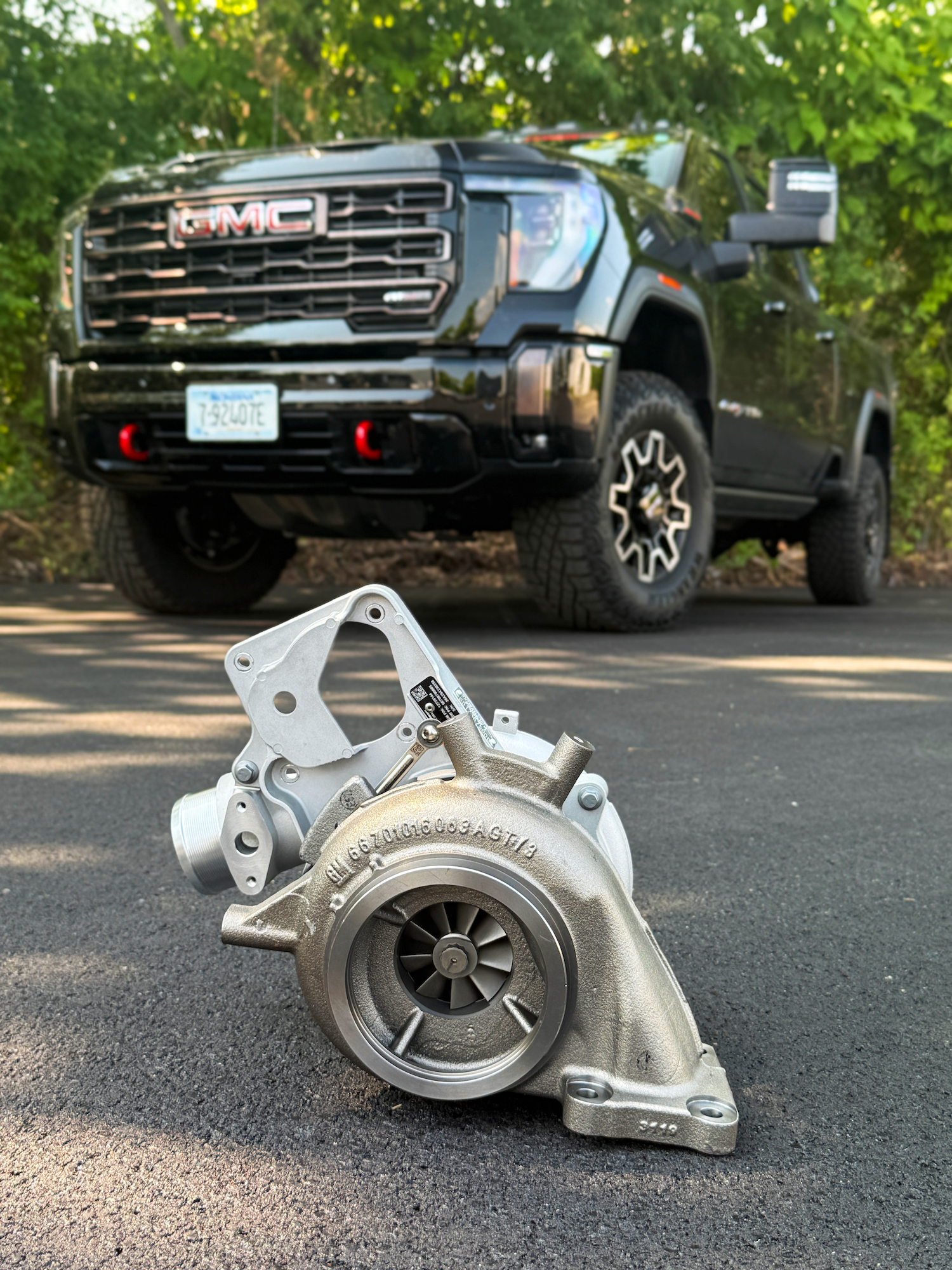

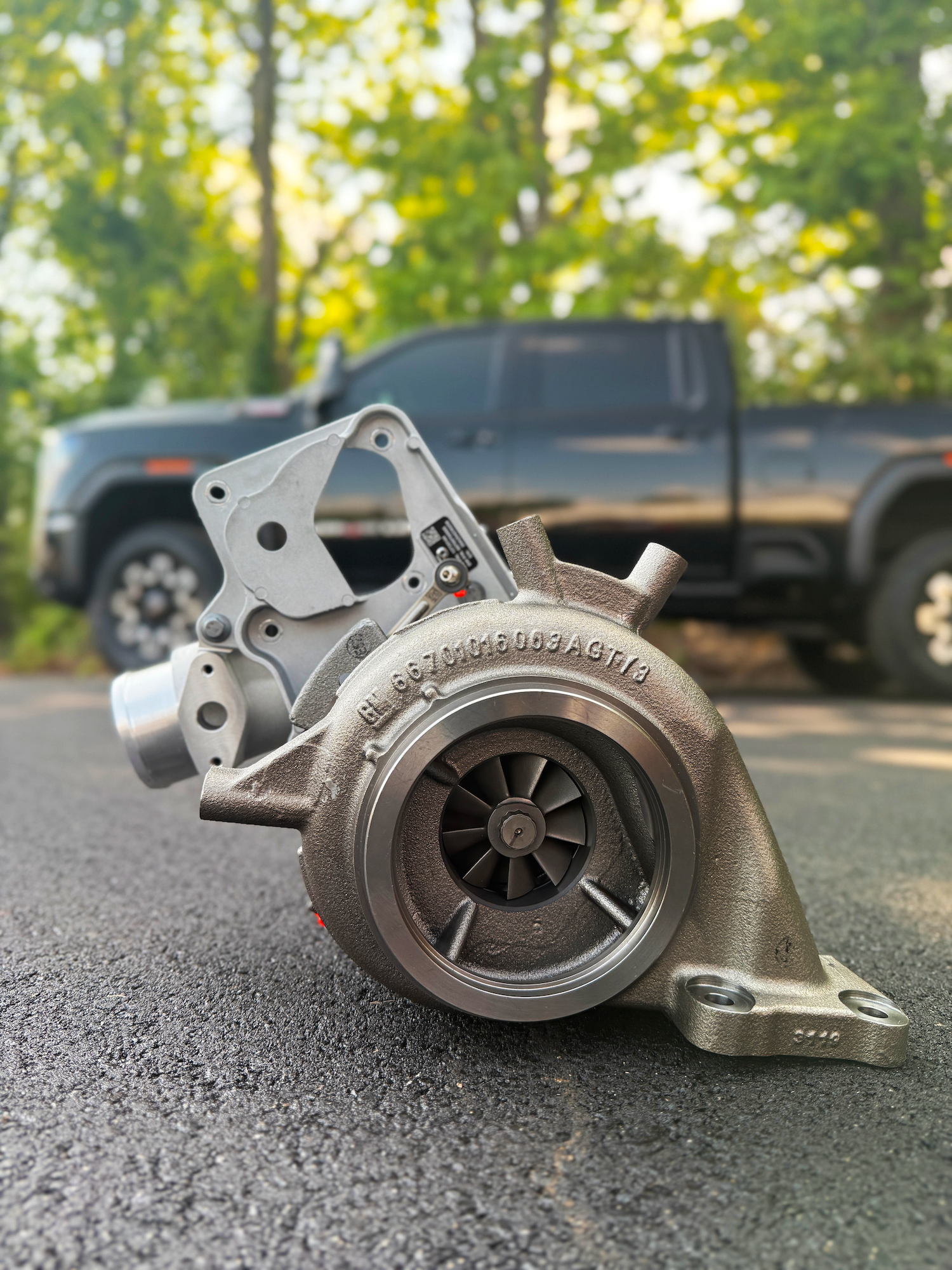

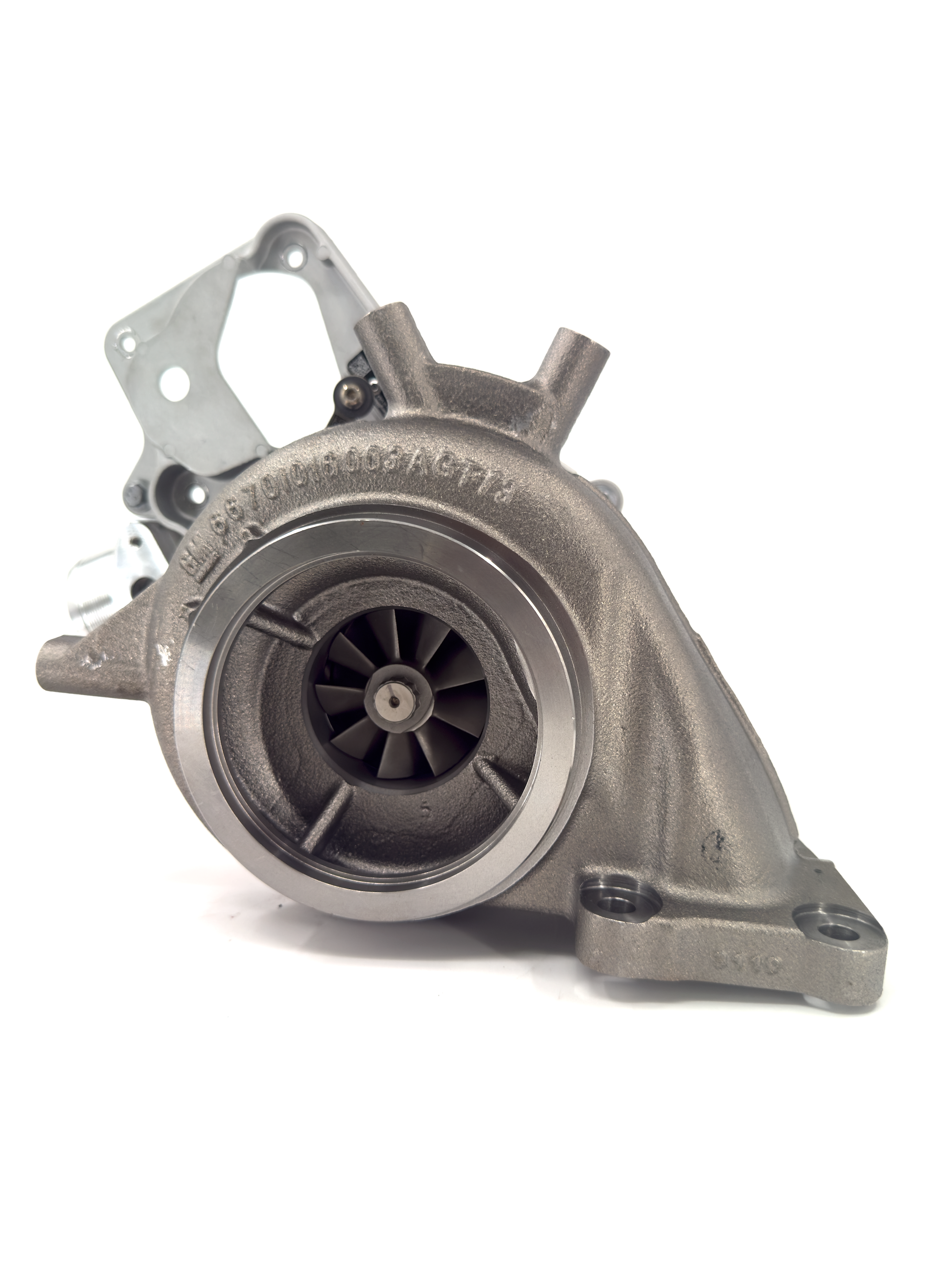

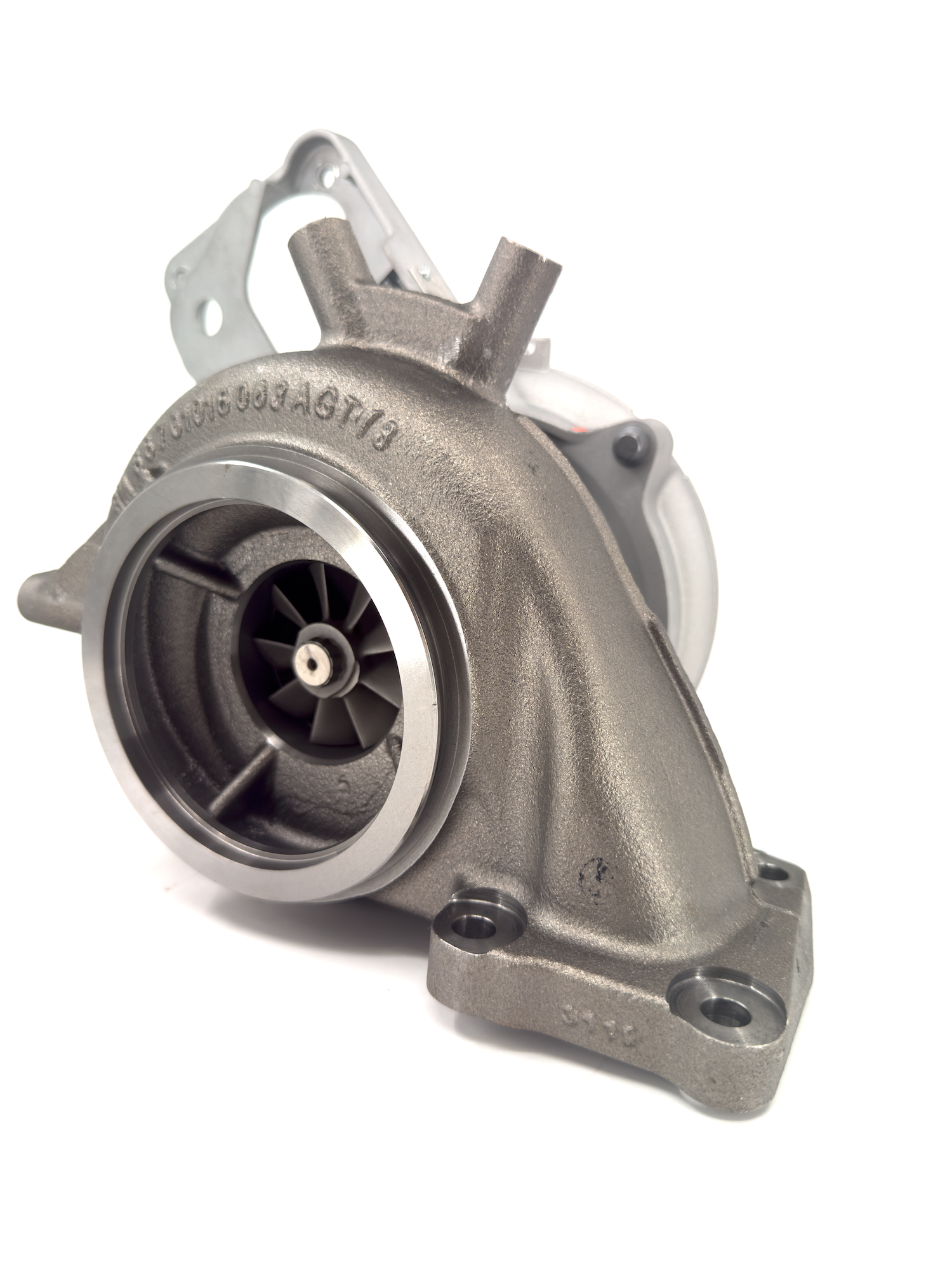

  • Custom 9-Blade Turbine Wheel
    • Larger than stock
    • More aggressive blade angle for better exhaust energy capture
    • Sized to maximize throttle response for 750hp capability
    • 50% Thicker turbine blades for added heat tolerance
    • Lower drive pressure under high loads
    • Lower EGT's under high loads
    • Boosts effectiveness of compressor wheel upgrade
    • Produces a distinctive Stealth turbo whistle
  • Custom Vane Cage
    • Allows the fit of larger custom turbine wheel
  • Lighter Rotating Assembly Than Stock
    • Provides snappy spool-up comparable to factory turbo
    • Precision balanced in-house
  • Brand New parts and electronics
    • No Core Charges
    • Castings may vary based on parts availability

Calibrated Power's product page adds two details: the compressor wheel is billet 2618, and the 9-blade turbine wheel measures 66.4 mm and is 713C.

About Calibrated Power Solutions (DuramaxTuner)

Calibrated Power Solutions, the company behind DuramaxTuner.com, is a diesel calibration shop founded by Nick Priegnitz. It started in Marengo, Illinois and now runs a full-service diesel performance and repair shop in Woodstock, Illinois, with a 4WD chassis dyno. It built its name on making power with the emissions equipment left in place, and its Stealth drop-in turbos come in STR, Mach 1 and Mach 2 tiers.

Frequently asked questions

Do I need a tune to run the Stealth Mach 2?

The turbo runs on the factory actuator and calibration for basic operation. To get the power it is sized for, plan on custom tuning; Calibrated Power lists the Mach 2 as its custom-tune tier. The company supplies tailored instructions so your tuner can dial it in without a string of revisions. Its 12-month warranty requires tuning that keeps the stock vane-position tables.

How is the Mach 2 different from the Stealth STR?

The STR (CPS200157) is the milder drop-in for 2024-2025 L5P trucks: a 63 mm billet compressor rated at 66 lbs/min against 60 stock, the factory exhaust brake retained, and no custom tuning needed. The Mach 2 steps up to the 67mm compressor at 81 lbs/min and a larger turbine, and it is meant for trucks with a tune and a modified fuel system.

Can I run it on a California truck?

No. Stealth turbos cannot ship to California and do not fit California-emissions trucks. Calibrated Power cites a SEMA Garage emissions certification, SC-CPS01-0194, for this turbo, but that is not a CARB Executive Order. If your state inspects emissions, call us before you order.
