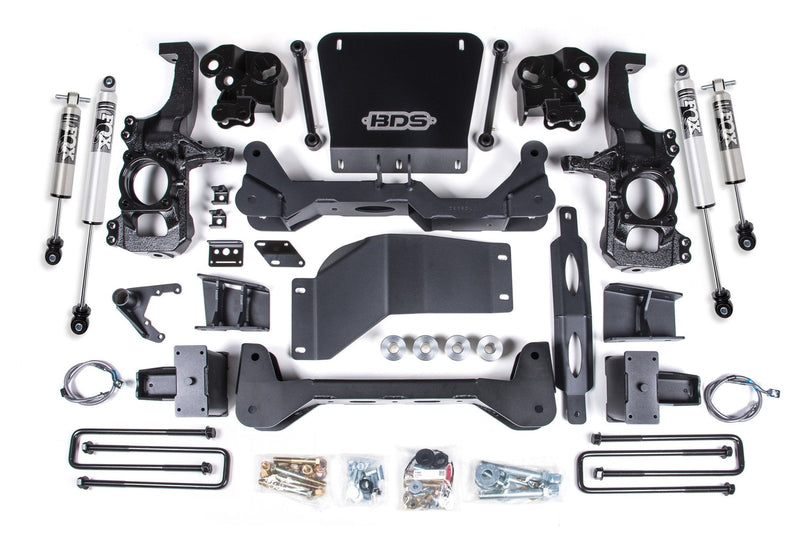

Take your 2020-2024 Chevy Silverado and GMC Sierra 2500 HD/3500 4WD to the next level by installing this 5-inch lift kit by BDS Suspension. For maximum ground clearance, BDS designed a No Torsion Bar Drop System where the torsion bars are mounted directly to the top of the lower a-arm eliminating the need to drop the torsion bar cross-member. Designed to improve the stance, performance, and capability this kit includes everything necessary to set your truck up right with clearance for up to 37 inch tires.

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great onroad handling characteristics. Up front, the kit utilizes torsion bar relocation brackets, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection.

Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops, stainless steel brake lines, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear BDS offers replacement lift blocks and u-bolts to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also included, BDS supplies brake line and ABS line relocation brackets allow the use of factory brake lines. Lastly are a matching set of NX2 Nitro or FOX 2.0 Performance Series shocks.

High Clearance Crossmembers

• BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

• BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function.

Features and Benefits:

• 2020-2024 GM 2500HD/3500HD 4wd 5 Inch Suspension Lift System, 4.5 Inch Rear Lift, Block, w/o overload Fox 2.5 HTO
• High Clearance design w/ no torsion bar drop maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• HD skid plate system improved offroad protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• Factory Protection Plus drivetrain warranty included
• FOX 2.5 gas shocks for improved performance

Notes:

• 1. Requires frame bracket modification.
• 2. Torsion Bar Tool required to load/unload torsion bars, The GM specified tool is part number CH48809.
• 3. Models with two-piece rear driveshafts will require a carrier bearing drop kit.
• 4. Factory 17-18 inch wheels cannot be reinstalled due to tie rod end interference, stock 20 inch wheels can be reinstalled with up to a 35x12.50 tire.
• 5. In some cases vehicles used in 4WD on the highway regularly could potentially experience a minor front driveline vibration. If this occurs we recommend replacing the front driveshaft with a dual Cardan style driveshaft.
• 6. Some minor trimming will be required with certain wheel/tire combination. This is normal with most aftermarket tire/wheel fitment on Chevy/GM trucks. Trimming will normally included the bottom edge
• 7. Will Not work with AT4X or ZR2 models, lower control arm profile is different

Kit Components:

Includes Two FOX98724024,BDS 2020-ON GM 2500/3500, Front, 2.5 Truck PS, IFP, 6.5 Inch Lift, HTO, UPC Code 692878899376
Includes Two FOX98724024,BDS 2020-ON GM 2500/3500, Rear, 2.5 Truck PS, IFP, 6.5 Inch Lift, HTO, UPC Code 692878899383
Includes One BDS021690,2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 5 Inch-6.5 Inch Knuckle Box Kit - Drv, UPC Code 658848615179
Includes One BDS021691,2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 5 Inch-6.5 Inch Knuckle Box Kit - Pass, UPC Code 658848615186
Includes One BDS021692,2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 5 Inch-6.5 Inch Front Box Kit 1of2, UPC Code 658848615193
Includes One BDS021693,2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 5 Inch-6.5 Inch Front Box Kit 2of2, UPC Code 658848615209
Includes One BDS021505,2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 5 Inch Box Kit, UPC Code 658848614714
Includes One BDS121661,2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 5 Inch-6.5 Inch Skid Plate Box Kit, UPC Code 658848619276
Includes One BDS011416,2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 5 Inch Rear Box Kit - w/o Overloads, UPC Code 658848611829
