Call or Text (352) 722-5295The oil system on the 2003-2004 5.9L Cummins
Everything that touches oil on the 2003-2004 Cummins is in this group: the oil pan and pan gasket, the pickup tube, the oil pump, the filter housing, the engine oil cooler and its gasket to the block, the filter and the oil itself. One part outside the engine depends on it too. The 2003-2004 turbo is oil-fed and oil-drained only, and its center section is not water-cooled. That is why a cool-down idle of 30 seconds to 3 minutes after towing matters: it keeps oil from coking in the turbo's bearing housing.
Service intervals and what changes them
The factory schedule calls for 12 quarts with a Fleetguard FL16035 filter, every 15,000 miles or 12 months under normal use and every 7,500 miles or 6 months under severe use. Grade depends on climate: 15W-40 above 0 degrees F, or 5W-40 full synthetic in all temperatures. Modified trucks are a different story. TDR writers running modified common-rail engines favored much shorter changes, in the 4,000 to 4,500-mile range. If your truck tows heavy or has added power, lean toward the shorter end.
Stock replacement vs. upgrade

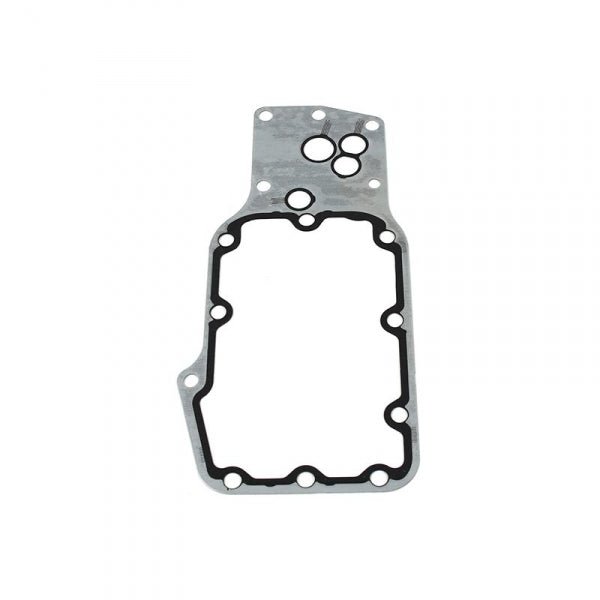

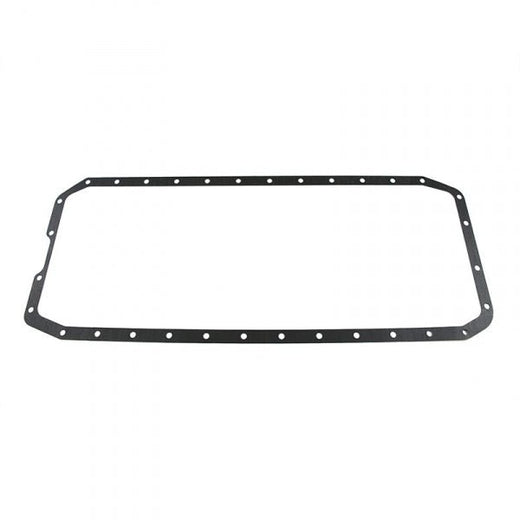

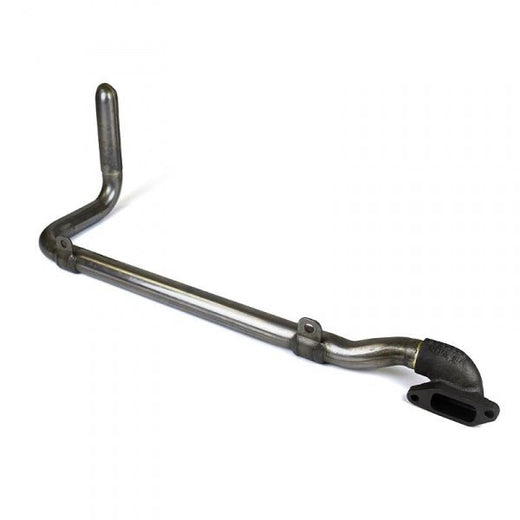

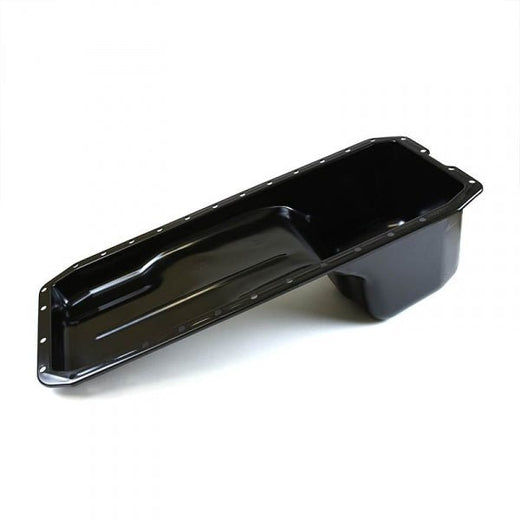

For stock service and repair, Cummins genuine parts cover the oil pump, oil pan, pan gasket, pickup tube, filter housing, oil cooler, oil cooler gasket and dipstick tube, and MAHLE adds a pan gasket and the OC1001 oil filter. Dorman offers an oil pan listed for 2003-2012, and Mishimoto a replacement engine oil cooler for 2003-2007 5.9L engines. Small upgrades include the Mishimoto magnetic drain plug, the XDP black-phosphate oil pan bolt kit and the PPE MicroPure XR filter. For oil, Hot Shot's Secret Green Diamond and Blue Diamond 5W-40 full synthetics, Green Diamond and Black Diamond Outlaw 15W-40s, and the Lucas 15W-40 CK-4, Synthetic 15W-40 CK-4 and Magnum High TBN 15W-40 all match the factory grades. The grid also shows other grades, such as 0W-20, 10W-30 and 20W-50, and the ADRENALINE R-Series line; for a 2003-2004 5.9L, stick to 15W-40 or 5W-40. Additives such as Lucas Heavy Duty Oil Stabilizer, Hot Shot's TBN Booster and FR3, and XDP X-Factor are here for owners who use them, and Lucas TB Zinc Plus is a break-in additive for a fresh engine.
What we carry
Hot Shot's Secret and Lucas Oil supply diesel engine oils and additives. Cummins genuine parts cover the pump, pan, cooler, filter housing and gaskets. MAHLE adds a filter and gaskets, Mishimoto the oil cooler and magnetic drain plug, PPE the MicroPure XR filter, and Dorman an aftermarket oil pan. XDP rounds it out with the pan bolt kit and X-Factor additive.
Fitment notes
These parts fit the Dodge Ram 2500 and 3500 with the 5.9L Cummins, not the Ram 1500. The Cummins pan, pan gasket, pickup tube and oil cooler are listed for 2003-2007, while the Dorman pan runs 2003-2012 and the oil pump and filter housing run 2003-2018, so those also fit later 5.9L and 6.7L trucks. The Mishimoto drain plug lists 1989-1993 and 2002-2013. Filters list broad ranges back to 1989. Oil and additives are not truck-specific; match the grade to the factory spec above. When a range looks close, verify by VIN.
Frequently asked questions
How much oil does a 2003-2004 5.9L Cummins hold?
12 US quarts with the filter. Use 15W-40 above 0 degrees F or a 5W-40 full synthetic in any temperature. The factory filter is a Fleetguard FL16035, and the MAHLE OC1001 and PPE MicroPure XR filters here are listed to fit.
How often should I change the oil?
The factory interval is 15,000 miles or 12 months for normal service and 7,500 miles or 6 months for severe service. TDR writers running modified common-rail trucks favored changes every 4,000 to 4,500 miles. If the truck tows or has been modified, the shorter interval is the safer bet.
Why should I idle the truck after towing?
The 2003-2004 turbo is cooled only by the oil running through it; its center section is not water-cooled. Shutting down hot can coke oil in the bearing housing, so give it 30 seconds to 3 minutes at idle after a hard pull or a long tow.
Not sure what fits? Call the shop at the number in the header, or use the fitment checker on any product page. We install everything we sell.
