Part #: BDS671PSS

BDS Suspension Inch Lift Kit FOX 2.5 Performance Elite Coilover (2014-2018 3.0L EcoDiesel 4WD)

Sale price$5,067.99
Rear Lift Option: 3 inch Coil Springs
Rear Shock Option: FOX 2.0 Performance Series
Get It Installed at Our Shop
Skip the Driveway — Our 9-Bay Diesel Shop in Wildwood, FL can Install this for You.

Request Installation

Come to Our 9-Bay Diesel Shop in Wildwood, FL — Fill Out the Request Form to Schedule.

Part: BDS Suspension Inch Lift Kit FOX 2.5 Performance Elite Coilover (2014-2018 3.0L EcoDiesel 4WD)
Secure Checkout
Genuine Parts
Fast Shipping
Diesel Experts
Not sure this fits your build? Call or Text Us: (352) 722-5295 Save Contact

Diesel Dollars is Southern Diesel Supply's Loyalty Program. Purchasing with Us Earns you 1 Point for every 1 Dollar spent to use for future buys!

By ordering the BDS Suspension Inch Lift Kit FOX 2.5 Performance Elite Coilover (2014-2018 3.0L EcoDiesel 4WD) you will earn 5068 DIESEL DOLLARS in your SDS Fuel Tank!

**You will be contacted and charged separately about shipping cost.**

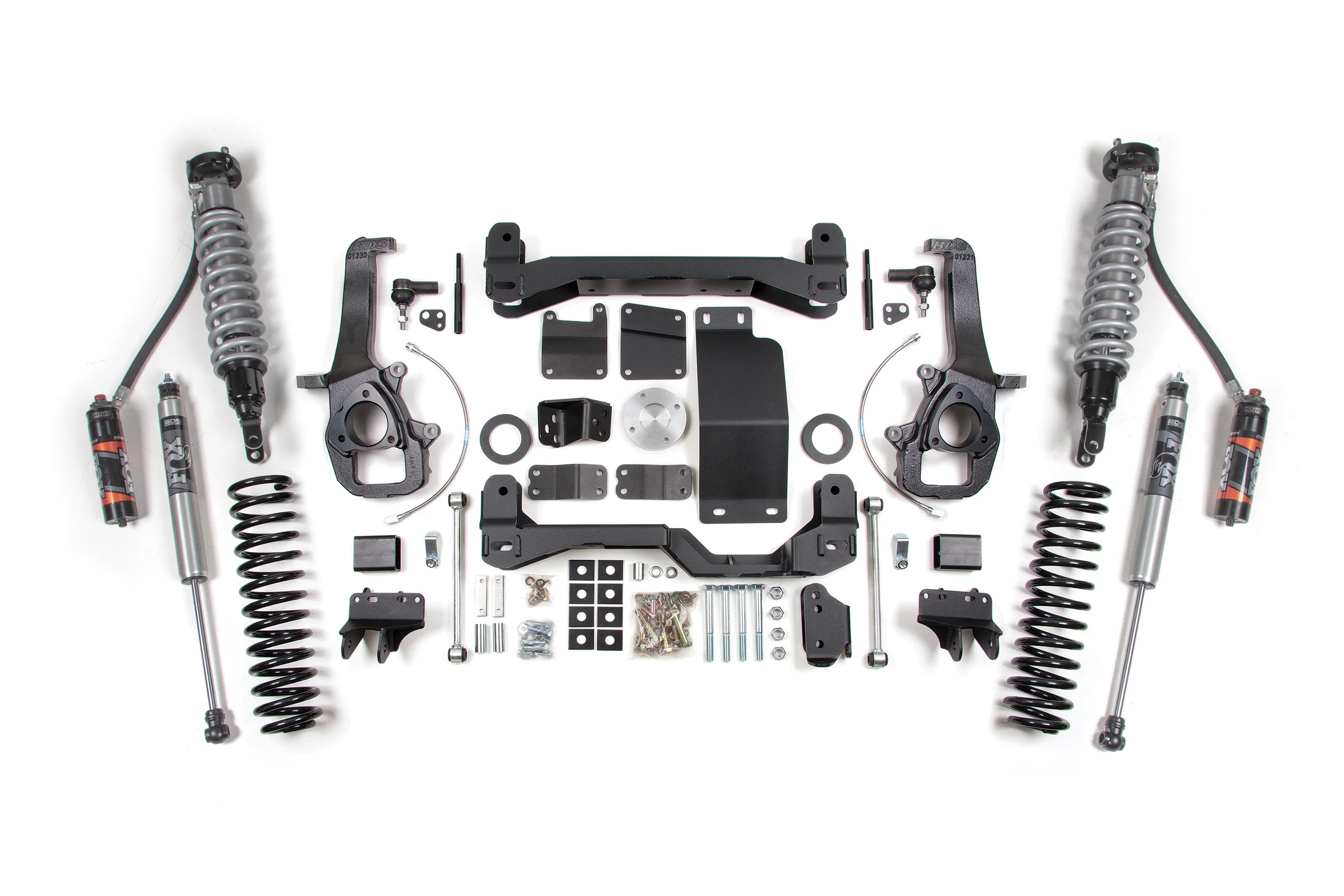

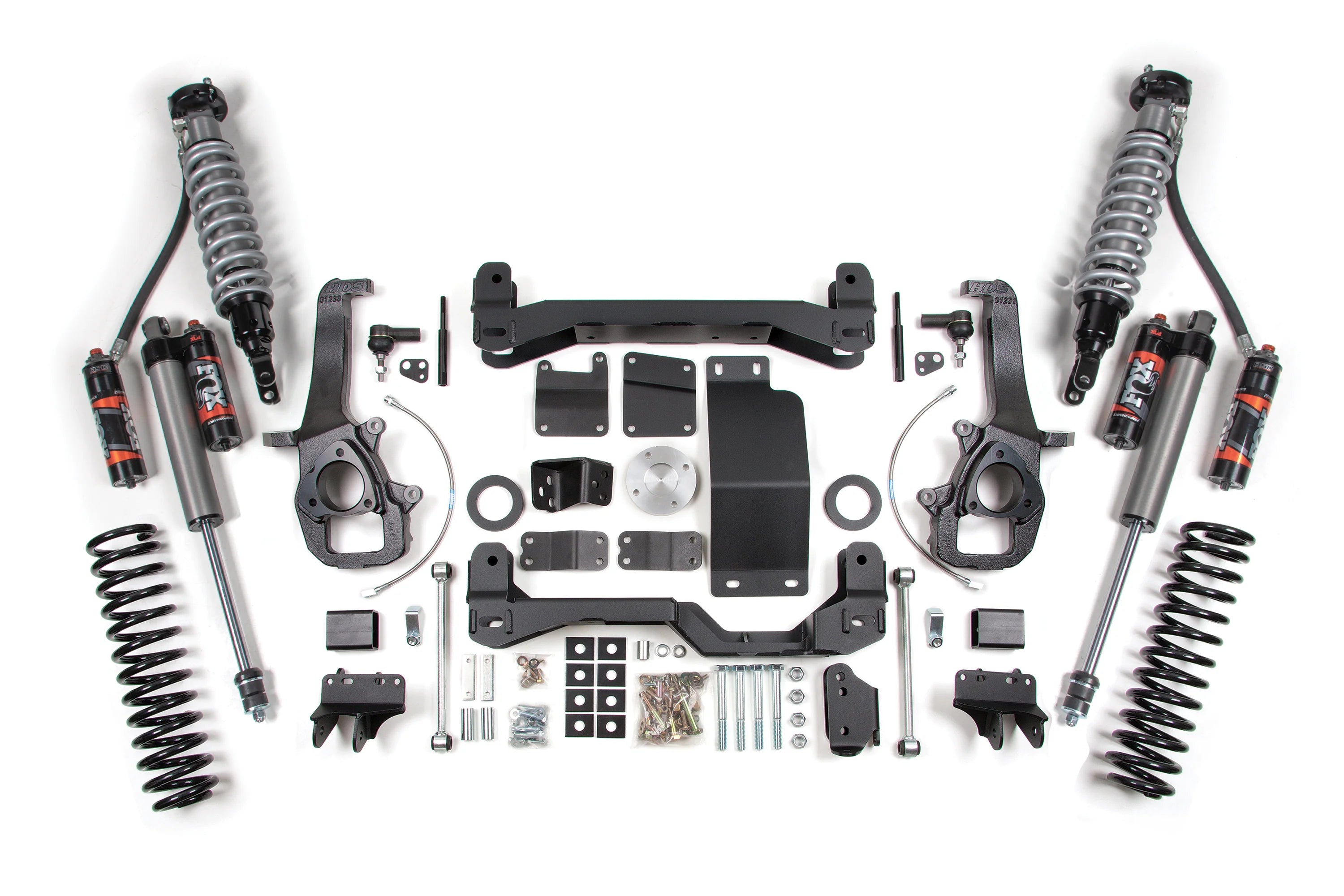

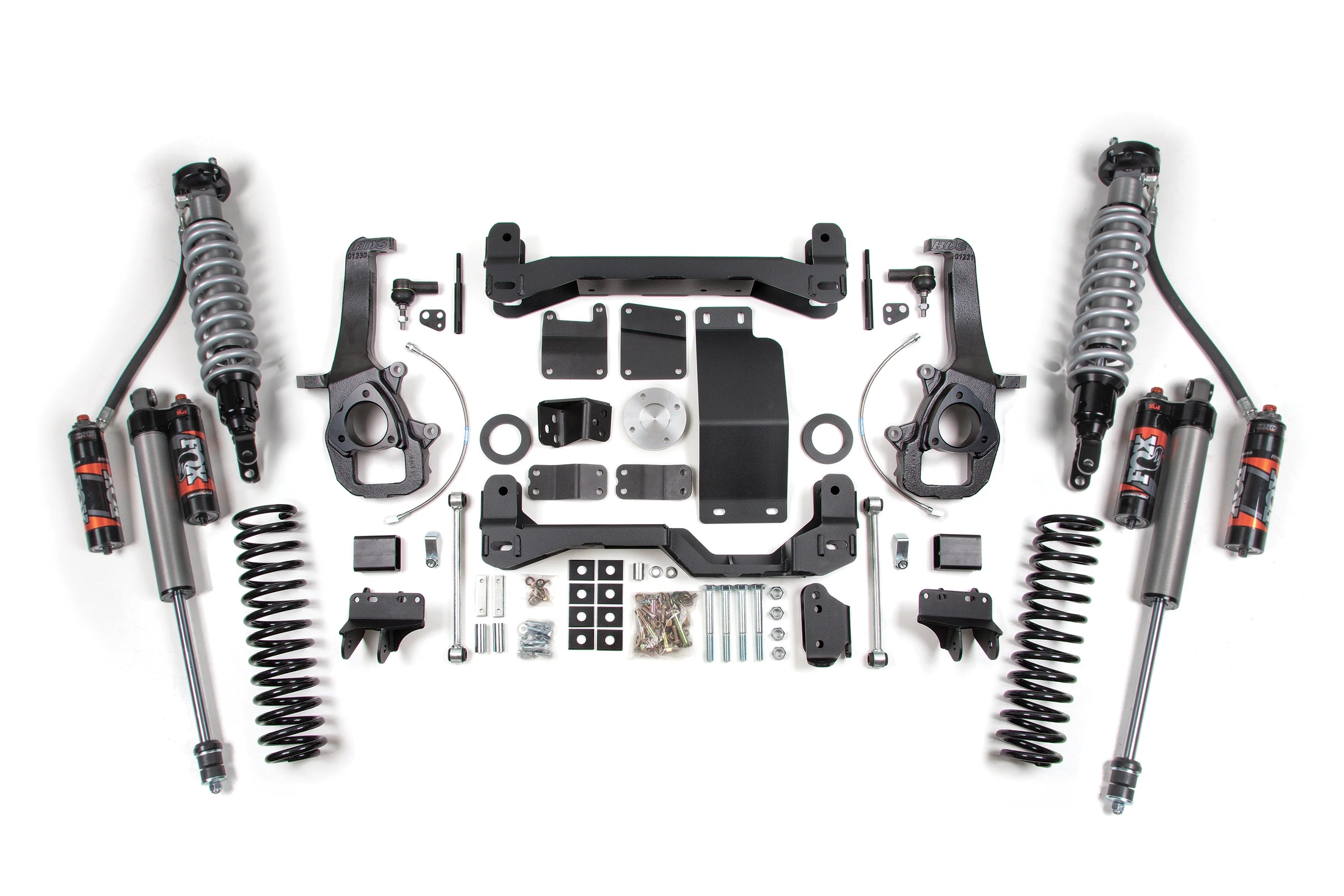

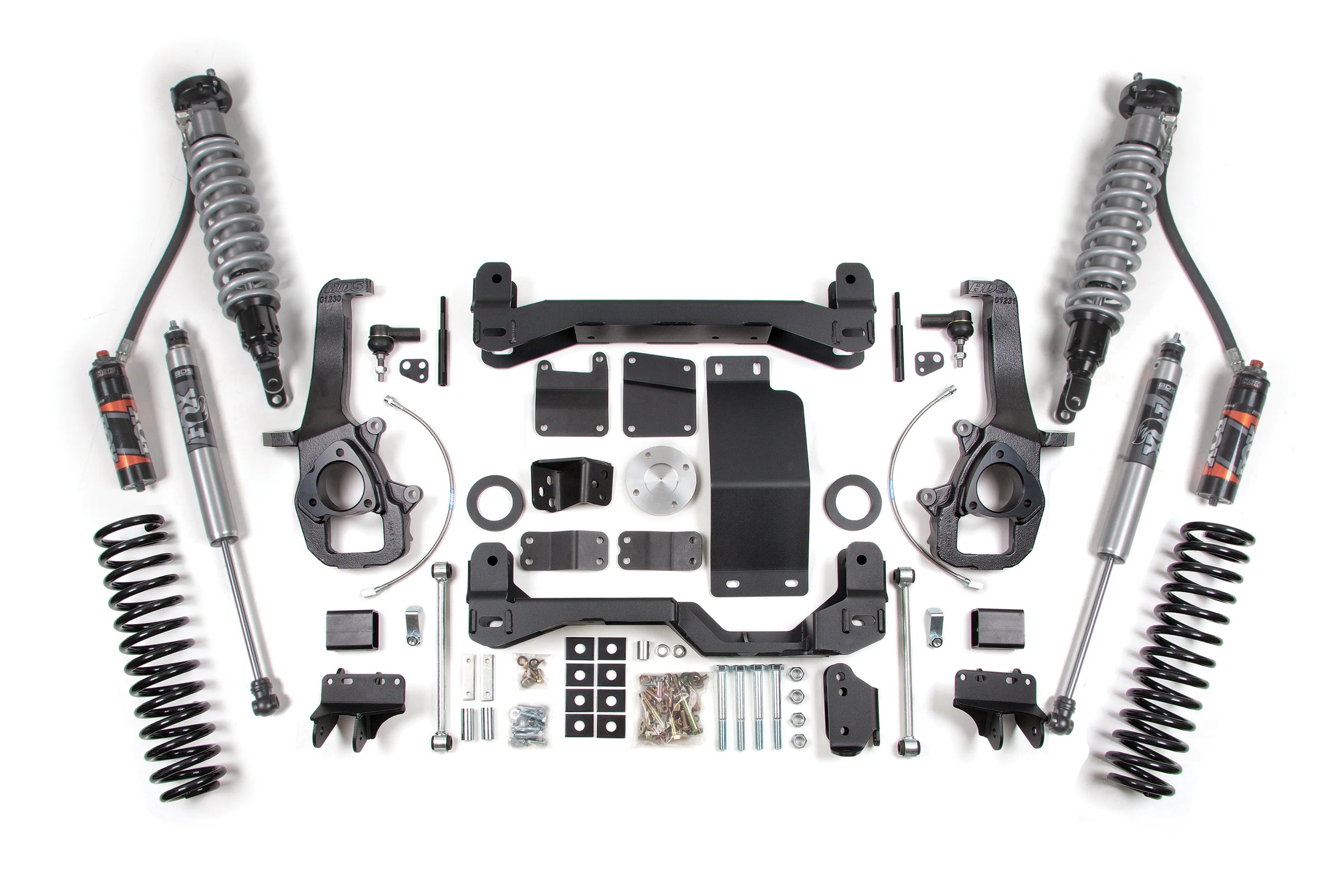

This BDS 6" Coilover Lift Kit is designed for unmatched performance, stance, and strength. This premium system clears up to 37" tires and replaces factory components with heavy-duty, high-clearance parts built to handle any terrain.

Front:


FOX 2.5 Performance Elite Coilovers w/ DSC – adjustable damping for ultimate control on- or off-road

¼" steel high-clearance crossmembers and

HD skid plates for strength and protection

CNC-machined ductile iron steering knuckles maintain proper geometry and ESC compatibility

Rear:

Progressive-rate Pro-Ride coils for comfort and control

Relocation brackets correct pinion and axle geometry

Choice of FOX 2.5 Performance Elite or FOX 2.0 Performance Series rear shocks


Engineered for performance, durability, and ride quality — this BDS 6" Coilover Lift Kit transforms your RAM 1500 into a confident, capable powerhouse on any road or trail.

Features & Benefits

  • High clearance crossmember design maximizes ground clearance
  • Robust steering knuckles maintain ESC system compliance
  • HD skid plate system improved offroad protection
  • Multipoint differential relocation brackets to secure the front axle and improve CV angles
  • Choice of FOX 2.0 Performance Series or 2.5 Performance Elite rear shocks.
  • Factory Protection Plus drivetrain warranty included

Recommended Tires & Wheels

(Trimming may be required)

  • 37 x 12.5 with 17 x 9 and 4.5 in. Backspace
  • 37 x 12.5 with 18 x 9 and 5 in. Backspace
  • 37 x 12.5 with 20 x 9 and 5 in. Backspace

Rear Lift Option

BDS Pro-Ride Coil Spring

  • Progressive rate for the perfect blend of comfort and performance
  • 5 inches of rear lift to maintain a tail high stance
  • 3 inches of rear lift to provide a more level stance

Rear Shock Option

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

FOX 2.5 Performance Elite Series

  • Increased off-road capabilities
  • Easily adjust your shock for terrain, load and speed
  • 2.5-inch Impact extruded aluminum body
  • Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
  • External reservoir design separates shock oil from the high-pressure nitrogen
  • DSC - Dual Speed Compression Adjuster comes standard
  • Fully serviceable for a lifetime of use
  • 1-year Manufacturer's Warranty
