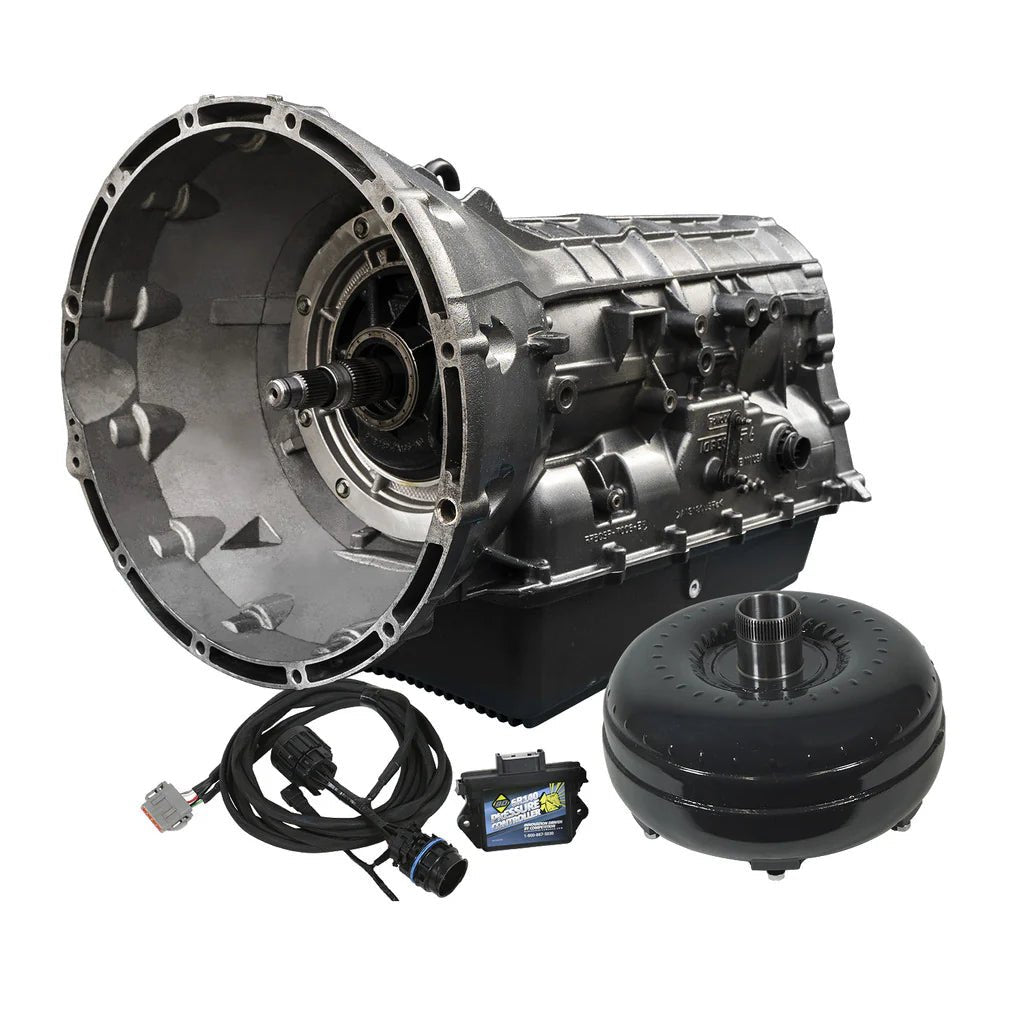

BD Diesel 1064504BM Torquemaster 6R140 Transmission & Converter Package (2011-2016 Powerstroke)
Want this installed at our shop?
Fill out the form below and we'll reach out to schedule your installation.
Diesel Dollars is Southern Diesel Supply's Loyalty Program. Purchasing with Us Earns you 1 Point for every 1 Dollar spent to use for future buys!
By ordering the BD Diesel 1064504BM Torquemaster 6R140 Transmission & Converter Package (2011-2016 Powerstroke) you will earn 8525 DIESEL DOLLARS in your SDS Fuel Tank!
General Description
Order the BD Diesel 1064504BM TorqueMaster 6R140 Transmission & Converter Package from SDS to keep your vehicle on the road. When you purchase a BD transmission and torque converter package, you are getting a matched set that has been dyno tested together for ultimate performance, and reliability. Every transmission comes with BD's own Heavy Duty pan that adds extra fluid capacity. For towing, street or track, when it comes to a dependable transmission that will stand up to your diesel's power and torque demands, the clear choice is BD.
**You will be contacted and charged separately about shipping cost.**
Note:
- Will Need Ford Scanner.
- Transmission does not work with PTO models.
- Transmission is compatible with both 2wd and 4wd applications.
- Will not fit early 2011 trucks with 8-bolt flex plate - will have to update to 6 bolt flex plate.
- 2WD applications require the yoke adapter and rear mount bracket be transferred over during installation.
- Ford scanner required to update the TCM with the new solenoid code and initiate a relearn - very critical component to make sure the transmission works properly.
Features
TRANSMISSION FEATURES:
- Brand New Valve Body
- Clutch Count: Low Reverse 5
- Clutch Count: Forward 6 (20% Increase Over Stock)
- Clutch Count: Direct 6 (20% Increase Over Stock)
- Clutch Count: Intermediate 8(60% Increase Over Stock)
- Clutch Count: Overdrive 8 (14% Increase Over Stock)
- More Clutches Compared To Stock And Competitors

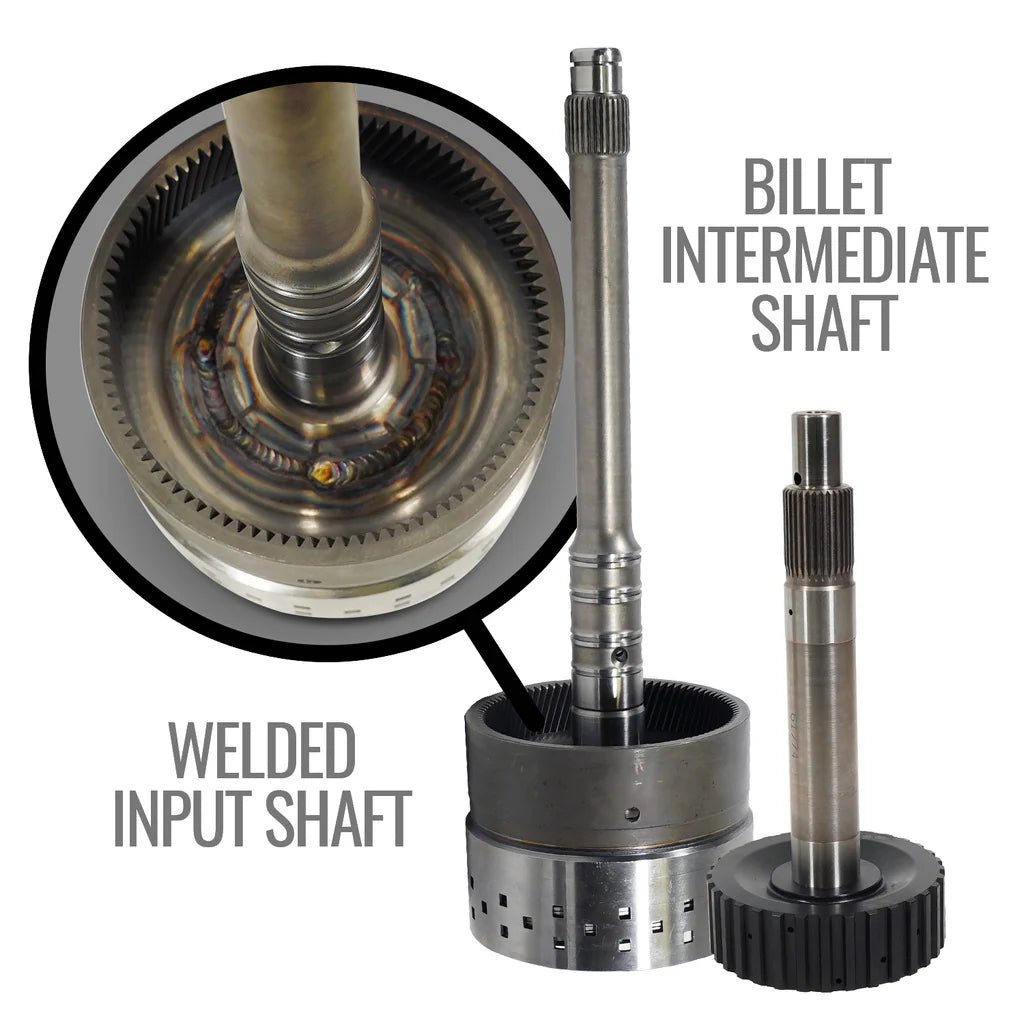

- Billet Intermediate Shaft To Handle Higher Power
- Upgraded Input Shaft Is TIG Welded To Prevent OEM Weld Failure In Demanding Applications
- Custom BD Patented Pressure Plates Increase Clutch Count Without Sacrificing Part Strength
- Electronic Line Pressure Controller For Up To 300psi Line Pressure
PRESSURE CONTROLLER FEATURES:
- 76% More Theoretical Holding Power
- Delivers Up To 300psi Line Pressure At WOT
- Only Active When Boost Over 15psi, Unlike Solenoid Foolers Or Plugs Which Are Active All The Time
- Does Not Create Parasitic Load Or Extra Heat When Inactive
TORQUE CONVERTER FEATURES:
- Ideal Upgrade Converter For Heavy Tow Use Or Higher Horsepower
- Captured Clutch Design Maintains Good Drivability Feel
- Four Surface Clutch Assembly Doubles The OEM Friction Area
- Increased Count Of Steels Increases Heat Dissipation
- 23% Increased Piston Area For Additional Clutch Clamping Force
- Billet Bearing Hub, Piston And Clutch Retainer
- Stamp Forged 1-Piece Cover
- Furnace-Brazed Pump And Turbine Fins
