BD Diesel 1062224 Stage 4 Transmission Build-It Kit (2006-2010 Duramax)
Want this installed at our shop?
Fill out the form below and we'll reach out to schedule your installation.
Diesel Dollars is Southern Diesel Supply's Loyalty Program. Purchasing with Us Earns you 1 Point for every 1 Dollar spent to use for future buys!
By ordering the BD Diesel 1062224 Stage 4 Transmission Build-It Kit (2006-2010 Duramax) you will earn 2403 DIESEL DOLLARS in your SDS Fuel Tank!
General Description
The BD Diesel 1062224 Stage 4 Transmission Build-It Kit for your 2006-2010 GM 6.6L Duramax LBZ/LMM is the perfect option for those looking to rebuild their Allison transmission. These kits feature the same parts used by BD-Power in their own performance transmissions and come with the components needed for the seasoned builder to complete the job. *core charges apply.
Note: Transmission Build-It Kits are not covered by any warranty. Components are guaranteed to be free of defects upon receiving the products. However, the build and function of the transmission is the sole responsibility of the builder/installer.
Features
- Stage 4 Master Rebuild Kit
- gmc Includes Same Components Used In BD Diesel Transmissions

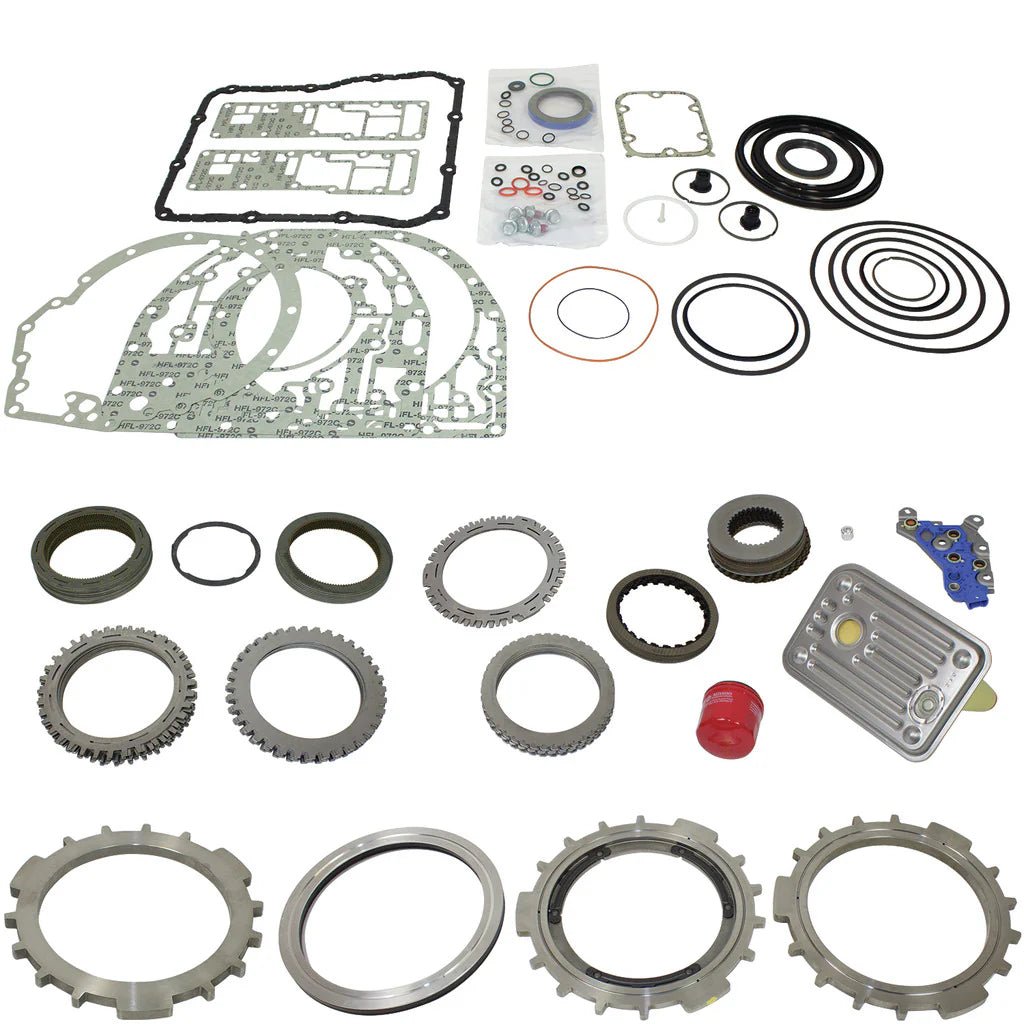

Kit Includes
(1) C1 Clutch Pack
(1) C2 Clutch Pack
(1) C3 Plate Assembly - Machined*
(12) C3/C4 Friction Plate
(2) C3/C4 Piston - Machined*
(10) C3/C4 Reaction Plate
(2) C3/C4 Spring Plate
(1) C4 Plate Assembly - Machined*
(7) C5 Friction Plate
(1) C5 Plate Assembly - Machined*
(7) C5 Reaction Plate - 097
(1) Crazy Washer
(1) Filter Main
(1) Filter Suction - Deep
(1) F-Trim Valve End Sleeve
(1) Overhaul Kit
(1) Pressure Switch Assembly
(1) Shift Kit
