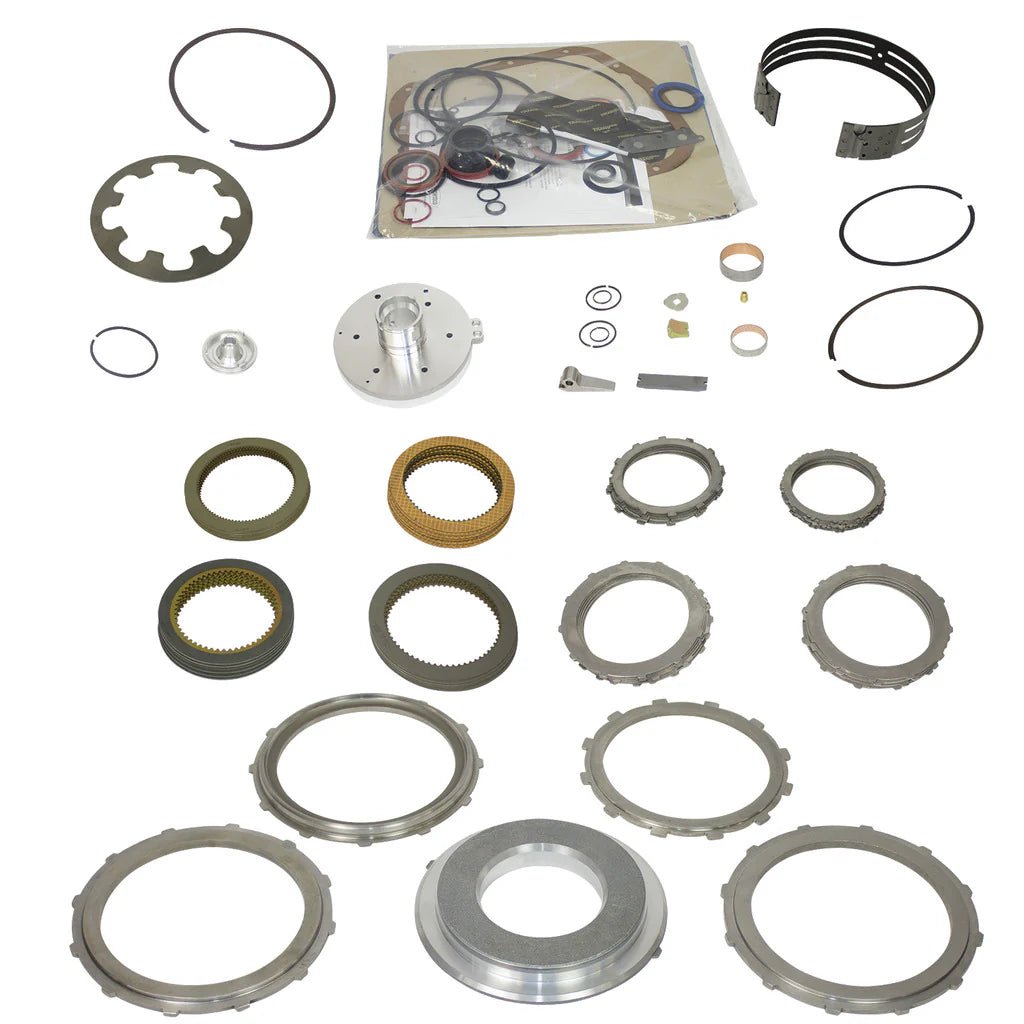

The BD Diesel 1062014 Stage 4 Transmission Build-It Kit for your 2003-2007 Dodge 5.9L Diesel is the perfect option for those looking to rebuild their transmission. These kits feature some of the same parts used by BD Diesel in their own performance transmissions and come with the components needed for the seasoned builder to complete the job. The Stage 4 kit is a Master Rebuild Kit that is designed for use in high performance applications or where the most strength is needed. This kit can handle many high performance applications with the proper associated parts such as billet shafts, multi-disc converters and more.

Note: Transmission Build-It Kits are not covered by any warranty. Components are guaranteed to be free of defects upon receiving the products. However, the build and function of the transmission is the sole responsibility of the builder.

• Stage 4 Heavy Duty Rebuild Kit
• For Durability & High Performance Use

(1) Band - High Temp

(1) Band Anchor - Billet|

(1) Accumulator Piston - Billet Dual Ring

(1) Bushing - Front Clutch Drum 0.85

(1) Bushing - Pump - Bronze W/Dimples

(6) Friction - 0/D BW

(10) Friction - O/D Direct BW

(1) Shifter Bracket & Lever Kit - 4.2 Ratio

(1) Gasket Kit - Overhaul

(1) Pressure Plate - Dir/Fwd (Frt) .145|

(1) Pressure Plate - Dir/Fwd (Frt) .185

(1) Pressure Plate Forward (Rr) Beveled Machined

(1) Pressure Plate 0/D Brake F&R Machined

(1) Piston - Dir. Clutch (Frt) Machined

(1) Plug - 1/8 NPT

(1) Piston Retainer Kit

(1) Servo Cover Ring

(1) Servo Piston Cover

(1) Snap Ring - Direct Clutch .062

(1) Snap Ring - Direct Clutch .074

(1) Snap Ring - Direct Clutch 088

(1) Rear Clutch Piston Spring

(4) Steel - Fwd (Dir/Hi/Rev)

(6) Steel - O/D Brake

(9) Steel - O/D Dir.525

(6) Steel - Frt (Dir/Hi/Rew) Oversize

(1) Strut - Front Band

(1) Washer - Int. Shaft Thrust .052
